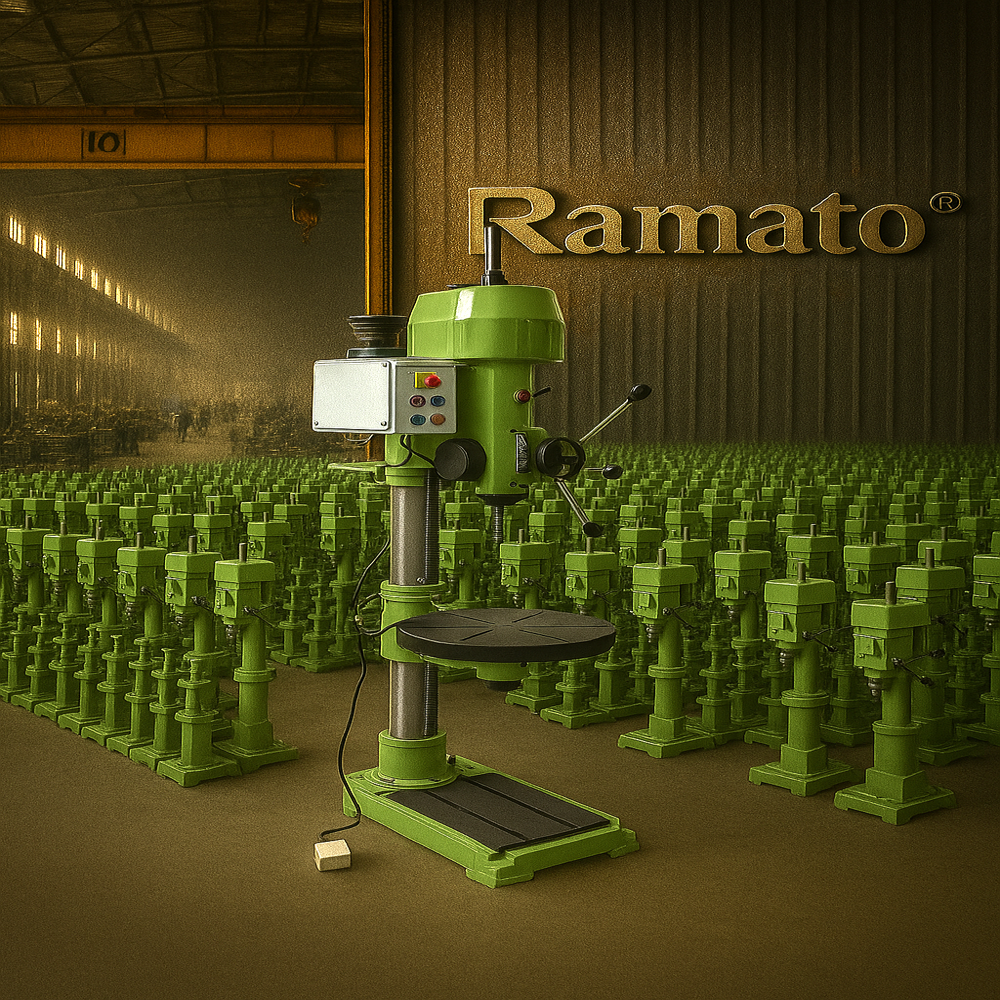

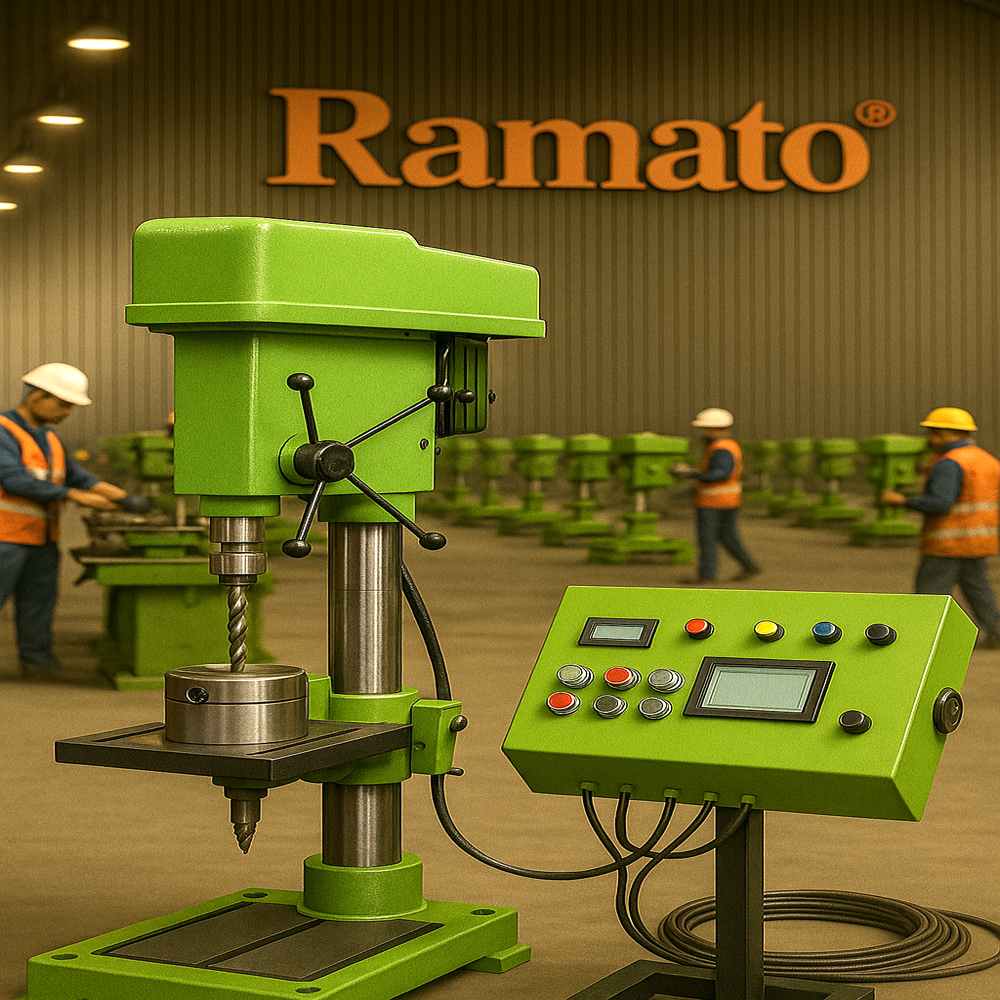

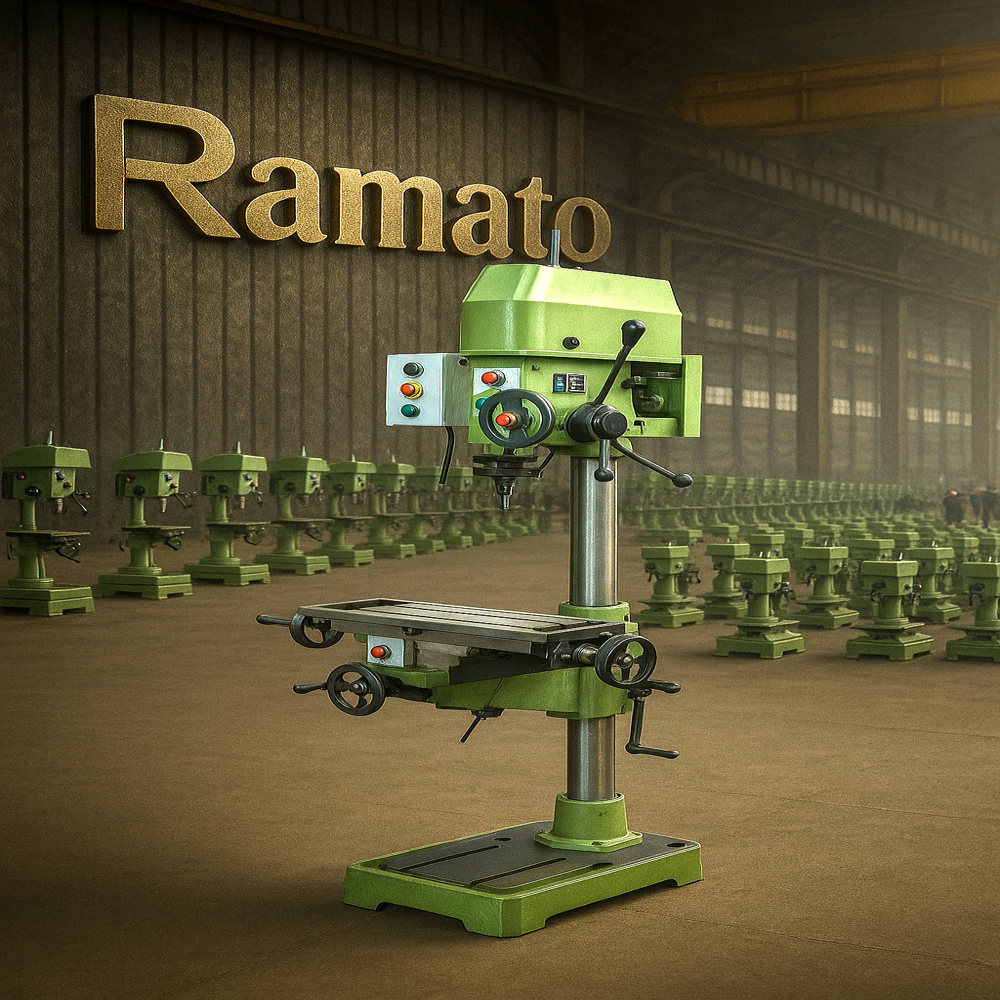

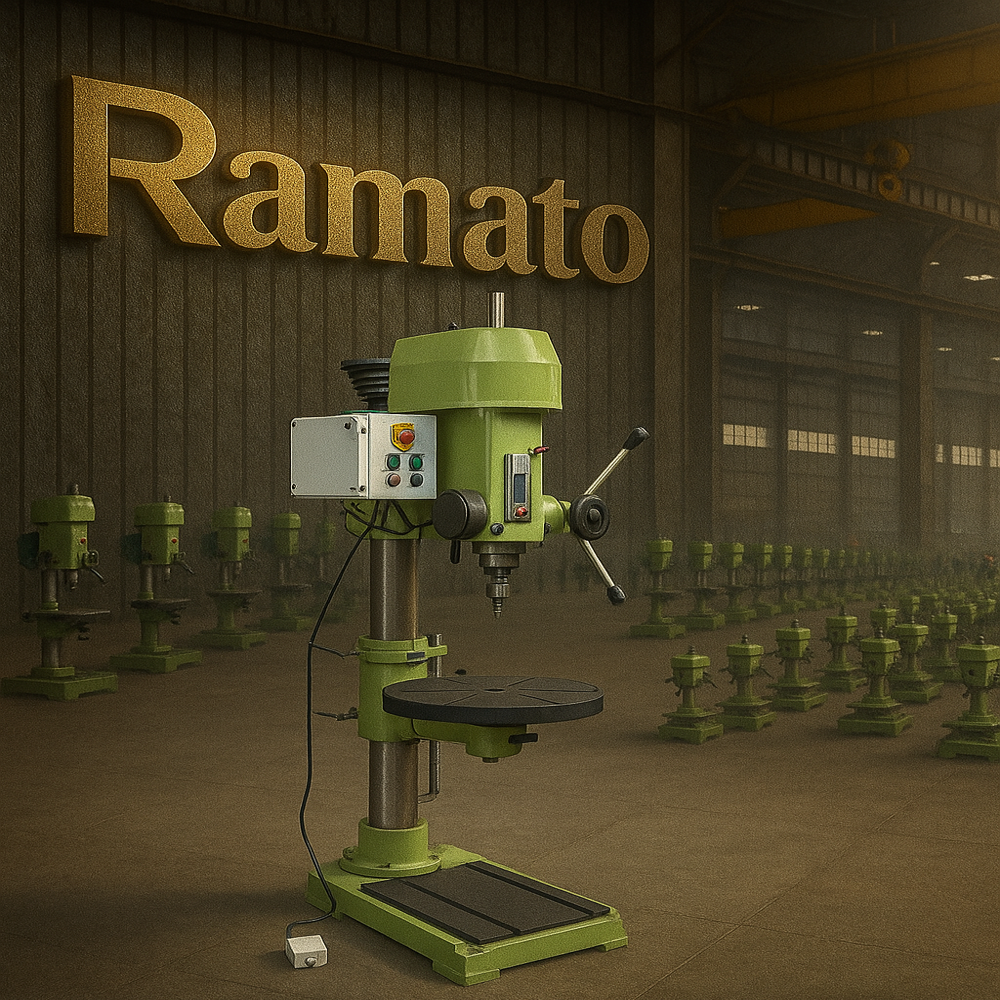

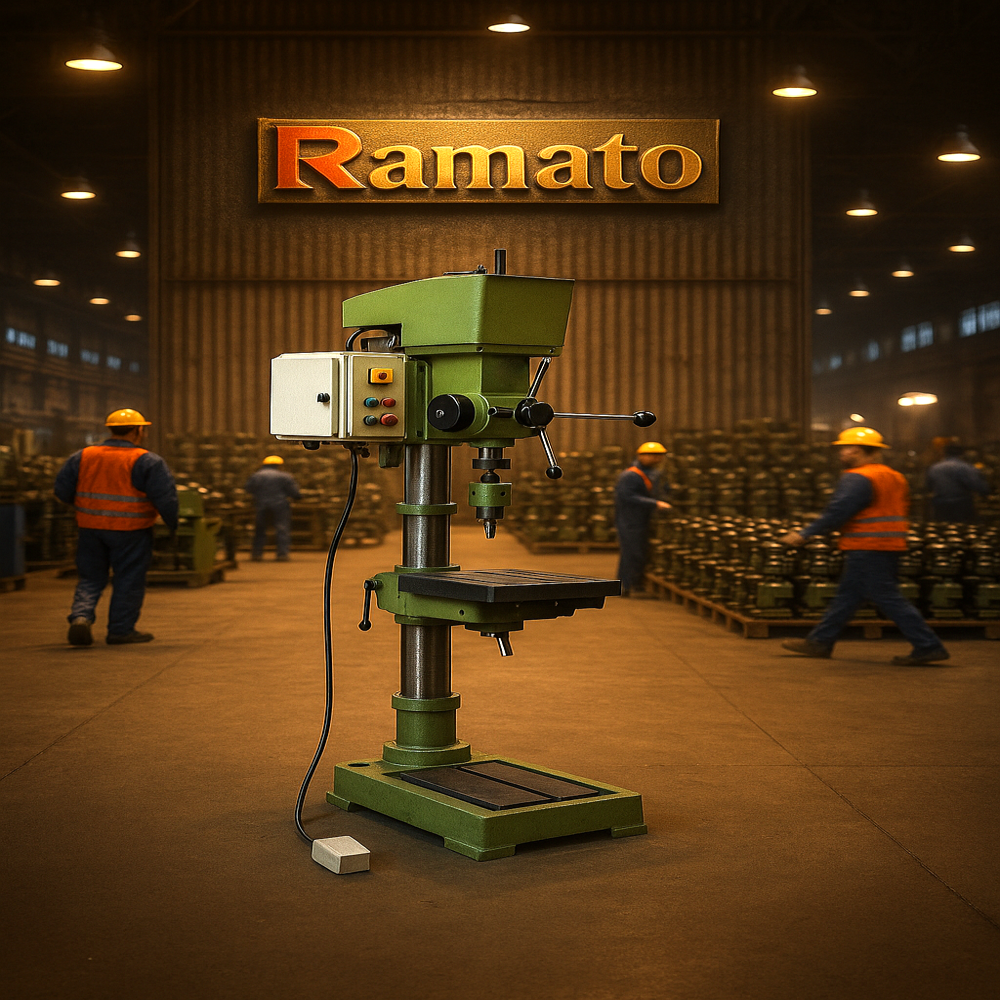

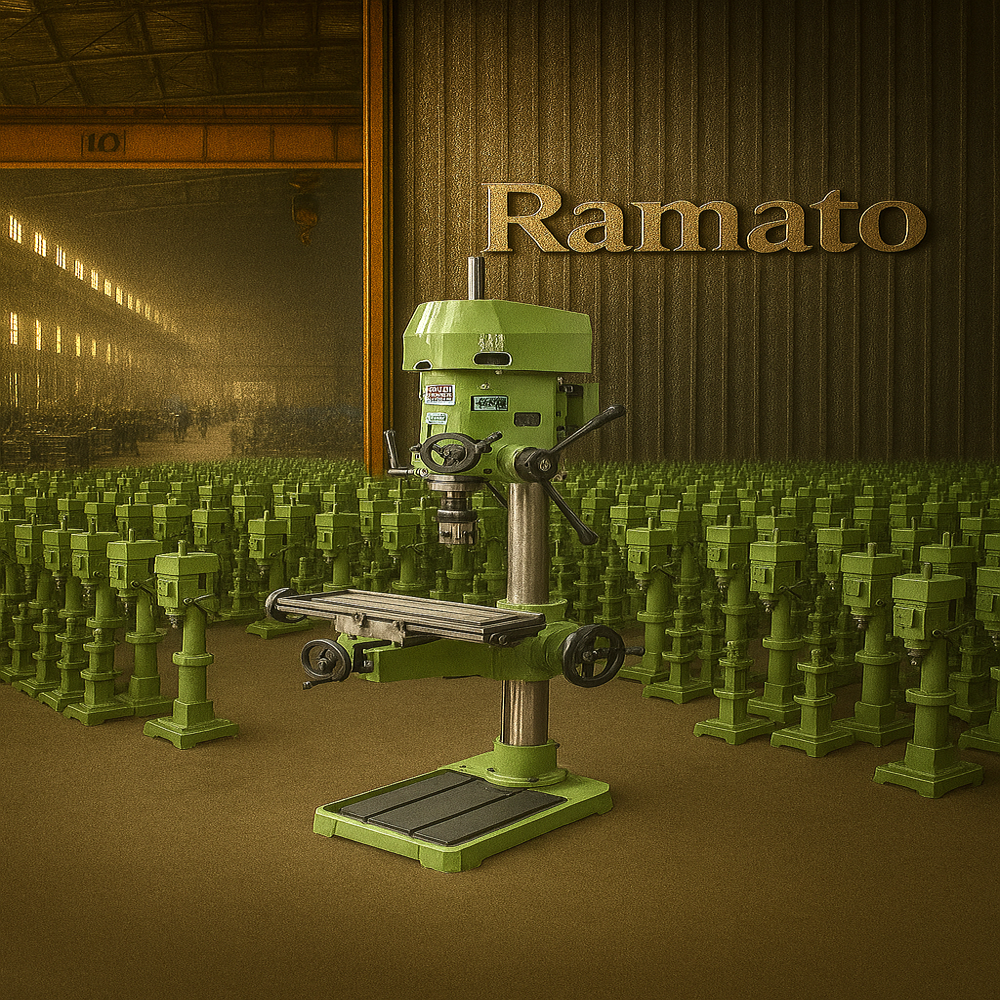

Industrial Drilling Cum Milling Machine
Industrial Drilling Cum Milling Machine
Industrial Drilling Cum Milling Machine
Industrial Drilling Cum Milling Machine
Industrial Drilling Cum Milling Machine
Industrial Drilling Cum Milling Machine
Industrial Drilling Cum Milling Machine
Industrial Drilling Cum Milling Machine
Industrial Drilling Cum Milling Machine
Industrial Drilling Cum Milling Machine
Industrial Drilling Cum Milling Machine
Industrial Drilling Cum Milling Machine

Industrial Drilling Cum Milling Machine

Price 40000.0 INR/ Unit

MOQ : 1 Unit

Industrial Drilling Cum Milling Machine Specification

  • Diameter
  • Max drilling diameter: 25 mm
  • Table Size
  • 800 mm x 250 mm
  • Spindle Speed
  • 80 - 2500 RPM (variable speed settings)
  • Motor Power
  • 2 HP - 3 HP
  • Noise Level
  • < 80 dB
  • Cutting Area
  • Variable as per job requirement
  • Dimension (L*W*H)
  • 1200 x 900 x 1800 mm
  • Frequency
  • 50 Hz
  • Features
  • Smooth operation, Precision ground working table, Heavy-duty construction, Adjustable spindle, Low vibration
  • Condition
  • New
  • Machine Type
  • Vertical Drilling Cum Milling
  • Product Type
  • Industrial Drilling Cum Milling Machine
  • Material
  • Heavy-Duty Cast Iron and Steel
  • Computerized
  • No
  • Automatic Grade
  • Manual
  • CNC Or Not
  • Not CNC
  • Control System
  • Hand Lever and Manual Controls
  • Voltage
  • 415 V (Three Phase)
  • Power
  • 2 HP - 3 HP
  • Power Source
  • Electric
  • Weight (kg)
  • Approx 350-500 kg (Machine variant dependent)
  • Capacity
  • 25 mm Drilling / 20 mm Milling
  • Color
  • Green
  • Usage & Applications
  • Suitable for Drilling, Milling, Reaming, and Tapping applications in Workshops and Manufacturing Units
  • Spindle Travel
  • 130 mm
  • Table Longitudinal Movement
  • 400 mm
  • Table Transverse Movement
  • 300 mm
  • Spindle Nose Taper
  • MT3
  • Mounting Type
  • Floor Mounted
  • Column Diameter
  • 100 mm
  • Coolant System
  • Optional, on request
  • Quill Diameter
  • 50 mm
  • Height of Working Surface from Floor
  • 900 mm
  • Finish
  • Corrosion Resistant Paint and Machined Surfaces
  • T-Slot Size
  • 14 mm
  • After Sales Service
  • Available



About Industrial Drilling Cum Milling Machine

Industrial Drilling Cum Milling Machine manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent heavy-duty machines for drilling, milling, metalworking and engineering applications.

Versatile Machining Capabilities

Engineered for both drilling and milling applications, this industrial machine brings versatility to your workshop. Suitable for use in manufacturing units and repair shops, it handles drilling up to 25 mm and milling up to 20 mm, offering precision and flexibility for a broad range of projects. Adjustable manual controls ensure that each operation is tailored to the specific task, making it a valuable tool for varied application needs.


Heavy-Duty Construction and Stability

Constructed from heavy-duty cast iron and steel, the machine guarantees exceptional durability and strength. The floor-mounted design, together with a 100 mm column diameter and substantial machine weight (350-500 kg), provides rock-solid stability during high-precision machining tasks. The corrosion-resistant finish and machined surfaces add to the longevity, ensuring reliable operation in demanding industrial environments.


Precision and User Comfort

The machine is crafted for precise results, thanks to a precision-ground table, adjustable spindle, and low-vibration operation. Variable spindle speeds (80 - 2500 RPM) cater to multiple material requirements. With a comfortable working height of 900 mm and ergonomic manual controls, users benefit from smooth, controlled operation with minimal noise (under 80 dB). After-sales support is also available to facilitate continued excellent performance.

FAQ's of Industrial Drilling Cum Milling Machine:


Q: How is the Industrial Drilling Cum Milling Machine operated and controlled?

A: This machine is operated manually using hand levers and manual controls, giving users full control over the drilling and milling processes. It does not feature computerized or CNC controls, making it straightforward and reliable for skilled operators.

Q: What types of materials and tasks is this machine suitable for?

A: Engineered from heavy-duty cast iron and steel, it is suitable for a range of applications, including drilling, milling, reaming, and tapping operations on metals and rigid materials. It is commonly used in workshops and manufacturing environments for precision machining.

Q: When should the optional coolant system be considered?

A: A coolant system is recommended when performing prolonged or high-load machining tasks that generate significant heat. It helps enhance tool life, improve surface finish, and prevent overheating during demanding operations. The coolant system can be requested as an option during purchase.

Q: Where can this machine be installed and what are its installation requirements?

A: Designed for floor mounting, the machine should be installed on a stable and level factory or workshop floor with sufficient space (minimum 1200 x 900 mm footprint). It requires a three-phase, 415 V electrical connection for optimal performance.

Q: What is the process for maintenance and after-sales support?

A: Routine maintenance includes cleaning, periodic lubrication, and inspection of moving parts. After-sales service is available for troubleshooting, repairs, and replacement of worn components, ensuring the machine's long-term productivity.

Q: What benefits does this machine offer compared to lighter-duty models?

A: With its heavy-duty construction, precision-ground table, low vibration, and high stability, this model delivers greater accuracy, durability, and the ability to handle heavier workpieces. The robust design and corrosion-resistant finish also promote a longer service life.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Drilling Milling Tapping Machines Category

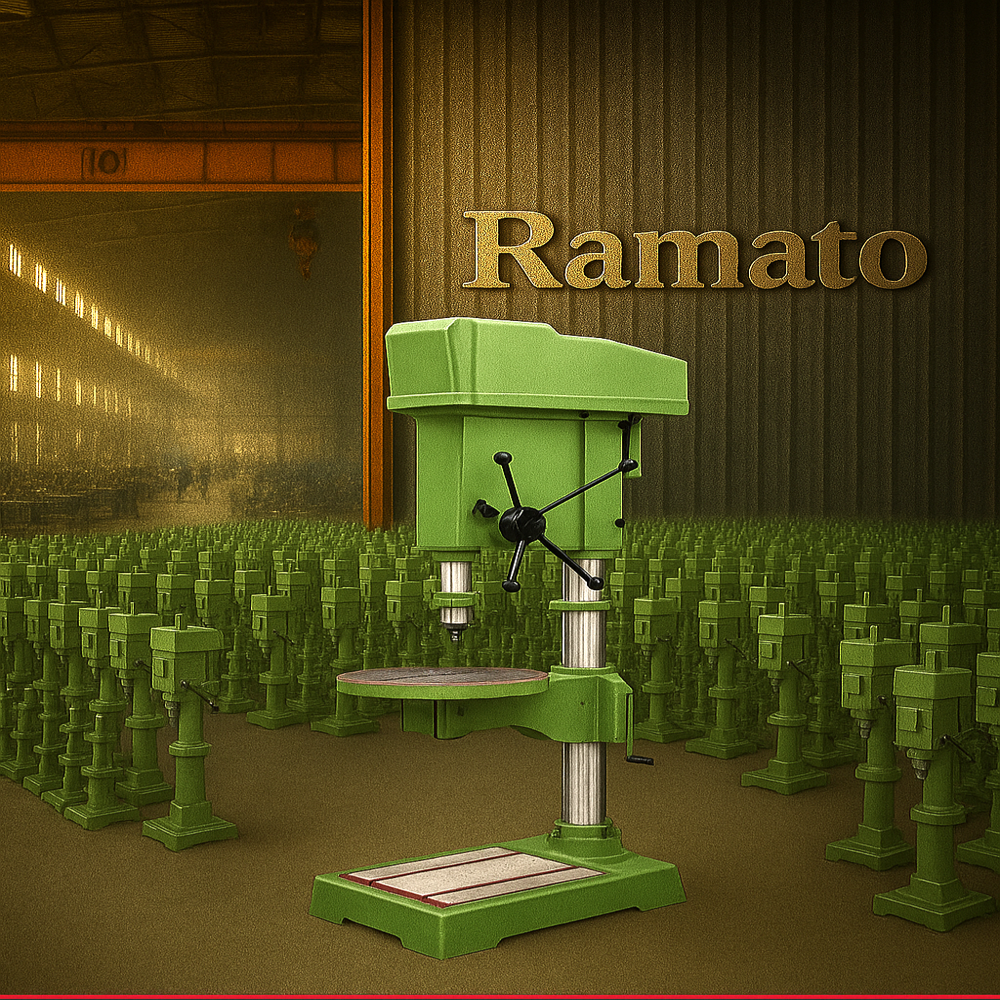

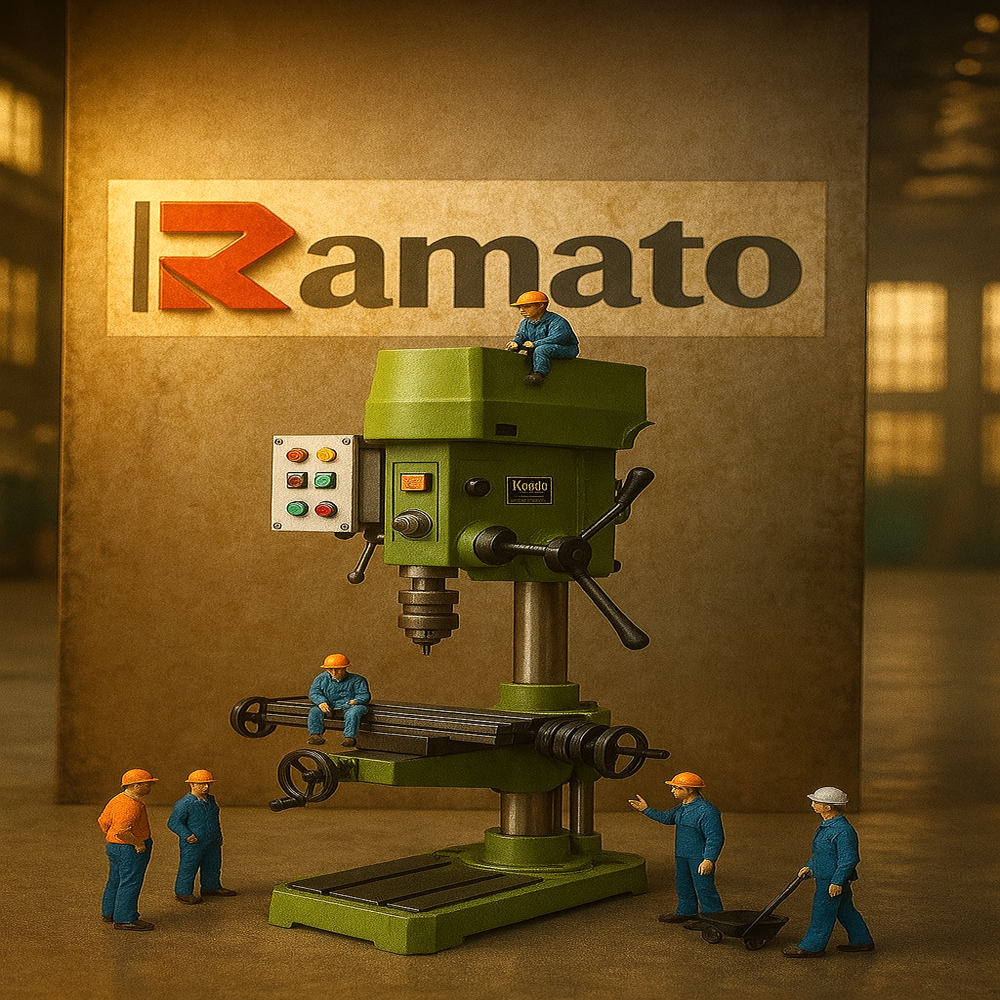

Drill Cum Milling Machine
