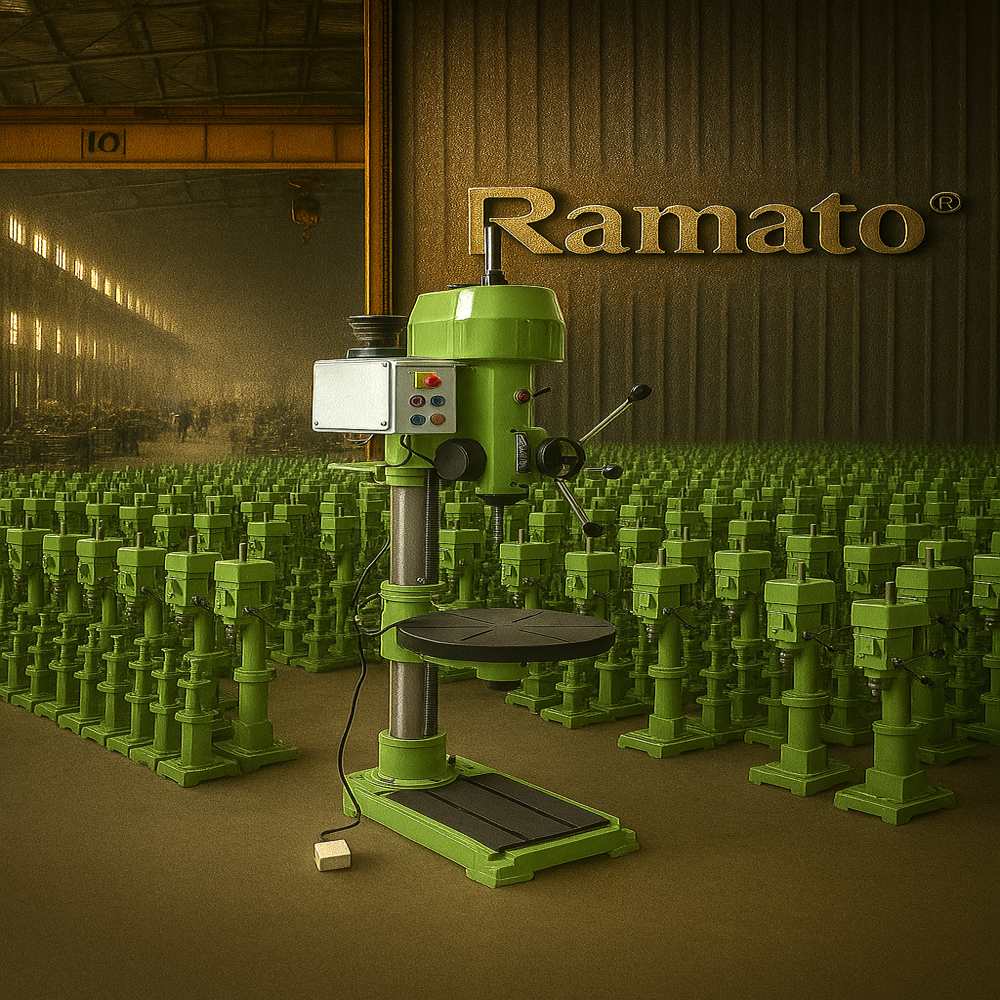

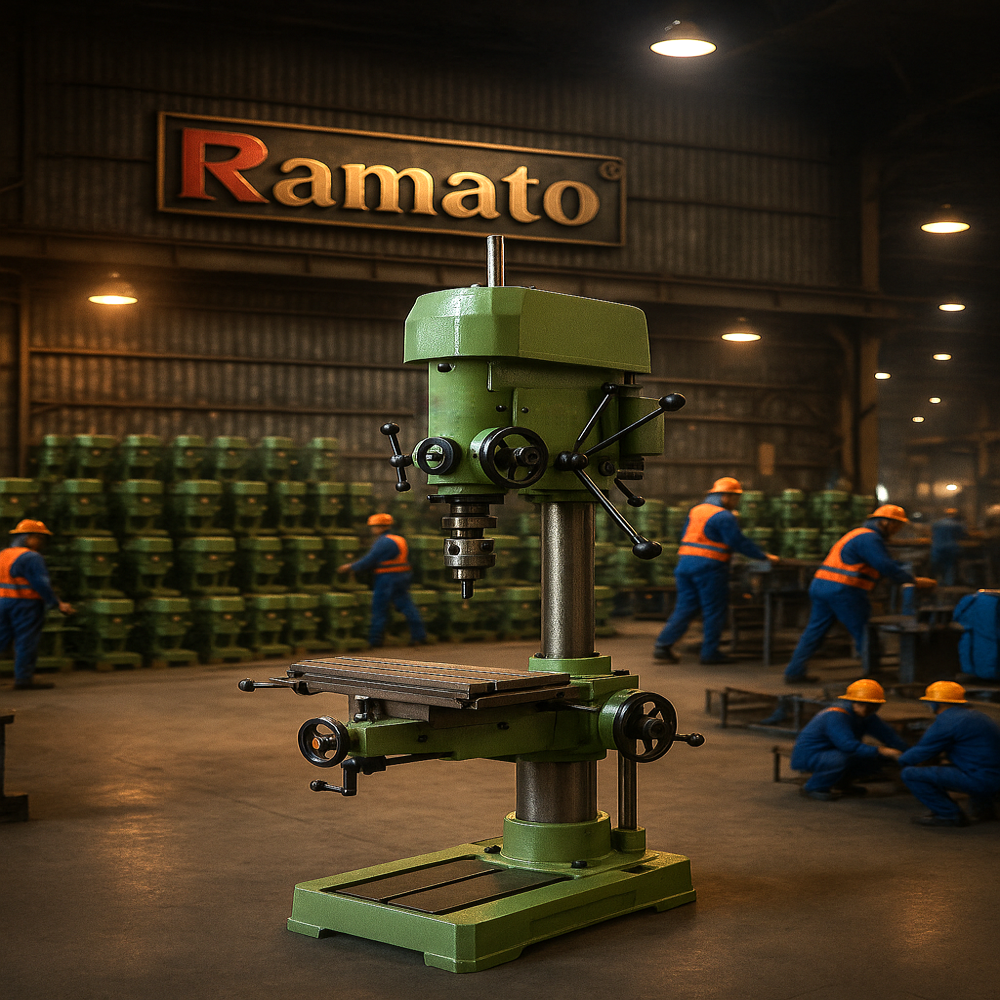

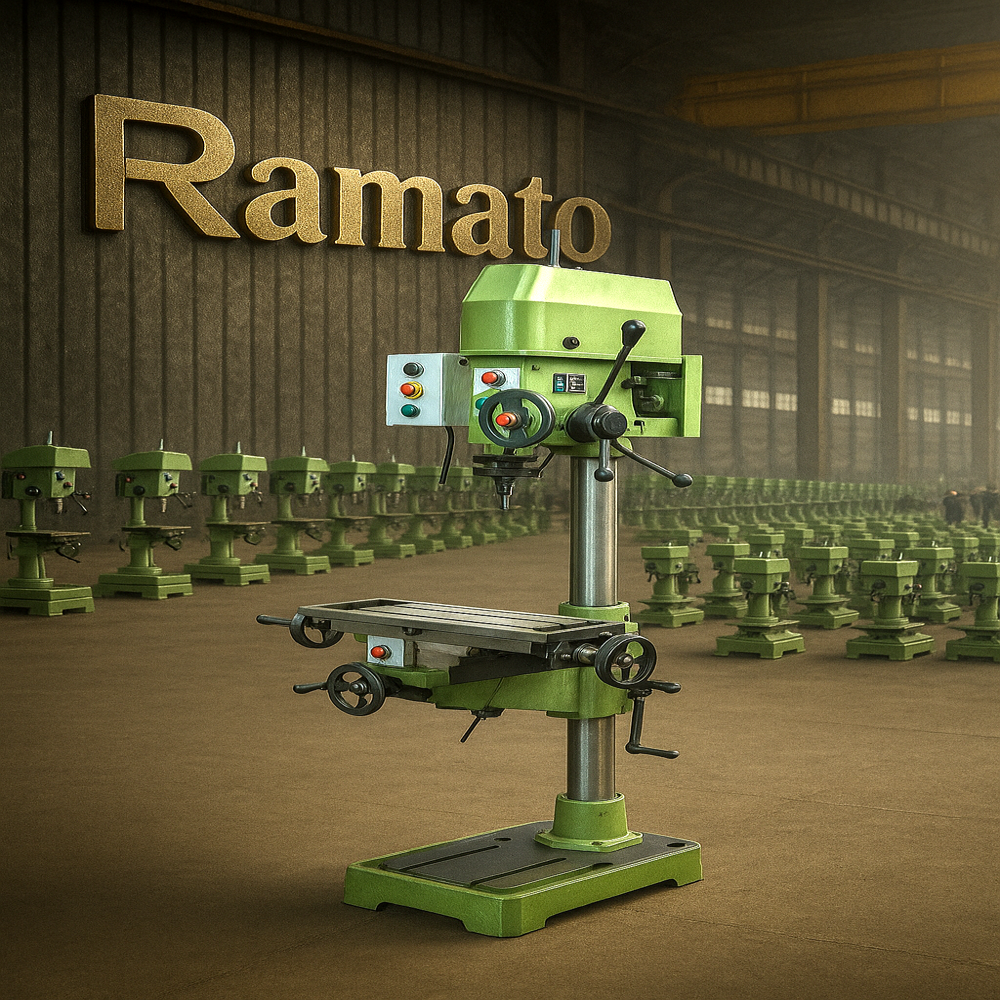

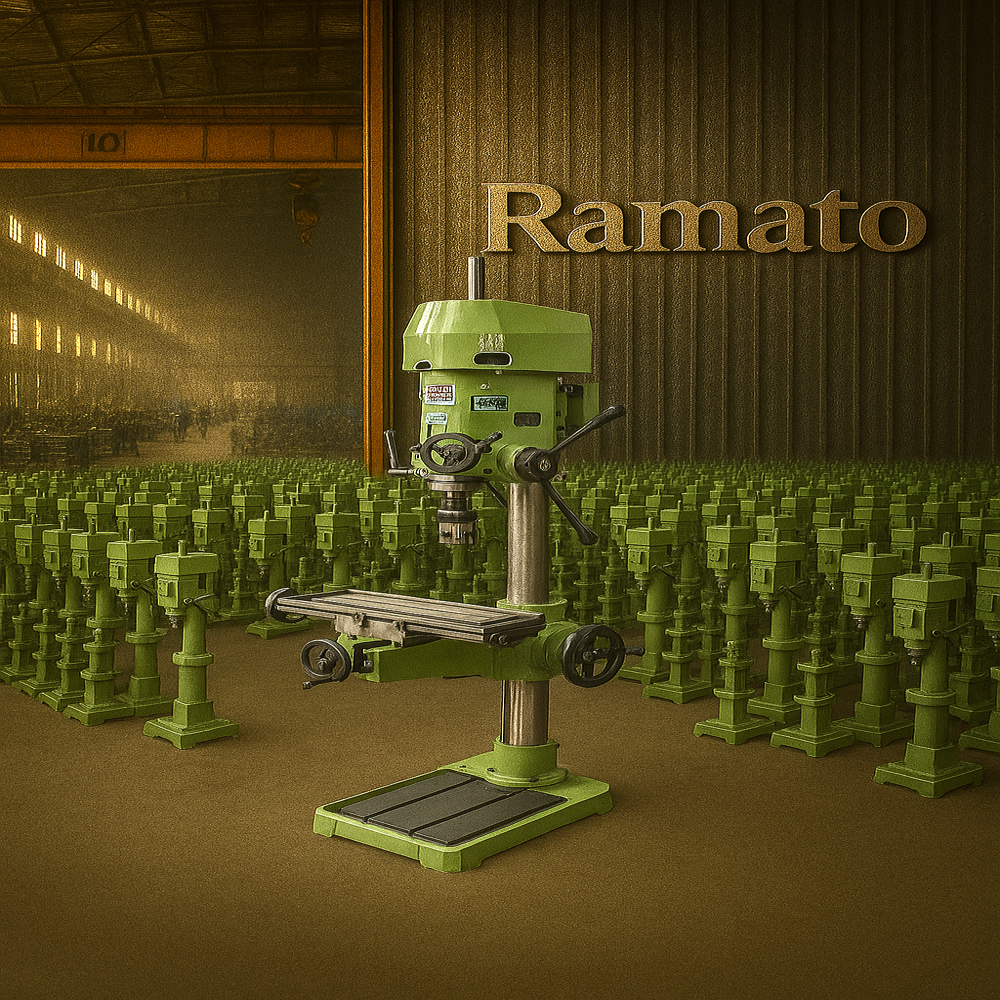

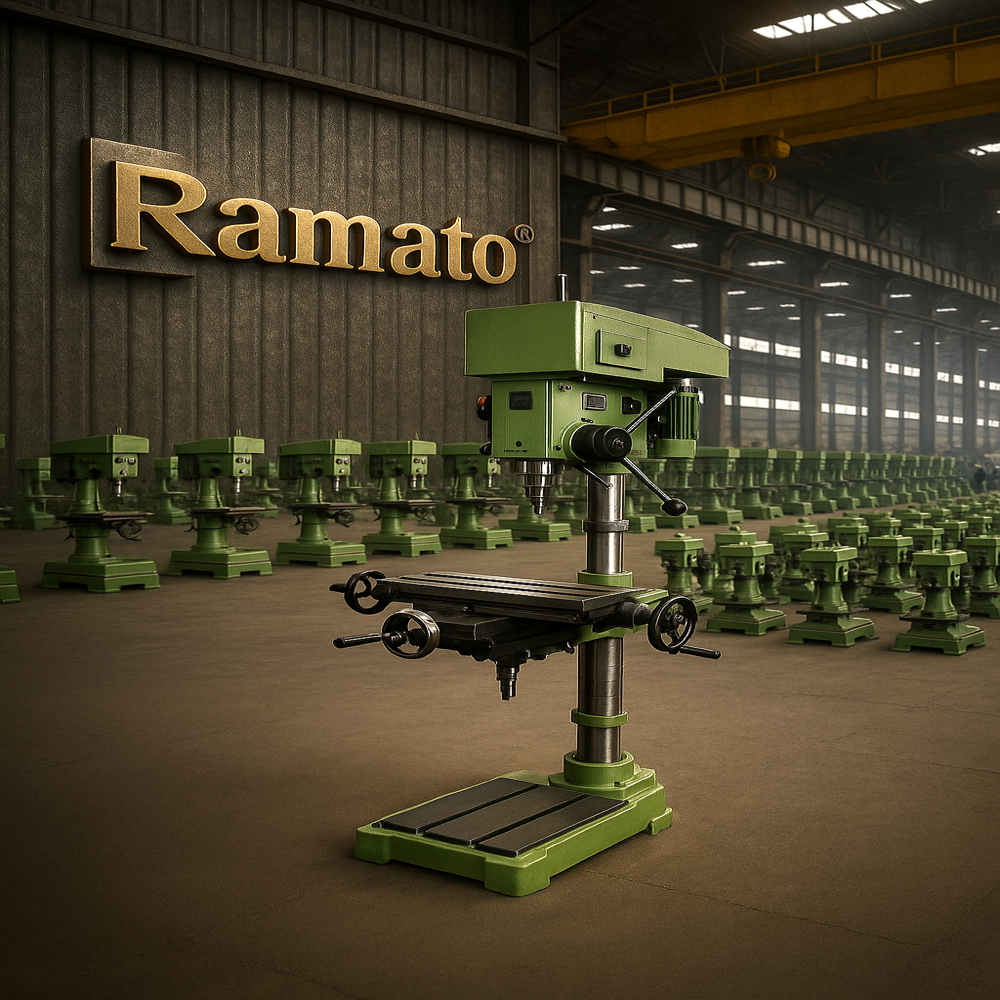

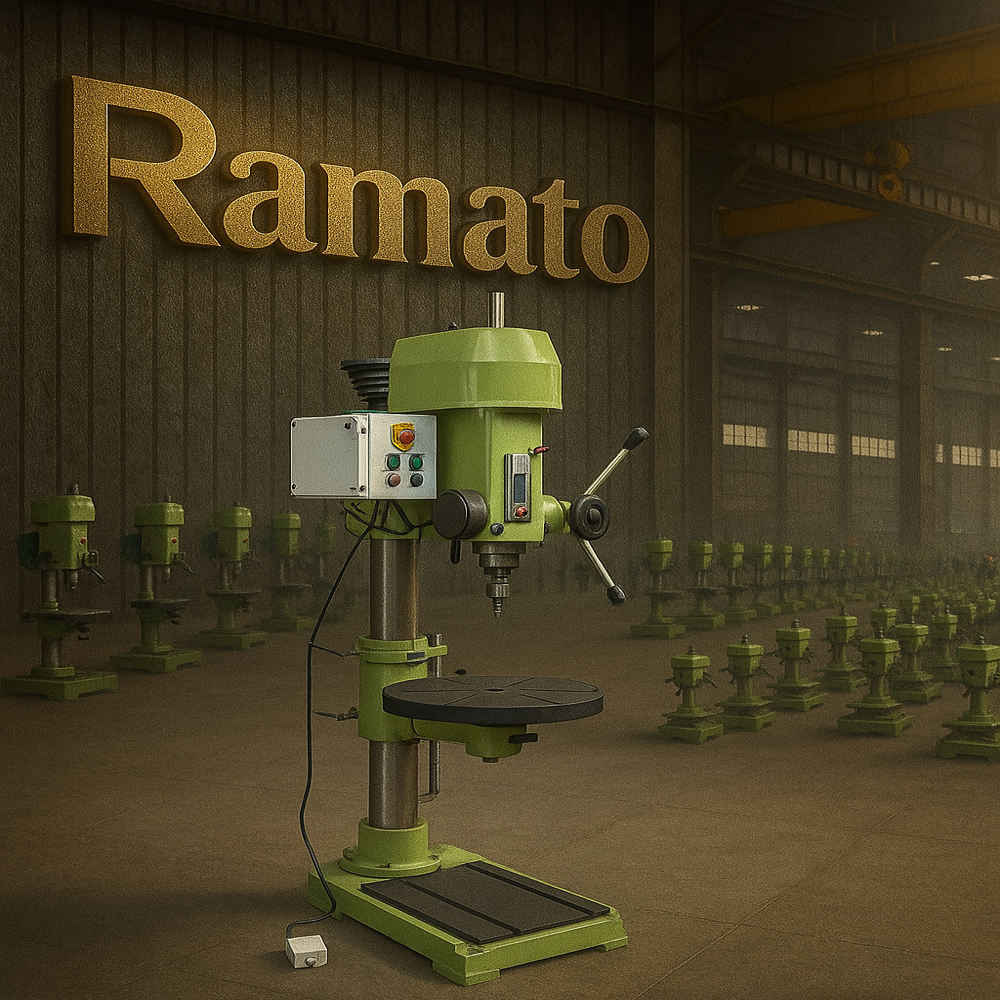

Drill Cum Milling Machine
Drill Cum Milling Machine
Drill Cum Milling Machine
Drill Cum Milling Machine
Drill Cum Milling Machine
Drill Cum Milling Machine
Drill Cum Milling Machine
Drill Cum Milling Machine
Drill Cum Milling Machine
Drill Cum Milling Machine
Drill Cum Milling Machine
Drill Cum Milling Machine

Drill Cum Milling Machine

Price 40000.0 INR/ Unit

MOQ : 1 Unit

Drill Cum Milling Machine Specification

  • Frequency
  • 50 Hz
  • Features
  • Heavy-duty base, precision ground work table, robust construction, easy operation, low maintenance
  • Table Size
  • 600 x 250 mm
  • Machine Type
  • Vertical Drill Cum Milling
  • Diameter
  • Max Drilling Diameter: 32 mm
  • Spindle Speed
  • 70-2800 RPM (Variable)
  • Cutting Area
  • Varies as per operation; suitable for medium-sized workpieces
  • Dimension (L*W*H)
  • 900 x 850 x 1850 mm
  • Noise Level
  • <85 dB
  • Motor Power
  • 2 HP
  • Condition
  • New
  • Product Type
  • Drill Cum Milling Machine
  • Material
  • Cast Iron, Alloy Steel
  • Computerized
  • No
  • Automatic Grade
  • Semi-Automatic
  • CNC Or Not
  • No
  • Control System
  • Manual Controls
  • Voltage
  • 220-440V (Depending on model)
  • Power
  • 1.5 - 3 HP
  • Power Source
  • Electric
  • Weight (kg)
  • 450 kg (Approx.)
  • Capacity
  • Drilling up to 32mm (steel)
  • Color
  • Green
  • Usage & Applications
  • Drilling, Milling, Boring, Reaming, and Tapping operations
  • Work Table Rotation
  • 360
  • Longitudinal Table Travel
  • 260 mm
  • T-Slot Size
  • 14 mm
  • Spindle Travel
  • 120 mm
  • Transverse Table Travel
  • 150 mm
  • Main Shaft
  • High Precision Bearings
  • Spindle Taper
  • MT 3
  • Coolant Pump
  • Optional
  • Vertical Travel of Head
  • 150 mm



About Drill Cum Milling Machine

Drill Cum Milling Machine manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent industrial drill milling machines for precision metalworking, fabrication and engineering.

Versatile Machining Capability

This Drill Cum Milling Machine performs multiple operations such as drilling, milling, boring, reaming, and tapping. Its flexibility is underpinned by a sturdy build, spindle taper MT 3, and a variable speed range suited for various materials.


Precision and Construction

Built from cast iron and alloy steel, the machine boasts high-precision bearings and a finely ground work table. The robust structural design minimizes vibration, ensuring accurate results and extended machine life.


Ease of Operation and Maintenance

With manual controls, semi-automatic features, and a clear layout, machine setup and operation are straightforward. The low-maintenance design and optional coolant pump further streamline use for lasting performance.

FAQ's of Drill Cum Milling Machine:


Q: How is the work table of the Drill Cum Milling Machine utilized during operations?

A: The work table, measuring 600 x 250 mm with 14 mm T-slots, accommodates various fixtures and workpieces. Its 360-degree rotation and multi-directional travel allow precise positioning during drilling, milling, and reaming processes.

Q: What benefits does the high-precision spindle provide?

A: The high-precision bearings in the spindle ensure smooth, accurate rotation, minimizing runout and improving the finish and dimensional accuracy of machined components.

Q: When should the optional coolant pump be used?

A: The optional coolant pump is especially beneficial during intensive machining or operations on harder materials, as it helps dissipate heat, prolongs tool life, and maintains dimensional stability.

Q: Where can this machine be installed and what are its space requirements?

A: This machine is suited for workshops, manufacturing facilities, and tool rooms with enough space for its dimensions (900 x 850 x 1850 mm) and reliable access to a power supply (220-440V).

Q: What is the process for setting spindle speed on this machine?

A: Spindle speed can be adjusted manually within the range of 70-2800 RPM, allowing users to match optimal speeds with specific operations and material types for best results.

Q: How does the machine accommodate a variety of workpiece sizes?

A: With longitudinal, transverse, and vertical movements (260 mm, 150 mm, and 150 mm respectively), and a rotating table, the machine easily adjusts to various medium-sized workpieces requiring different machining operations.

Q: What are the main advantages of using this Drill Cum Milling Machine?

A: Main advantages include versatility for multiple machining tasks, precision and stability from robust construction, ease of manual operation, low maintenance needs, and the ability to handle diverse workpiece requirements.
