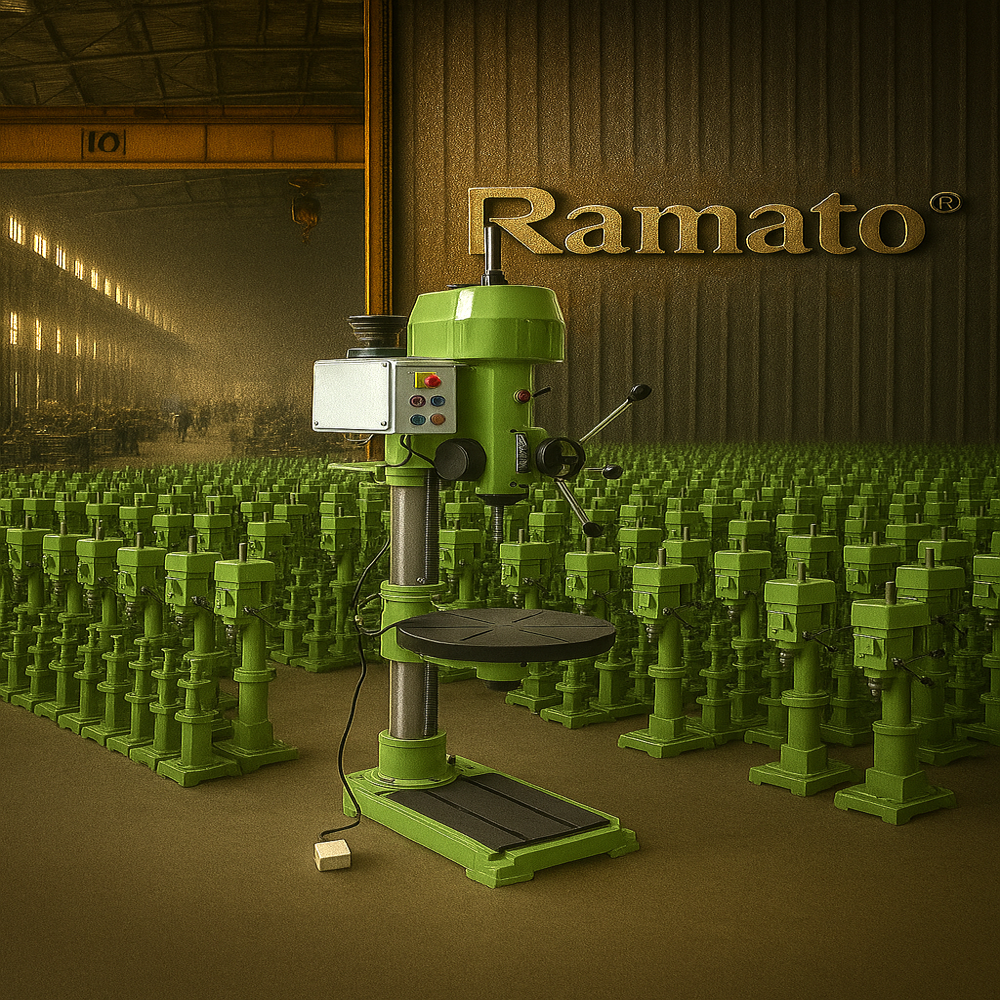

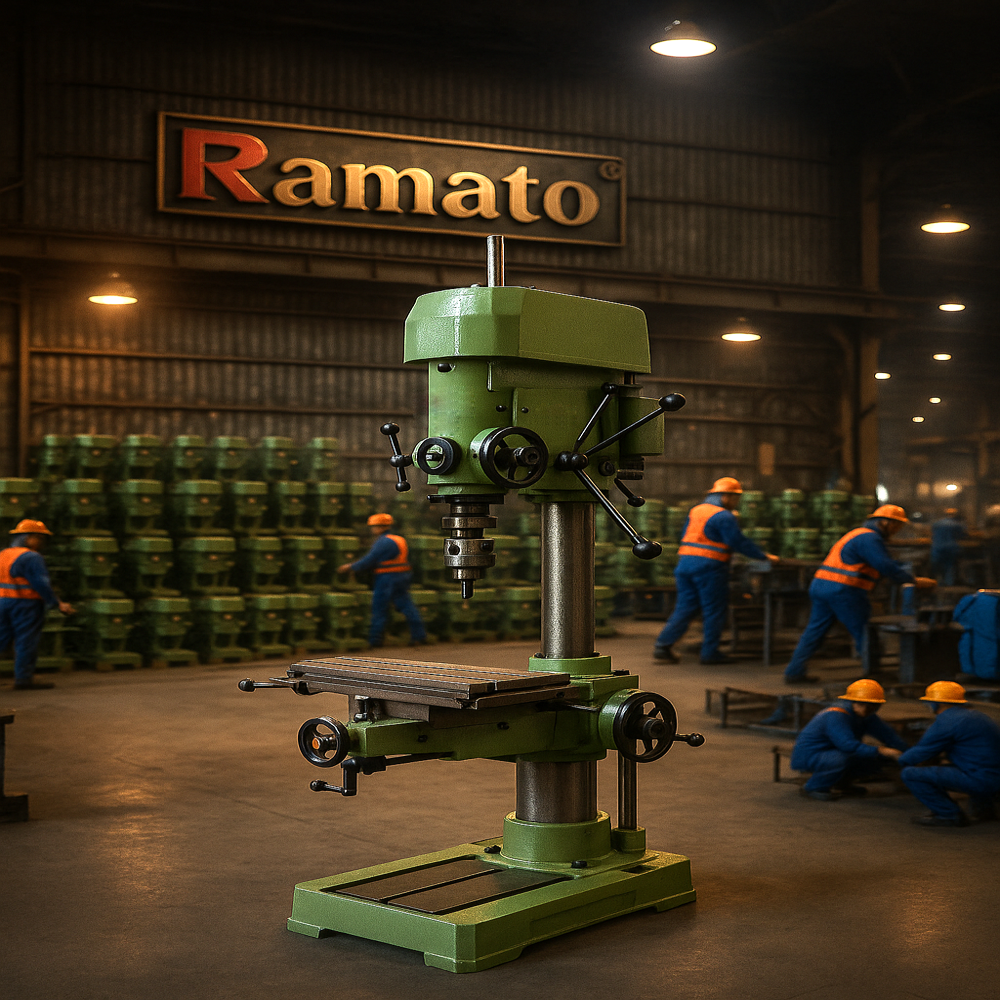

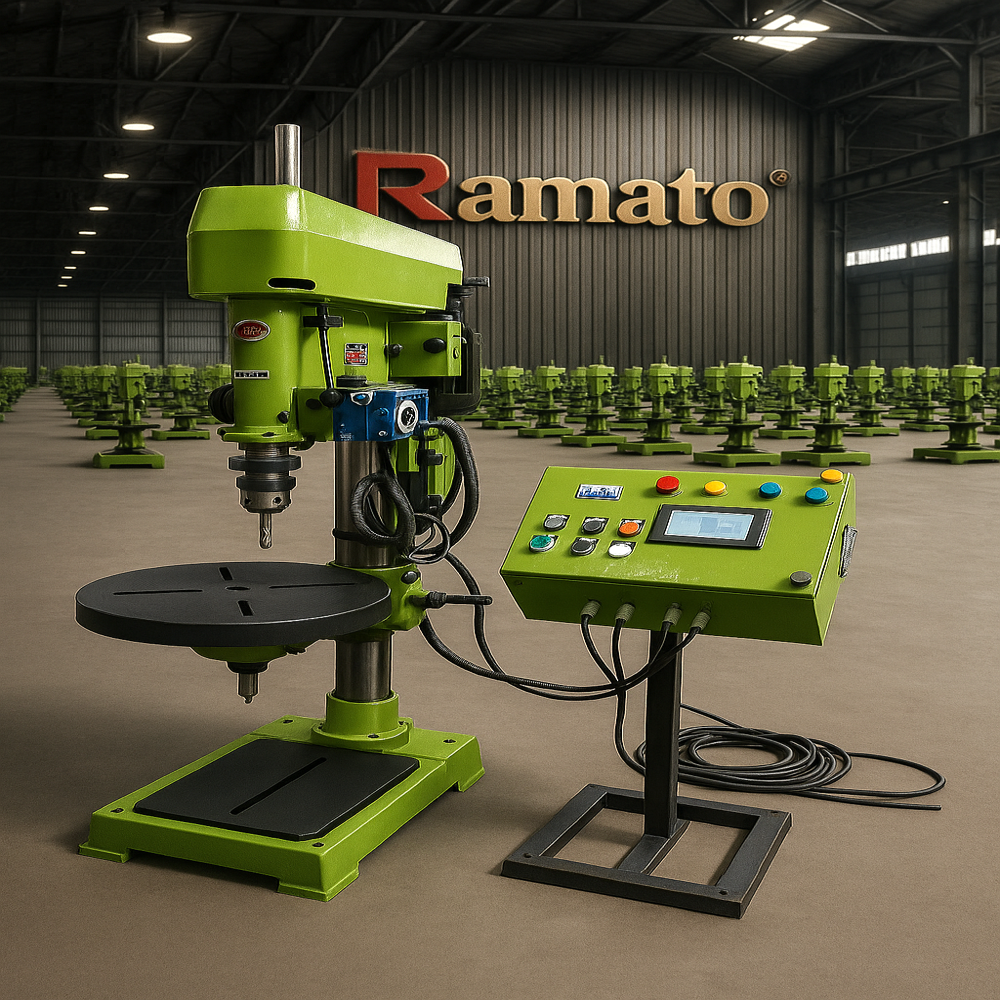

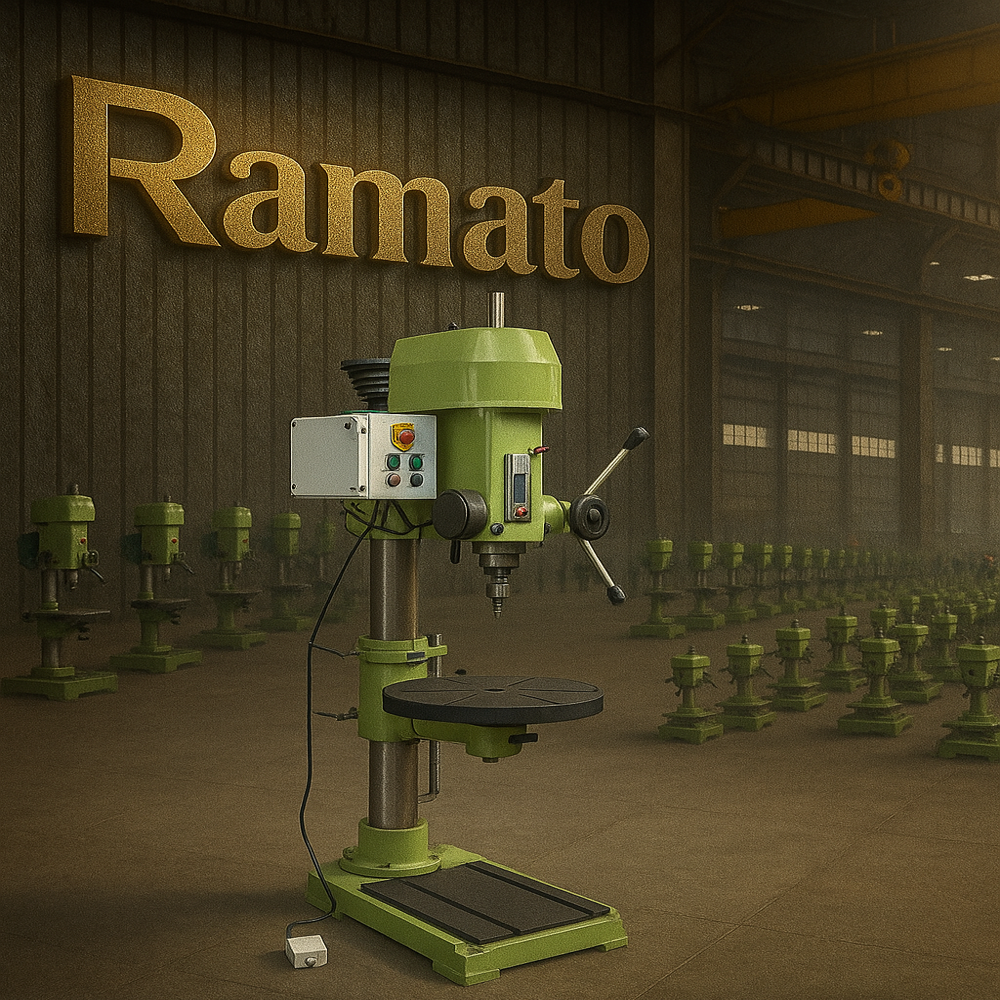

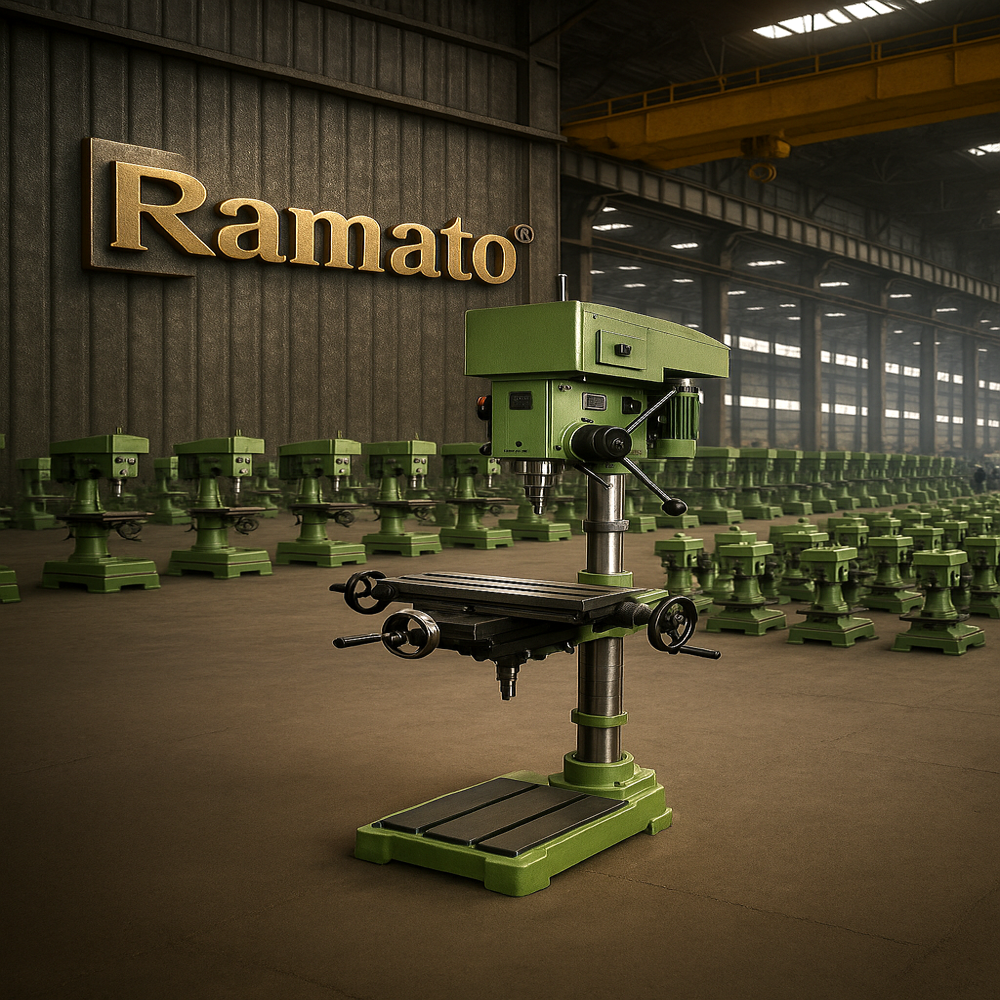

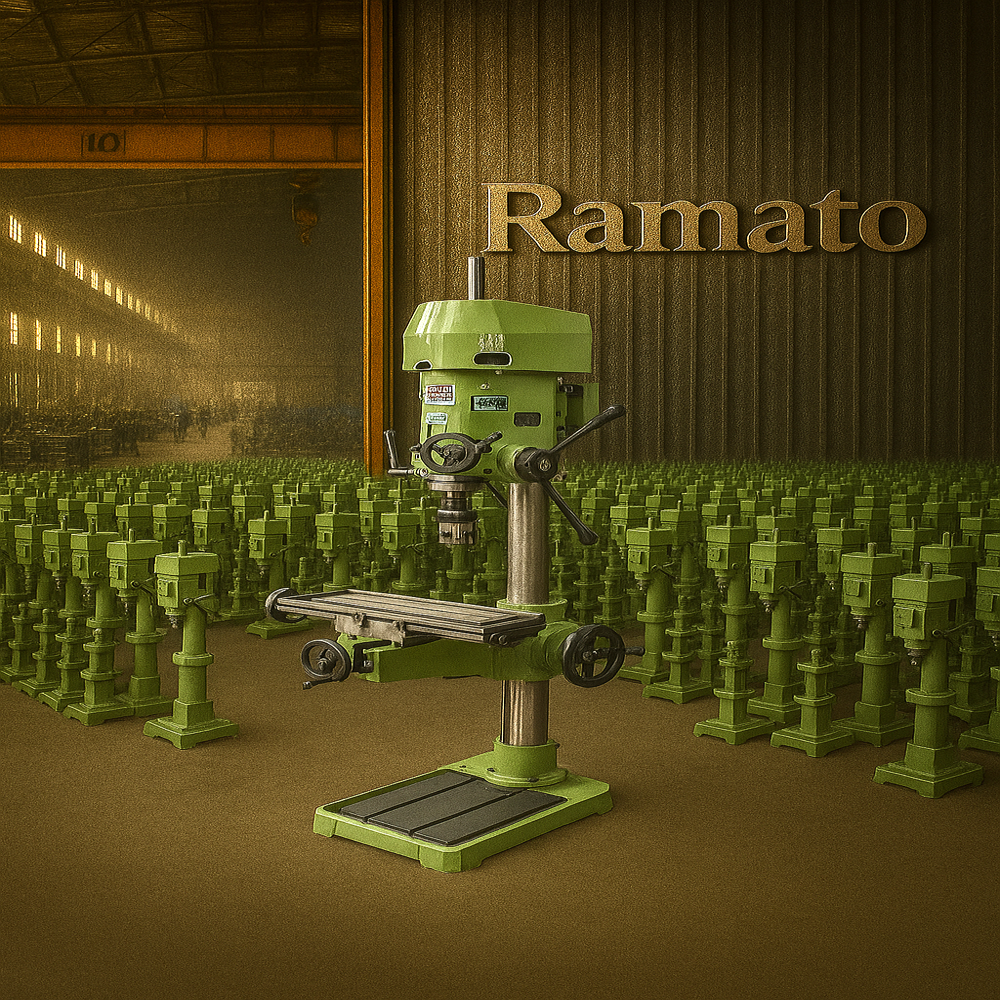

Drilling and Milling Machine
Drilling and Milling Machine
Drilling and Milling Machine
Drilling and Milling Machine
Drilling and Milling Machine
Drilling and Milling Machine
Drilling and Milling Machine
Drilling and Milling Machine
Drilling and Milling Machine
Drilling and Milling Machine
Drilling and Milling Machine
Drilling and Milling Machine

Drilling and Milling Machine

Price 40000.0 INR/ Unit

MOQ : 1 Unit

Drilling and Milling Machine Specification

  • Spindle Speed
  • 80-2000 RPM adjustable
  • Diameter
  • Maximum drilling diameter up to 20 mm
  • Condition
  • New
  • Frequency
  • 50/60 Hz
  • Noise Level
  • 75 dB
  • Features
  • Robust body, High precision, Multi-speed, Panel control system
  • Dimension (L*W*H)
  • 850 x 620 x 1550 mm
  • Motor Power
  • 2 HP
  • Machine Type
  • Vertical Drilling & Milling
  • Cutting Area
  • Approx. 400 mm circular area
  • Table Size
  • 400 mm Diameter round table
  • Product Type
  • Drilling and Milling Machine
  • Material
  • Heavy-duty Cast Iron, Steel components
  • Computerized
  • No
  • Automatic Grade
  • Semi-Automatic
  • CNC Or Not
  • Not CNC
  • Control System
  • Panel Control with Push Buttons and Display
  • Voltage
  • 220V/380V
  • Power
  • 1.5 kW - 2.5 kW
  • Power Source
  • Electric
  • Weight (kg)
  • Approx. 250 - 350 kg
  • Capacity
  • 20 mm Drilling, 16 mm Milling
  • Color
  • Green (with black and blue accents)
  • Usage & Applications
  • Metalworking, Workshop Fabrication, Engineering Industry
  • Chuck Size
  • 1-16 mm
  • Coolant System
  • Optional attachment available
  • Working Height
  • Up to 500 mm above base
  • Base Plate Thickness
  • 25 mm
  • Emergency Stop
  • Yes, provided on panel
  • V-Belt Drive
  • Multi-stage for variable speed
  • Lighting Lamp
  • Provided for work area illumination
  • Phase
  • Single or Three phase
  • Table Movement
  • Manual, with gear adjustment
  • Quill Travel
  • 120 mm



About Drilling and Milling Machine

Drilling and Milling Machine manufacturer in Rajkot, Gujarat, India. Rajlaxmi Machine Tools offers Ramato, HMP & Roent industrial machines for drilling, milling, metalworking and fabrication applications.

Versatile Drilling & Milling Efficiency

Designed for both drilling and milling tasks, this vertical machine offers flexibility with a maximum drilling diameter of 20 mm and milling capacity of 16 mm. The adjustable spindle speed and precision control make it ideal for various metalworking tasks, ensuring accuracy and a smooth workflow in fabrication environments.


Built for Safety and Reliability

With features like an emergency stop button on the panel and a dedicated lighting lamp, safety is prioritized during operation. The sturdy cast iron base and 25 mm thick plate enhance stability, reducing vibration and noise, optimizing operator comfort and machine longevity in demanding settings.


Modern Control with Manual Finesse

The panel control system with push buttons and display ensures intuitive operation, while manual table movement allows for careful adjustment during milling and drilling. The machine supports both single-phase and three-phase power inputs, accommodating varied workshop setups.

FAQ's of Drilling and Milling Machine:


Q: How do I adjust the spindle speed on this drilling and milling machine?

A: Spindle speed can be adjusted by selecting the desired stage on the multi-stage V-belt drive and using the gear adjustment mechanism. This allows you to achieve speeds between 80-2000 RPM, suitable for different materials and cutting requirements.

Q: What materials and applications is this machine best suited for?

A: This machine is ideal for metalworking, workshop fabrication, and engineering industry applications. Its sturdy construction and precise controls make it perfect for drilling and milling steel, cast iron, and other metals.

Q: When should I consider using the optional coolant system?

A: The optional coolant system is recommended for extended operation or when working with tough materials that produce significant heat during milling or drilling. Using coolant can prolong tool life, improve finish quality, and ensure safer, more efficient machining.

Q: Where can I safely operate this machine?

A: This vertical drilling and milling machine is designed for industrial environments such as workshops, fabrication facilities, and engineering plants. Its moderate noise level (75 dB) and compact footprint support installation in standard metalworking spaces.

Q: What is the benefit of the emergency stop and lighting features?

A: The emergency stop, conveniently located on the control panel, allows immediate power cutoff in case of an emergency, enhancing operator safety. The integrated lighting lamp ensures clear workpiece visibility, supporting precision and reducing operational errors.

Q: How do I maintain optimal performance over time?

A: To maintain optimal performance, regularly check and tighten mounting bolts, keep the V-belts properly tensioned, lubricate moving parts as specified, and clean the machine after each use. If using a coolant system, monitor levels and replace as required.

Q: What is the process for changing between single-phase and three-phase operation?

A: The machine supports both 220V (single-phase) and 380V (three-phase) inputs. To switch, ensure power is disconnected, then configure the electrical connections as per the instruction manual. Only qualified personnel should perform this process to ensure safety and compliance with local regulations.
