Conveyorized Belt Grinding Machine

Get a Price/Quote

Conveyorized Belt Grinding Machine Specification

Model

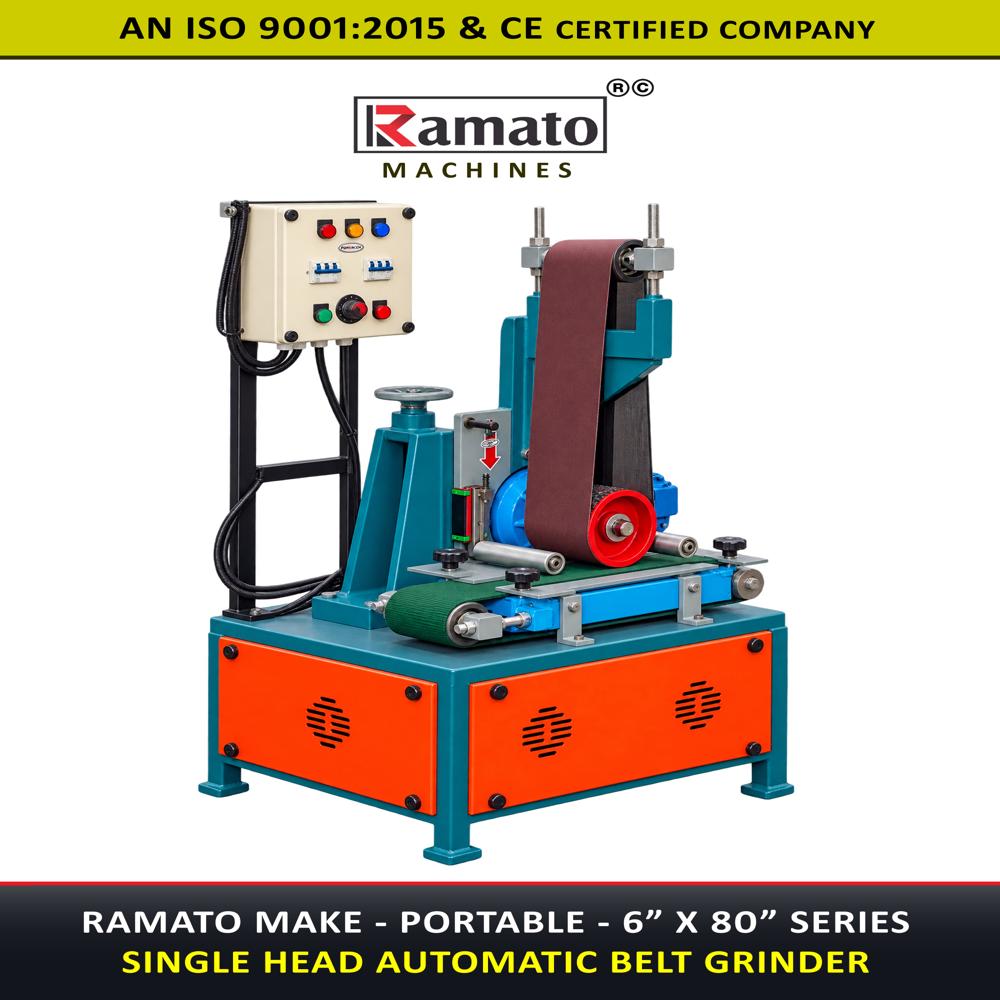

Single Head 6 x 80 Conveyorized Belt Grinder

Rotation
Unidirectional

Product Type
Single Head Automatic Belt Grinder

General Use
Conveyorized belt grinding and polishing of metal components

Material
Mild steel fabricated body

Type
Heavy Duty

Capacity
Depends on component size and cycle

Weight (kg)
Approx. 500 kg

Computerized
No

Automatic
Yes - automatic feed with conveyor

CNC Or Not
Not CNC

Control System
Electrical panel with start/stop and safety controls

Table Size
Not specifically applicable, part conveyed on belt

Table Slide Way
Roller Bearing Type

Grinding Wheel Size
6 x 80 (belt size)

Grinding Wheel Speed
Approx. 1440 RPM (Motor specific)

Grinding Length
Conveyor length dependent, approx. 80 inches

Floor Space
Approx. 1100mm x 950mm

Spindle Speed
Standard single speed

Power
Approx. 5 HP (Main motor)

Voltage
415V, 3 Phase, 50 Hz

Dimension (L*W*H)
Approx. 1100mm x 950mm x 1700mm

Feature
CE & ISO 9001:2015 certified, easy to operate, robust design

Color
Orange/Steel/Grey

Belt Tensioning System
Spring loaded

Safety Enclosure
Yes, partial belt cover

Finish Type
Deburring, descaling, surface finishing

Noise Level
<80 dB

Working Speed
Conveyor 1-5 m/min adjustable

Usage Industry
Metal fabrication, foundry, casting shops, automobile

Suitable Material
Ferrous & non-ferrous metals

Adjustable Contact Wheel
Yes

Dust Extraction Provision
Available (optional attachment)

Conveyor Material
High-strength PVC/PU

Service Support
Available on request

About Conveyorized Belt Grinding Machine

Conveyorized Belt Grinding Machine manufacturer in Rajkot, Gujarat, India. Rajlaxmi Machine Tools offers Ramato, HMP & Roent automatic conveyor grinding solutions for metal finishing.

Enhanced Metal Finishing Performance

This conveyorized belt grinding machine offers automatic feed and adjustable speed, enabling precise, consistent finishing for a wide variety of metal components. Its spring-loaded belt tensioning system and robust design support demanding applications, making it an ideal choice for metal fabrication and casting environments.

Safety and User-Friendly Operation

Designed with operator safety in mind, the grinder includes a partial safety enclosure, easy start/stop controls, and low-noise operation below 80 dB. The ergonomic electrical panel provides accessible control, while optional dust extraction helps maintain a clean workspace.

Versatility Across Industries

This model accommodates both ferrous and non-ferrous metals and features an adjustable contact wheel for tailored results. Its heavy-duty construction and high-strength conveyor materials ensure longevity and reliable operation in diverse industries like foundries, casting workshops, and automobile manufacturing.

FAQ's of Conveyorized Belt Grinding Machine:

Q: How does the conveyorized belt grinding machine operate?

A: The machine uses an automatic conveyor system to feed metal parts through a spring-loaded, motor-driven belt for grinding, deburring, descaling, or surface finishing. Adjusting the conveyor speed (1-5 m/min) allows users to control the finish quality according to the component's material and requirements.

Q: What materials can be processed with this grinding machine?

A: It is suitable for both ferrous and non-ferrous metals, making it ideal for a wide range of metal components typically found in metal fabrication, foundries, casting shops, and automobile industries.

Q: When should I consider using this belt grinding machine?

A: This machine is ideal whenever you require consistent, high-quality deburring, descaling, or surface finishing of metal parts on a production scale-especially where automation, safety, and reliable throughput are essential.

Q: Where is this equipment typically used?

A: It is commonly used in industrial settings such as metal fabrication shops, foundries, casting environments, and automotive manufacturing plants where conveyorized belt grinding is required.

Q: What safety features are included with the machine?

A: The grinder comes with a partial safety enclosure covering the belt, electrical start/stop and safety controls, and maintains a low noise level (<80 dB) for operator comfort. An optional dust extraction attachment further enhances workplace safety.

Q: How can I benefit from using this conveyorized belt grinder?

A: Users benefit from increased productivity, reduced manual labor, reliable processing of various metals, and improved safety and cleanliness. Its sturdy build and flexibility ensure long-term value and performance for industrial applications.

Q: What process does the machine use to finish metal components?

A: The process involves automatically feeding parts onto the conveyor, where they pass under an abrasive belt driven at approximately 1440 RPM. This action grinds, deburrs, descales, or finishes the metal surface as needed, depending on conveyor speed and contact wheel adjustments.
