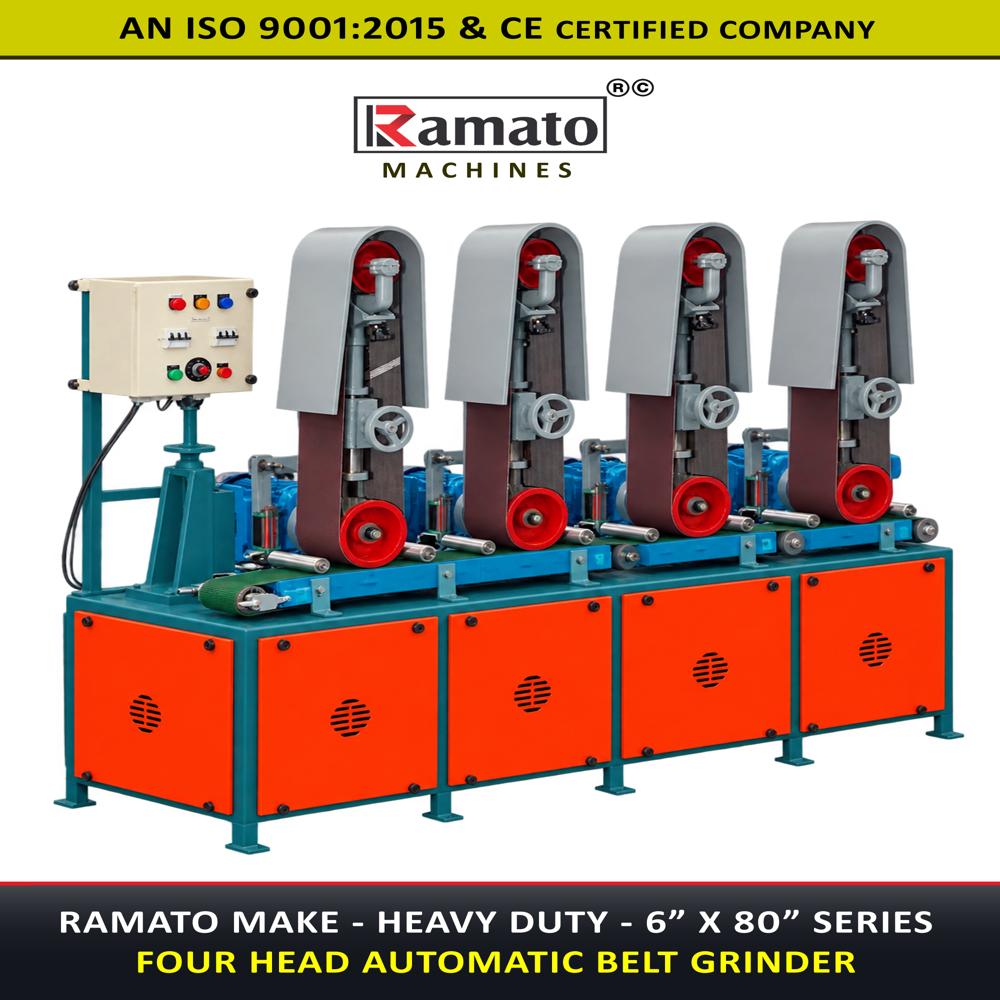

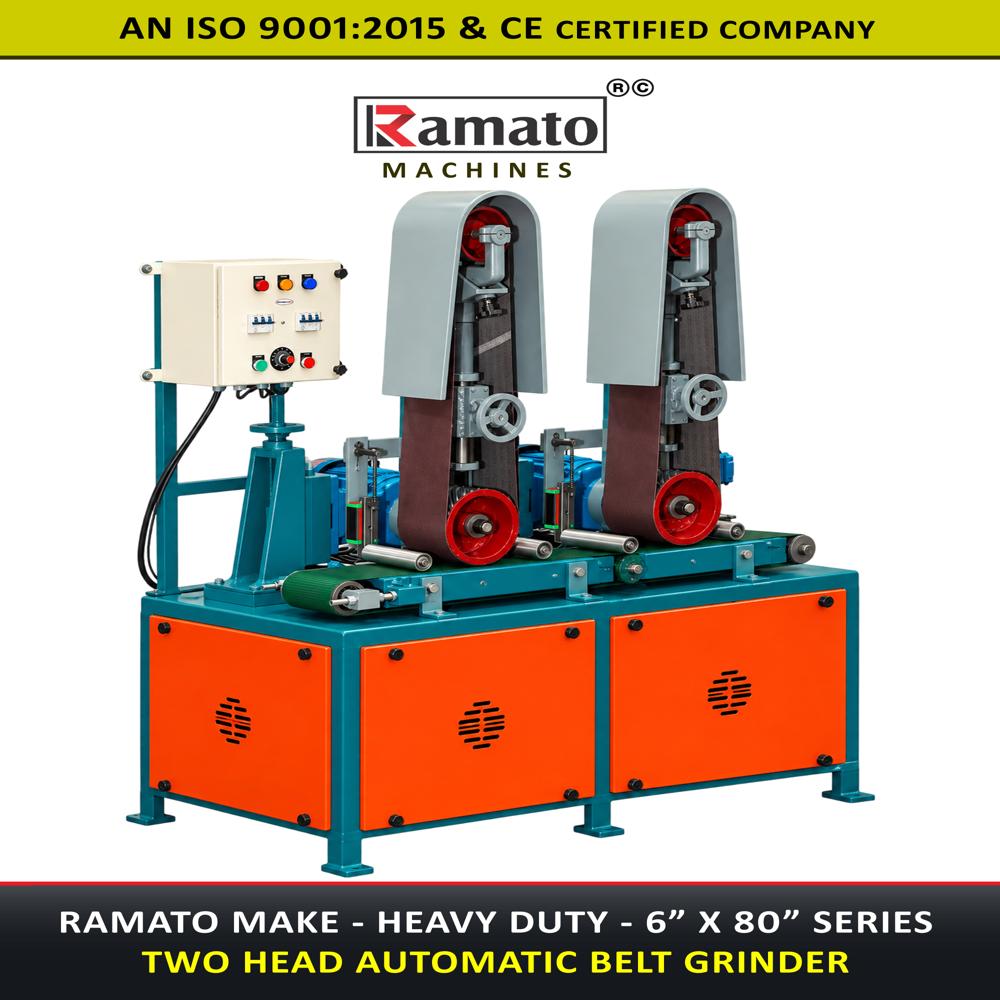

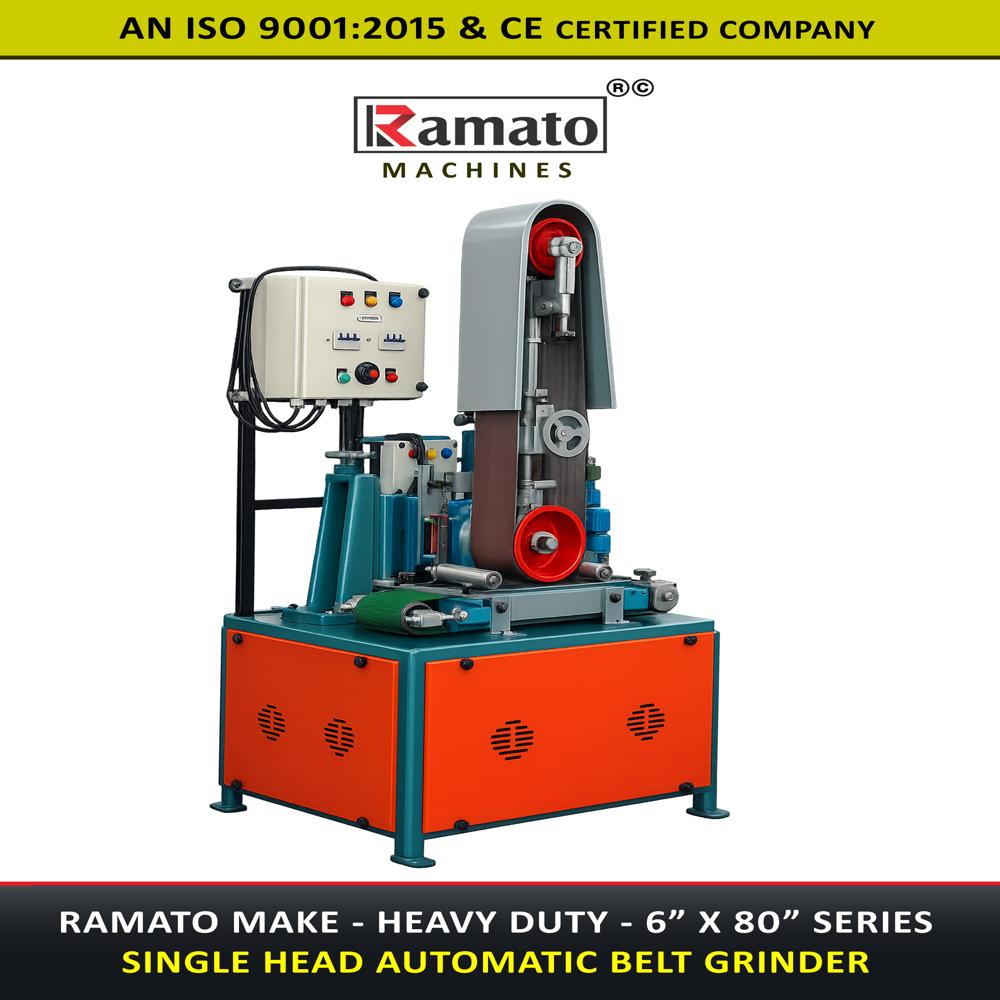

Automatic Multi-Head Belt Grinder

Get a Price/Quote

Automatic Multi-Head Belt Grinder Specification

Rotation
Unidirectional, as per belt movement

Model
Three Head Automatic Belt Grinder - 6 x 80 Series

Product Type
Automatic Multi-Head Belt Grinder

General Use
Heavy Duty Metal Surface Finishing and Deburring

Material
Heavy Duty Fabricated Steel

Type
Belt Grinding Machine

Capacity
Continuous Industrial Use

Weight (kg)
Approx. 1100 kg

Computerized
No

Automatic
Yes

CNC Or Not
Not CNC

Control System
Automatic Electrical Control Panel

Table Size
Custom, specific to model requirements

Table Slide Way
Heavy duty precision guideways

Grinding Wheel Size
NA (uses 6 x 80 abrasive belts)

Grinding Wheel Speed
Variable; determined by motor and VFD setting

Grinding Length
80 Inches (belt length)

Floor Space
Approx. 2300 mm x 1100 mm

Spindle Speed
Variable per head via control panel

Power
3 x 3HP (Total 9HP)

Voltage
415V, 3 Phase

Dimension (L*W*H)
2300 mm x 1100 mm x 1700 mm (Approx.)

Feature
ISO 9001:2015 & CE Certified, Multi-head simultaneous operation, Heavy duty frame, Low maintenance

Color
Orange & Blue

Application Range
Suitable for flat, square, rectangular, T-section and channel section metals

Noise Level
Within industrial prescribed limits

Control Panel Features
Start/Stop Switches, Emergency Stop, Overload Protection

Material Handling
Heavy welded structure base with vibration free operation

Cooling Arrangement
Optional: Water coolant or dry operation possible

Main Drive Motor
3 x 3 HP motors (each head with individual drive)

Working Speed
Variable - 7 m/s to 20 m/s (approx.)

Safety Features
Full belt guard covers, Emergency stop button

Abrasive Belt Size
6 inches x 80 inches

Number of Working Heads
Three (3) independent grinding heads

About Automatic Multi-Head Belt Grinder

Automatic Multi Head Belt Grinder Machine Manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent conveyor belt grinders with VFD and AC drive for automated metal grinding, deburring and finishing.

Efficient Multi-Head Operation

With three grinding heads operating simultaneously and independently, this grinder significantly increases productivity. Each head features variable speed control and is driven by its own 3HP motor, allowing tailored surface finishing or deburring on diverse metal sections in a single pass, thereby optimizing process efficiency.

Robust Construction and Safety Features

The machine boasts a heavy-duty fabricated steel base, precision guideways for table slide, and full belt guard covers for enhanced safety. Emergency stop buttons and overload protection demonstrate strict adherence to industrial safety standards, making daily operation secure even under continuous and heavy usage.

Versatile Applications and Customization

Ideal for processing various metal shapes such as flat, square, or channel sections, the grinder also offers operational flexibility with options for dry use or water cooling. Its table size is customizable to model specifications, supporting a spectrum of industrial requirements and ensuring compatibility with diverse fabrication processes.

FAQ's of Automatic Multi-Head Belt Grinder:

Q: How does the automatic multi-head belt grinder improve metal finishing processes?

A: The machine features three independent grinding heads, each with its own 3HP motor and variable belt speeds. This enables simultaneous processing of different metal profiles, enhancing productivity and ensuring consistent surface finishing or deburring in one operation.

Q: What materials and profiles can be processed with this belt grinder?

A: It is suitable for flat, square, rectangular, T-section, and channel section metals, offering versatility across a range of metalworking applications. The customizable table size accommodates various workpieces, making it adaptable to many industrial needs.

Q: When should water coolant be used during operation?

A: Water coolant can be optionally used when heat buildup needs to be minimized, especially during extensive grinding or when working on sensitive materials. For other cases, dry operation is also possible, depending on production requirements.

Q: Where is the control system located and what features does it include?

A: The automatic electrical control panel is integrated on the machine, providing start/stop switches for each head, emergency stop, and overload protection. It also allows users to adjust the spindle and belt speeds for tailored grinding operations.

Q: What benefits does the heavy duty base and precision guideways provide?

A: The robust welded base ensures vibration-free operation and enhances stability, while the heavy duty precision guideways facilitate smooth and accurate table movement, resulting in improved surface finishes and reduced maintenance downtime.

Q: How is noise managed during operation?

A: The grinder maintains noise levels within industrially prescribed limits, contributing to a safer and more comfortable working environment, even during continuous usage in large production facilities.
