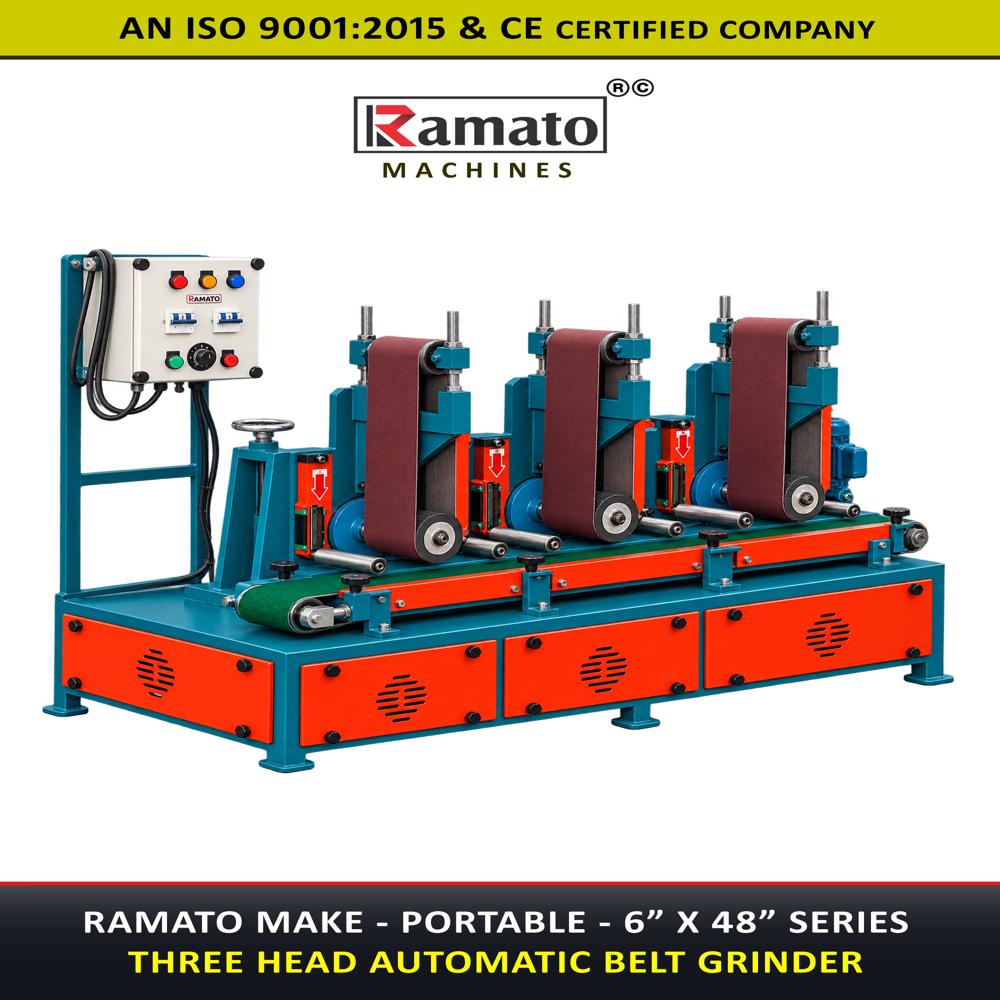

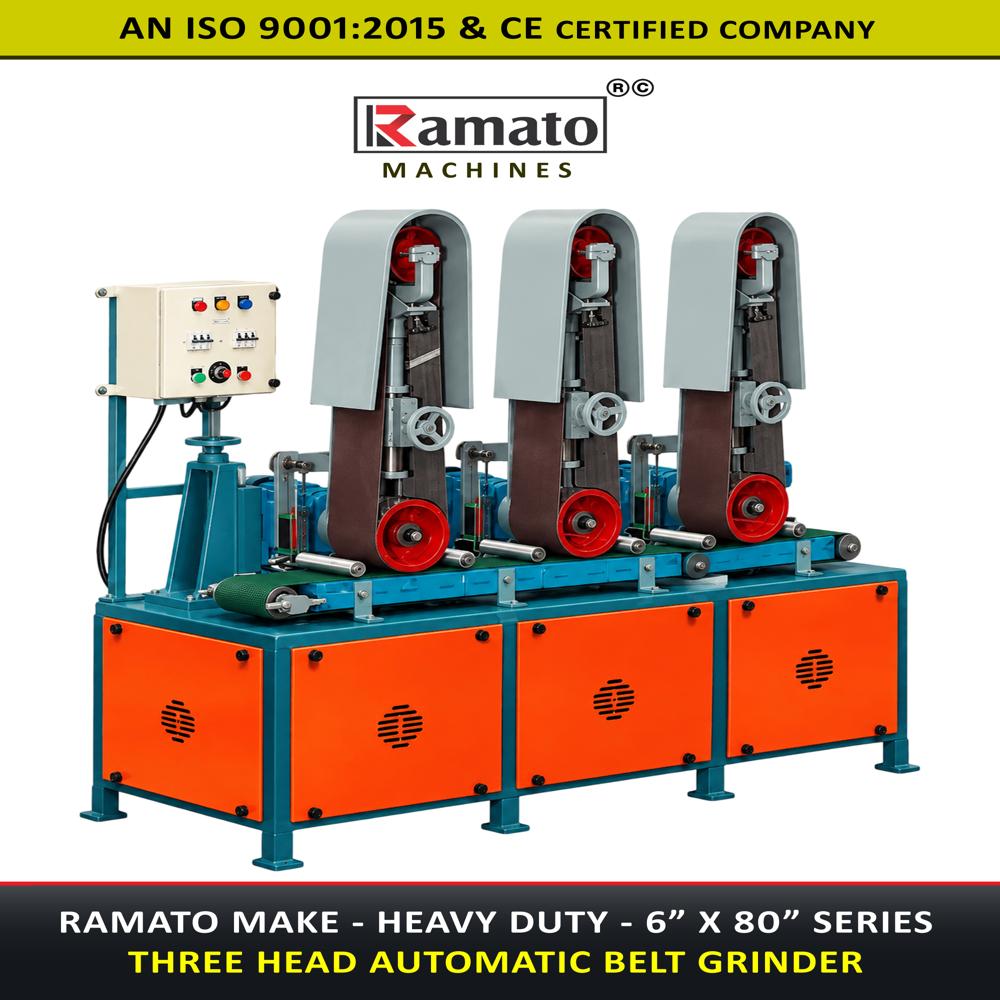

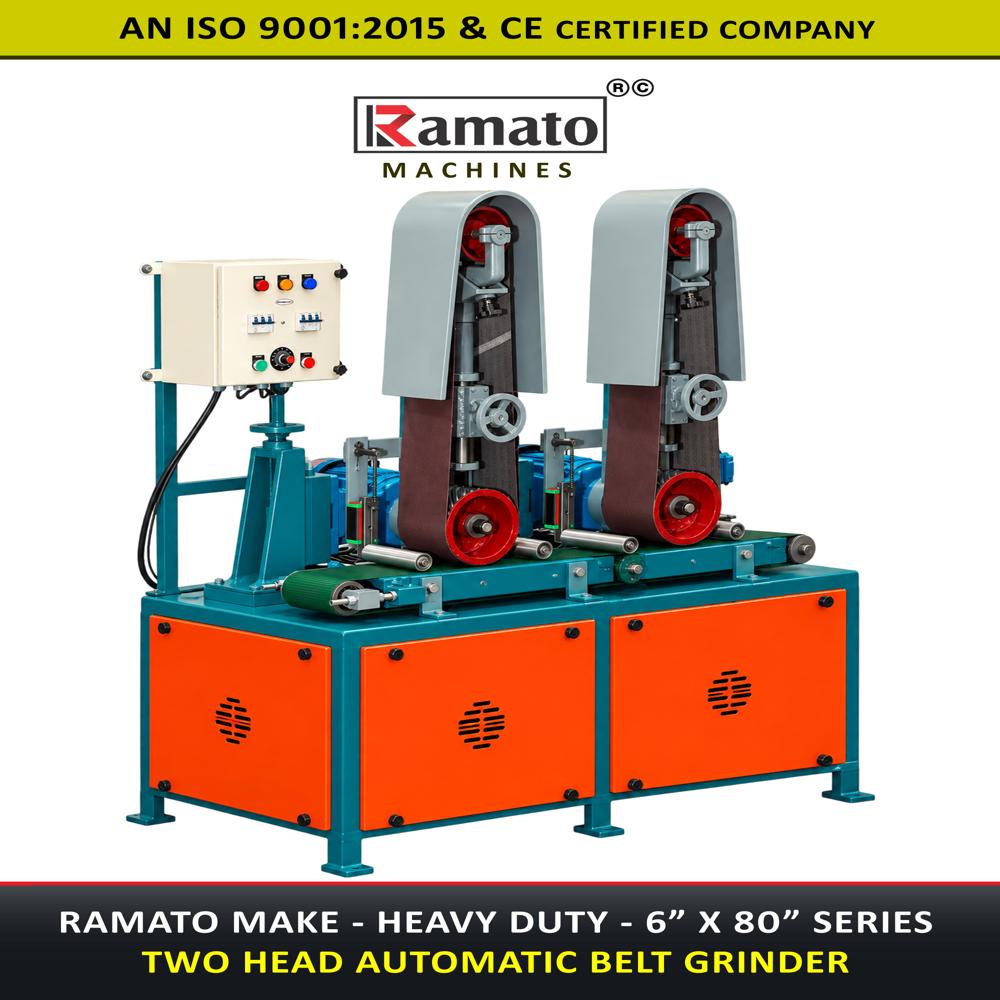

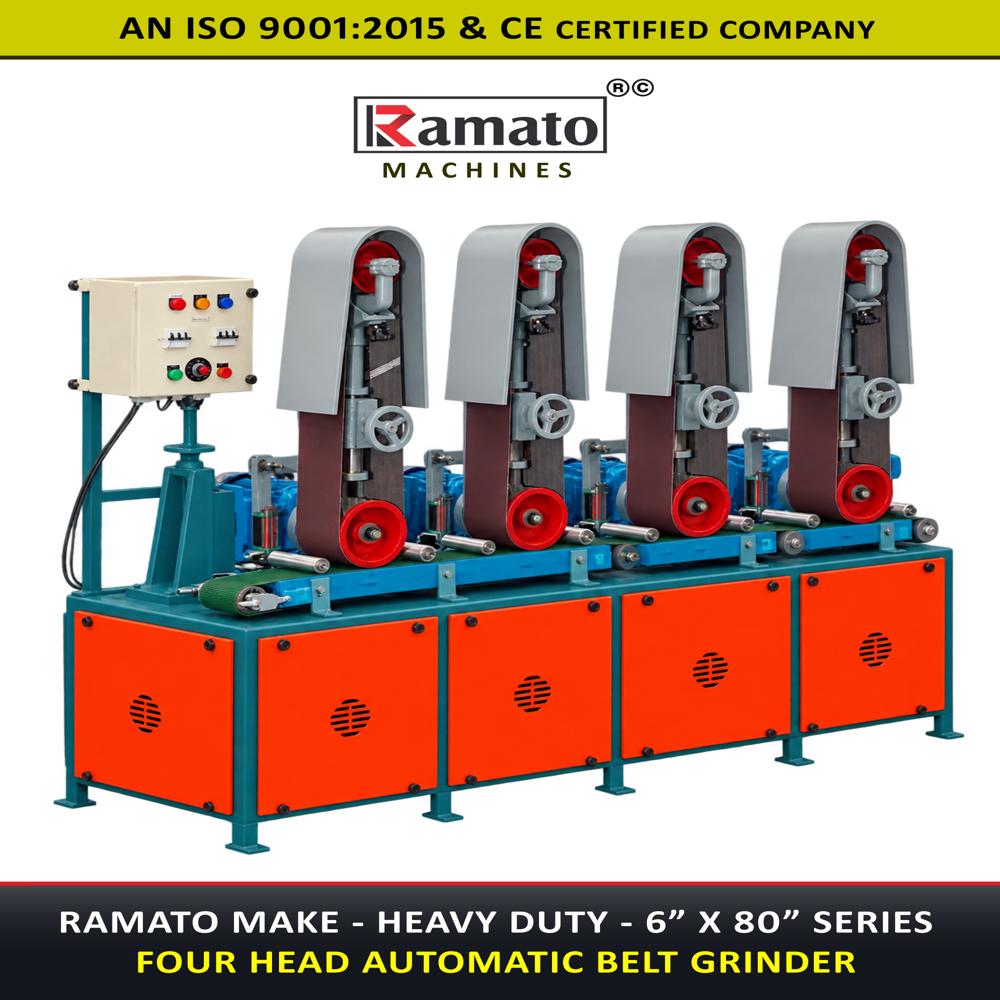

Automatic Multi Head Belt Grinder

Get a Price/Quote

Automatic Multi Head Belt Grinder Specification

Rotation
Single Direction - Clockwise

Model
Multi Head Series / 6 x 80

Product Type
Automatic Multi Head Belt Grinder

General Use
Heavy duty automatic material grinding, deburring, finishing and polishing applications

Material
Steel Body with Powder Coated Finish

Type
Heavy Duty Industrial Grinder

Capacity
Suitable for 6 x 80 Belt Size

Weight (kg)
Approx. 450 kg

Computerized
No

Automatic
Yes

CNC Or Not
Not CNC

Control System
Automatic PLC Based Control System

Table Size
As per Model / Customizable

Table Slide Way
Precision Slide with Adjustable Guides

Grinding Wheel Size
Not Applicable (Uses 6 x 80 abrasive belt)

Grinding Wheel Speed
Adjustable Belt Speed via VFD

Grinding Length
Up to 80 inches

Floor Space
Approx. 1100 mm x 900 mm

Power
3 HP to 7.5 HP (Depending on Model)

Voltage
415 V, 3 Phase, 50 Hz

Dimension (L*W*H)
Approx. 1100 mm x 900 mm x 1800 mm

Feature
Sturdy construction, PLC operated, easy belt change mechanism, low vibration, high accuracy, safety guards provided

Color
Orange & Grey (Powder Coated)

Belt Tensioning
Automatic Pneumatic/Manual Tension Arrangement

Safety Features
Emergency Stop, Belt Cover, Overload Relay

Operator Panel
Intuitive Start/Stop, Emergency Controls and Speed Controls

Suitable Material
Steel, Stainless Steel, Brass, Aluminum, Non-ferrous Metals

Abrasive Belt Size
6 inches x 80 inches

Automation Level
Fully Automatic Feed & Return

Dust Extraction
Dust Collector Port Provided

Number of Heads
Configurable (Single or Multi-head as per requirement)

Noise Level
Less than 75 dB

Working Speed
Adjustable, up to 25 m/sec belt speed

Application
Surface finish, deburring, edge rounding, weld seam grinding, polishing

Coolant Provision
Optional Mist / Flood Coolant Attachment

Drive System
Heavy Duty Electric Motor with Direct Drive

About Automatic Multi Head Belt Grinder

Belt Grinder

Automatic Multi Head Belt Grinder manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent machines for automated grinding, deburring and metal surface finishing.

Customizable Versatility for Diverse Applications

This grinder series stands out for its configurable head setup, making it ideal for a variety of surface finishing, deburring, edge rounding, weld seam grinding, and polishing tasks. Suitable for multiple metal types, it ensures high productivity in any heavy-duty industrial environment. The precise slide way and table size can be customized to fit your specific processing requirements, ensuring versatility across different production lines.

Intelligent Control and Enhanced Safety

With its PLC-based automatic control system, the machine simplifies operation through an intuitive panel offering start/stop, emergency, and speed controls. Safety features such as an emergency stop, belt cover, and overload relay provide peace of mind while maintaining operational efficiency. The sturdy construction with low vibration promotes smooth and accurate results every cycle.

Efficient Performance and Minimal Maintenance

Boasting adjustable belt tensioning-either automatic pneumatic or manual-and an easy belt change mechanism, the grinder ensures quick part turnaround and minimal downtime. Optional mist or flood coolant and a dust collector port further support cleaner and cooler operation, lowering maintenance needs and contributing to a safer, healthier workspace.

FAQ's of Automatic Multi Head Belt Grinder:

Q: How does the automatic belt tensioning mechanism work on this grinder?

A: The grinder offers both automatic pneumatic and manual belt tensioning options. The automatic pneumatic system maintains optimal belt tension throughout operations, ensuring consistent results and longer belt life, while manual tensioning allows user adjustment for specific needs.

Q: What materials can be processed using the Automatic Multi Head Belt Grinder?

A: The machine is designed to handle steel, stainless steel, brass, aluminum, and non-ferrous metals efficiently, making it suitable for diverse industrial applications such as surface finishing, deburring, and polishing.

Q: When should I use the multi-head versus single-head configuration?

A: Select the multi-head configuration for tasks requiring higher throughput, complex finishing, or multiple operation stages in a single pass. The single-head setup is ideal for smaller batches or simpler applications.

Q: Where is the Automatic Multi Head Belt Grinder typically used?

A: This grinder is widely used in manufacturing plants, metal fabrication workshops, and industrial environments that demand high-volume, precise surface processing and finishing of metal parts.

Q: What is the process for adjusting belt speed and other operational parameters?

A: Belt speed and key operational parameters are adjusted from the user-friendly operator panel, which features PLC-based controls, allowing for fine-tuning via Variable Frequency Drive (VFD) to meet material and finishing requirements.

Q: How does the dust extraction system benefit operator safety?

A: A dedicated dust collector port allows attachment to standard extraction units, efficiently removing airborne particulates and maintaining a safer, cleaner workspace for operators.

Q: What are the main benefits of using this grinder for industrial applications?

A: Key benefits include high accuracy, consistent surface quality, fast material removal, easy belt changes, low operating noise (below 75 dB), robust safety features, and compatibility with automatic and manual production lines.
