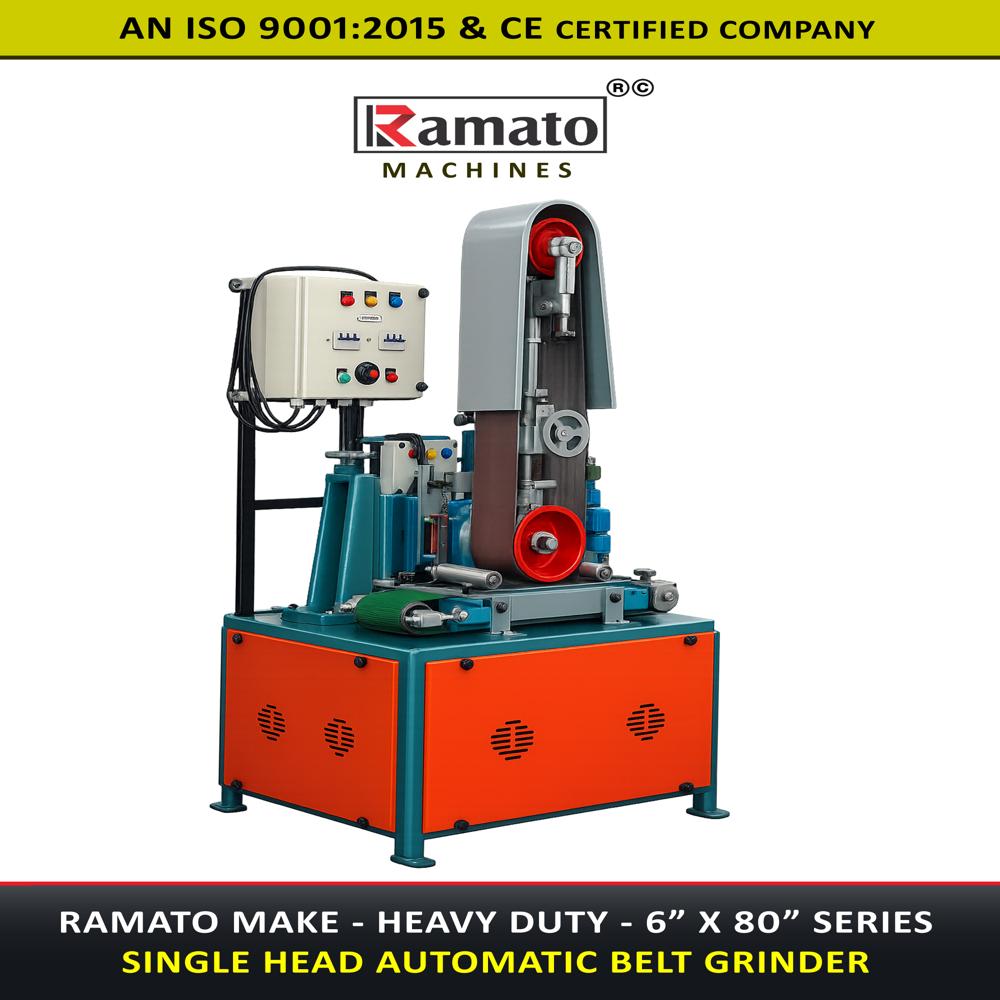

Automatic Conveyor Belt Grinder

Get a Price/Quote

Automatic Conveyor Belt Grinder Specification

Rotation
Unidirectional Belt Rotation

Model
Portable 6 x 80 Series

Product Type
Automatic Conveyor Belt Grinder

General Use
Industrial Surface Grinding, Metal Deburring, Finishing & Polishing

Material
Mild Steel Structure, Industrial Grade Components

Type
Automatic/Portable

Capacity
Single Head, Medium Duty

Weight (kg)
Approx. 250 kg

Computerized
No

Automatic
Yes

CNC Or Not
Not CNC

Control System
Electric Panel Control

Table Size
Custom - Suitable for portable grinder

Table Slide Way
Precision Linear Slide

Grinding Wheel Size
6 x 80 Belt

Grinding Wheel Speed
Variable (Customizable)

Grinding Length
80 inch

Floor Space
Compact, Portable Design

Spindle Speed
Variable (Approx. 1440 RPM Main Motor)

Power
2 HP

Voltage
220V/415V 50 Hz (Three Phase)

Dimension (L*W*H)
Approx. 48 x 36 x 54

Feature
Single Head, Portable, CE & ISO Certified

Color
Teal Blue/Orange

Belt Grit Compatibility
Multiple Grits Supported (60, 80, 120, etc.)

Customisation
Available On Request

Working Speed
Adjustable Conveyor Speed

Belt Tension Adjustment
Manual Wheel Knob

Noise Level
<80 dB (Low Noise Operation)

Operational Support
Manual Provided, Remote Assistance Available

Control Panel
Integrated with Emergency Stop & Variable Speed Drive

Dust Extraction Provision
Provided for Clean Operation

Safety Features
Guarded Grinding Zone, Overload Protection

Replacement Parts
Easy Belt Replacement Mechanism

Conveyor Feed
Automatic, Synchronised With Grinding Head

Application Area
Suitable for Metalworking, Engineering, Fabrication Units

About Automatic Conveyor Belt Grinder

Automatic Conveyor Belt Grinder manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent conveyor-based machines for automatic metal grinding, deburring and finishing.

Advanced Control Panel for Precision

The machine incorporates an easy-to-use electric control panel, equipped with an emergency stop button and a variable speed drive. Users can fine-tune grinding parameters to suit different material types, ensuring both safety and operational efficiency. The clear interface makes it ideal for operators in busy industrial settings.

Superior Safety & Clean Operation

Safety is paramount with a fully guarded grinding zone, overload protection, and integrated dust extraction provisions. These features not only ensure operator protection but also contribute to a cleaner, healthier workplace, meeting contemporary industry safety standards.

Versatile & Customizable Design

This grinder adapts to a variety of applications, supporting multiple belt grits and customizable features on request. Its compact footprint, portable structure, and medium-duty single head make it suitable for both large fabrication units and smaller engineering shops.

FAQ's of Automatic Conveyor Belt Grinder:

Q: How do I adjust the conveyor speed on the Automatic Conveyor Belt Grinder?

A: The conveyor speed can be adjusted using the integrated control panel, which includes a variable speed drive that allows you to match the feed rate to your specific grinding or finishing requirements.

Q: What safety features are included with this grinder?

A: The grinder offers a guarded grinding zone, an emergency stop button on the control panel, overload protection, and a robust dust extraction system to provide a safe and clean working environment.

Q: When should the abrasive belt be replaced, and is the replacement process complicated?

A: You should replace the abrasive belt when you notice diminished grinding efficiency or visible wear. The grinder is designed with an easy belt replacement mechanism, making the process quick and straightforward.

Q: Where can this grinder be effectively used?

A: This equipment is suitable for metalworking, engineering shops, fabrication units, and similar industrial settings requiring automatic, portable surface grinding or metal deburring.

Q: What materials and components are compatible with this grinder?

A: The grinder handles various metal surfaces and supports multiple belt grits such as 60, 80, and 120. Its mild steel structure and industrial-grade parts assure durability with a wide array of metalworking applications.

Q: What are the main benefits of using this automatic conveyor belt grinder?

A: Key benefits include precise, repeatable grinding results, low noise operation (<80 dB), a compact and portable design, and time-saving features such as synchronized conveyor feed and fast belt replacement. This ensures increased productivity and workplace safety.
