Metal Surface Finishing Machine

Get a Price/Quote

Metal Surface Finishing Machine Specification

Rotation
Belt Runs Vertically Over Three Grinding Heads

Model
6 x 80 Series

Product Type
Heavy Duty Three Head Automatic Belt Grinder

General Use
Metal Surface Finishing, Grinding, Polishing

Material
Mild Steel Structure with Powder Coating

Type
Automatic Belt Grinding Machine

Capacity
High Volume, Three Heads Operation

Weight (kg)
Approx. 1100-1200 kg

Computerized
No

Automatic
Yes

CNC Or Not
Not CNC

Control System
Electric Panel with Push Buttons

Table Size
Custom, suited for heavy-duty operation

Table Slide Way
Precision Bearing Guided

Grinding Wheel Size
6 Inch x 80 Inch Belt

Grinding Wheel Speed
Variable / As per Model Specifications

Grinding Length
80 Inch

Floor Space
Approx. 2200 mm x 1000 mm

Fuel Tank Capacity
N/A (Electric Powered)

Spindle Speed
Variable / As per Model Specifications

Power
8-10 HP (for all 3 heads combined)

Voltage
415V / 50Hz / 3 Phase

Dimension (L*W*H)
Approx. 2200 mm x 1000 mm x 1800 mm

Feature
Three Head, Heavy Duty, CE & ISO Certified, Easy Operation

Color
Orange & Blue with Metal Finish

Maximum Workpiece Size
As per Table Size; suitable for up to 6" width components

Operator Panel
Integrated with Start/Stop/Reset Controls

Belt Tensioning
Manual Handwheel Adjustable

Application Materials
Suitable for MS, SS, Cast Iron, and other metals

Coolant Provision
Optional (upon request)

Head Configuration
Three Belt Grinding Heads for Continuous Surface Finishing

Safety Features
Belt Guards & Emergency Stop Switch

Noise Level
Low Noise Operation

Belt Drive System
Heavy Duty Bearing Mounted

Dust Extraction
Provision for Connection to Dust Collector

About Metal Surface Finishing Machine

Metal Surface Finishing Machine manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent grinding, deburring and finishing machines for metal fabrication.

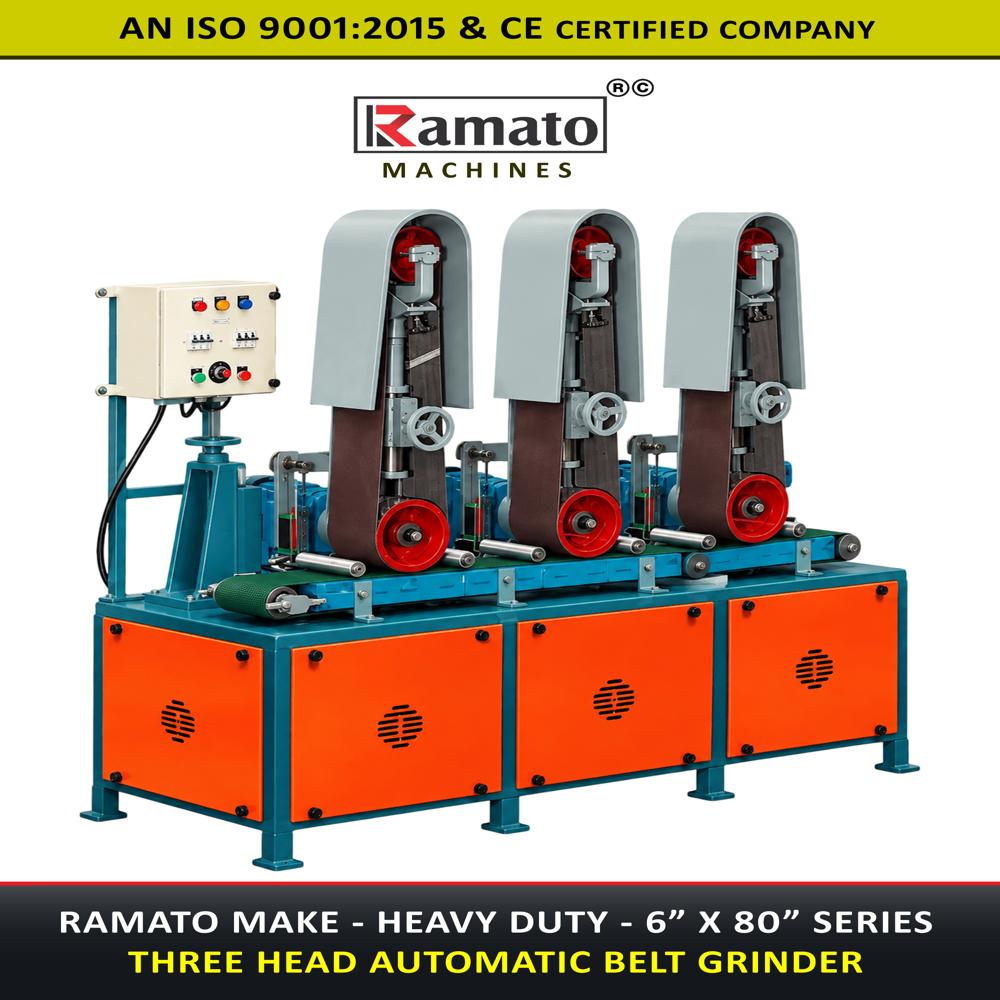

High-Volume Finishing with Triple Belt Heads

Engineered for continuous duty, this model features three belt grinding heads working in unison. The machine accommodates components up to 6 inches wide and is capable of handling complex finishing, grinding, or polishing tasks with ease. Its heavy-duty bearing-mounted drive system and precision bearing-guided table ensure smooth, accurate results across MS, SS, cast iron, and more.

Versatile and User-Friendly Operation

Operators benefit from an integrated control panel with start, stop, and reset push buttons, ensuring seamless workflow management. The machine supports variable spindle and belt speeds, adjustable belt tensioning, and optional coolant provision, allowing for process customization based on specific material and finish requirements.

Enhanced Safety and Cleanliness

Safety is paramount, with robust belt guards and an emergency stop switch included as standard. The design also facilitates connection to external dust collectors to maintain cleanliness and protect operator health, contributing to a safer and more comfortable working environment.

FAQ's of Metal Surface Finishing Machine:

Q: How does the three-head belt grinding system improve metal surface finishing?

A: The machine's three-head configuration allows for continuous and consistent grinding, ensuring each workpiece receives uniform surface treatment. This multi-stage process enhances productivity and produces superior finishes on mild steel, stainless steel, cast iron, and other metals, making it ideal for high-volume industrial use.

Q: What safety features are integrated into this metal surface finishing machine?

A: Built-in safety features include robust belt guards covering the grinding area and an emergency stop switch within easy reach. These safeguards protect operators from accidental contact and enable prompt response in case of emergencies, ensuring safer day-to-day operations.

Q: When should the belt tension be adjusted, and how is it done?

A: Belt tension should be checked and adjusted whenever changing belts or if decreased grinding efficiency is observed. The adjustment is easily accomplished using the manual handwheel, allowing precise and quick setup for optimal performance and belt longevity.

Q: Where can the dust generated during grinding be managed?

A: The machine is designed with a provision for connecting to an external dust collector. This ensures effective extraction of dust and fine particles produced during grinding, keeping the work area clean and maintaining air quality.

Q: What are the benefits of the integrated operator panel and its controls?

A: The operator panel centralizes essential controls-including start, stop, and reset functions-making machine operation straightforward and efficient. This layout supports quick response to process changes or emergencies, improving usability and reliability during long production runs.

Q: How is this machine suitable for heavy-duty, high-volume metal finishing?

A: With its robust mild steel, powder-coated structure, high-capacity (8-10 HP combined), and heavy-duty components, the machine is made for endurance on shop floors. It efficiently manages continuous workloads, maintaining precision and reducing downtime for exporters, manufacturers, and suppliers.
