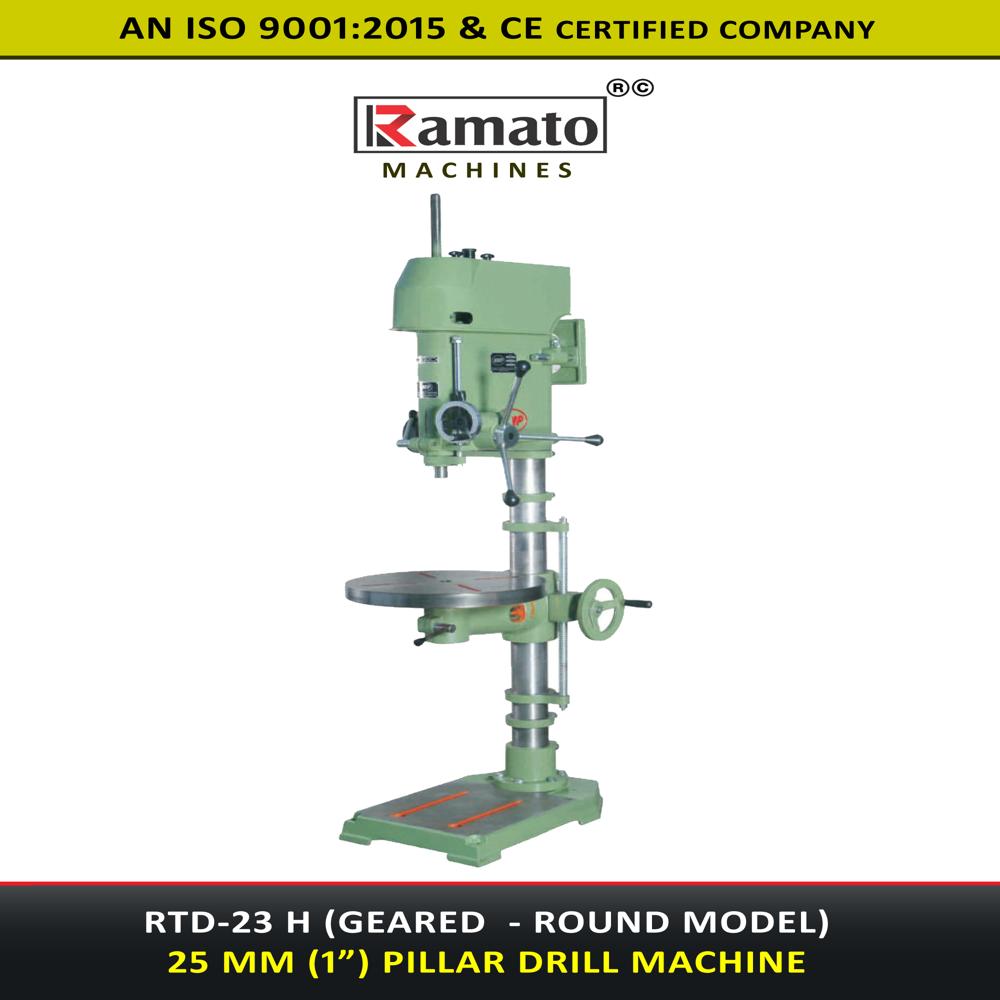

Industrial Drilling Machine
Industrial Drilling Machine
Industrial Drilling Machine
Industrial Drilling Machine
Industrial Drilling Machine
Industrial Drilling Machine
Industrial Drilling Machine
Industrial Drilling Machine
Industrial Drilling Machine
Industrial Drilling Machine
Industrial Drilling Machine
Industrial Drilling Machine

Industrial Drilling Machine

Price 23000.0 INR/ Unit

MOQ : 1 Unit

Industrial Drilling Machine Specification

  • Condition
  • New
  • Cutting Area
  • Up to 25 mm diameter
  • Dimension (L*W*H)
  • Approx. 700 mm 450 mm 1600 mm
  • Table Size
  • Approx. 300 mm Diameter (Round Table)
  • Machine Type
  • RTD-23 D Geared Round Model
  • Diameter
  • Max. drilling diameter 25 mm
  • Frequency
  • 50/60 Hz
  • Noise Level
  • Low
  • Motor Power
  • 1 HP (Standard)
  • Features
  • Geared Transmission, Adjustable Table, High Precision, Robust Construction, Low Maintenance
  • Spindle Speed
  • Variable (Typical Range: 100-2000 RPM)
  • Product Type
  • Pillar Drill Machine
  • Material
  • Cast Iron/Steel
  • Computerized
  • No
  • Automatic Grade
  • Semi-Automatic
  • CNC Or Not
  • No
  • Control System
  • Manual Geared Control
  • Voltage
  • 220-240 V / 380-415 V (as required)
  • Power
  • 0.75-1.5 kW (approx.)
  • Power Source
  • Electric
  • Weight (kg)
  • Approx. 130-200 kg depending on model & configuration
  • Capacity
  • 25 mm
  • Color
  • Green
  • Usage & Applications
  • Industrial drilling in metal, wood, and plastic
  • Maximum Drilling Depth
  • Up to 125 mm (approx.)
  • Spindle Travel
  • 125 mm (estimated)
  • Coolant Pump
  • Optional
  • Type of Drive
  • Geared
  • Distance Spindle to Base
  • 850 mm (approx.)
  • Column Diameter
  • 87 mm
  • No. of Spindle Speeds
  • 8-12 (typical)
  • Drill Chuck Capacity
  • 1.5 mm to 16 mm
  • Distance Spindle to Table
  • Max. 500 mm (approx.)
  • Base Size
  • 500 mm 350 mm
  • Quill Diameter
  • 45 mm



About Industrial Drilling Machine

Industrial Drilling Machine manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent heavy-duty drilling machines for metalworking, fabrication and industrial production.

Geared Transmission and Adjustable Table

The machine is equipped with a geared drive system, providing eight to twelve spindle speeds for enhanced versatility. The adjustable round table, approximately 300 mm in diameter, supports a wide range of workpieces, making it optimal for both large and small-scale drilling tasks in industrial settings.


Precision and Robust Construction

Constructed primarily from cast iron or steel, this drilling machine is designed for longevity and durability. With a quill diameter of 45 mm and a column diameter of 87 mm, operators experience minimal vibration and high accuracy during drilling. Its robust build ensures sustained performance even under heavy-duty usage.


Usage & Applications

Ideal for industrial workshops, the RTD-23 D Geared Round Model is suited for drilling in metal, wood, and plastic. It delivers optimal results in fabrication, assembly, toolmaking, and maintenance. The optional coolant pump ensures efficient heat management during extended operations.

FAQ's of Industrial Drilling Machine:


Q: How is the spindle speed controlled on the RTD-23 D Geared Round Model industrial drilling machine?

A: The spindle speed is controlled manually through the machine's geared transmission system, offering a typical speed range of 100 to 2000 RPM across 8 to 12 selectable levels, enabling adaptation to various drilling materials and requirements.

Q: What materials can this industrial drilling machine process?

A: This machine is suitable for drilling metal, wood, and plastic due to its high precision and robust construction. Its geared drive and adjustable table accommodate different material thicknesses and project types.

Q: Where is the best location to install this drilling machine?

A: The drilling machine performs optimally in industrial workshops, factories, and manufacturing environments. A sturdy and level surface is recommended to support its weight (130-200 kg) and dimensions (approx. 700 450 1600 mm).

Q: When should operators consider using the optional coolant pump?

A: Operators are advised to use the optional coolant pump during prolonged drilling tasks or when working on harder materials such as metals to help manage heat generation and improve drill life and cutting efficiency.

Q: What is the maximum drilling depth and diameter this machine supports?

A: The RTD-23 D model supports a maximum drilling depth of approximately 125 mm and a cutting diameter of up to 25 mm, making it suitable for heavy-duty industrial drilling jobs.

Q: How does manual geared control benefit the drilling process?

A: Manual geared control allows precise adjustment of spindle speeds and torque according to project requirements, ensuring optimal performance, high accuracy, and flexibility for a variety of drilling tasks.

Q: What are the advantages of using this machine compared to other types?

A: Advantages include high precision, robust construction, adjustable table, reliable geared transmission, low noise, and minimal maintenance requirements, all contributing to efficient industrial drilling workflows and reduced downtime.
