Price 23000.0 INR/ Unit

MOQ : 1 Unit

Pillar Drilling Machine Specification

  • Spindle Speed
  • Multiple speeds (range: 90-2000 RPM depending on gear selection)
  • Dimension (L*W*H)
  • 550 mm x 350 mm x 1500 mm (approx.)
  • Diameter
  • 25 mm (max. drilling diameter)
  • Features
  • Gear operated, heavy-duty construction, square table, high accuracy
  • Condition
  • New
  • Noise Level
  • Low
  • Machine Type

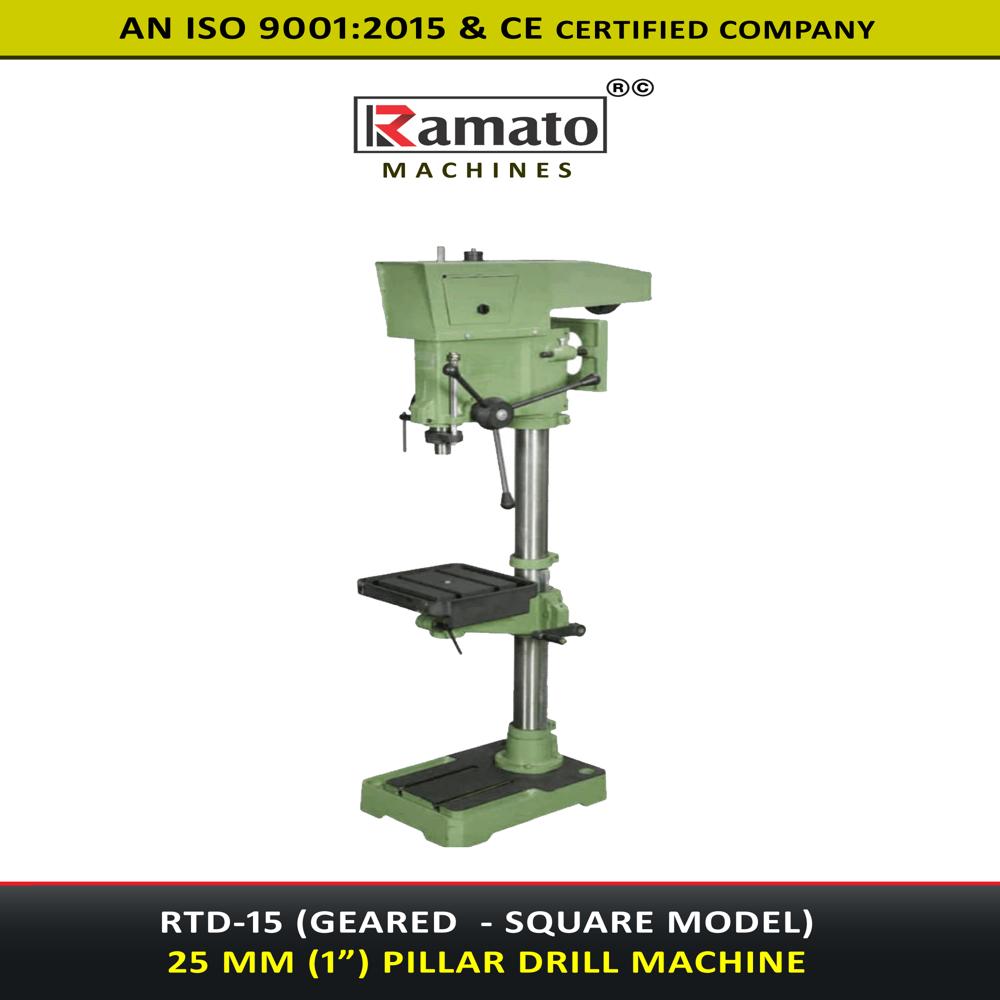

  • RTD-15 (Geared - Square Model)
  • Motor Power
  • 1 HP / 0.75 kW
  • Frequency
  • 50 Hz
  • Cutting Area
  • Suitable for 25 mm max. diameter drilling
  • Table Size
  • 250 mm x 250 mm (approx.)
  • Product Type
  • Pillar Drilling Machine
  • Material
  • Heavy duty cast iron and steel
  • Computerized
  • No
  • Automatic Grade
  • Semi-Automatic
  • CNC Or Not
  • No
  • Control System
  • Manual
  • Voltage
  • 220-440V (as per requirement)
  • Power
  • 1 HP to 1.5 HP (depending on configuration)
  • Power Source
  • Electric
  • Weight (kg)
  • Approx. 120 to 180 kg (as per model)
  • Capacity
  • 25 mm (1 inch) drilling capacity
  • Color
  • Green (standard) or customized
  • Usage & Applications
  • Drilling, tapping, reaming, and boring in metal and other materials
  • Base Size
  • 450 mm x 300 mm
  • Spindle Taper
  • MT-3
  • Distance from Spindle to Base
  • 850 mm
  • Type of Gearbox
  • Helical gear type
  • Machine Finish
  • Powder coated paint for corrosion resistance
  • Column Diameter
  • 73 mm
  • Suitable Material
  • Mild steel, cast iron, non-ferrous metals
  • Spindle Travel
  • 125 mm
  • Distance from Spindle to Table
  • 500 mm
  • Number of Spindle Speeds
  • 8/16 (as per model configuration)



About Pillar Drilling Machine

Pillar Drilling Machine manufacturer in Rajkot, Gujarat, India. Rajlaxmi Machine Tools offers Ramato, HMP & Roent industrial pillar drills for accurate metal drilling and workshop applications.

High-Performance Engineering

The RTD-15 pillar drilling machine is engineered for reliable, accurate, and heavy-duty applications. Its robust frame and gear-driven mechanism handle drilling, tapping, and boring tasks efficiently. The high spindle travel and precise MT-3 taper spindle maximize versatility, making it suitable for varied materials and applications.


Versatile Operating Features

Equipped with multiple spindle speeds and a helical gear-type gearbox, the RTD-15 offers flexibility for different materials and operational requirements. The powder coating finish and heavy-duty construction ensure longevity and resistance to corrosion, making it ideal for both small workshops and larger industrial facilities.

FAQ's of Pillar Drilling Machine:


Q: How does the RTD-15 Pillar Drilling Machine achieve high accuracy during drilling operations?

A: The RTD-15 includes a gear-operated mechanism and precision square table, which together provide stable drilling and minimized vibration, resulting in high accuracy for tasks such as tapping, reaming, and boring.

Q: What materials are suitable for processing with this pillar drilling machine?

A: This machine is designed for mild steel, cast iron, and non-ferrous metals, providing versatility in manufacturing and workshop environments.

Q: Where is the RTD-15 model typically used?

A: The RTD-15 is commonly used in machine shops, manufacturing units, metalworking workshops, and engineering industries that require reliable and accurate drilling performance.

Q: What is the process for changing spindle speeds on this machine?

A: Operators can select from 8 or 16 spindle speeds (depending on the model) by adjusting the helical gear-type gearbox, allowing for optimal speed settings based on the material and operation required.

Q: When should I apply customized specifications or color options?

A: Customers can request customized color or specific features during the ordering process to ensure the machine fits their operational or branding needs.

Q: What are the main benefits of using a powder coated finish on this machine?

A: Powder coated paint enhances the machine's resistance to corrosion, increases durability, and ensures a clean, long-lasting appearance.

Q: How is this pillar drilling machine operated and what control system does it use?

A: The RTD-15 operates semi-automatically and is manually controlled, ensuring straightforward operation without computerized interfaces. It runs on electric power with a voltage range of 220-440V.
