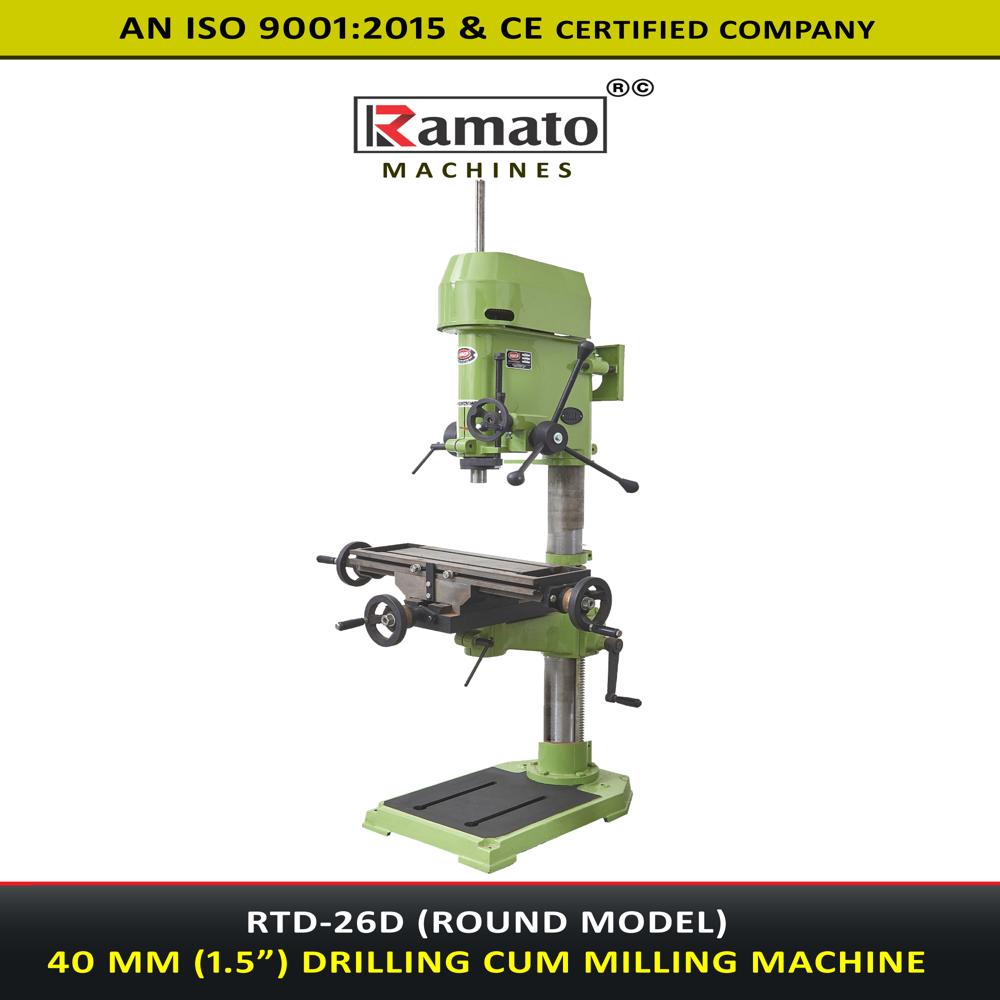

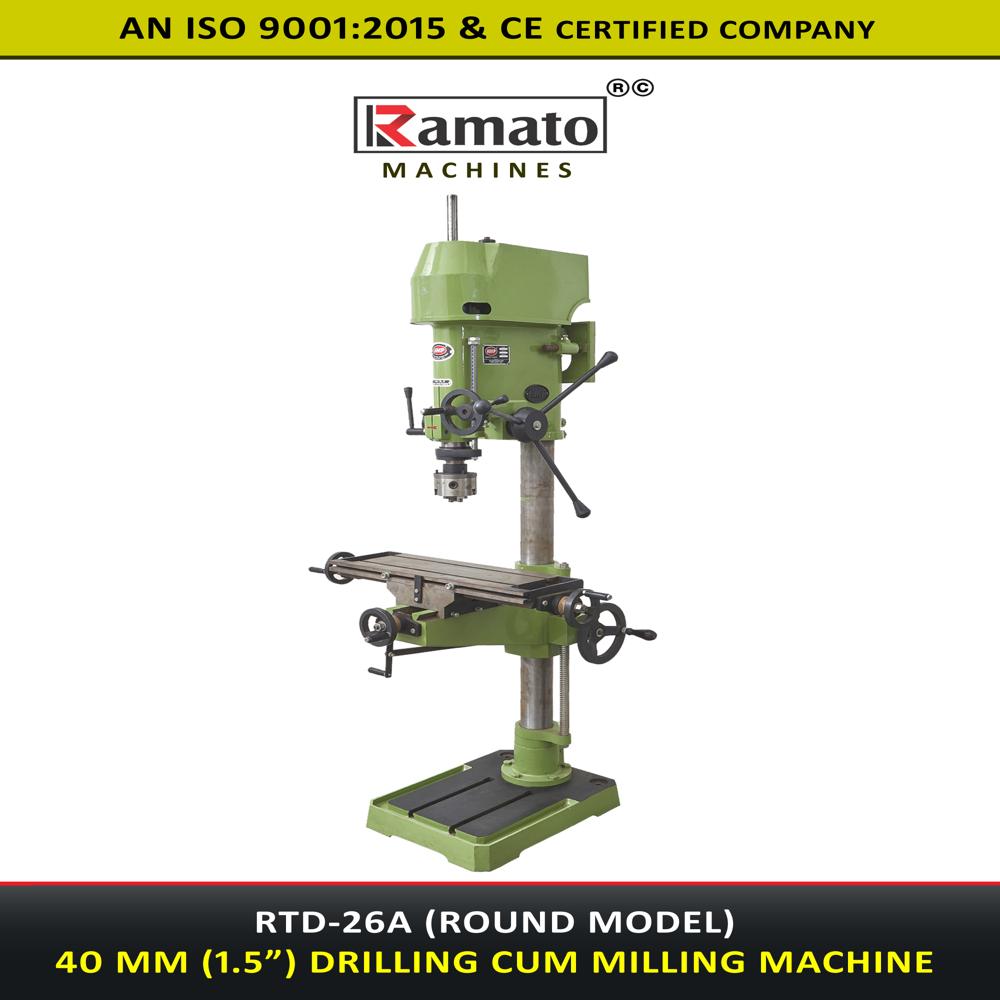

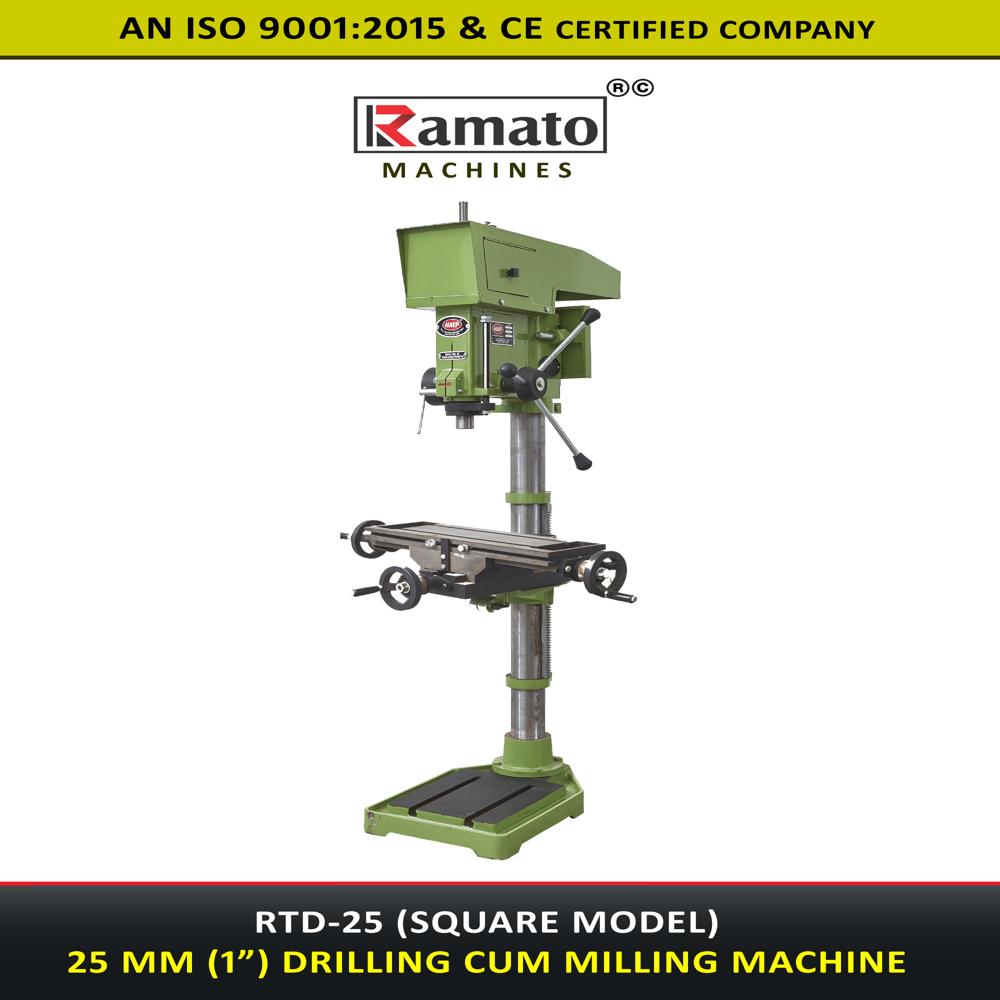

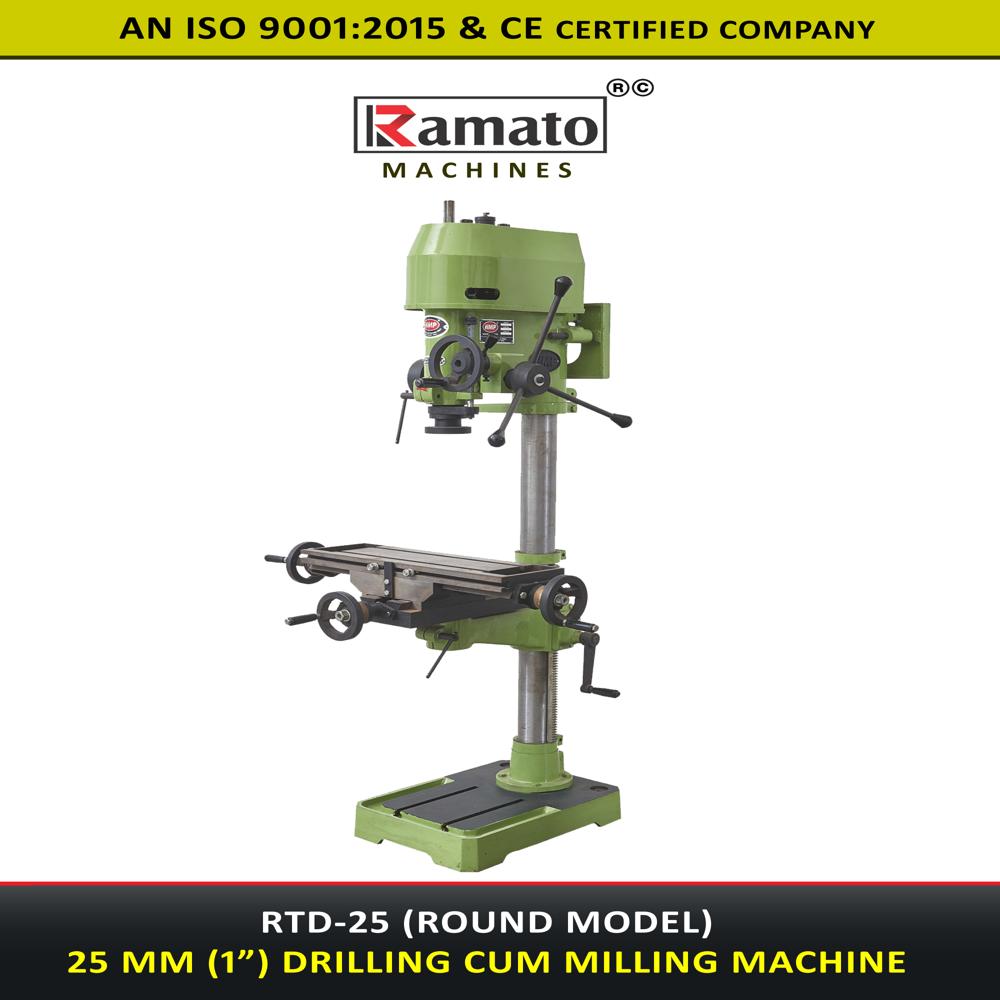

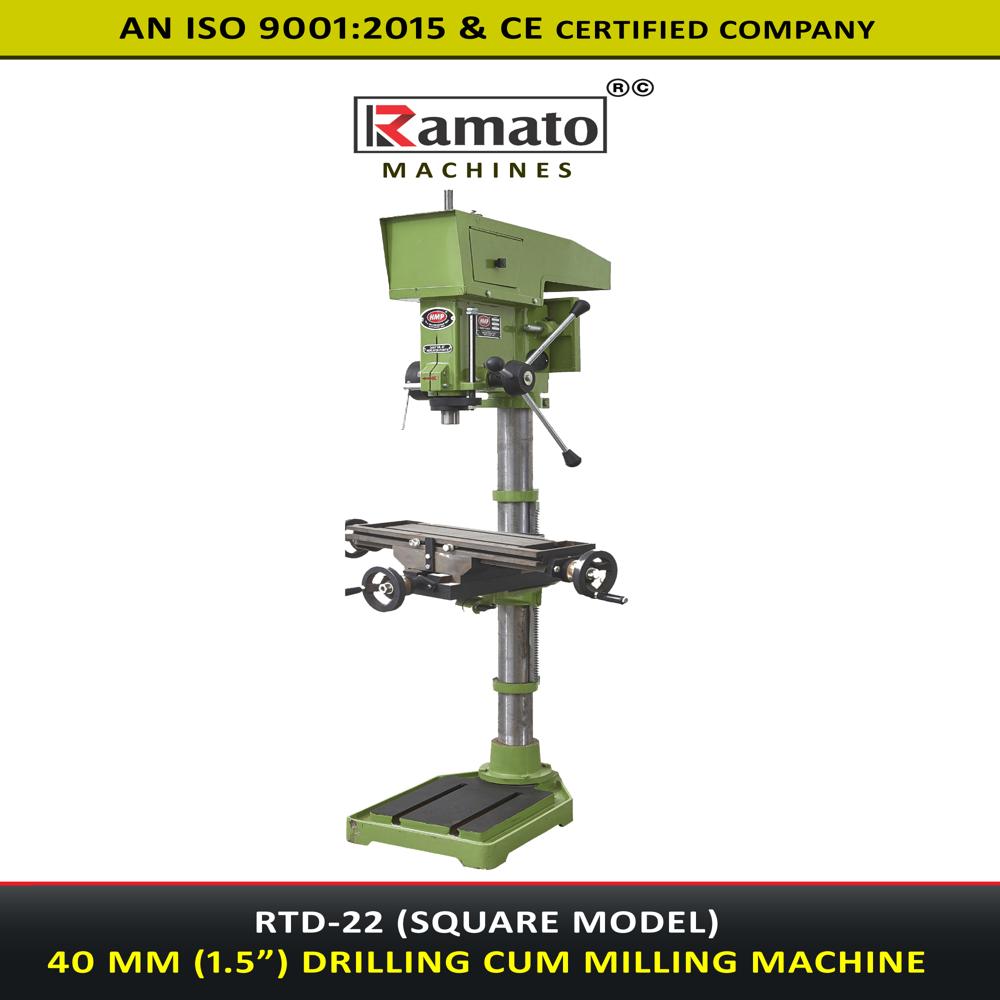

Heavy Duty Drilling Cum Milling Machine
Heavy Duty Drilling Cum Milling Machine
Heavy Duty Drilling Cum Milling Machine
Heavy Duty Drilling Cum Milling Machine
Heavy Duty Drilling Cum Milling Machine
Heavy Duty Drilling Cum Milling Machine
Heavy Duty Drilling Cum Milling Machine
Heavy Duty Drilling Cum Milling Machine
Heavy Duty Drilling Cum Milling Machine
Heavy Duty Drilling Cum Milling Machine
Heavy Duty Drilling Cum Milling Machine
Heavy Duty Drilling Cum Milling Machine

Heavy Duty Drilling Cum Milling Machine

Price 40000.0 INR/ Unit

MOQ : 1 Unit

Heavy Duty Drilling Cum Milling Machine Specification

  • Cutting Area
  • 700 x 300 mm Table Coverage
  • Motor Power
  • 3 HP
  • Noise Level
  • <75 dB
  • Dimension (L*W*H)
  • 1100 x 700 x 1800 mm
  • Machine Type
  • Round Model RTD-26H
  • Features
  • Heavy Duty, ISO 9001:2015 & CE Certified, High Accuracy, Rigid Construction
  • Table Size
  • 700 x 300 mm
  • Spindle Speed
  • 70-1200 rpm (Variable)
  • Frequency
  • 50 Hz
  • Condition
  • New
  • Diameter
  • Up to 40 mm (Drilling)
  • Product Type
  • Heavy Duty Drilling Cum Milling Machine
  • Material
  • Cast Iron, Steel
  • Computerized
  • No
  • Automatic Grade
  • Semi-Automatic
  • CNC Or Not
  • No
  • Control System
  • Manual
  • Voltage
  • 415V
  • Power
  • 2.2 kW (3 HP)
  • Power Source
  • Electric
  • Weight (kg)
  • Approx. 350 kg
  • Capacity
  • 40 mm (Drilling)
  • Color
  • Green
  • Usage & Applications
  • Drilling, Milling, Tapping, Reaming
  • Max. Distance from Spindle Nose to Table
  • 550 mm
  • Spindle Taper
  • MT-4
  • Feed Range
  • Manual
  • Longitudinal Travel
  • 450 mm
  • Coolant Pump
  • Optional
  • Cross Travel
  • 200 mm
  • Vertical Travel
  • 400 mm
  • Number of Spindle Speeds
  • 8



About Heavy Duty Drilling Cum Milling Machine

Heavy Duty Drilling Cum Milling Machine manufacturer in Rajkot, Gujarat, India. Rajlaxmi Machine Tools offers Ramato, HMP & Roent industrial machines for demanding drilling, milling and metal fabrication applications.

Rigid Construction and High Performance

Built with robust materials and a rigid frame, this machine is designed to withstand intensive operations while maintaining high precision. The construction minimizes vibrations, leading to superior surface finishes and longer tool life. Certified to ISO 9001:2015 and CE standards, it delivers consistent, worry-free operation in industrial settings.


Versatile Applications and Ease of Use

The RTD-26H excels in drilling, milling, tapping, and reaming tasks on materials such as cast iron and steel. Its manual feed and variable spindle speeds provide flexibility for various applications, while the spacious table accommodates sizeable workpieces. Whether used in workshops or manufacturing plants, this machine offers reliability and efficiency.

FAQ's of Heavy Duty Drilling Cum Milling Machine:


Q: How does the spindle taper MT-4 enhance the machine's versatility?

A: The MT-4 spindle taper allows for secure, easy mounting of a wide range of tools, enabling users to switch between drilling, milling, and tapping tasks efficiently. This versatility supports diverse machining needs without frequent equipment changes.

Q: What materials can be processed with this machine?

A: This drilling cum milling machine is designed to handle cast iron and steel effectively, making it suitable for a variety of industrial and manufacturing applications.

Q: When is the optional coolant pump recommended?

A: The optional coolant pump is beneficial during prolonged or intensive operations, especially with harder materials or larger drilling diameters, to reduce heat buildup, improve tool life, and ensure optimal performance.

Q: Where can this machine be installed for optimum performance?

A: Installation is ideal in workshops or industrial settings with a stable, level floor and access to a 415V electrical supply. Ensuring sufficient space for the machine's dimensions (1100 x 700 x 1800 mm) and table movement will further promote safety and efficiency.

Q: What manual processes are involved in operating this machine?

A: The RTD-26H uses manual feed for all machining operations, requiring the operator to control feed rates and adjustments. This provides hands-on control for precision tasks, essential for achieving high quality results in both drilling and milling.

Q: How can users benefit from the eight spindle speeds?

A: The eight selectable spindle speeds (70 to 1200 rpm) allow operators to match the cutting speed to the material and application, enhancing cutting performance, accuracy, and extending tool lifespan.
