Floor Standing Drilling Machine
Floor Standing Drilling Machine
Floor Standing Drilling Machine
Floor Standing Drilling Machine
Floor Standing Drilling Machine
Floor Standing Drilling Machine
Floor Standing Drilling Machine
Floor Standing Drilling Machine
Floor Standing Drilling Machine
Floor Standing Drilling Machine
Floor Standing Drilling Machine
Floor Standing Drilling Machine

Floor Standing Drilling Machine

Price 23000.0 INR/ Unit

MOQ : 1 Unit

Floor Standing Drilling Machine Specification

  • Cutting Area
  • 40 mm Max Drilling Diameter
  • Diameter
  • 40 mm (Max Drilling Capacity)
  • Machine Type
  • RTD-22 Geared Pillar Drill (Square Model)
  • Features
  • Robust Construction, Geared Drive, Adjustable Table, Low Maintenance
  • Motor Power
  • 1.5 HP - 2 HP
  • Frequency
  • 50/60 Hz
  • Spindle Speed
  • Varies by Gear, 8 Steps
  • Condition
  • New
  • Dimension (L*W*H)
  • 600 x 350 x 1500 mm
  • Table Size
  • 300 mm x 300 mm (Approx)
  • Noise Level
  • Low
  • Product Type
  • Floor Standing Drilling Machine
  • Material
  • Cast Iron / Steel
  • Computerized
  • No
  • Automatic Grade
  • Semi Automatic
  • CNC Or Not
  • Not CNC
  • Control System
  • Manual
  • Voltage
  • 220-415V (Depending on Model)
  • Power
  • 1.5 HP to 2 HP
  • Power Source
  • Electric
  • Weight (kg)
  • Approx 250-300 kg
  • Capacity
  • 40 mm (1.5)
  • Color
  • Green / Custom
  • Usage & Applications
  • Drilling, Reaming, Tapping - Workshop/Heavy Engineering
  • Distance from Spindle to Table
  • 700 mm (Max)
  • Column Diameter
  • 87 mm
  • No. of Spindle Speeds
  • 8 Speeds
  • V Belt Type
  • Geared
  • Distance from Spindle to Base
  • 1100 mm
  • Spindle Travel
  • 200 mm
  • Model Number
  • RTD-22



About Floor Standing Drilling Machine

Drilling Machine
Floor Standing Drilling Machine manufacturer in Rajkot, Gujarat, India. Rajlaxmi Machine Tools offers Ramato, HMP & Roent industrial drilling machines for heavy-duty metalworking and workshop applications.


Versatile Application

The RTD-22 Geared Pillar Drill is ideal for drilling, reaming, and tapping in workshops and heavy engineering industries. Its adjustable table facilitates work on different materials, while the robust cast iron and steel build ensures durability. The machine supports a maximum drilling diameter of 40 mm, making it suitable for various professional requirements.


Precision and Ease of Use

Multiple spindle speeds (eight geared steps) provide adaptability for different drilling tasks. The manual control system ensures operators can fine-tune settings for optimal results, while the semi-automatic grade streamlines repetitive jobs. Low maintenance requirements and a user-friendly interface further boost workplace efficiency.

FAQ's of Floor Standing Drilling Machine:


Q: How should the RTD-22 Geared Pillar Drill be operated and maintained for optimal performance?

A: The RTD-22 operates manually via its control system. Regular checks on spindle travel, gear function, and lubrication are recommended for sustained performance. Maintenance involves inspecting belt tension, keeping gears clean, and ensuring all moving parts are properly oiled to maintain smooth operation and minimize downtime.

Q: What materials can be drilled using the RTD-22 machine?

A: Thanks to its robust cast iron and steel construction, the RTD-22 can handle a range of materials, including metals, with a maximum drilling diameter of 40 mm. Its sturdy design and eight spindle speeds enable precise drilling through various thicknesses and densities.

Q: When is the RTD-22 most commonly used in industrial settings?

A: This machine is most commonly used during tasks requiring high accuracy and repeatability, such as drilling, reaming, or tapping holes in manufacturing and heavy engineering workshops. It is well-suited for routine production cycles due to its semi-automatic functionality and reliability.

Q: Where is the RTD-22 Geared Pillar Drill typically installed and utilized?

A: The RTD-22 is designed for floor-standing installation in workshops, factories, and heavy engineering facilities. Its compact square model saves floor space, and the adjustable table allows for easy operation in varied industrial environments.

Q: What is the process for adjusting the table height and spindle position?

A: Adjusting the table height is done manually, allowing the user to raise or lower it for the desired distance from spindle to table (up to 700 mm). The spindle position is set via the gear system, giving flexibility for drilling, reaming, or tapping operations across different workpiece sizes.

Q: How does the RTD-22 benefit manufacturers and exporters compared to other drilling machines?

A: Manufacturers benefit from the RTD-22's geared drive, which offers stable power transmission and consistent speed control. Exporters and suppliers favor its reliable construction, low maintenance, versatility, and customizable color, making it suitable for global industrial demands.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Drilling Machine Category

Ramato Radial Drilling Machine

Ramato Radial Drilling Machine

Price 9000 INR / Unit

Minimum Order Quantity : 1 Unit

Cutting Area : Large table supports various workpiece sizes

Diameter : Drilling Diameter 10 mm

Features : Strong base, Adjustable arm, Precision spindle

Machine Type : Radial Drilling Machine

Ramato Pillar Drilling Machine

Ramato Pillar Drilling Machine

Price 38000 INR / Unit

Minimum Order Quantity : 1 Unit

Cutting Area : 38 mm diameter

Diameter : 38 mm

Features : Heavy Duty Build, Adjustable Table, Multiple Speed

Machine Type : Heavy duty

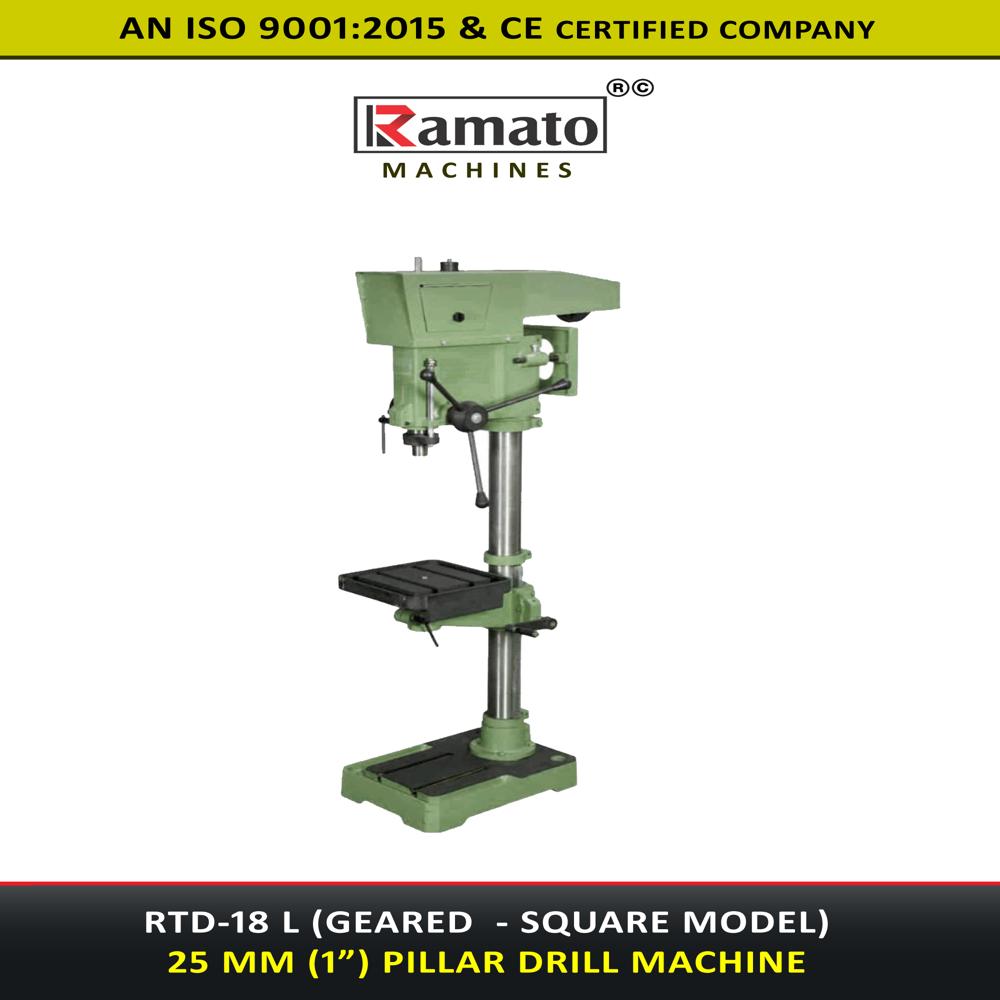

Heavy Duty Pillar Drill Machine
