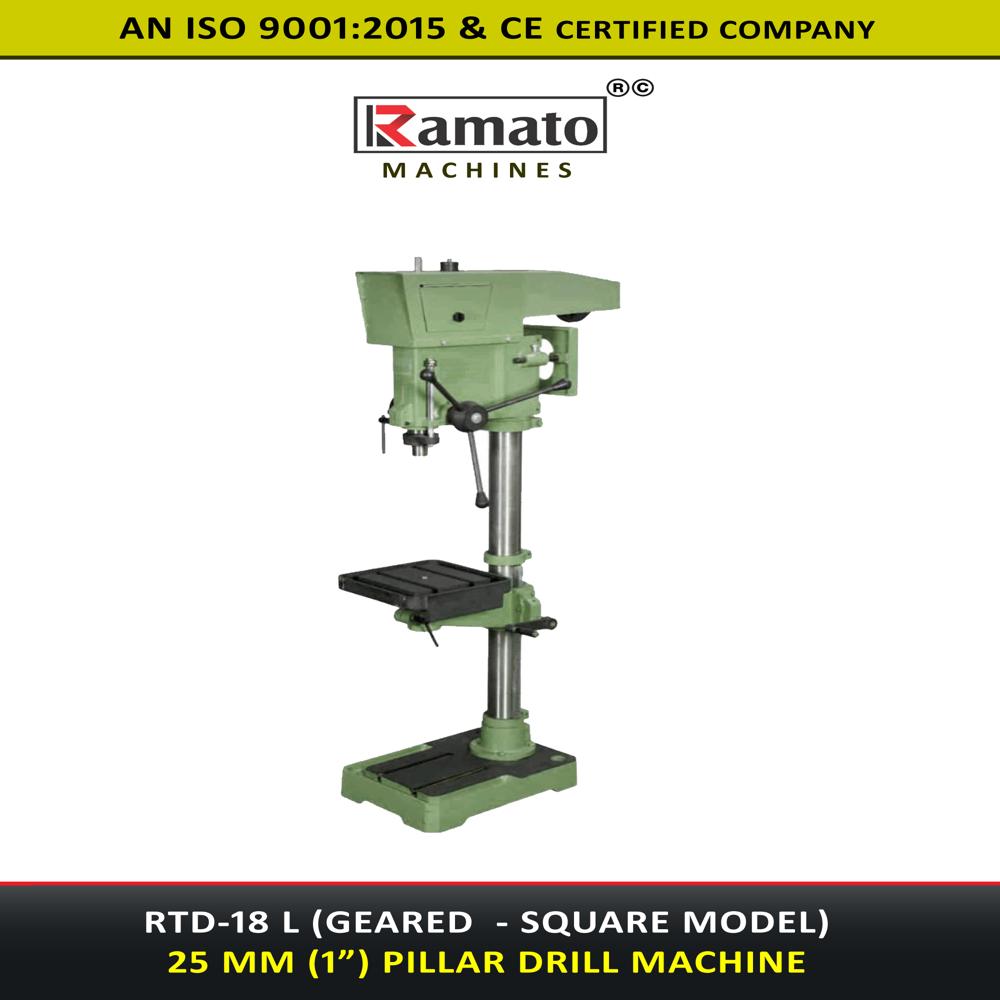

Heavy Duty Pillar Drill Machine
Heavy Duty Pillar Drill Machine
Heavy Duty Pillar Drill Machine
Heavy Duty Pillar Drill Machine
Heavy Duty Pillar Drill Machine
Heavy Duty Pillar Drill Machine
Heavy Duty Pillar Drill Machine
Heavy Duty Pillar Drill Machine
Heavy Duty Pillar Drill Machine
Heavy Duty Pillar Drill Machine
Heavy Duty Pillar Drill Machine
Heavy Duty Pillar Drill Machine

Heavy Duty Pillar Drill Machine

Price 23000.0 INR/ Unit

MOQ : 1 Unit

Heavy Duty Pillar Drill Machine Specification

  • Frequency
  • 50/60 Hz
  • Features
  • Heavy Duty Construction, High Precision Geared Mechanism, Adjustable Table, Rigid Base
  • Machine Type
  • Geared - Square Model, RTD-18
  • Motor Power
  • 1 HP to 1.5 HP (3 Phase Option Available)
  • Condition
  • New
  • Diameter
  • Maximum Drilling Diameter 25 mm
  • Table Size
  • 300 mm x 300 mm (Approx.)
  • Noise Level
  • Low
  • Cutting Area
  • Suitable for 25 mm (1) Diameter Drilling
  • Spindle Speed
  • 8 or 12 Speed Steps (Varies by Gear Selection)
  • Dimension (L*W*H)
  • Base Size Approx. 610 x 400 mm, Table Size Approx. 300 x 300 mm, Height Approx. 1500 mm
  • Product Type
  • Heavy Duty Pillar Drill Machine
  • Material
  • Cast Iron Body, Steel Components
  • Computerized
  • No
  • Automatic Grade
  • Manual
  • CNC Or Not
  • Not CNC
  • Control System
  • Manual Operating Handwheels and Levers
  • Voltage
  • 220-240V / 415V (Depending on Model)
  • Power
  • 1 HP to 1.5 HP
  • Power Source
  • Electric
  • Weight (kg)
  • Approx. 120-150 kg
  • Capacity
  • 25 mm Drilling Capacity
  • Color
  • Industrial Green with Black Accents
  • Usage & Applications
  • Industrial Drilling in Metal, Wood, Plastics
  • Base Working Surface
  • 265 x 265 mm
  • Ram Travel
  • Not specified (Standard for similar models)
  • Drilling Accuracy
  • High Precision - Ideal for Repetitive Industrial Operations
  • Model Name/Number
  • RTD-18
  • Rotation
  • Reversible Option (if specified)
  • Number of Speed
  • 8-12 (Geared)
  • Spindle Travel
  • 150 mm (Approx.)
  • Upright Diameter
  • 75 mm
  • Taper in Spindle
  • MT-3
  • Distance from Spindle Nose to Base
  • 890 mm (Approx.)
  • Table Movement
  • 360 Swivel, Adjustable Height
  • Distance from Spindle Nose to Table
  • 500 mm (Approx.)
  • Distance from Spindle Center to Column
  • 270 mm (Approx.)
  • Coolant Pump Provision
  • Available



About Heavy Duty Pillar Drill Machine

Heavy Duty Pillar Drill Machine manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent robust pillar drilling machines for demanding industrial metalworking.

High Precision for Industrial Applications

The RTD-18 is built to achieve superior precision, making it ideal for repetitive industrial drilling tasks. Its spindle and geared mechanism allow consistent results on metals, wood, and plastics, ensuring quality and efficiency during production and assembly.


Versatile and Adjustable Design

Equipped with a 360-degree swivel and adjustable height table, the RTD-18 adapts to various workpieces and operational requirements. The base and table sizes accommodate larger materials, while the reversible rotation and eight to twelve speed steps cater to different drilling jobs.


Robust Construction & User-Friendly Operation

This model features heavy duty cast iron construction for durability and stability. Manual handwheels and levers make operation straightforward, while the low noise level design offers a comfortable working environment. The machine suits workshops, manufacturing, and export industries.

FAQ's of Heavy Duty Pillar Drill Machine:


Q: How does the RTD-18 pillar drill machine improve drilling accuracy and precision?

A: The RTD-18 utilizes a geared mechanism and high spindle precision to minimize deviations during repetitive industrial operations. Its robust structure and adjustable table also help maintain stable work positioning, ensuring consistently accurate drilling results.

Q: What materials can be processed with the RTD-18 pillar drill machine?

A: This model is engineered to handle metal, wood, and plastics, making it highly versatile for a range of industrial applications such as fabrication, maintenance, and assembly processes.

Q: When should I use the adjustable table and swivel feature?

A: The adjustable height and 360-degree swivel table are ideal when working on large or irregularly shaped materials, or when you need to access different angles and positions for precision drilling.

Q: Where is the RTD-18 most commonly used?

A: The RTD-18 is frequently used in workshops, factories, and production units that require heavy duty and high-precision drilling tasks, including manufacturers, exporters, and suppliers of industrial components.

Q: What is the process for changing the spindle speed on the RTD-18?

A: You can adjust the spindle speed by selecting the appropriate gear using the manual operating handwheels and levers. The RTD-18 offers eight to twelve speed steps, allowing you to match the speed to the material being drilled.

Q: How does the coolant pump provision benefit prolonged drilling operations?

A: The coolant pump provision helps manage heat and reduce wear during extensive drilling, extending tool life and maintaining high precision throughout repetitive tasks.

Q: What are the main advantages of the RTD-18 pillar drill machine for industrial users?

A: Key benefits include its heavy duty construction, high precision, versatile table movement, low noise levels, and reliable performance for various materials. These features support efficient operations and enhance productivity in industrial settings.
