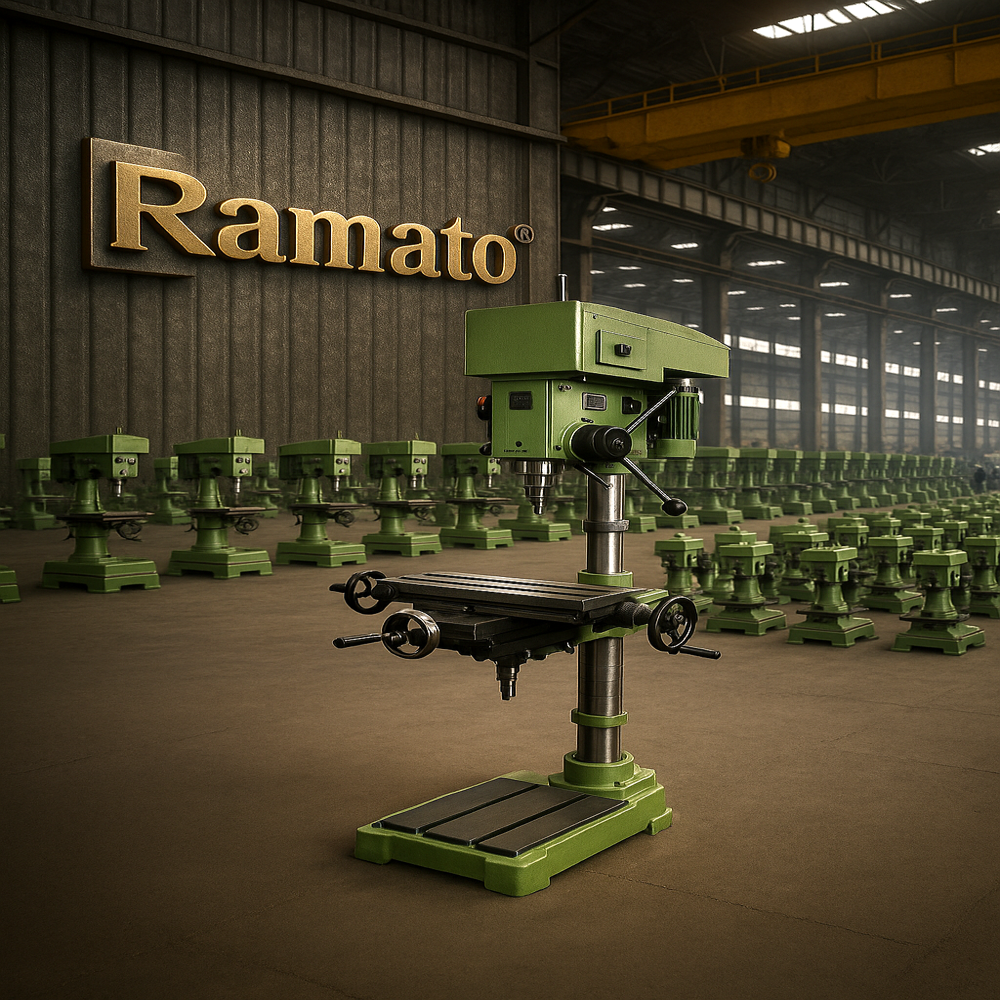

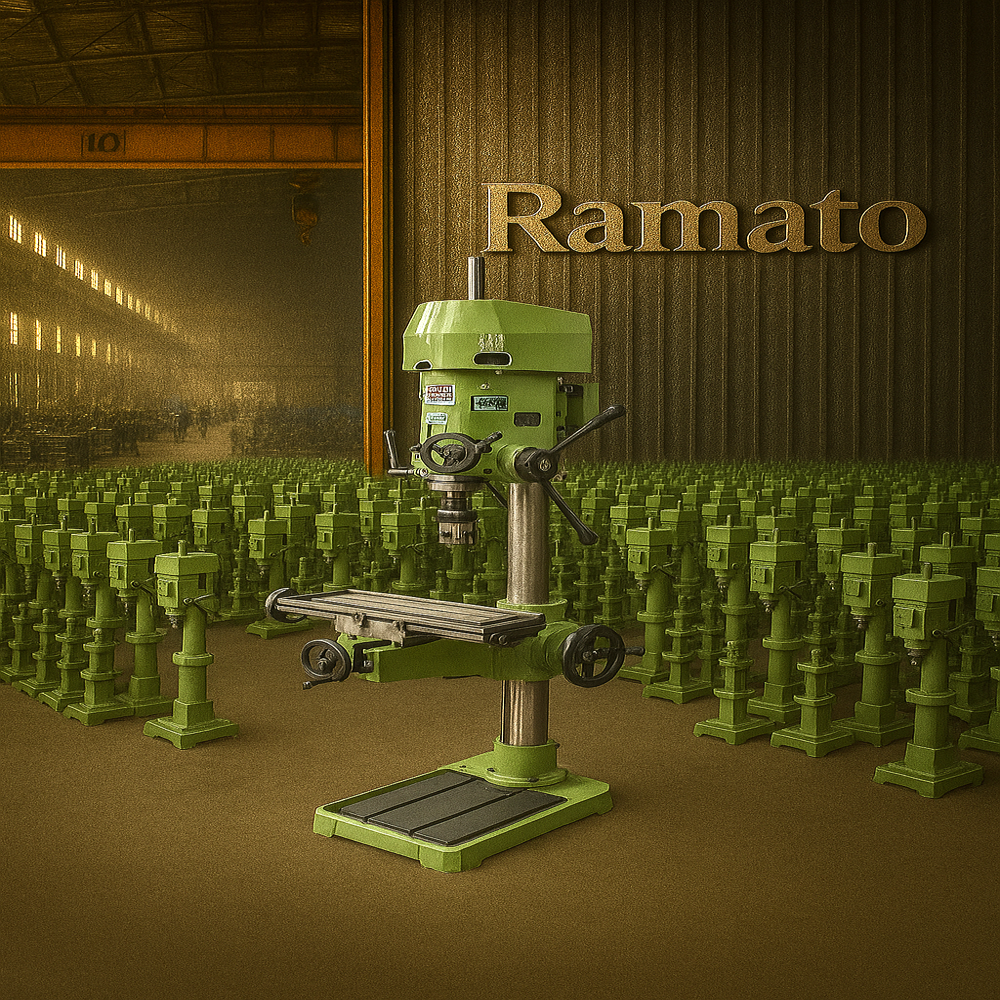

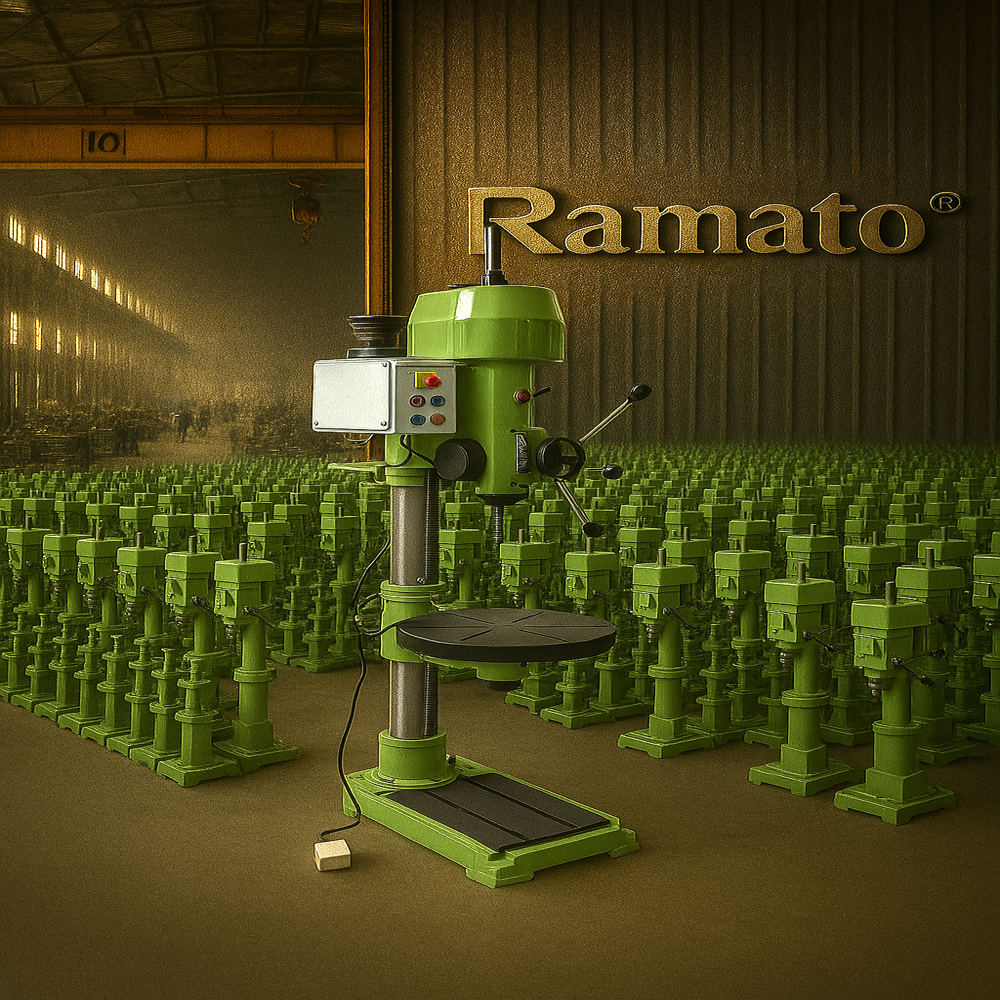

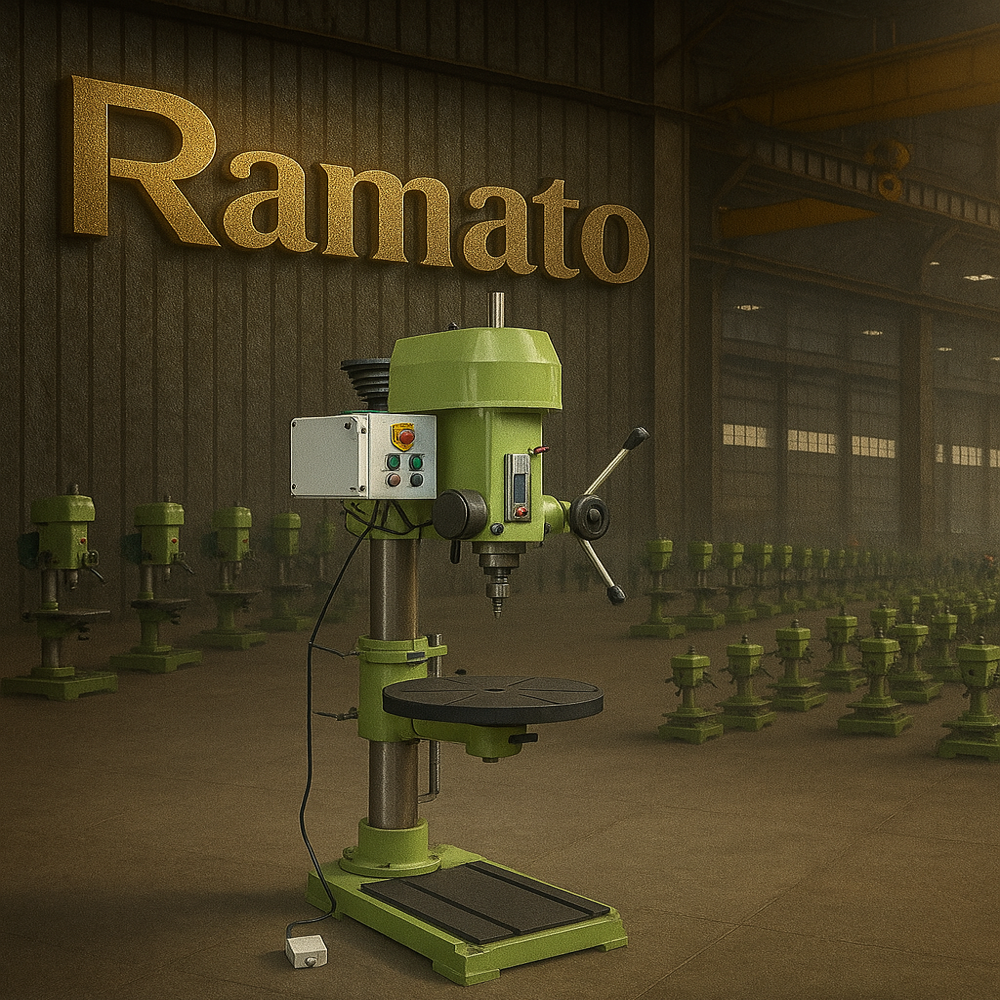

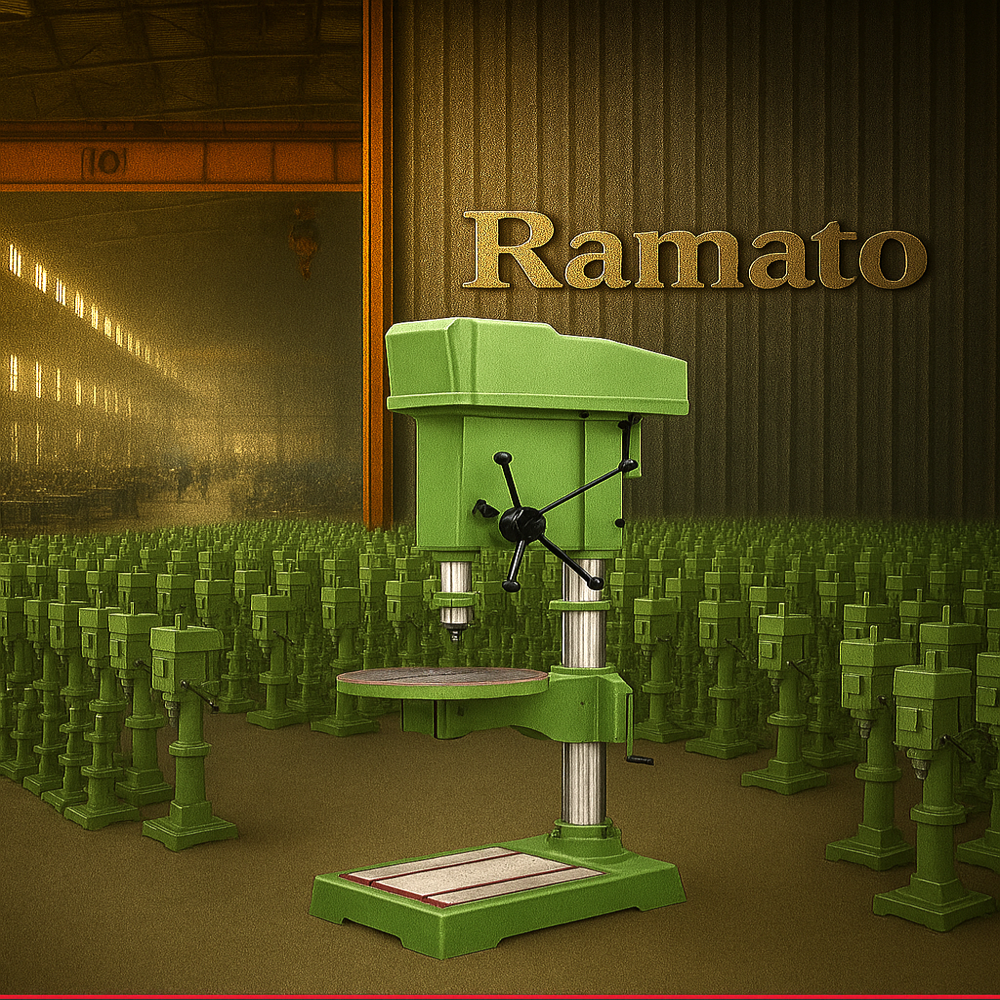

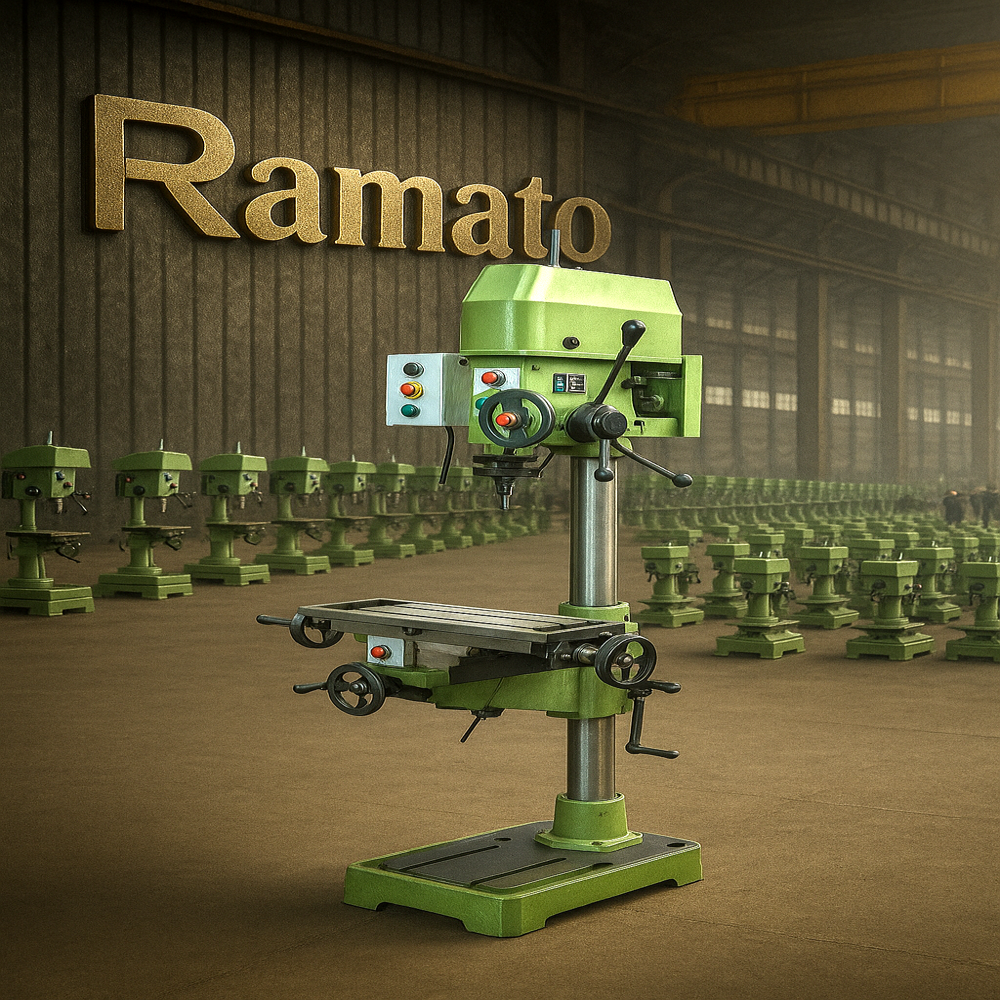

Drilling Milling Machine
Drilling Milling Machine
Drilling Milling Machine
Drilling Milling Machine
Drilling Milling Machine
Drilling Milling Machine
Drilling Milling Machine
Drilling Milling Machine
Drilling Milling Machine
Drilling Milling Machine
Drilling Milling Machine
Drilling Milling Machine

Drilling Milling Machine

Price 40000.0 INR/ Unit

MOQ : 1 Unit

Drilling Milling Machine Specification

  • Noise Level
  • Low (<75 dB)
  • Table Size
  • 540 x 200 mm
  • Dimension (L*W*H)
  • 850 x 650 x 1200 mm
  • Features
  • Rigid construction, Adjustable table, Precise spindle, Smooth operation
  • Machine Type
  • Bench/Stand Drilling Milling Machine
  • Diameter
  • Maximum 25 mm (Drilling)
  • Cutting Area
  • Medium Duty
  • Condition
  • New
  • Motor Power
  • 2 HP
  • Frequency
  • 50 Hz
  • Spindle Speed
  • 180 - 2500 RPM (Variable)
  • Product Type
  • Drilling Milling Machine
  • Material
  • Heavy-duty Cast Iron
  • Computerized
  • No
  • Automatic Grade
  • Semi-Automatic
  • CNC Or Not
  • Not CNC
  • Control System
  • Manual
  • Voltage
  • 220V / 380V
  • Power
  • 1.5 kW
  • Power Source
  • Electric
  • Weight (kg)
  • Approx. 180 kg
  • Capacity
  • Up to 25 mm in steel (drilling)
  • Color
  • Green
  • Usage & Applications
  • Drilling, Milling, Tapping, Boring (Industrial Applications, Workshops, Fabrication, Educational Institutions)
  • Vertical Travel (Z-Axis)
  • 185 mm
  • Cross Travel (Y-Axis)
  • 160 mm
  • Drill Chuck Capacity
  • 3-16 mm
  • Spindle Taper
  • MT3 (Morse Taper 3)
  • Spindle Center to Column Distance
  • 210 mm
  • Coolant System
  • Optional
  • Longitudinal Travel (X-Axis)
  • 300 mm
  • Table Load Capacity
  • 60 kg
  • Surface Finish
  • Powder coated
  • Quill Stroke
  • 80 mm
  • Work Light
  • Optional



About Drilling Milling Machine

Drilling Milling Machine manufacturer in Rajkot, Gujarat, India. Rajlaxmi Machine Tools offers Ramato, HMP & Roent industrial machines for combined drilling and milling operations in metalworking and fabrication.


Robust and Adaptable Construction

Built from heavy-duty cast iron and finished with a powder coating, this machine combines longevity with a modern aesthetic. Its adjustable table and rigid frame provide both versatility and stability for machining operations, making it suitable for a wide range of medium-duty tasks.


Precision and Versatility in Operation

Featuring a precise MT3 spindle taper, variable spindle speeds, and longitudinal, cross, and vertical travel capacities, the machine accommodates intricate drilling, milling, tapping, and boring tasks. The operator benefits from a manual control system, ensuring hands-on precision during every use.


Efficient Performance and Practical Features

With a powerful 2 HP motor, a load-bearing table (up to 60 kg), and a large work area, users experience smooth, reliable operation. Optional enhancements like a work light and coolant system add convenience and extend machine life, while low noise emissions (<75 dB) provide a quieter working environment.

FAQ's of Drilling Milling Machine:


Q: How is this drilling milling machine typically used in workshops and industrial settings?

A: This machine is mainly used for drilling, milling, tapping, and boring. Its medium-duty capacity and adjustable features make it ideal for fabricating components, creating holes, and performing precision machining operations in workshops, industrial environments, and educational workshops.

Q: What is the maximum drilling and milling capacity of this machine?

A: The machine can drill up to 25 mm in steel with a drill chuck capacity of 3-16 mm. Its robust spindle (MT3 taper) and variable speed range make it suitable for both drilling and milling medium-sized workpieces.

Q: Where can this bench-type drilling milling machine be installed?

A: Designed as a bench/stand model, the machine is well-suited for installation in small to medium-sized workshops, factories, and training labs, requiring a stable surface that can support its approximate weight of 180 kg and dimensions of 850 x 650 x 1200 mm.

Q: What is the process to switch between drilling and milling operations on this machine?

A: To change operations, users typically adjust the spindle speed using the control panel, switch or install the appropriate cutting tool, and set the workpiece position using the adjustable table. The manual control system allows for direct adjustments to suit the operation at hand.

Q: When should the optional features like work light and coolant system be considered?

A: The work light is recommended for enhanced visibility during intricate machining, especially in low-light environments. The optional coolant system is advisable for extended operations involving harder materials to manage temperature and prolong tool life.

Q: What are the primary benefits of using this drilling milling machine?

A: Key benefits include its rigid construction for stability, adjustable table for versatility, precise spindle alignment, variable speed for diverse materials, smooth manual operation, and low noise levels, making it efficient and user-friendly for repeated industrial use.

Q: Is regular maintenance required for optimal machine performance?

A: Yes, routine maintenance such as cleaning, lubricating moving components, and checking for wear ensures peak performance and longevity. Optional features like the coolant system also help in maintaining operating temperature and reducing tool wear during prolonged use.
