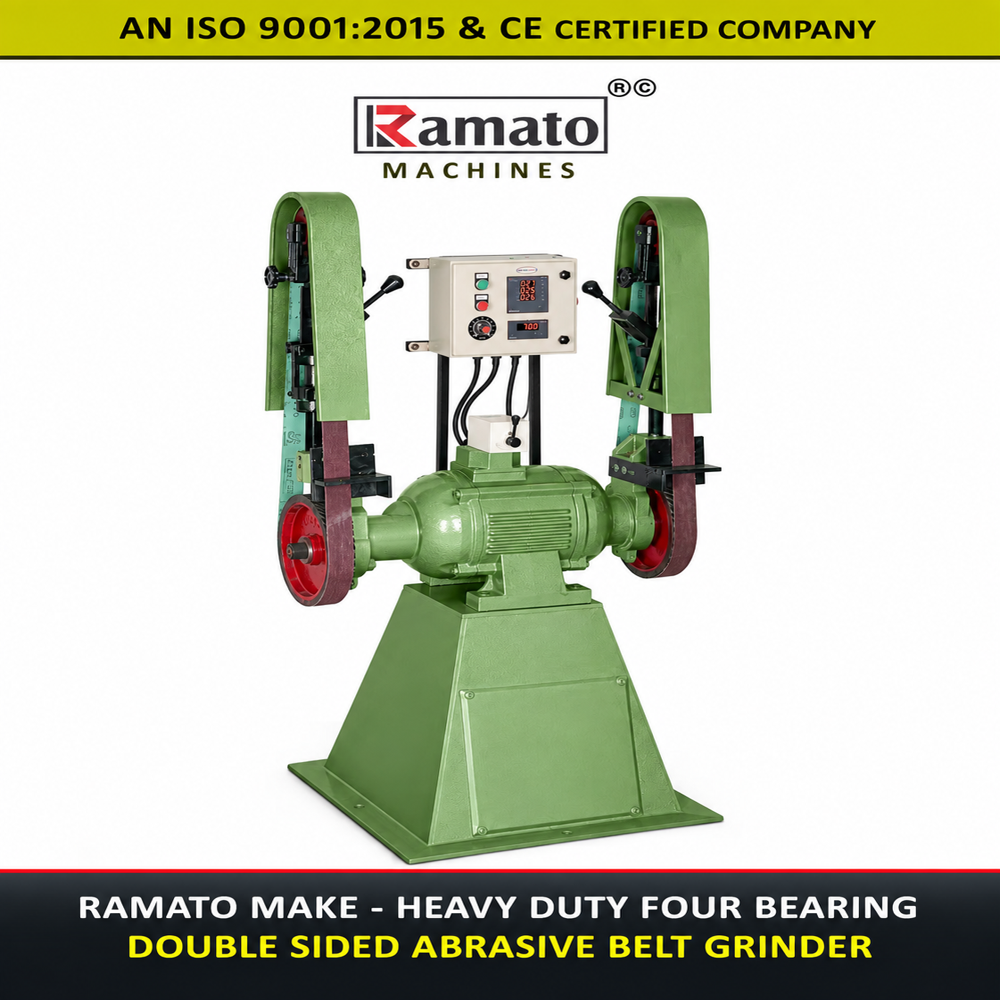

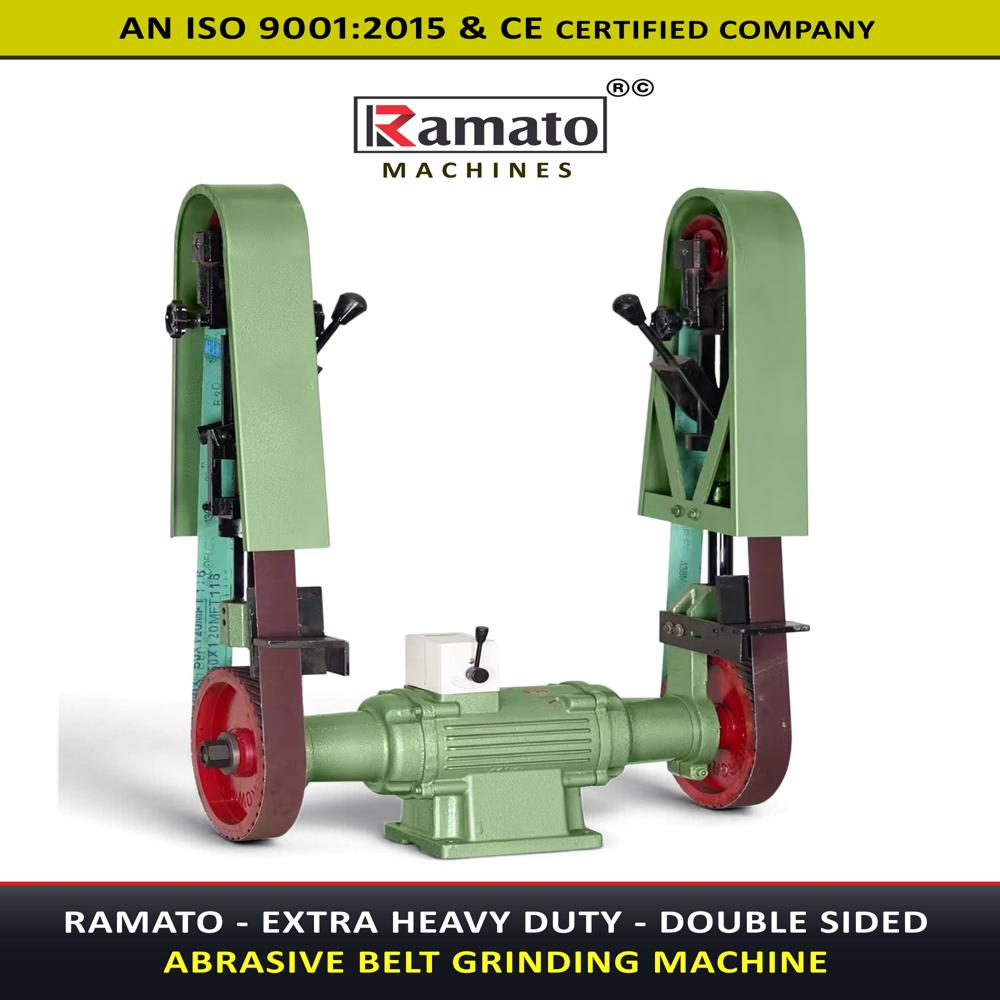

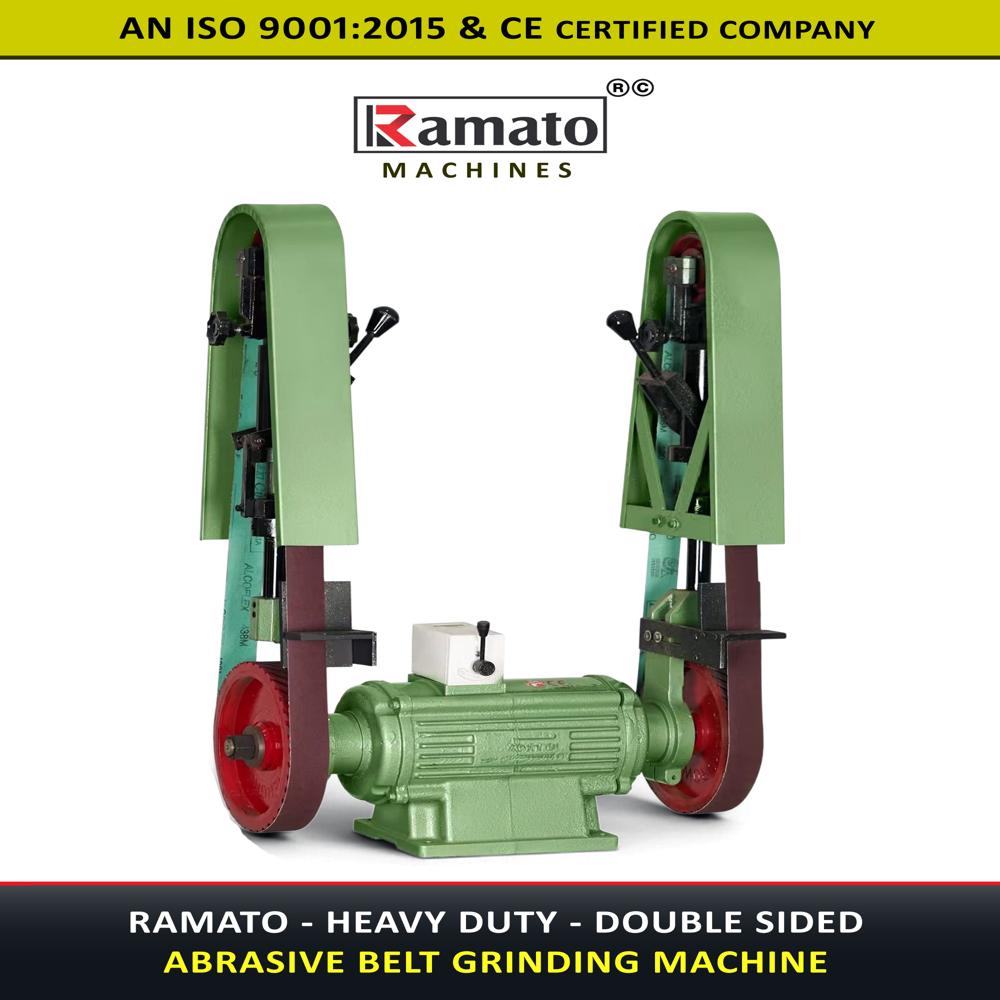

50 x 2000 Belt Grinder Machine

Get a Price/Quote

50 x 2000 Belt Grinder Machine Specification

Model
50 x 2000

Rotation
Single Directional or As per Motor Rotation

Product Type
Abrasive Belt Grinding Machine

General Use
Heavy Duty Metal Grinding and Polishing

Material
Cast Iron Body with Steel Components

Type
Double Sided Belt Grinder

Capacity
Designed for Continuous Heavy Duty Operation

Weight (kg)
Approx. 150 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual

Grinding Wheel Size
50 mm x 2000 mm (Abrasive Belt)

Grinding Wheel Speed
2800 RPM

Grinding Length
2000 mm (Belt Length)

Floor Space
Approx. 800 mm x 400 mm

Spindle Speed
2800 RPM

Power
2 HP / 1.5 kW

Voltage
415V / 3 Phase / 50 Hz

Dimension (L*W*H)
Approx. 800 mm x 400 mm x 1100 mm

Feature
Extra Heavy Duty, Double Sided, ISO & CE Certified

Color
Green & Red (Standard)

Finishing
Heavy Duty Industrial Finish

Safety Protection
Covered Grinding Area / Guard Provided

Usage Areas
Metal Fabrication Workshops, Manufacturing, Tool Rooms

Machine Mounting
Floor Mount

Drive Motor
Induction, Foot Mounted

Switch Type
On/Off Push Button

Belt Width
50 mm

Noise Level
Less Than 75 dB

Cooling Arrangement
Optionally Available on Request

Abrasive Belt Type
Suitable for Various Grits

Belt Length
2000 mm

50 x 2000 Belt Grinder Machine About

50 x 2000 Belt Grinder Machine manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent industrial abrasive belt grinders for metal grinding and finishing.

Heavy-Duty Construction for Industrial Use

Crafted with a sturdy cast iron frame and steel components, the 50 x 2000 Belt Grinder ensures durability and reliable performance. Its heavy-duty build is ideal for continuous operation in demanding metal fabrication shops, manufacturing plants, and tool rooms. The double-sided design expands its functional versatility.

Precision Grinding and Versatile Finishing

This machine accommodates a wide range of abrasive grits, making it perfect for rough grinding, deburring, and fine polishing. The 2000 mm belt length allows for ample surface coverage, increasing productivity in large-scale or routine metal finishing applications.

User-Friendly Controls and Enhanced Safety

With manual control via an On/Off push-button and a fully covered grinding area, operators benefit from straightforward, secure machine handling. The safety guard prevents accidental contact, while the robust design minimizes noise for a comfortable work environment.

FAQ's of 50 x 2000 Belt Grinder Machine:

Q: How do you change the abrasive belt on the 50 x 2000 Belt Grinder Machine?

A: To change the abrasive belt, first ensure the machine is powered off using the On/Off push-button. Open the safety guard covering the grinding area, loosen the belt tensioner, and slide off the existing belt. Place the new belt onto the rollers, ensure correct alignment, and re-tension the belt securely before closing the guard and restarting the machine.

Q: What types of materials can the belt grinder be used on?

A: The 50 x 2000 Belt Grinder Machine is designed primarily for heavy-duty metal grinding and polishing. It is suitable for various metals, including steel, stainless steel, and other alloys, making it ideal for workshops, manufacturing plants, and tool rooms.

Q: When should the cooling arrangement be used?

A: The optional cooling arrangement is recommended during extended or heavy-duty grinding operations, especially when working on heat-sensitive metals. It helps in dissipating excess heat, thereby preserving the workpiece's properties and prolonging belt life.

Q: Where is this belt grinder typically installed?

A: This machine is floor-mounted, occupying an approximate space of 800 mm by 400 mm. It is best suited for metal fabrication workshops, manufacturing floors, and commercial tool rooms requiring continuous, high-volume grinding capabilities.

Q: What are the benefits of using a double-sided belt grinder?

A: A double-sided belt grinder increases efficiency by allowing different grit belts or operations without the need for belt changes. This feature enables faster workflow transitions and supports both coarse grinding and fine finishing tasks on a single machine.

Q: What safety features are included with the 50 x 2000 model?

A: Safety features include a fully covered grinding area with a guard, reducing risk of accidental contact with the abrasive belt. The machine also operates below 75 dB, ensuring a quieter and safer workshop environment.
