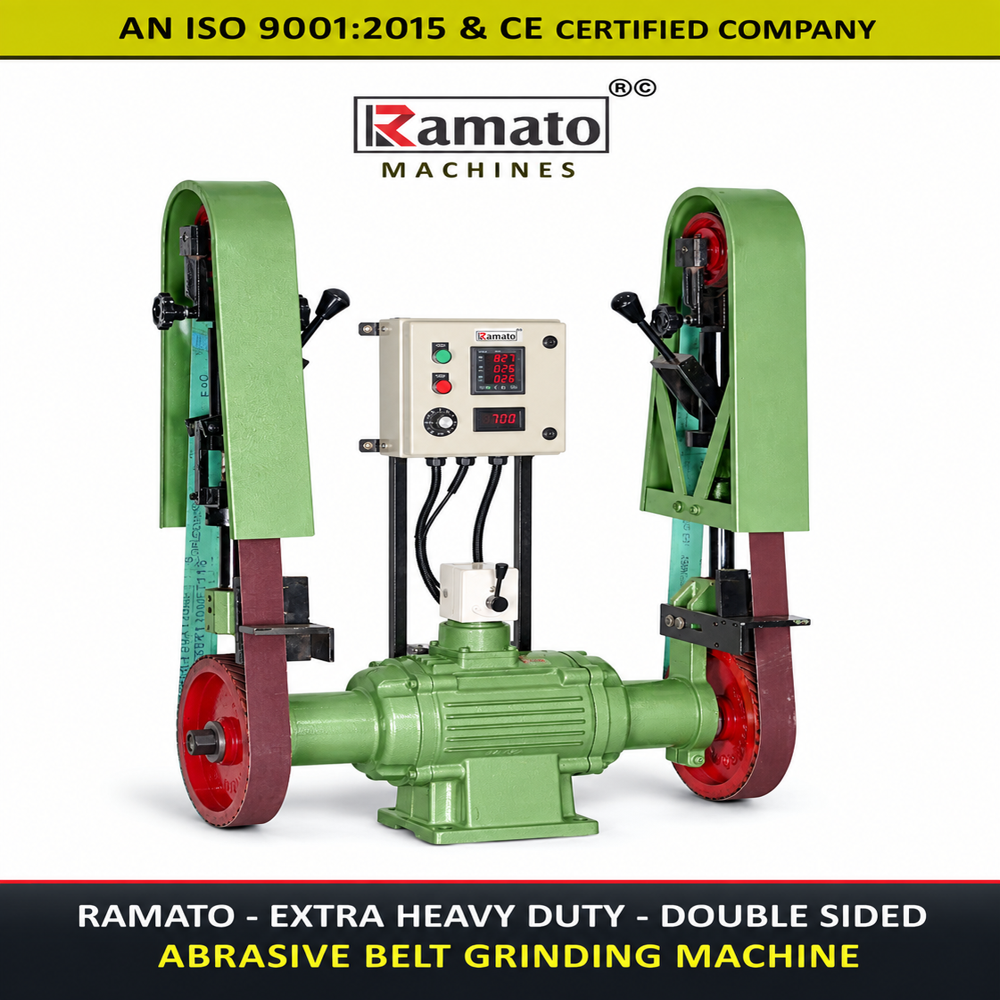

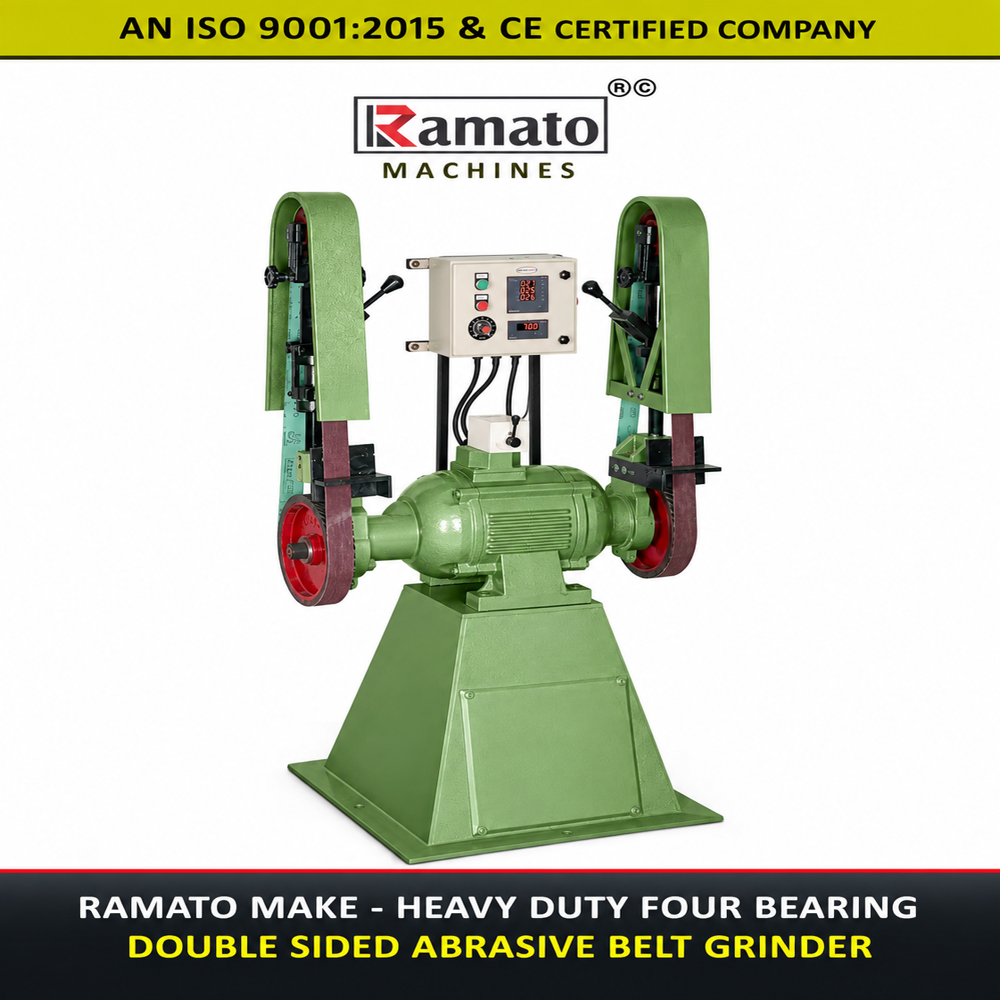

Heavy Duty Lancer Belt Grinding Machine

Name: Heavy Duty Lancer Belt Grinding Machine
Brand: Rajlaxmi Machine Tools
Price: 90000.0 INR
Availability: InStock

Price 90000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Heavy Duty Lancer Belt Grinding Machine Specification

Rotation
Belt Rotates Vertically, Both Sides

Model
Heavy Duty Lancer

Product Type
Double Side Abrasive Belt Grinder

General Use
Abrasive belt grinding of metal surfaces, heavy-duty material removal, surface finishing

Material
Mild Steel (Body & Base)

Type
Heavy Duty, Four Bearing

Capacity
For 50mm or 100mm wide Belts, High Duty Cycle

Weight (kg)
Approx. 200 - 250 kg

Computerized
No

Automatic
No (Manual Operation)

CNC Or Not
Not CNC

Control System
Manual & Electric Panel

Grinding Wheel Size
Belt - 50 mm to 100 mm width, 2000 mm length (customizable)

Grinding Wheel Speed
Up to 2880 RPM (synchronous with motor speed)

Grinding Length
Up to 2000 mm (as per belt length)

Floor Space
Approx. 1000 mm x 900 mm

Spindle Speed
2880 RPM

Power
3 HP - 5 HP (custom options available)

Voltage
415 V, 50 Hz, 3 Phase

Dimension (L*W*H)
Approx. 1000 x 900 x 1500 mm

Feature
Double Side, Heavy Duty, Four Bearing Support, ISO 9001:2015 & CE Certified

Color
Industrial Green

Adjustment
Adjustable Belt Tracking & Tension

Motor Type
Three Phase Induction

Electrical Safety
Equipped with Overload Protection

Operating Noise Level
Low

Finishing
Powder Coated Paint

Usage Area
Fabrication Shops, Metalworking, Foundry, Manufacturing Plants

Mounting Type
Floor Mounted

Belt Replacement
Quick Change Mechanism

Bearings
Heavy Duty Deep Groove Ball Bearings

Applications
Grinding, Deburring, Polishing, Surface Preparation

Safety Features
Belt Guard/Safety Shield Provided

No. of Bearings
Four Bearing Structure for Durability

About Heavy Duty Lancer Belt Grinding Machine

Heavy Duty Lancer Belt Grinding Machine manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent heavy-duty machines for industrial metal grinding and finishing.

Built for Heavy Metalworking Applications

With its rugged design and four-bearing support, the Heavy Duty Lancer Belt Grinding Machine handles challenging tasks in fabrication shops, foundries, and manufacturing plants. Designed for high duty cycles, the machine is ideal for abrasive grinding, material removal, and precision surface finishing on a variety of metal components.

Safety and Reliability at the Core

Operator safety is ensured through expertly designed features like the integrated belt guard and overload protection. Low noise operation, powder-coated finish for added durability, and deep groove ball bearings contribute to long-term, worry-free use-even in intense industrial settings.

Ease of Use and Maintenance

The floor-mounted unit offers adjustable belt tracking and tension for optimal grinding efficiency. Thanks to a user-friendly quick-change mechanism, replacing belts takes minimal downtime. Manual and electric panel controls further enhance convenience, making this machine suitable for both skilled and semi-skilled operators.

FAQ's of Heavy Duty Lancer Belt Grinding Machine:

Q: How does the Heavy Duty Lancer Belt Grinding Machine ensure durability and stable operation?

A: This machine features a robust mild steel body and a four-bearing structure using heavy-duty deep groove ball bearings. These elements minimize vibration and wear, enhancing both longevity and stability during heavy-duty metalworking processes.

Q: What safety mechanisms are provided with the grinder?

A: To protect operators, the machine includes a belt guard and safety shield. Additionally, electrical overload protection is integrated to prevent motor damage, ensuring safer operation in industrial environments.

Q: In which industries and environments can this machine be effectively used?

A: The Heavy Duty Lancer Belt Grinding Machine is ideal for fabrication shops, foundries, metalworking facilities, and manufacturing plants due to its high capacity, durable build, and support for rigorous, ongoing use.

Q: How do I replace or change the abrasive belt?

A: The grinder features a quick-change mechanism, allowing for rapid and straightforward belt changes. This reduces downtime and maintains productivity, making it convenient to switch belts for different applications or wear replacement.

Q: What are the benefits of the adjustable belt tracking and tension system?

A: Adjustable belt tracking and tension ensure the abrasive belt remains correctly aligned and taut during operation. This improves grinding accuracy, extends belt life, and boosts both operational safety and efficiency.

Q: What power and control options does the machine support?

A: The machine operates on a 415V, 50Hz, three-phase supply and comes with customizable power options (3 HP to 5 HP). It can be managed through manual controls or an electric panel, providing flexibility for different operational needs.
