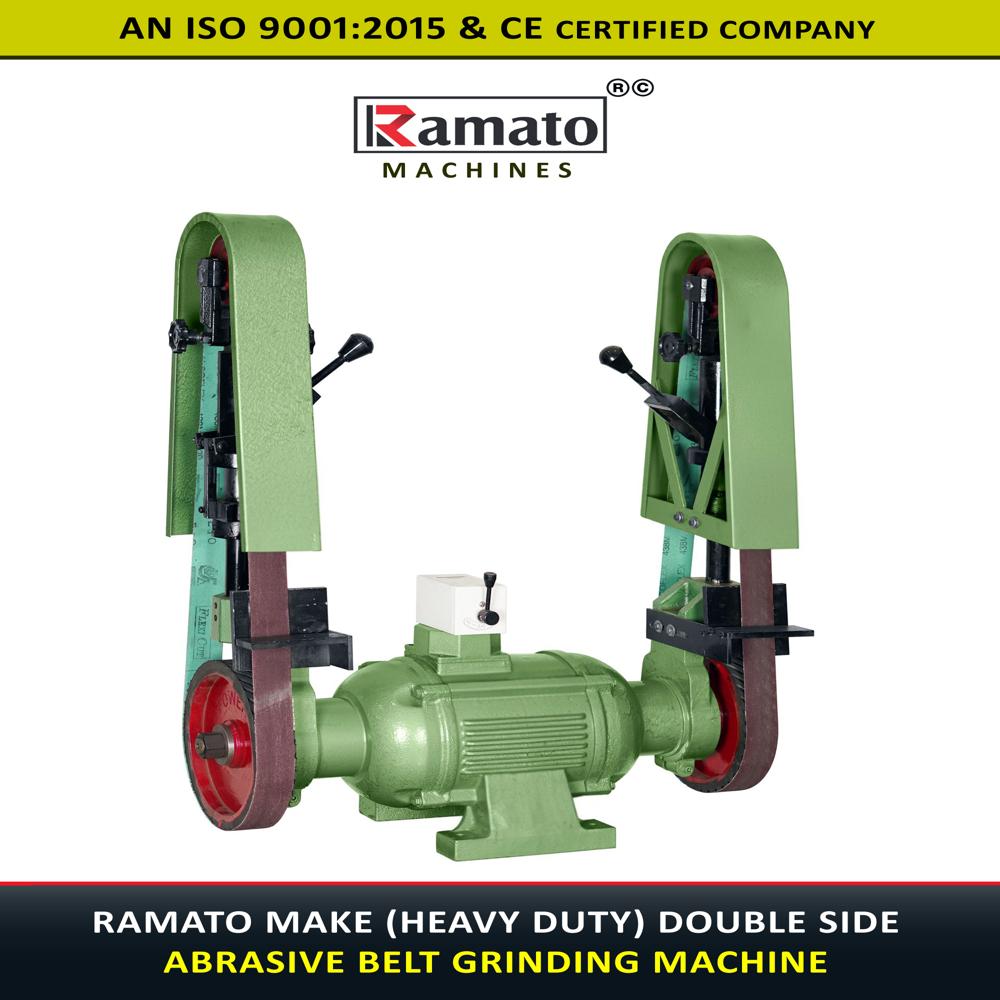

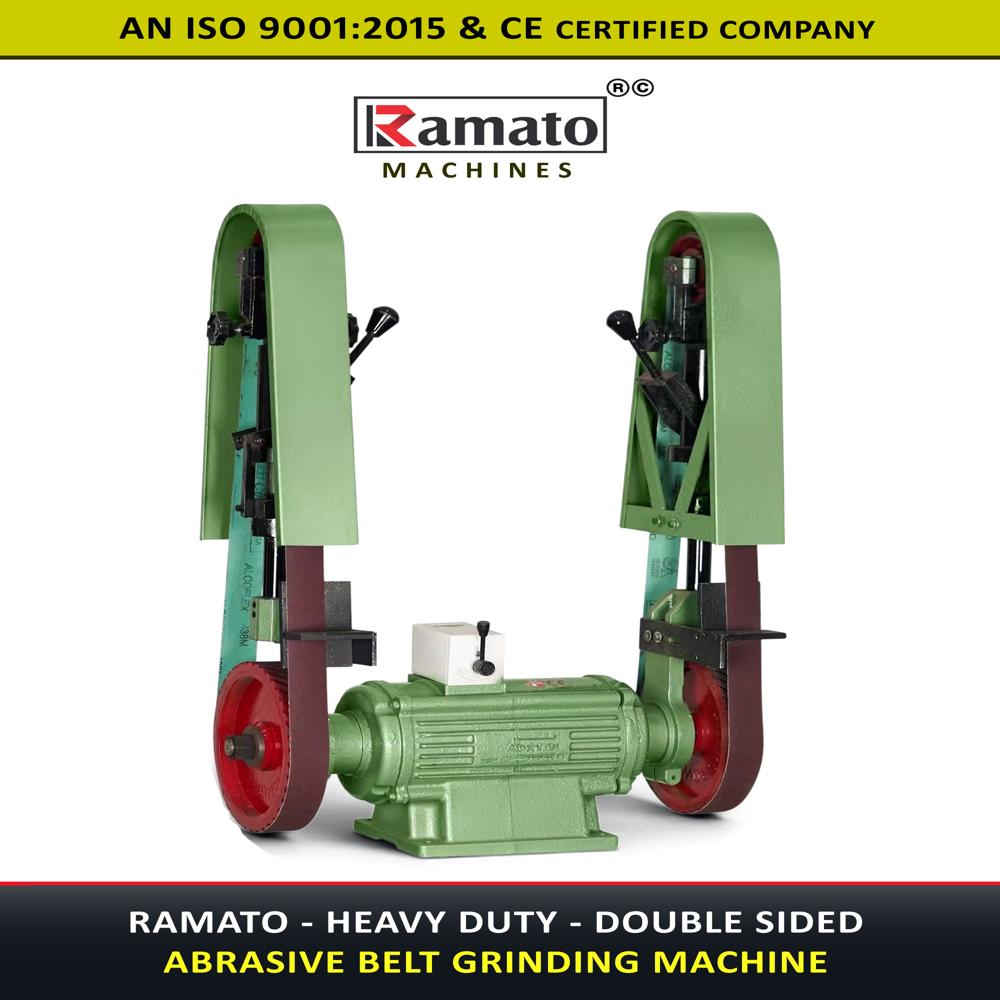

50 x 3500 Belt Grinder Machine

Get a Price/Quote

50 x 3500 Belt Grinder Machine Specification

Model
50 x 3500 Belt Grinder

Rotation
Belt Rotation Direction: Standard/Custom

Product Type
Double Side Abrasive Belt Grinder

General Use
Abrasive Belt Grinding for Metal

Material
Heavy Duty Steel

Type
Double Side, Four Bearing

Capacity
Heavy Duty (Continous Working)

Weight (kg)
Approx. 350 kg

Computerized
No

Automatic
Semi-Automatic

CNC Or Not
Not CNC

Control System
Electric Panel With On/Off & Speed Control

Grinding Wheel Size
Not Applicable (Uses 50 x 3500 mm Belt)

Grinding Wheel Speed
Variable, dependent on spindle RPM

Grinding Length
3500 mm Belt Length

Floor Space
Approx. 900 mm x 700 mm

Fuel Tank Capacity
Electric Powered; Not Applicable

Spindle Speed
Variable / Optional as per requirement

Power
5 HP (Standard)

Voltage
415V, 3 Phase

Dimension (L*W*H)
Approx. 1200 mm x 750 mm x 1700 mm

Feature
Heavy Duty, Double Side, Four Bearing, Variable Speed

Color
Green / Red (Wheels)

Drive Motor
Standard 5 HP, 3 Phase Induction Motor

Operation
Double Side Simultaneous Grinding

Replacement Parts
Interchangeable Belts & Pulleys

Belt Size (W x L)
50 mm x 3500 mm

Electrical Protection
Control Panel With Overload Protection

Suitable For
Heavy Stock Removal, Surface Finishing, Deburring

Painting
Powder Coated For Corrosion Protection

Drive Method
Belt Driven By Electric Motor

Construction
Fabricated Steel Body, Sturdy Base

Noise Level
Low Noise Operation

Pulley Type
Heavy Duty Cast Iron With Rubber Coating

Coolant Attachment
Optional

Installation
Floor Mounted

No. Of Bearings
4 (Four Bearing Support)

About 50 x 3500 Belt Grinder Machine

50 x 3500 Belt Grinder Machine manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent heavy-duty abrasive belt grinding machines for industrial metal finishing.

Exceptional Durability and Power

Constructed from heavy-duty steel, the 50 x 3500 Belt Grinder delivers remarkable durability, supporting continuous, heavy-duty operations. Its four-bearing system and fabricative steel frame provide stability and longevity, while the 5 HP electric motor ensures ample power for even the most demanding stock removal and finishing applications.

Versatile and User-Friendly Operation

This belt grinder accommodates variable speeds tailored to project requirements, thanks to its intuitive electric control panel. It supports double-sided simultaneous grinding, enhancing efficiency on the shop floor. Designed for user convenience, it includes interchangeable belts and pulleys for swift maintenance or replacement.

Reliable Safety and Maintenance

Safety is prioritized through a fully integrated control panel with overload protection, minimizing the risk of electrical hazards during operation. The powder-coated finish protects the machine from corrosion, while the optional coolant attachment can be added for heat-sensitive tasks, extending belt life and improving finished quality.

FAQ's of 50 x 3500 Belt Grinder Machine:

Q: How do I install the 50 x 3500 Belt Grinder machine?

A: Installation is straightforward as the machine is floor-mounted. Ensure a level surface with sufficient floor space (approx. 900 mm x 700 mm) and connect it to a 415V, 3-phase power supply, following the safety guidelines provided in the user manual.

Q: What types of materials can I process with this belt grinder?

A: This grinder is specifically designed for abrasive belt grinding of metal. It efficiently handles heavy stock removal, deburring, and surface finishing tasks for various metal types in industrial environments.

Q: When should I replace the belt or pulleys on the grinder?

A: Replace belts or pulleys when signs of excessive wear, slippage, or reduced grinding performance appear. The machine is built for easy maintenance, with interchangeable belts and pulleys enabling quick replacements.

Q: Where is the machine best suited for use?

A: The 50 x 3500 Belt Grinder is ideal for manufacturing plants, fabrication workshops, or metalworking units that require continuous heavy-duty grinding, deburring, and finishing.

Q: What is the process for adjusting grinding speed on this machine?

A: Grinding speed is variable and adjustable through the electric control panel. This allows operators to select the optimal speed to suit different applications, materials, or finish requirements.

Q: How does the machine ensure user safety during operation?

A: For safety, the grinder features a control panel with overload protection and secure electric panel operation. The heavy, stable base and powder-coated finish also add protective measures during continuous use.

Q: What are the key benefits of using this belt grinder over traditional grinding wheels?

A: This machine offers superior versatility, efficient double-sided grinding, quick belt changes, reduced noise levels, and lower maintenance. The belt-driven system delivers smoother finishes and is less prone to overheating, especially when paired with the optional coolant attachment.
