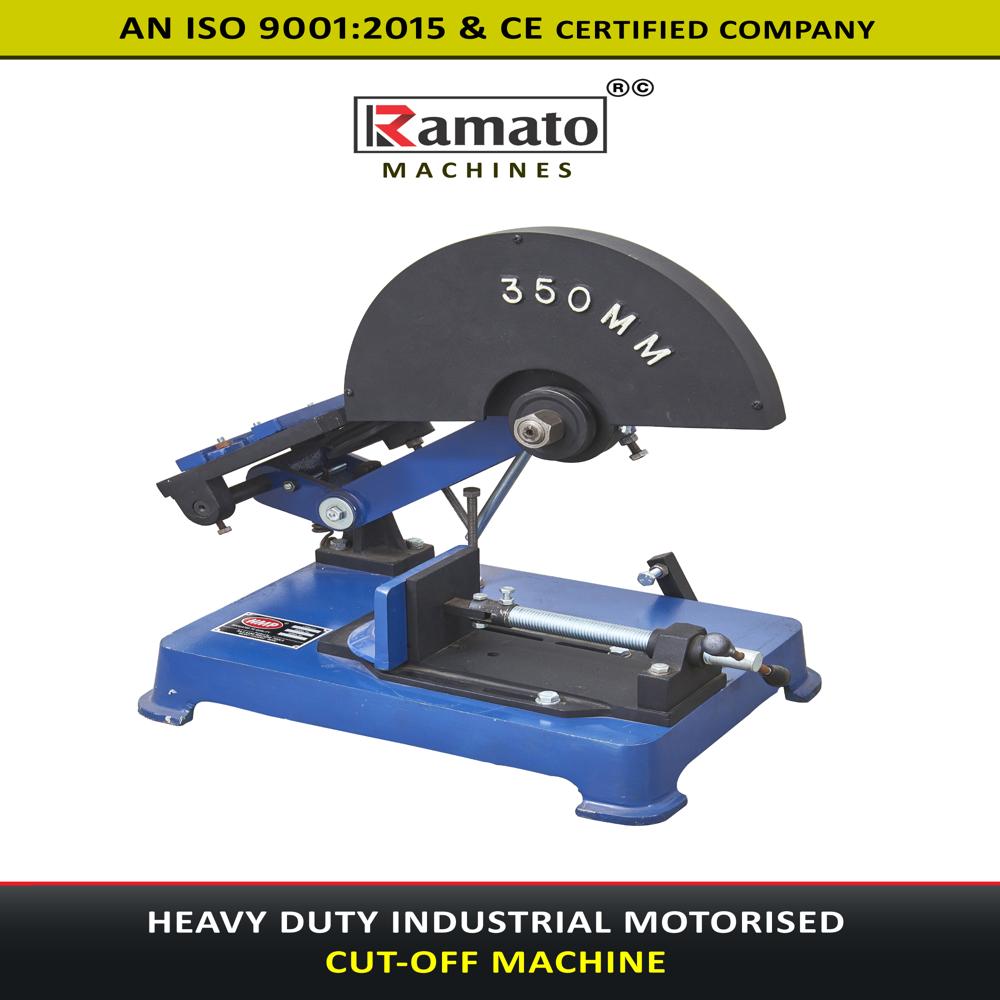

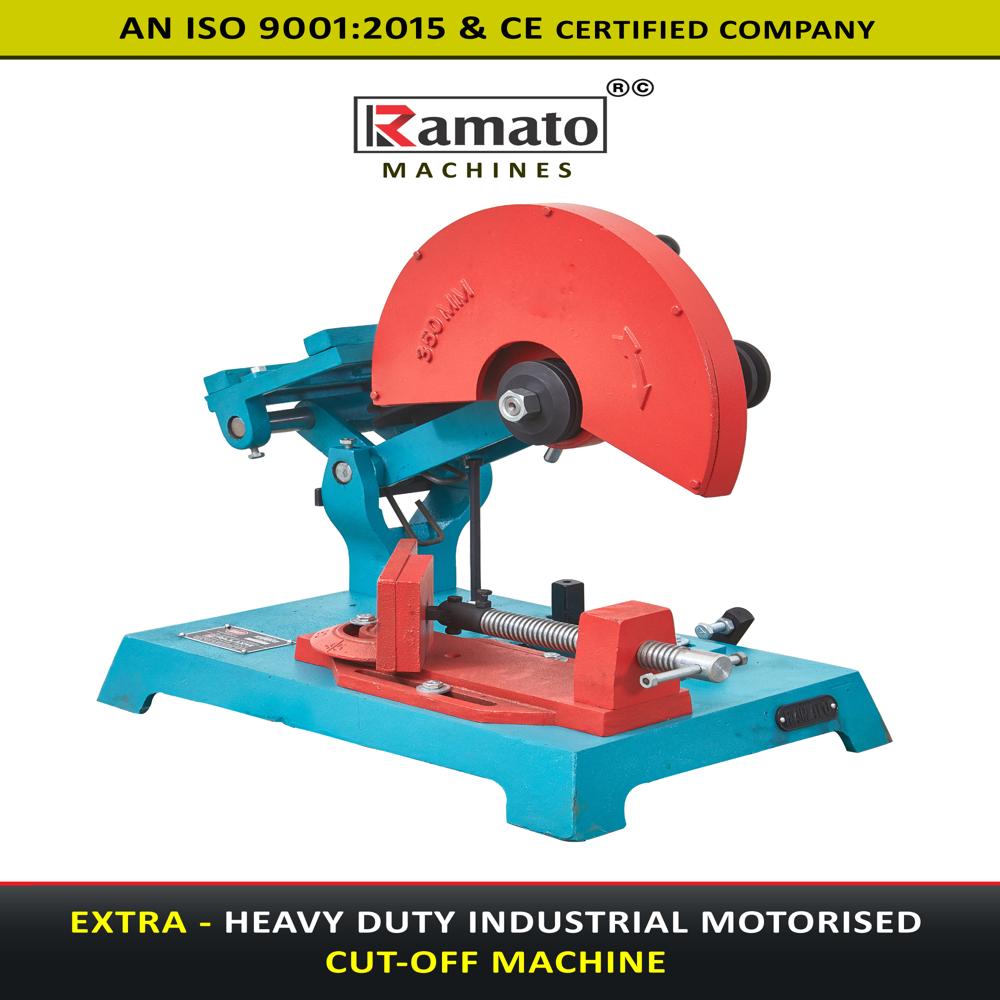

Industrial Cut Off Machine
Industrial Cut Off Machine
Industrial Cut Off Machine
Industrial Cut Off Machine
Industrial Cut Off Machine
Industrial Cut Off Machine
Industrial Cut Off Machine
Industrial Cut Off Machine
Industrial Cut Off Machine
Industrial Cut Off Machine
Industrial Cut Off Machine
Industrial Cut Off Machine

Industrial Cut Off Machine

Price 9000.0 INR/ Unit

MOQ : 1 Unit

Industrial Cut Off Machine Specification

  • Drive Motor
  • Belt-driven with vibration dampeners
  • Product Type
  • Heavy Duty Motorised Cut-Off Machine
  • General Use
  • Fabrication shops, steel stockists, construction and industrial manufacturing plants
  • Material
  • Robust cast iron base and body, hardened steel components
  • Type
  • Industrial Cut-Off Machine
  • Capacity
  • Suitable for batch and repeated industrial metal cutting
  • Weight (kg)
  • Approx. 120-150 kg
  • Computerized
  • No
  • Automatic
  • No (Semi-automatic options available on request)
  • Cutting Speed
  • 2800 RPM
  • Cutting Thickness
  • Up to 120mm depending on material and blade
  • Cutting Function
  • Heavy duty cross-section cutting of metals
  • Cooling System
  • Optional external coolant attachment
  • Drive Type
  • Electric motor drive
  • Voltage
  • 415V / 380V (3 Phase)
  • Dimension (L*W*H)
  • Approx. 900 mm x 650 mm x 750 mm
  • Feature
  • Motorized operation, heavy-duty construction, bench-mounted, ergonomic handle, high precision
  • Color
  • Industrial blue/black, red blade guard
  • Motor
  • 3 HP/1440 RPM Heavy Duty Induction Motor
  • Mechanical Precision
  • High accuracy for perpendicular cuts
  • Software Detail
  • Not Applicable (Manual Machine)
  • Cutting Method
  • Abrasive wheel cutting
  • Control System
  • Manual mechanical lever
  • Cutting Material
  • Steel, iron, alloy metals, stainless steel, rods, pipes
  • Cutting Area
  • Suitable for pipes, rods, steel bars up to 350mm blade diameter
  • Accessories Included
  • Vise clamp, spanner, blade-changing tools
  • Noise Level
  • Below 85 dB in typical operation
  • Installation
  • Bench/floor mountable
  • Recommended Maintenance
  • Periodic lubrication and routine blade replacement
  • Blade Type
  • Abrasive reinforced cut-off wheel
  • Finish
  • Powder-coated industrial grade finish
  • Power Consumption
  • 2.2 kW
  • Compliance
  • Meets standard industrial safety norms
  • Safety Features
  • Full blade guard, emergency power switch, anti-slip feet
  • Blade Arbor Diameter
  • 25.4 mm (1 inch)
  • Ambient Temperature Range
  • 0C to 45C working environment



About Industrial Cut Off Machine

Industrial Cut Off Machine manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent heavy-duty cutting machines for industrial metal cutting, fabrication and engineering.

Precision and Safety at the Core

This cut off machine delivers meticulously accurate, perpendicular cuts for metals, thanks to its heavy-duty construction and mechanical lever control. Integrated safety features such as a full blade guard, emergency power switch, and anti-slip feet protect operators, making it a secure choice for repeated, batch industrial use.


Heavy-Duty, Versatile Performance

Engineered to handle pipes, rods, and steel bars up to 350mm blade diameter, the machine is suitable for diverse industrial applications. Its powerful 2.2 kW motor and durable build ensure consistent operation and extended service life even in demanding fabrication environments.


Ease of Operation and Maintenance

Operators appreciate the ergonomic handle and straightforward manual controls. Accessories like vise clamp, spanner, and blade-changing tools are included for convenience. Routine maintenance such as periodic lubrication and blade replacement extends the machine's longevity, while optional coolant attachment helps manage demanding cutting tasks.

FAQ's of Industrial Cut Off Machine:


Q: How do I safely operate the industrial cut off machine?

A: To safely operate this cut off machine, always position the workpiece using the included vise clamp, wear suitable personal protective equipment, and ensure the full blade guard and emergency stop switch are accessible. Follow startup procedures per the manual, and never bypass safety features.

Q: What materials and cut sizes can the machine handle?

A: This machine is designed for heavy-duty cross-section cutting of steel, iron, alloy metals, and stainless steel rods or pipes. It can cut materials up to 120mm thick and is compatible with abrasive wheels of up to 350mm diameter.

Q: When should routine maintenance be performed?

A: Routine maintenance should be conducted periodically, including lubrication of moving parts and regular inspection or replacement of the abrasive cut-off wheel. Frequency depends on usage intensity, but standard practice is to inspect after each major production cycle.

Q: Where is the ideal installation location for this machine?

A: Install the machine on a solid, level floor or workbench in a well-ventilated area with an ambient temperature range between 0C and 45C. Ensure sufficient clearance for operation and safety access, and comply with all local electrical requirements (415V/380V, 3 Phase connection).

Q: What accessories come with the machine for setup and usage?

A: The industrial cut off machine comes with a vise clamp for securing workpieces, a spanner, and other blade-changing tools. These accessories assist in efficient setup, blade maintenance, and safe operation.

Q: How does the machine benefit industrial fabrication operations?

A: This machine offers high-precision, heavy-duty metal cutting with enhanced safety and ergonomic design. Its robust construction and motorized drive system support efficient, repeated operations-ideal for fabrication shops and industrial plants seeking productivity and reliability.

Q: Is the machine computerized or does it require manual operation?

A: This is a manual machine and does not feature computerized controls. All cutting and operation processes are managed using the mechanical lever, offering direct control to experienced operators. Semi-automatic options may be available on request.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Cutoff Machine Category

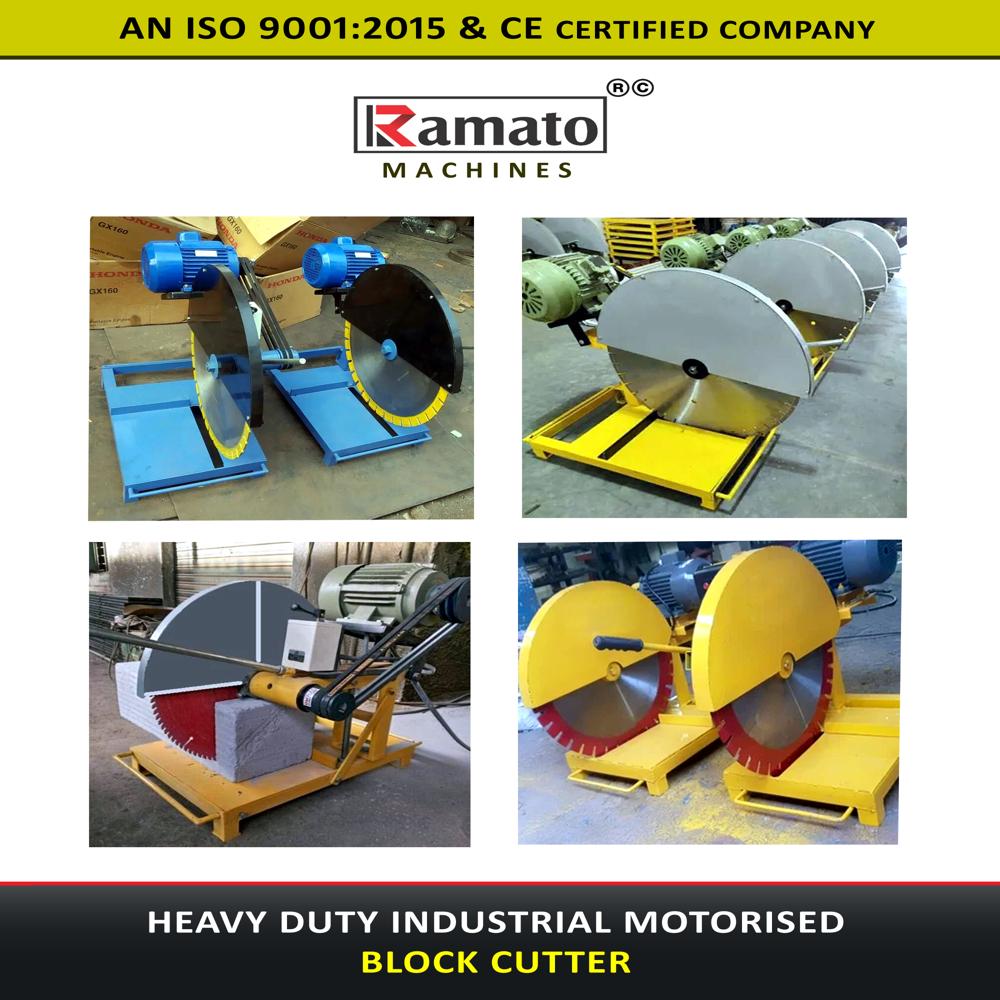

AAC Block Cutting Machine
