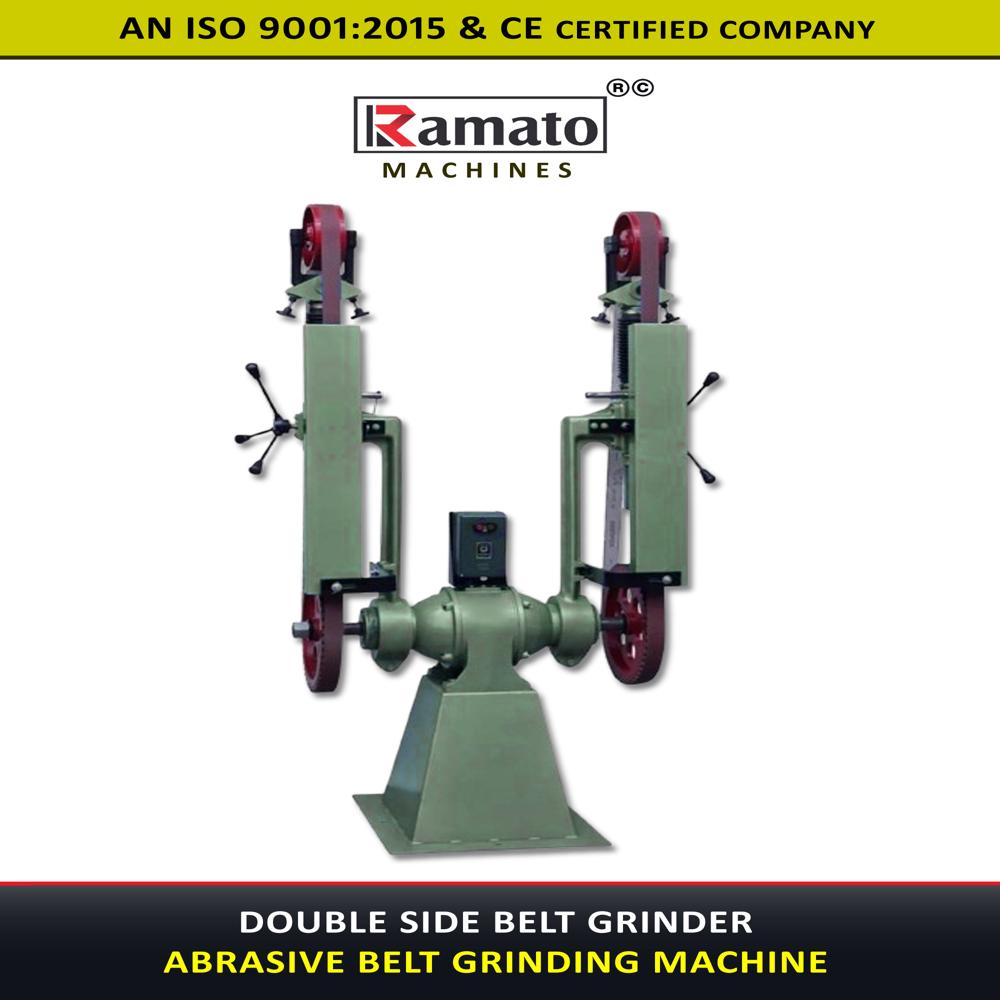

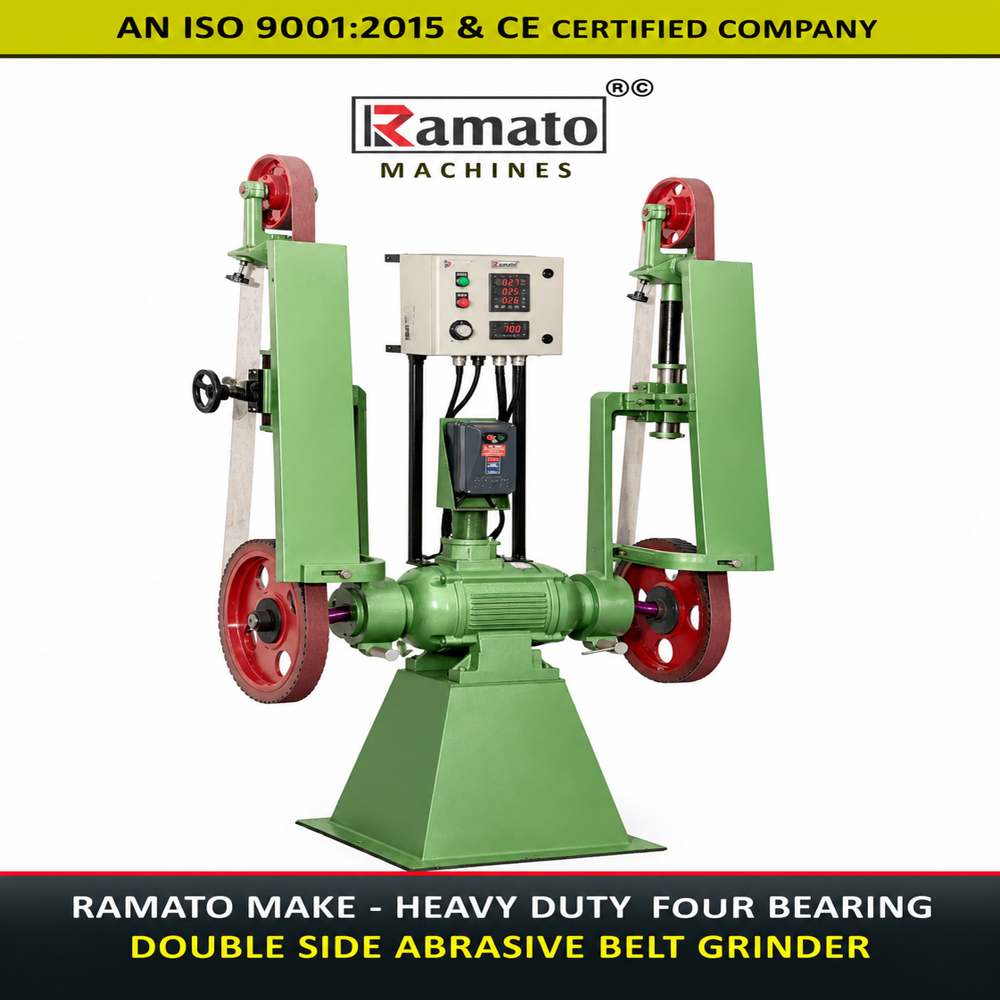

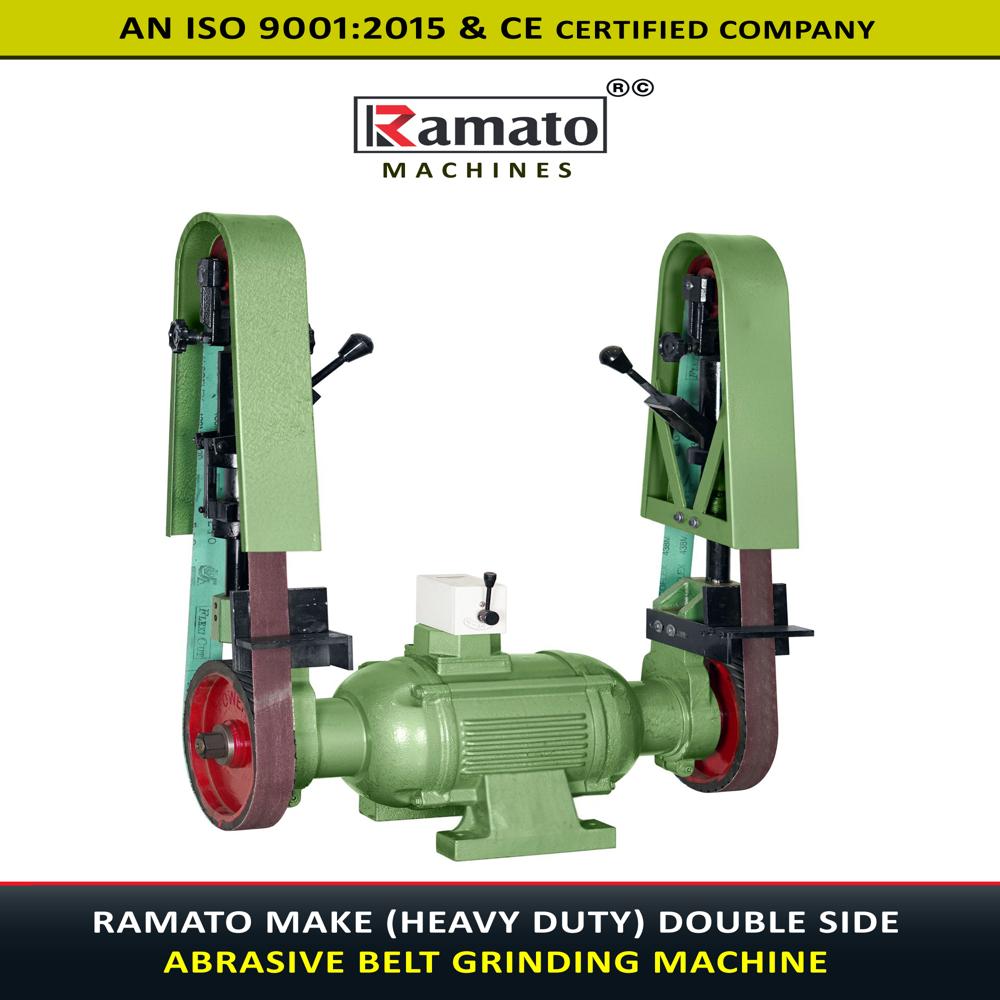

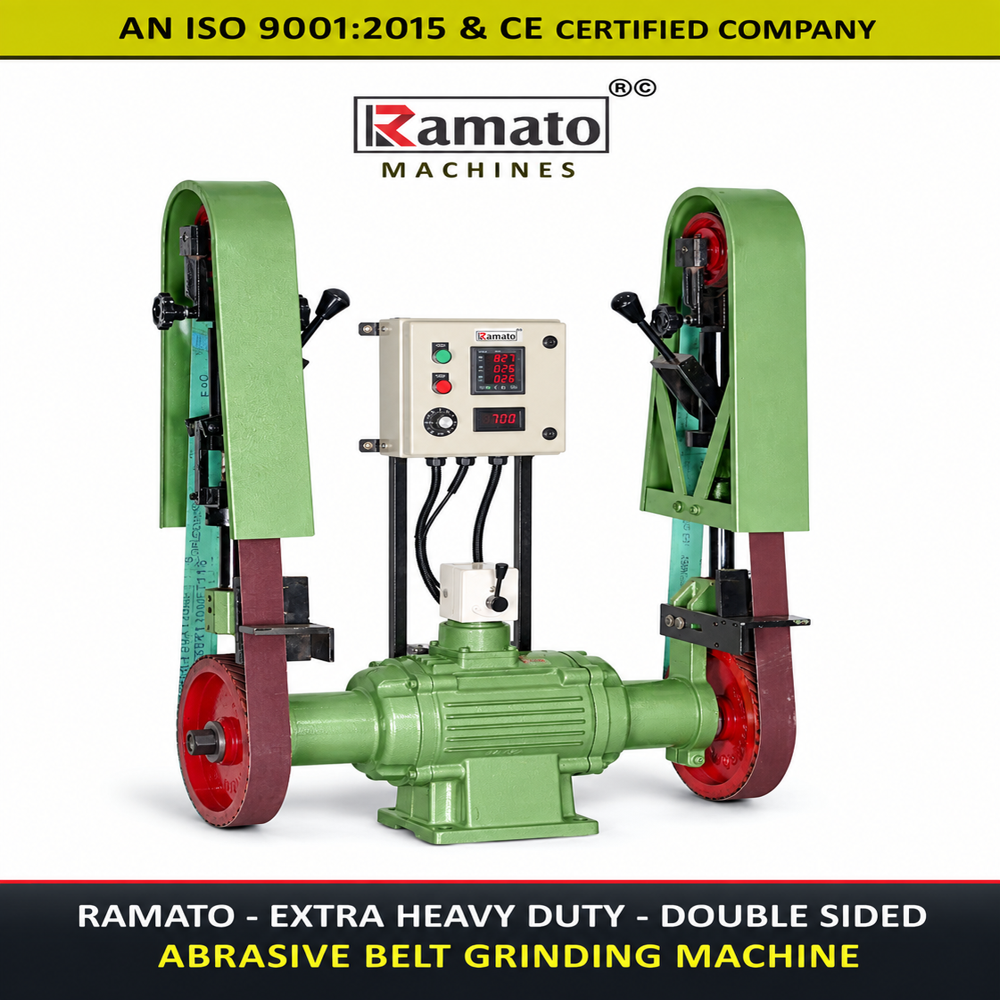

10 HP Belt Grinder Machine

Get a Price/Quote

10 HP Belt Grinder Machine Specification

Rotation
Belt runs in a continuous rotational motion

Model
10 HP Belt Grinder Machine

Product Type
Double Side Belt Grinder Machine

General Use
Heavy duty grinding, deburring, and polishing of metal components

Material
Fabricated Steel Body

Type
Abrasive Belt Grinder

Capacity
Heavy Duty / Industrial

Weight (kg)
Approx. 400 kg

Computerized
No

Automatic
No, Manual Operation

CNC Or Not
Not CNC

Control System
Manual

Table Size
Not Applicable (Belt Support Platform)

Grinding Wheel Size
Suitable for large continuous abrasive belts

Grinding Wheel Speed
Approx. 1440 RPM (motor-driven)

Grinding Length
Dependent on belt length; typically up to 2000 mm

Floor Space
Approx. 1200 mm x 950 mm

Spindle Speed
1440 RPM

Power
10 HP

Voltage
415 V / 3 Phase

Dimension (L*W*H)
Approx. 1200 mm x 950 mm x 1850 mm

Feature
Double side grinding, Robust construction, High efficiency

Color
Industrial Green / Grey

Speed Control
Optional VFD (Variable Frequency Drive)

Belt Size
75 mm x 2000 mm (customizable on request)

Motor Type
High efficiency TEFC induction motor

Finish
Powder coated/painted for corrosion resistance

Grinding Head
Double side, can work independently or simultaneously

Belt Tensioning
Manual Handwheel-Type

Cooling System
Optional water cooling attachment

Mounting Type
Floor Mounted

Noise Level
Below 80 dB (with proper installation)

Application
Auto components, fabrication workshops, foundries, and machine shops

Safety Features
Belt guards, emergency stop switch

10 HP Belt Grinder Machine About

10 HP Belt Grinder Machine manufacturer in Rajkot, Gujarat, India. Rajlaxmi Machine Tools offers Ramato, HMP & Roent heavy-duty abrasive belt grinders for industrial metal grinding and finishing.

Heavy-Duty Construction for Industrial Environments

Engineered with a high-efficiency 10 HP TEFC induction motor, this belt grinder guarantees reliable performance in demanding scenarios. Its sturdy, fabricated steel body provides lasting durability, and the powder-coated or painted finish enhances resistance to corrosion, ensuring longevity even in tough shop conditions.

Flexible Double-Sided Grinding Capability

Featuring a unique double-side grinding head, operators can use each side independently or simultaneously. This design maximizes efficiency and adaptability for deburring, grinding, and polishing a wide variety of metal components, streamlining multiple processes and reducing handling time.

Prioritizing Safety and Ease of Use

With manual belt tensioning via a handwheel, integrated belt guards, and an emergency stop switch, this machine places operator safety and convenient operation at the forefront. Optional features like a variable frequency drive and water cooling support precise control and thermal management during intensive jobs.

FAQ's of 10 HP Belt Grinder Machine:

Q: How is belt tension adjusted on the 10 HP Belt Grinder Machine?

A: Belt tension is managed manually using a handwheel-type tensioning system. This allows operators to fine-tune belt tension quickly and reliably, ensuring optimal performance and belt longevity during use.

Q: What are the benefits of double-side grinding heads, and can they work together?

A: The double-side grinding heads can operate independently or simultaneously, allowing users to handle two surfaces or different processes at once. This feature improves workflow efficiency, reduces downtime, and provides greater versatility for heavy-duty applications.

Q: When should I consider using the optional water cooling system?

A: The optional water cooling attachment is recommended for grinding operations that generate significant heat, particularly during extended or intensive tasks. It helps maintain belt temperature, protects workpieces from heat damage, and prolongs equipment life.

Q: Where is this belt grinder best suited for installation and use?

A: This floor-mounted machine is ideal for industrial settings such as auto component manufacturing, fabrication workshops, foundries, and machine shops. Its heavy-duty capacity and robust design make it suitable for environments demanding reliable, continuous operation.

Q: What processes and materials can this machine handle?

A: It efficiently handles grinding, deburring, and polishing of metal components using large continuous abrasive belts. The machine is especially effective for heavy-duty operations on steel, aluminum, and other metals commonly found in industrial fabrication.

Q: Does the machine produce excessive noise during operation?

A: No, when installed properly, the machine maintains noise levels below 80 dB, creating a safer and more comfortable work environment for operators.

Q: What are the primary safety features included with the 10 HP Belt Grinder Machine?

A: Safety is ensured through integrated belt guards to cover moving parts and an emergency stop switch that allows immediate shutdown in case of emergencies, promoting operator safety at all times.
