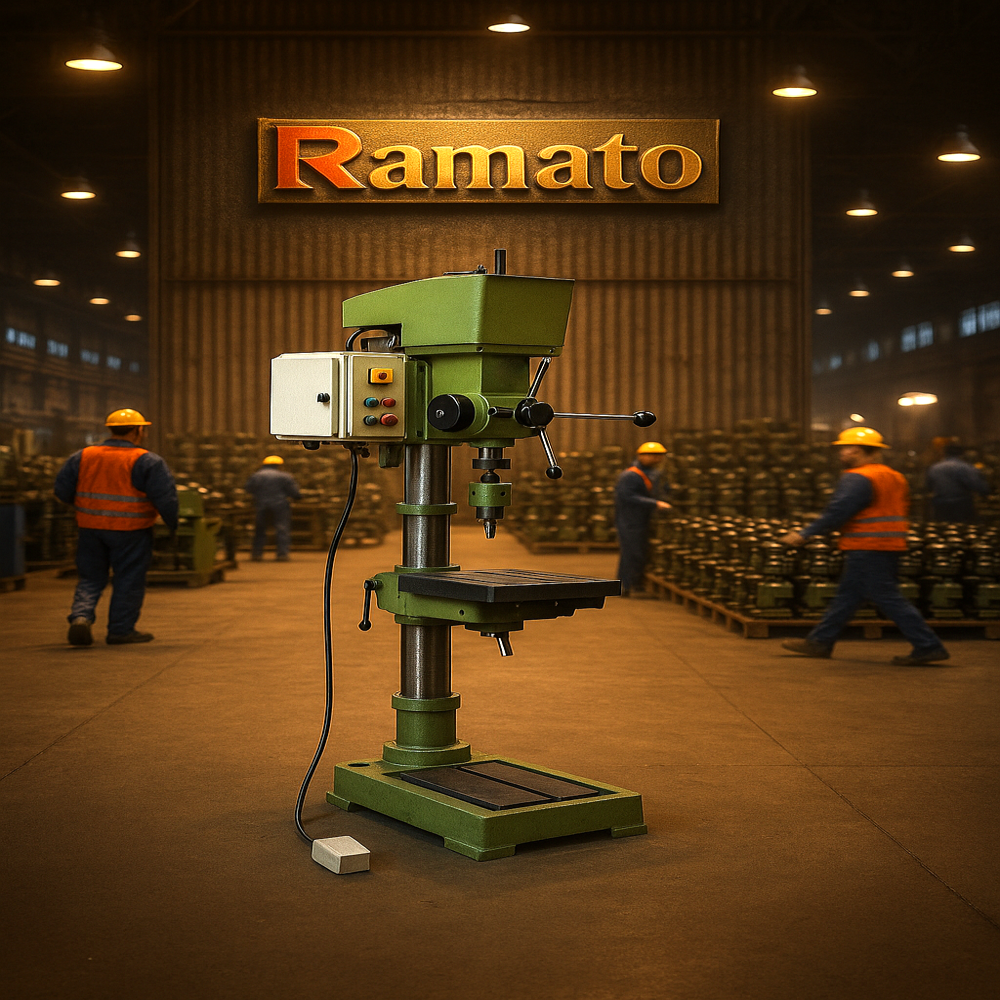

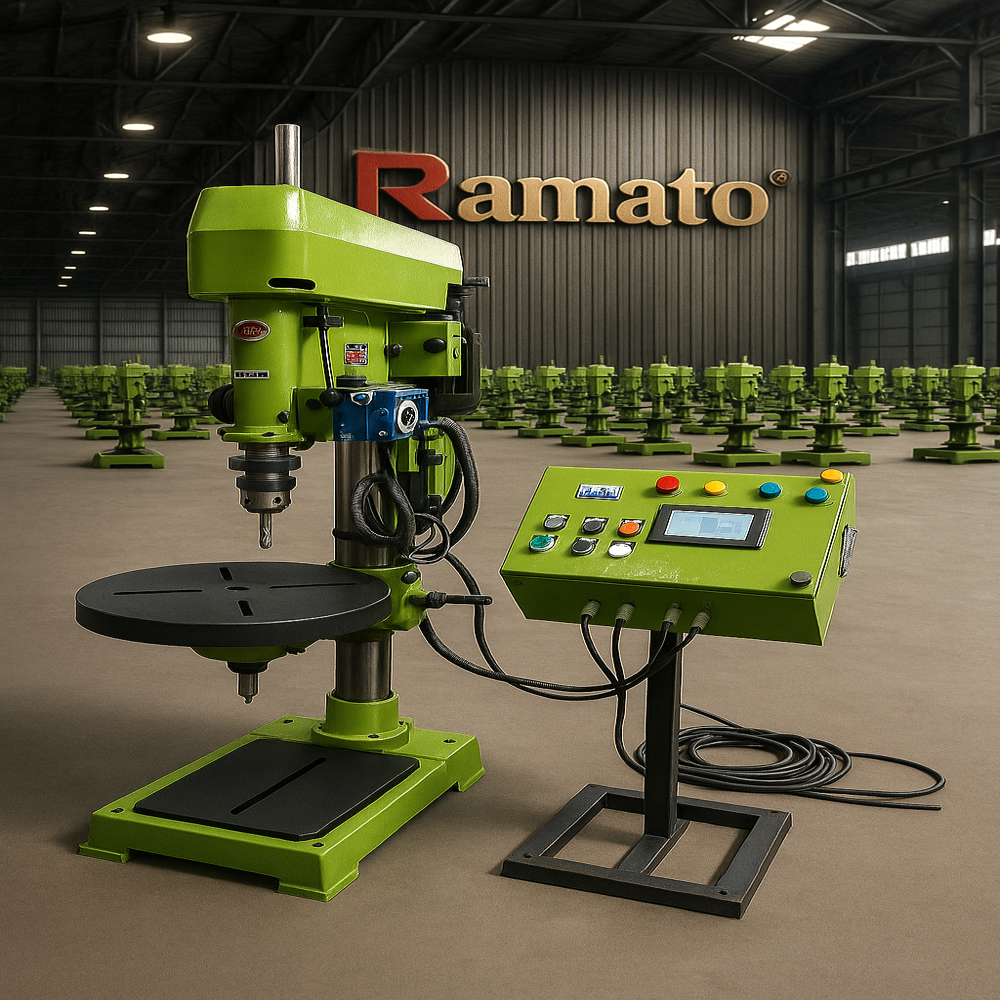

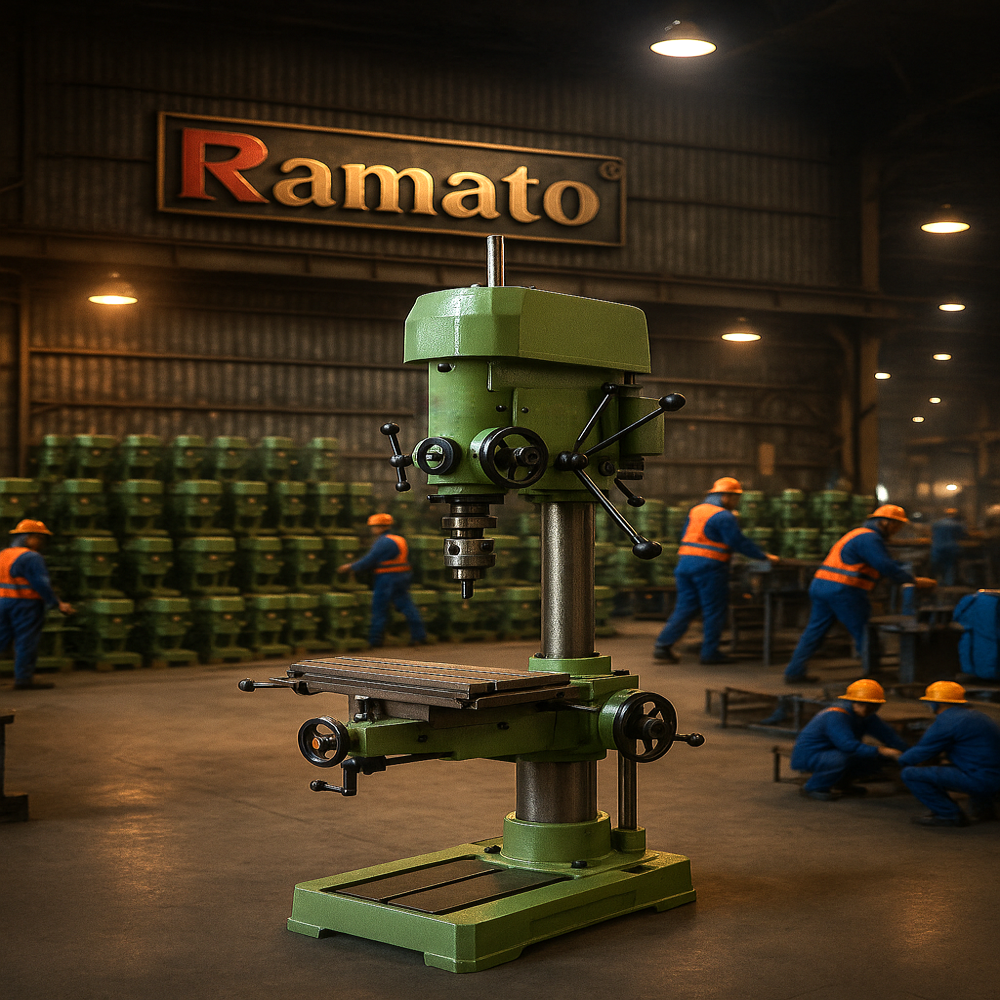

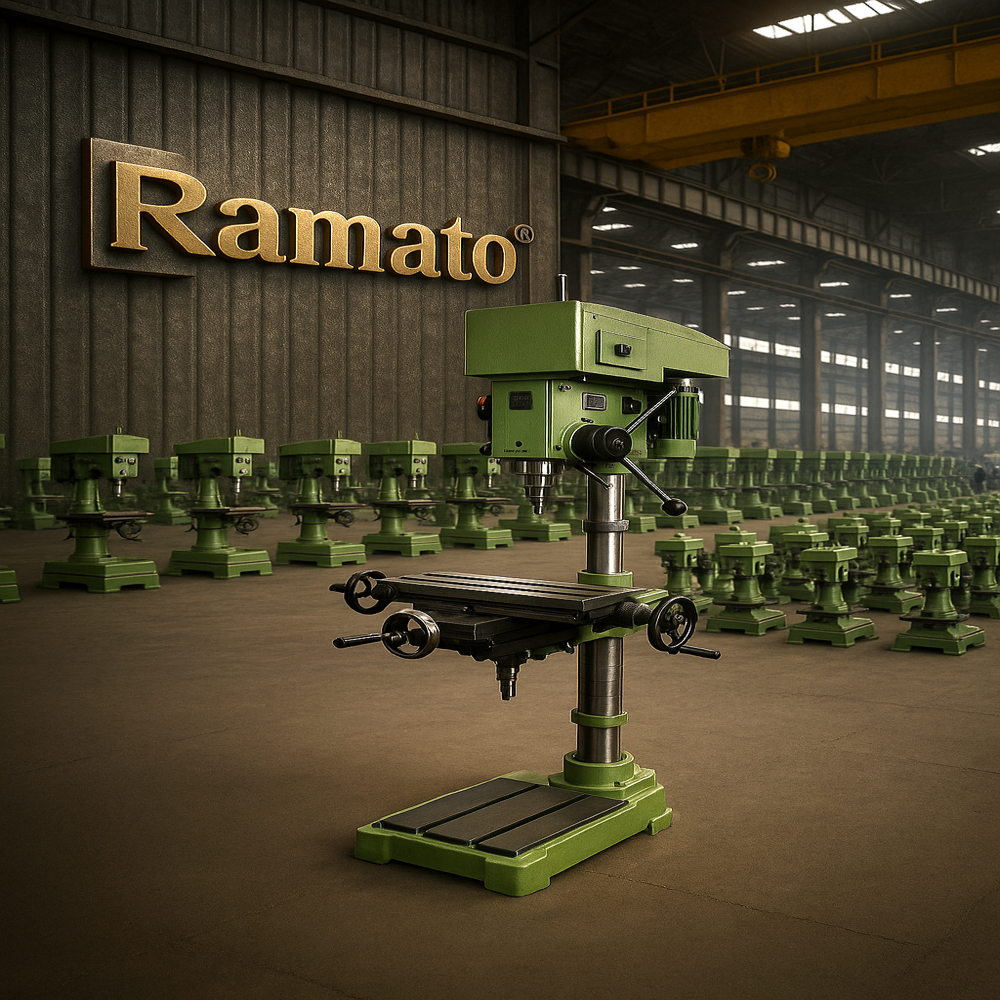

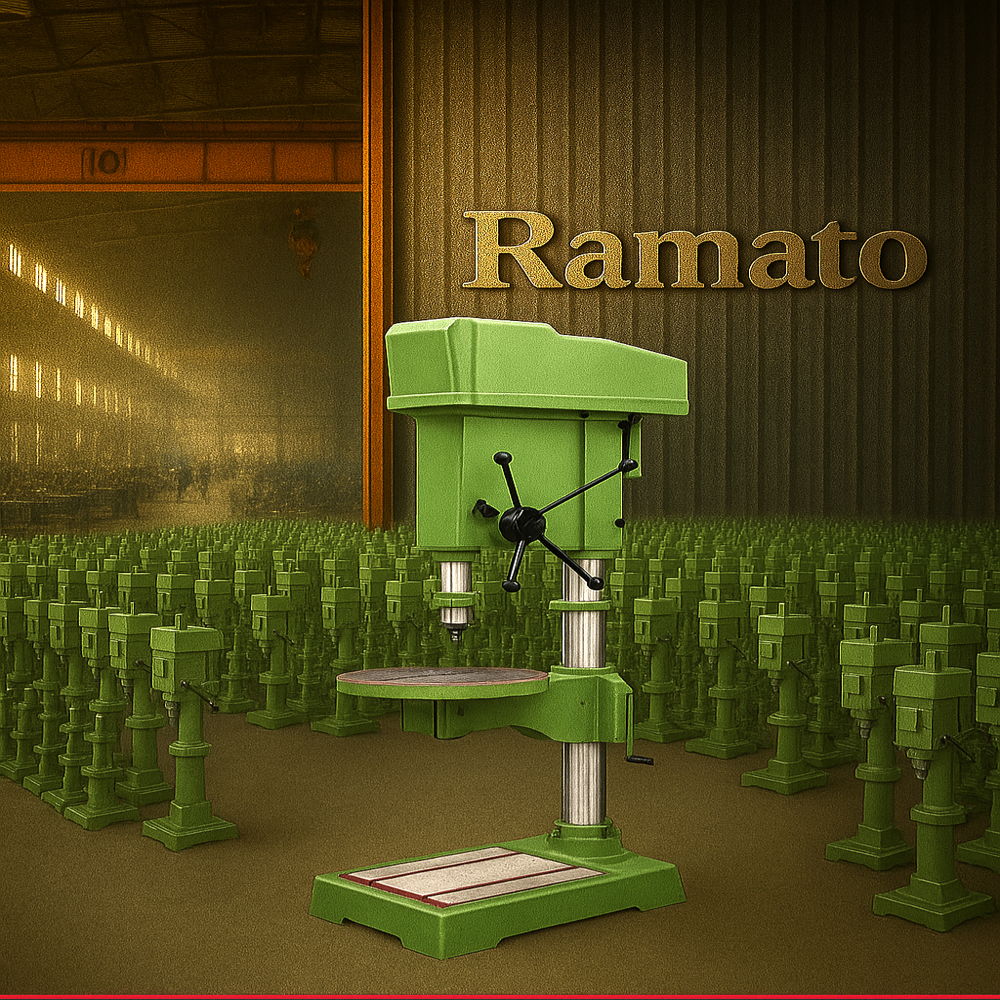

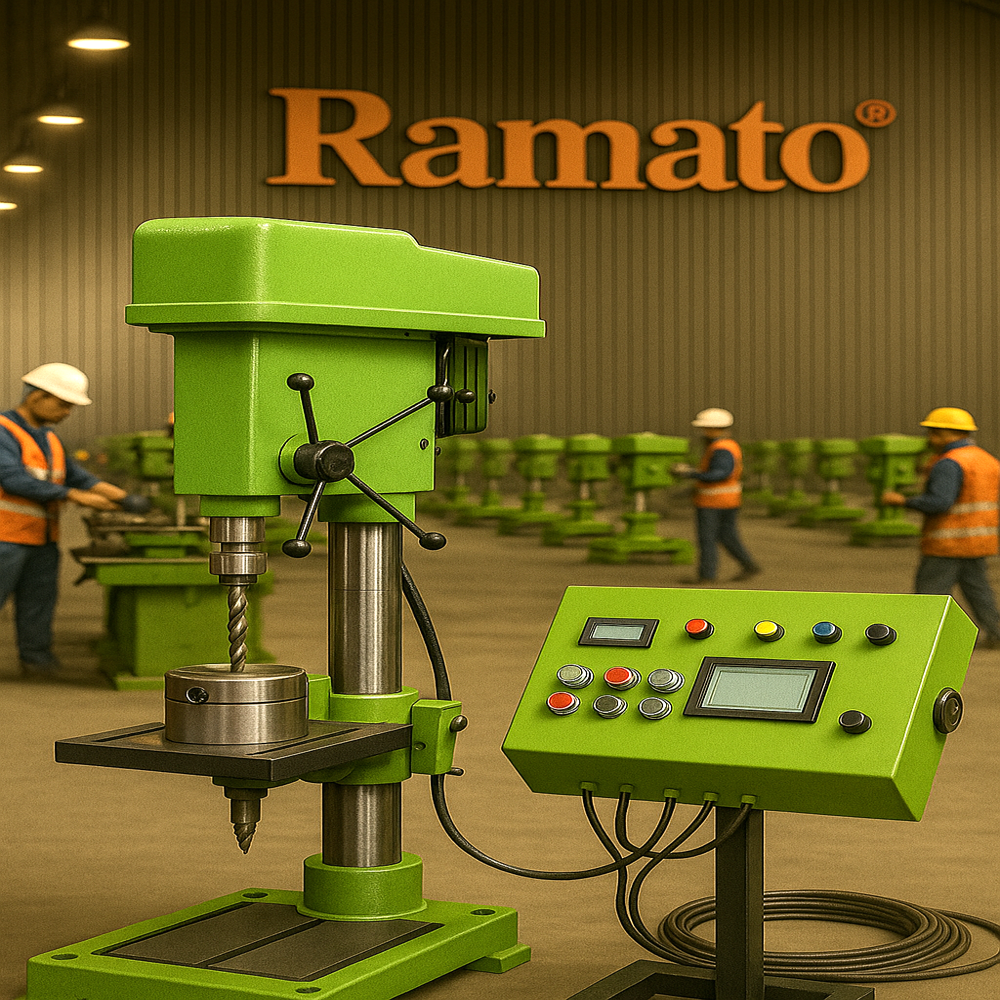

Drill Milling Machine
Drill Milling Machine
Drill Milling Machine
Drill Milling Machine
Drill Milling Machine
Drill Milling Machine
Drill Milling Machine
Drill Milling Machine
Drill Milling Machine
Drill Milling Machine
Drill Milling Machine
Drill Milling Machine

Drill Milling Machine

Price 40000.0 INR/ Unit

MOQ : 1 Unit

Drill Milling Machine Specification

  • Diameter
  • Max. drilling diameter 25 mm
  • Motor Power
  • 1.1 kW
  • Frequency
  • 50/60 Hz
  • Table Size
  • 250 x 320 mm
  • Dimension (L*W*H)
  • 700 x 500 x 1200 mm
  • Spindle Speed
  • 500-2500 RPM
  • Cutting Area
  • Table stroke up to 250 mm
  • Condition
  • New
  • Noise Level
  • <80 dB
  • Features
  • High precision, robust design, easy operation, low maintenance
  • Machine Type
  • Vertical Drill Milling
  • Product Type
  • Drill Milling Machine
  • Material
  • Cast Iron & Steel
  • Computerized
  • No
  • Automatic Grade
  • Semi-Automatic
  • CNC Or Not
  • Not CNC
  • Control System
  • Manual
  • Voltage
  • 220/380V
  • Power
  • 0.75-1.5 kW
  • Power Source
  • Electric
  • Weight (kg)
  • Approx. 120-160 kg
  • Capacity
  • Drilling: 25 mm, Milling: 16 mm
  • Color
  • Green
  • Usage & Applications
  • Used for drilling, milling, and boring operations in workshops and factories
  • Quill Travel
  • 80 mm
  • Base Dimensions
  • 410 x 320 mm
  • Spindle Taper
  • MT3
  • Safety Features
  • Overload protection, emergency stop
  • Number of Spindle Speeds
  • 6 Steps
  • Cross Travel
  • 120 mm
  • Column Diameter
  • 70 mm
  • Frame Finish
  • Powder-coated
  • Coolant System
  • Optional
  • Chuck Capacity
  • 1.5-16 mm
  • Longitudinal Travel
  • 320 mm



About Drill Milling Machine

Drill Milling Machine manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent industrial drill milling machines for accurate drilling, milling, metalworking and engineering applications.

Precise Performance & Versatile Functionality

Engineered for accuracy, this machine supports both drilling and milling with maximum drilling capacity of 25 mm and milling capacity of 16 mm. The adjustable spindle speeds along with up to 320 mm longitudinal table travel allow for a diverse range of materials and tasks, making it suitable for complex fabrication jobs.


Reliable Safety & Robust Durability

Safety is a priority with integrated overload protection and an emergency stop mechanism. The sturdy frame, crafted from cast iron and steel and finished with powder coating, ensures longevity even under constant use in industrial settings. The low-noise motor and efficient manual controls make operation smooth and secure.


Easy Operation & Low Maintenance

This semi-automatic, manually controlled drill milling machine is designed for straightforward usage. Minimal maintenance is required thanks to high-quality components and the rust-resistant finish. Its easy-to-clean surfaces, clear controls, and accessible working table streamline daily use for operators of all skill levels.

FAQ's of Drill Milling Machine:


Q: How do I change the spindle speed on this drill milling machine?

A: Spindle speeds can be adjusted manually through the machine's 6-step gear mechanism. Refer to the control panel and follow the manufacturer's guidelines to shift between speeds ranging from 500 to 2500 RPM according to your operational needs.

Q: What applications is this machine best suited for?

A: This drill milling machine is designed for drilling, milling, and boring tasks in workshops, factories, and manufacturing units. It is ideal for both small-scale and heavy-duty fabrication jobs that require precision and versatility.

Q: When should I use the optional coolant system?

A: The optional coolant system should be employed during prolonged milling or drilling operations to maintain optimal cutting temperatures, reduce tool wear, and ensure a smooth surface finish on workpieces.

Q: Where can this machine be installed safely?

A: Install the machine in a stable, well-ventilated workshop or industrial environment with a flat foundation and electric supply of 220/380V. Ensure enough clearance around the 700 x 500 x 1200 mm dimensions for safe operation and maintenance access.

Q: What are the main safety features of this drill milling machine?

A: Key safety features include overload protection and an emergency stop button. These safeguards are designed to protect the operator and equipment from accidental overload or emergency situations during operation.

Q: How does the manual control system benefit the user?

A: Manual controls provide tactile feedback and precise, real-time adjustments, allowing operators to oversee all movements closely for enhanced process control and reduced risk of errors during complex operations.

Q: What are the maintenance requirements for this machine?

A: The machine requires occasional lubrication, inspection of moving parts, and regular cleaning. Its powder-coated surface helps prevent corrosion, and the overall robust construction minimizes maintenance intervals, offering ease to operators and facility managers alike.
