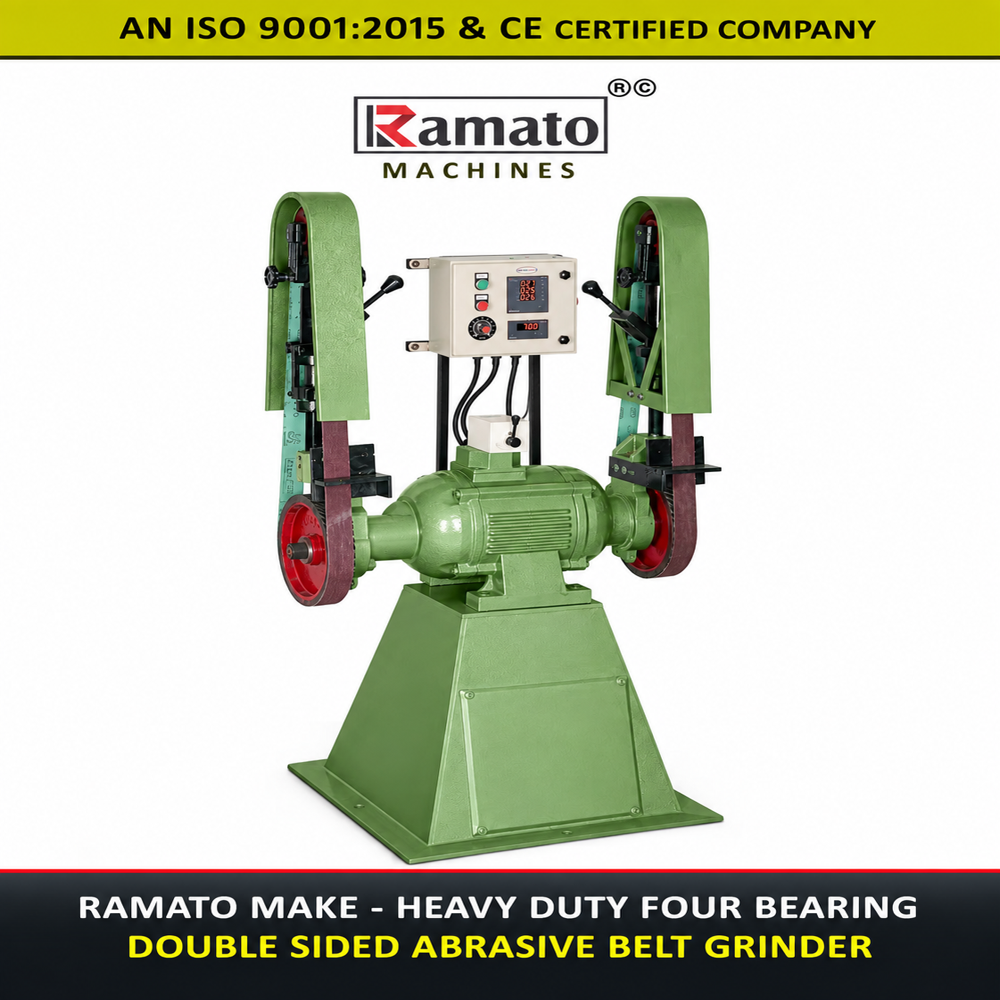

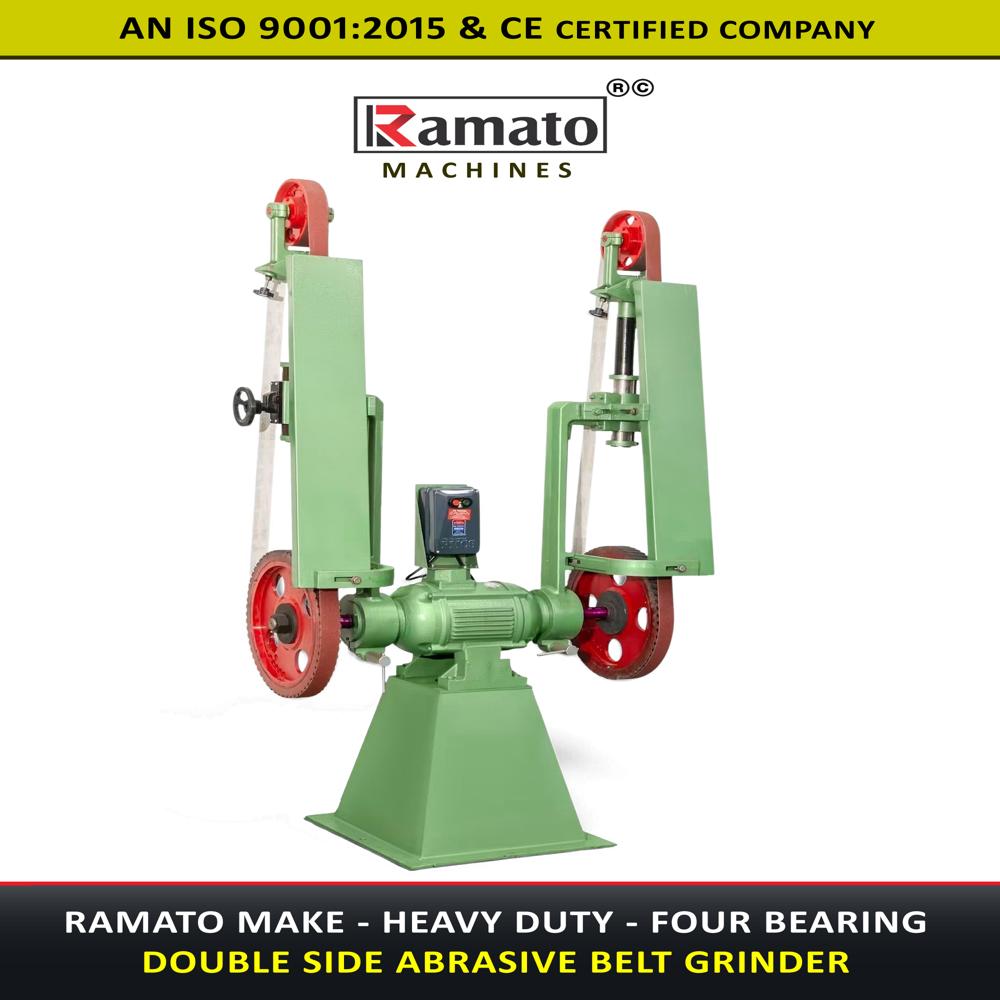

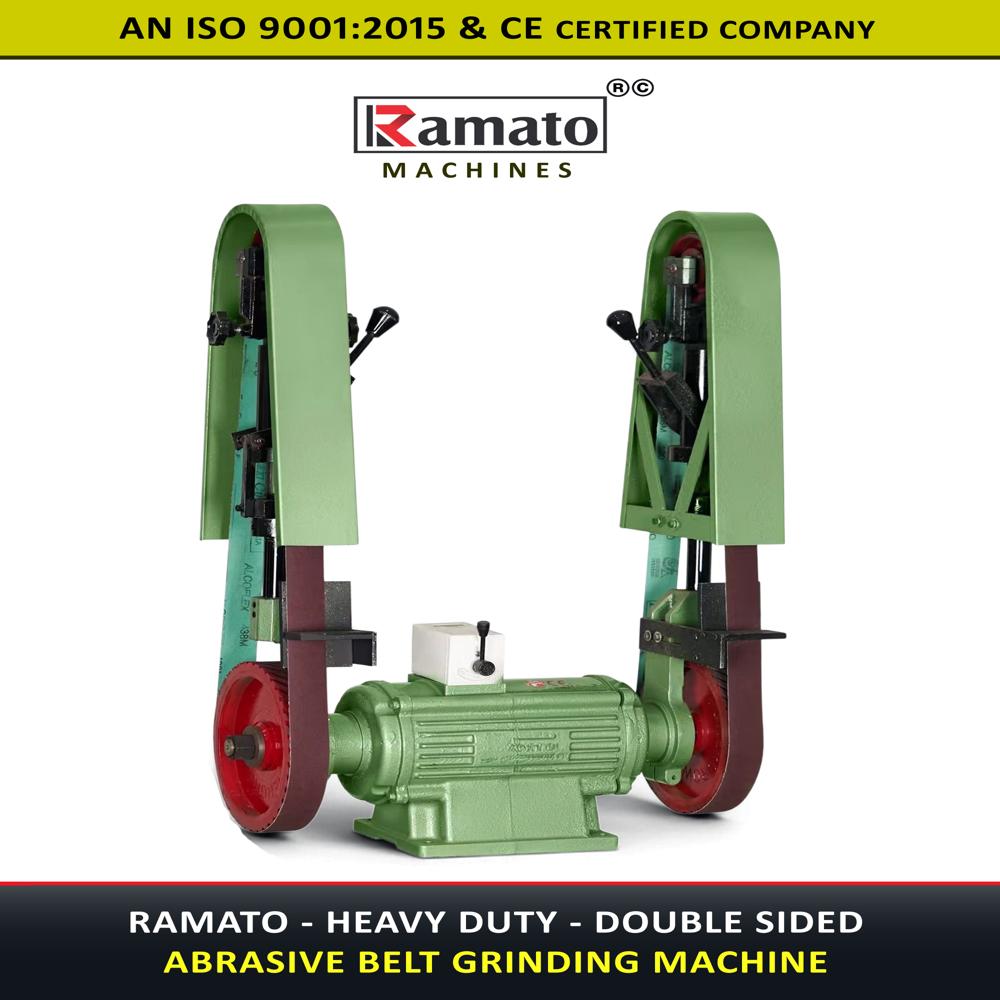

5 HP Belt Grinder Machine

Get a Price/Quote

5 HP Belt Grinder Machine Specification

Model
RAMATO Double Side 5 HP

Rotation
Clockwise and Anti-clockwise

Product Type
Double side belt grinder machine

General Use
Metal and surface finishing, deburring, heavy-duty material removal

Material
Cast Iron, Mild Steel

Type
Heavy Duty Abrasive Belt Grinder

Capacity
Heavy Duty

Weight (kg)
Approx. 100-120 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual

Grinding Wheel Size
Not Applicable (Abrasive Belt System)

Grinding Wheel Speed
Approx. 2800 RPM

Grinding Length
Depends on belt length

Floor Space
Approx. 1000 mm x 500 mm

Spindle Speed
2800 RPM

Power
5 HP

Voltage
415 V (Three Phase)

Dimension (L*W*H)
Approx. 1000 x 500 x 1200 mm

Feature
Double Side Operation, Robust Construction, CE Certified, ISO 9001:2015 Certified

Color
Industrial Green

Belt Tension Adjustment
Manual

Mounting Type
Floor-mounted

Motor Type
3 Phase Induction Motor

Vibration Level
Low (Dynamically Balanced)

Drive System
Direct Coupled

Noise Level
<75 dB

Abrasive Type
Suitable for multiple abrasive belt grades

Dust Collection Port
Available (Optional)

Belt Size
100 mm x 2000 mm (4" x 78") approx.

Working Speed
High speed operation

Suitable Workpieces
Ferrous & Non-Ferrous metals

Safety Features
Full Belt Guard, Emergency Stop Switch

About 5 HP Belt Grinder Machine

5 HP Belt Grinder Machine manufacturer in Rajkot, Gujarat, India. Rajlaxmi Machine Tools offers Ramato, HMP & Roent industrial belt grinders for heavy-duty metal grinding and finishing.

Heavy-Duty Performance for Industrial Needs

This 5 HP Belt Grinder is engineered for intense industrial use, tackling demanding grinding, deburring, and finishing tasks on both ferrous and non-ferrous metals. With high-speed belt operation and double-side accessibility, its robust design boosts productivity and flexibility for workshops and manufacturing floors alike.

Versatile and User-Friendly Design

Built with manual belt tension adjustment and straightforward controls, this grinder accommodates various abrasive belt grades, making it suitable for a wide array of applications. The dual operational sides streamline workflow, and the optional dust collection port ensures easier maintenance and a cleaner work environment.

FAQ's of 5 HP Belt Grinder Machine:

Q: How do I adjust the belt tension on the RAMATO Double Side 5 HP Belt Grinder?

A: The machine features a manual belt tension adjustment mechanism, allowing you to quickly change and tighten the belt according to operational needs. Simply follow the instructions in the user manual to ensure optimal tracking and performance.

Q: What types of workpieces can be processed with this belt grinder?

A: This grinder is designed to handle both ferrous and non-ferrous metals, making it ideal for general metal and surface finishing, deburring, and heavy-duty material removal.

Q: When should I use different abrasive belt grades with this machine?

A: Switch between coarse and fine abrasive belt grades depending on your application. Coarse belts are suited for rapid material removal or deburring, while finer grades are best for smooth finishing and surface preparation.

Q: Where can the belt grinder be installed, and does it require special mounting?

A: The machine is floor-mounted and should be installed on a stable, flat surface in industrial or workshop environments. Ensure adequate space based on its dimensions (approx. 1000 x 500 x 1200 mm) and consider connecting the optional dust collection port for improved air quality.

Q: What safety features are included with this grinder?

A: For enhanced operator safety, the machine includes a full belt guard to cover moving parts and an emergency stop switch for immediate shut-off in case of emergency situations.

Q: How does the direct coupled drive system benefit the operation?

A: The direct coupled drive system reduces vibration and energy loss, thereby delivering efficient power transfer from the 5 HP motor and contributing to low vibration levels for smoother, quieter operation.
