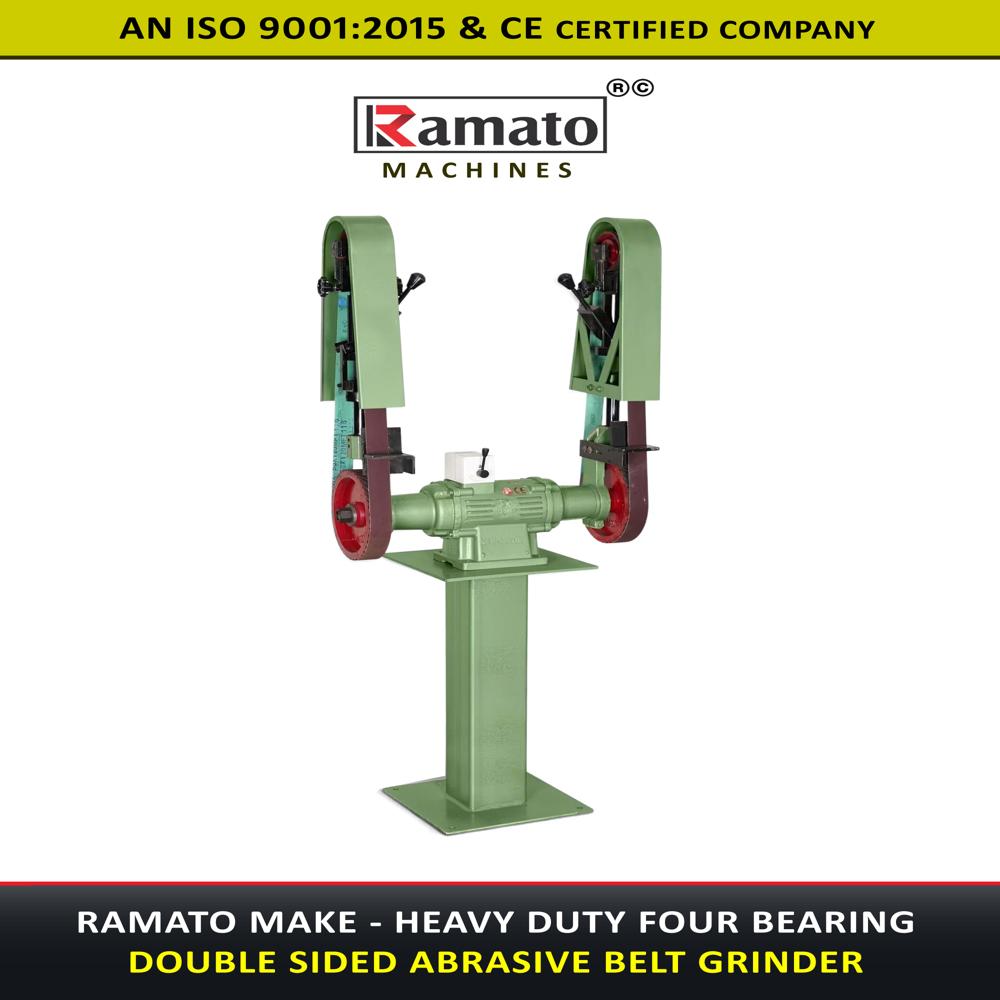

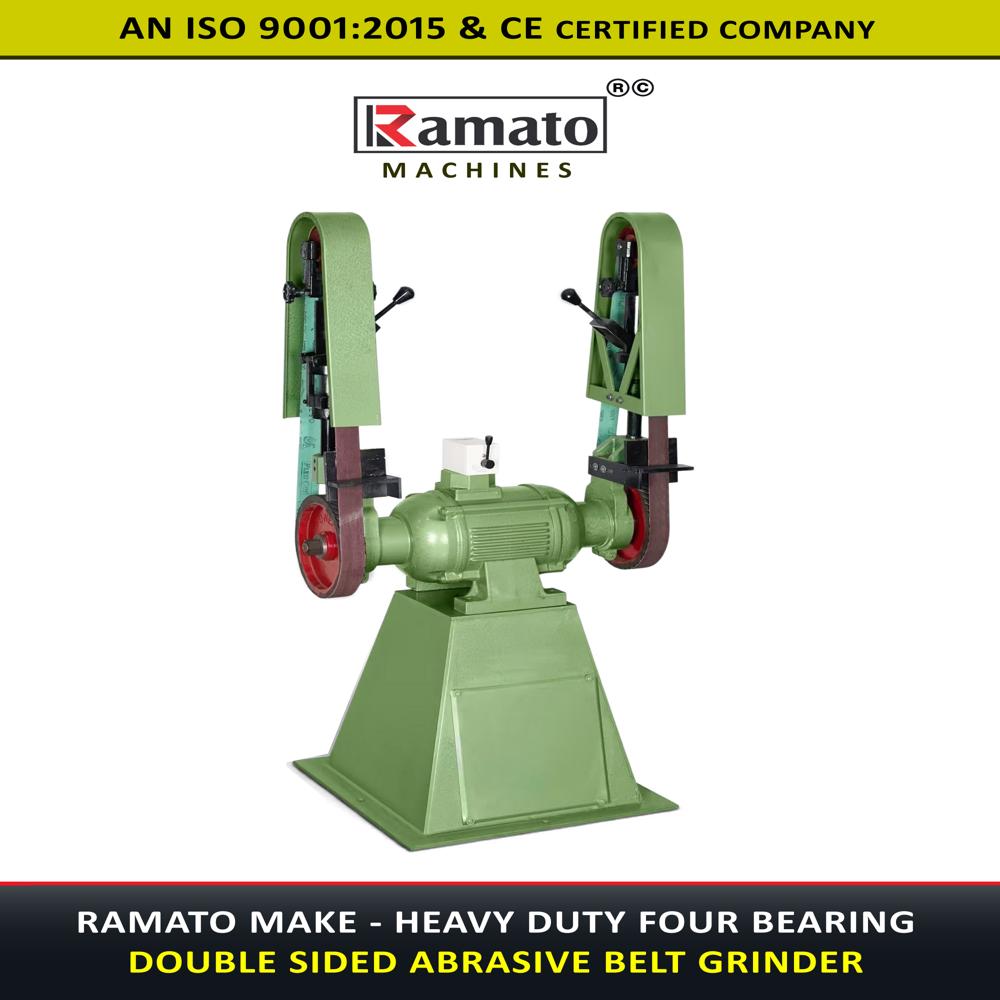

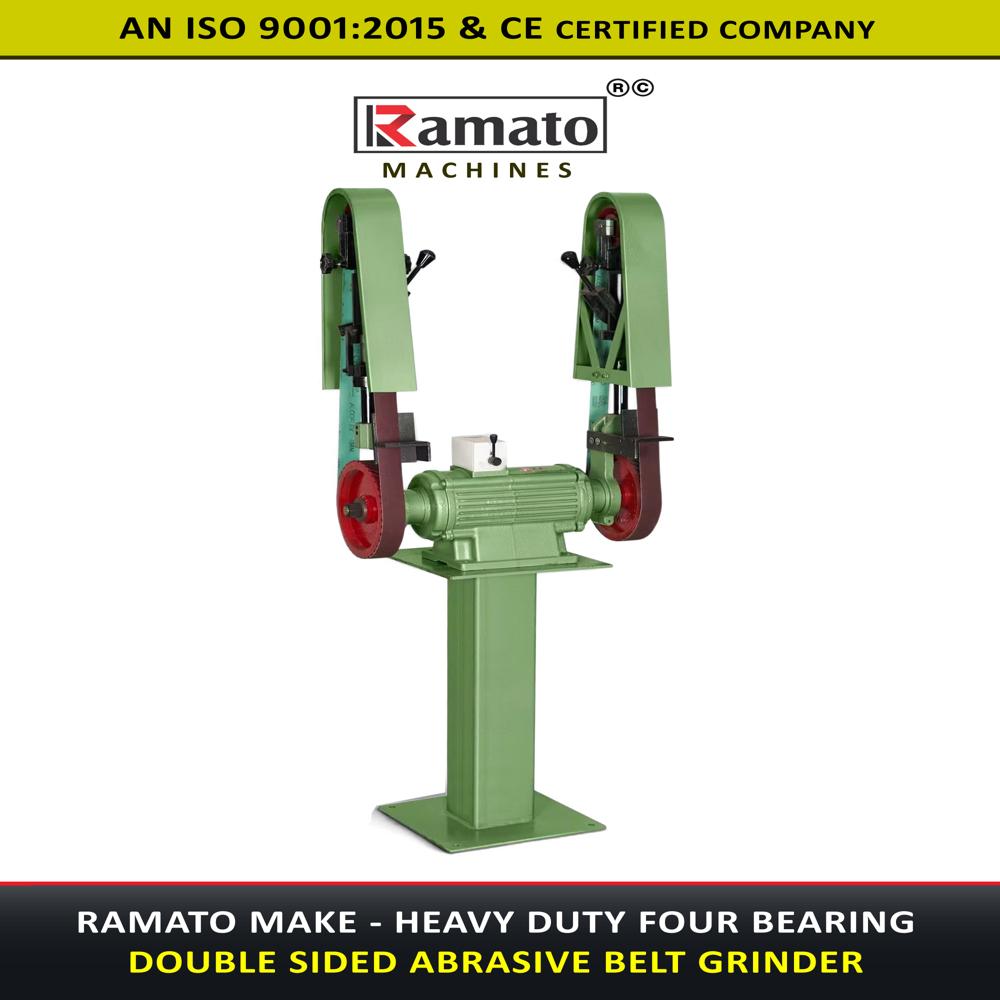

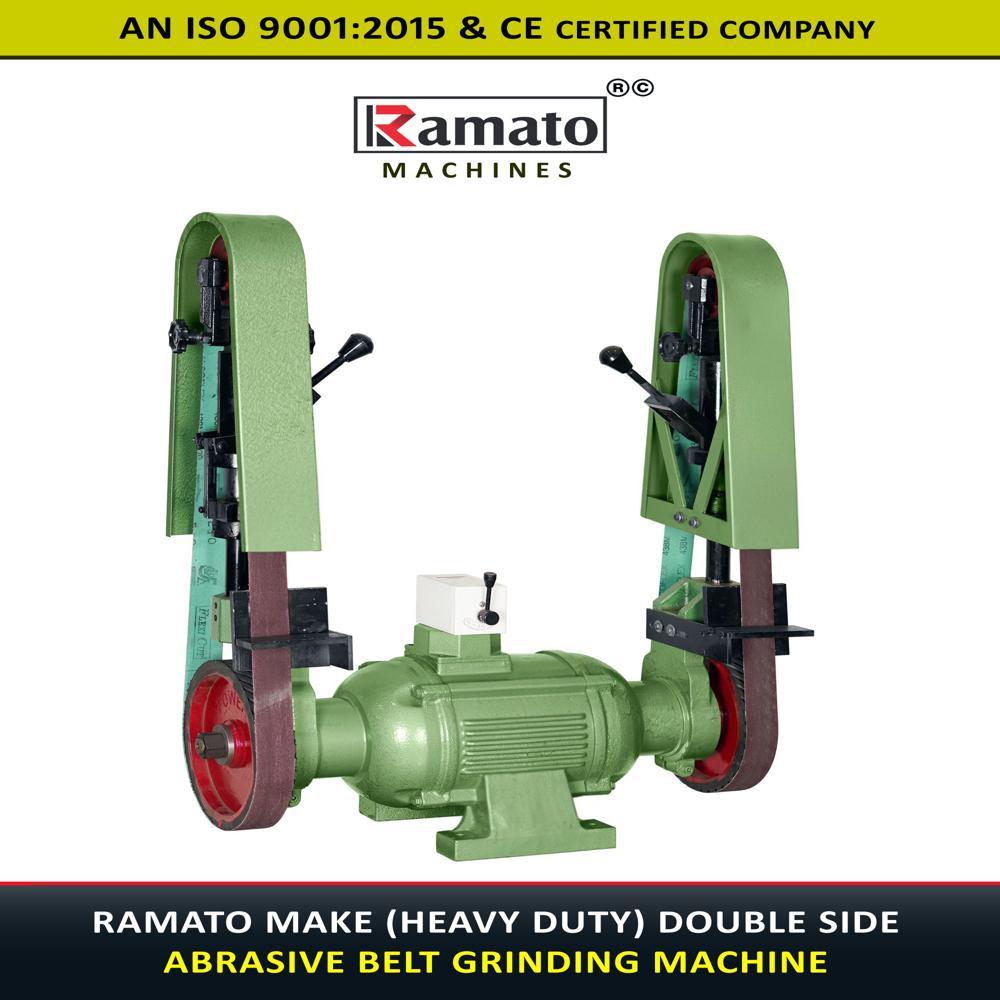

Double Side Belt Grinder Machine

Get a Price/Quote

Double Side Belt Grinder Machine Specification

Model
DABG-DS-3HP

Rotation
Clockwise and Counterclockwise

Product Type
Double Side Belt Grinder Machine

General Use
Heavy duty abrasive grinding of metal and non-metal surfaces

Material
High-grade cast iron and mild steel

Type
Heavy Duty Belt Grinder

Capacity
Continuous operation, heavy material removal

Weight (kg)
Approx. 180 kg

Computerized
No

Automatic
No (Manual Operation)

CNC Or Not
Not CNC

Control System
Manual

Grinding Wheel Size
Not applicable (uses abrasive belt instead of wheel)

Grinding Length
Dependent on belt size, typically up to 2000 mm

Floor Space
Approx. 850 mm x 600 mm

Spindle Speed
2800 RPM

Power
3 HP / 2.2 kW

Voltage
415 V, 3 Phase, 50 Hz

Dimension (L*W*H)
850 mm x 600 mm x 1200 mm

Feature
Double sided operation, heavy-duty construction, high efficiency

Color
Industrial Green

Application
Deburring, surface finishing, edge grinding, and descaling

Safety Features
Belt guards, emergency stop switch option

Noise Level
Moderate (below 80 dB with proper maintenance)

Abrasive Belt Size
50 mm x 2000 mm

Suitable Materials
Mild steel, stainless steel, brass, aluminum, other metals and plastics

Frame Material
Rigid cast iron body for vibration-free performance

Ambient Temperature Range
5C - 45C

Motor Mount
Foot mounted

Operation Mode
Manual lever adjustment for belt tension and tracking

Installation Type
Floor mount

Included Accessories
Abrasive belts, standard operating tools

Working Speed
30 m/s (belt speed, approximate)

Main Drive
Direct coupled electric motor

About Double Side Belt Grinder Machine

Double Side Belt Grinder Machine manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent machines for high-efficiency metal grinding and finishing.

Heavy-Duty Construction and Stability

Engineered with a rigid cast iron frame, this double side belt grinder ensures vibration-free performance during operation. The robust construction supports continuous, heavy-duty grinding and increases the machine's lifespan, making it an ideal choice for industrial settings.

Versatile Performance for Various Materials

The grinder efficiently handles a variety of tasks like deburring, surface finishing, edge grinding, and descaling. Compatible with metals such as mild steel, stainless steel, brass, and aluminum, as well as certain plastics, it offers impressive versatility for workshop needs.

Safety and Ease of Operation

Safety is prioritized with belt guards and the option of an emergency stop switch. Manual lever adjustments for belt tension and tracking provide intuitive control, while the noise level remains below 80 dB with proper maintenance, contributing to user comfort during extended use.

FAQ's of Double Side Belt Grinder Machine:

Q: How do you adjust the belt tension and tracking on the Double Side Belt Grinder Machine?

A: Belt tension and tracking are managed manually using a lever adjustment system. This design allows operators to quickly fine-tune the abrasive belt's alignment and tightness, ensuring effective grinding performance and reducing belt wear.

Q: What types of applications is this belt grinder suitable for?

A: This machine is designed for heavy-duty tasks such as deburring, surface finishing, edge grinding, and descaling. It can be used on a range of materials including mild steel, stainless steel, brass, aluminum, other metals, and select plastics, making it suitable for fabrication shops, machine shops, and manufacturing applications.

Q: Where should the Double Side Belt Grinder Machine be installed for optimal performance?

A: The grinder is intended for floor mounting and requires a stable, level surface with sufficient floor space (approximately 850 mm x 600 mm). Proper installation in a well-ventilated workshop environment ensures safe and efficient operation.

Q: What safety features does this machine offer during operation?

A: Safety features include robust belt guards around the abrasive belts and the availability of an emergency stop switch. These elements help prevent accidental contact and allow immediate shutdown in case of unexpected issues, ensuring operator safety.

Q: How is noise managed on the machine, and what is the maximum noise level?

A: The grinder is engineered for moderate noise output, sustaining levels below 80 dB when properly maintained. Regular maintenance and inspection of all moving parts contribute to quieter operation, supporting a safer and more comfortable workspace.

Q: When should the abrasive belt be replaced, and what size does it use?

A: Replace the abrasive belt when visible wear, tears, or reduced grinding efficiency are observed. The machine uses belts that measure 50 mm x 2000 mm, and replacement intervals depend on usage intensity and material type.

Q: What are the primary benefits of choosing a double side belt grinder over a single side machine?

A: A double side belt grinder offers enhanced productivity by allowing two grinding surfaces for different abrasive types or grit sizes simultaneously. This reduces tool change-over time and broadens the range of applications without sacrificing efficiency or performance.
