Workshop Bench Drill Machine
Workshop Bench Drill Machine
Workshop Bench Drill Machine
Workshop Bench Drill Machine
Workshop Bench Drill Machine
Workshop Bench Drill Machine
Workshop Bench Drill Machine
Workshop Bench Drill Machine
Workshop Bench Drill Machine
Workshop Bench Drill Machine
Workshop Bench Drill Machine
Workshop Bench Drill Machine

Workshop Bench Drill Machine

Price 23000.0 INR/ Unit

MOQ : 1 Unit

Workshop Bench Drill Machine Specification

  • Table Size
  • Round Table, Approx. 400mm Diameter
  • Spindle Speed
  • Multiple speed levels (geared); typically 100-1500 RPM
  • Diameter
  • Maximum 40 mm
  • Features
  • High Precision, Heavy Duty, ISO 9001:2015 & CE certified, Robust Construction
  • Machine Type
  • Pillar Drill Machine (Geared - Round Model)
  • Motor Power
  • 1 HP to 2 HP
  • Condition
  • New
  • Frequency
  • 50 Hz
  • Noise Level
  • Low
  • Dimension (L*W*H)
  • 600mm x 450mm x 1200mm
  • Cutting Area
  • Suitable for up to 40mm diameter holes
  • Product Type
  • Workshop Bench Drill Machine
  • Material
  • Heavy Duty Cast Iron and Steel Components
  • Computerized
  • No
  • Automatic Grade
  • Manual
  • CNC Or Not
  • Not CNC
  • Control System
  • Hand Wheel and Mechanical Controls
  • Voltage
  • 220V/380V (Depending on Motor)
  • Power
  • 1 HP to 2 HP (Varies by configuration)
  • Power Source
  • Electric
  • Weight (kg)
  • Approx. 160 kg
  • Capacity
  • 40 MM (1.5) drilling capacity
  • Color
  • Industrial Green
  • Usage & Applications
  • Workshop, Metalworking, Drilling, Industrial Use
  • Feed Mechanism
  • Manual lever and wheel
  • Model Name
  • RTD-23 D (Geared - Round Model)
  • Application Material
  • Metal, Steel, Aluminum, Cast Iron
  • Max. Distance Spindle to Table
  • Approx. 700 mm
  • Safety Features
  • Overload protection, Emergency stop (optional)
  • Max. Distance Spindle to Base
  • Approx. 900 mm
  • Finish
  • Anti-rust paint finish
  • Column Diameter
  • Approx. 80 mm
  • Coolant System
  • Provision for coolant (optional)
  • Drill Chuck Size
  • 13 mm to 40 mm (varies with setting)
  • Spindle Travel
  • 150 mm
  • Gear System
  • Multi-speed geared drive
  • Base Size
  • 450mm x 350mm



About Workshop Bench Drill Machine

Workshop Bench Drill Machine manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent bench drilling machines for workshops, metalworking, fabrication and engineering.


Precision Meets Power

With a drilling capacity of up to 40 mm and a multi-speed geared drive, the RTD-23 D delivers accuracy and performance for diverse workshop projects. Its advanced mechanism allows operators to set the optimal spindle speed and feed, tackling various metals efficiently.


Engineered for Consistency

This machine is built from heavy-duty cast iron and steel for stability and ruggedness. An anti-rust finish increases its service life, and the base size of 450 x 350 mm with a 400 mm round table provides ample workspace for demanding applications.


Operator-Friendly Features

Manual lever and wheel feed mechanism, ergonomic hand controls, and optional coolant system help streamline operation and enhance user safety. Overload protection circuitry and the option for an emergency stop button reinforce safety during extended use.

FAQ's of Workshop Bench Drill Machine:


Q: How does the RTD-23 D Workshop Bench Drill Machine ensure precise drilling?

A: The RTD-23 D features a multi-speed geared drive and a manual feed system, allowing users to adjust spindle speeds and feed rates accurately. Its round table and robust construction minimize vibration, supporting precise and stable drilling.

Q: What types of materials can be drilled with this machine?

A: This drill is suitable for a wide range of metals, including steel, aluminum, cast iron, and other workshop-grade materials. Its heavy-duty build and high drilling capacity up to 40 mm make it ideal for various industrial and fabrication applications.

Q: When should I use the optional coolant system provision?

A: The coolant system should be employed during prolonged or intensive drilling sessions, especially when working with harder metals or larger diameter holes. It helps dissipate heat, enhances tool life, and improves the overall finish of drilled holes.

Q: Where is the RTD-23 D best utilized?

A: This machine excels in industrial workshops, metal fabrication facilities, and manufacturing plants where high-precision and heavy-duty drilling are required. Its robust build makes it suitable for both small and large-scale operations.

Q: What is the process for adjusting spindle speed on this machine?

A: Spindle speeds are adjusted via a multi-speed geared drive system. Operators can select the desired speed range (typically 100-1500 RPM) using the gear controls, adapting the drilling process to different materials and hole sizes.

Q: How does the machine enhance operator safety?

A: Safety is bolstered by built-in overload protection and an optional emergency stop feature. The sturdy, anti-rust finish and ergonomic manual controls further ensure safe operation during extended or challenging drilling tasks.

Q: What benefits does the RTD-23 D offer over standard bench drills?

A: Compared to standard models, the RTD-23 D offers higher drilling capacity, enhanced stability through its rigid construction, multiple spindle speeds for material versatility, and operator-focused features such as manual wheel control and safety provisions.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Drilling Machine Category

Ramato Pillar Drilling Machine

Ramato Pillar Drilling Machine

Price 38000 INR / Unit

Minimum Order Quantity : 1 Unit

Condition : New

Automatic Grade : Manual

CNC Or Not : Other, Not CNC

Diameter : 38 mm

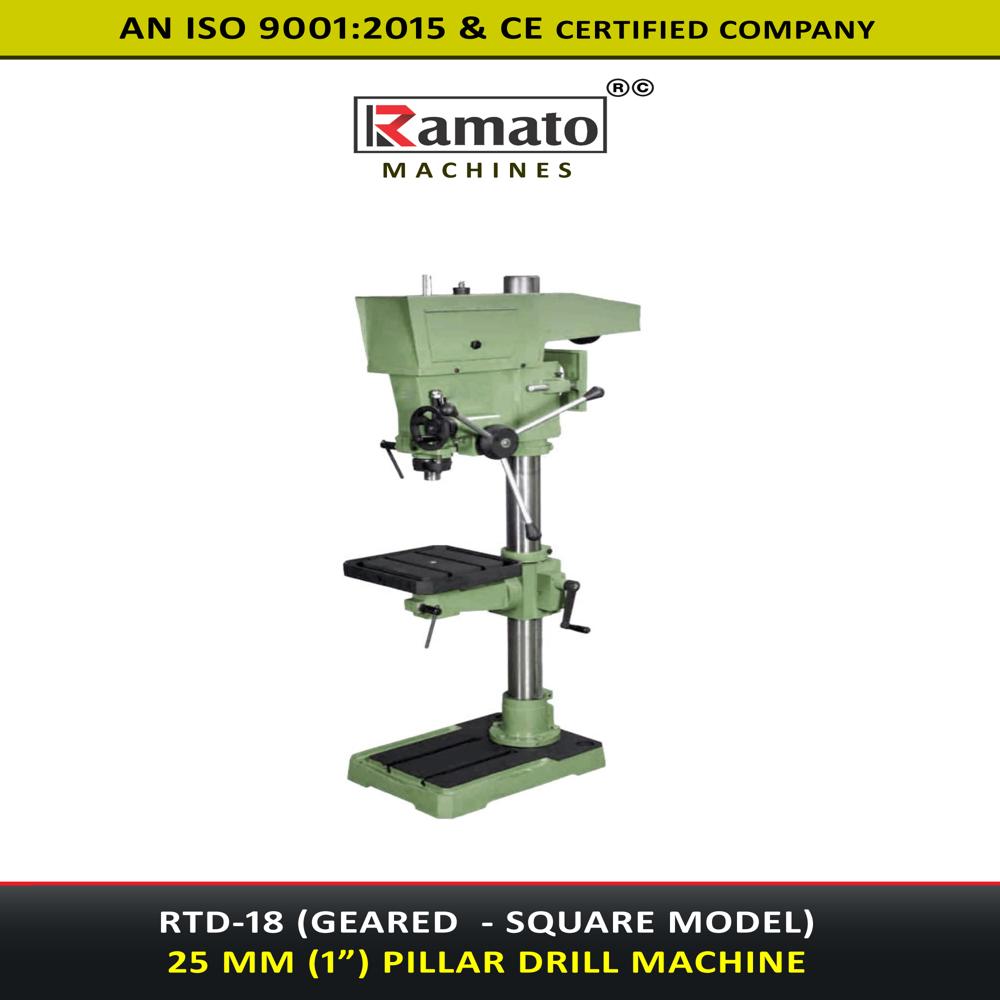

Heavy Duty Pillar Drilling Machine
