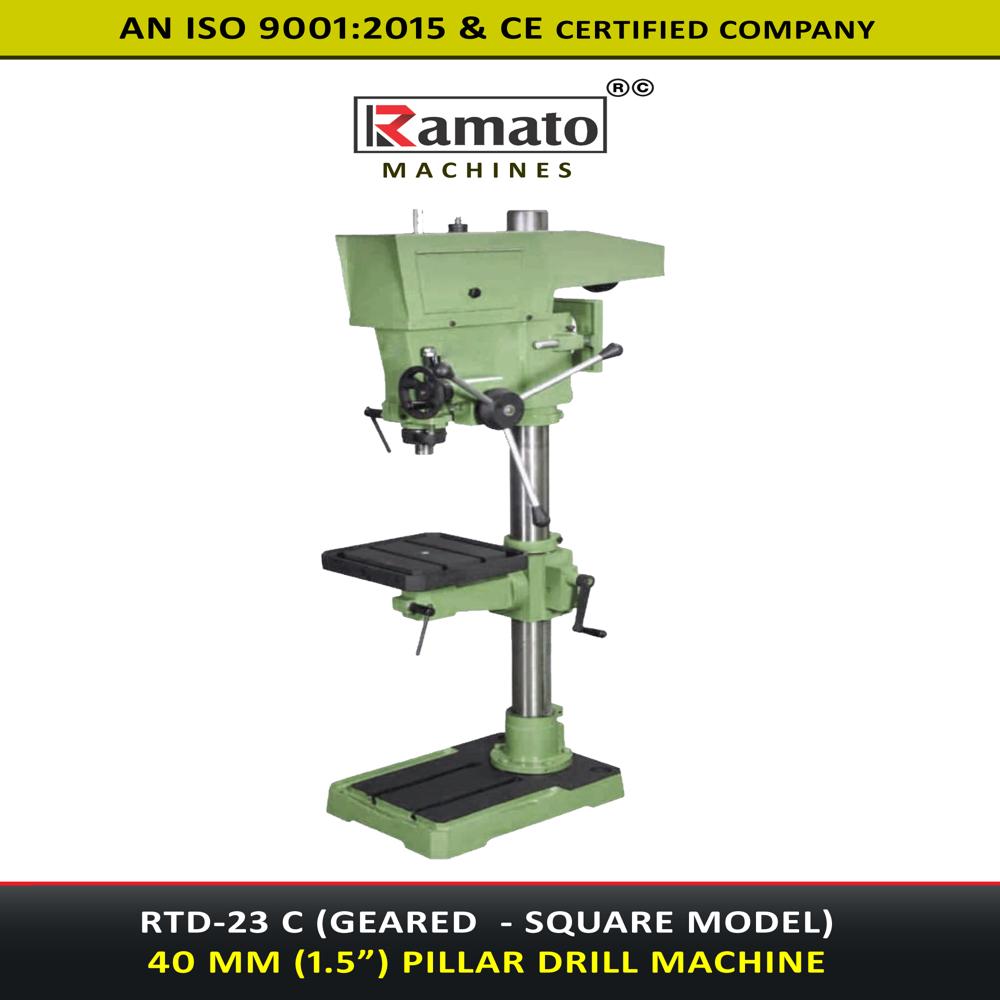

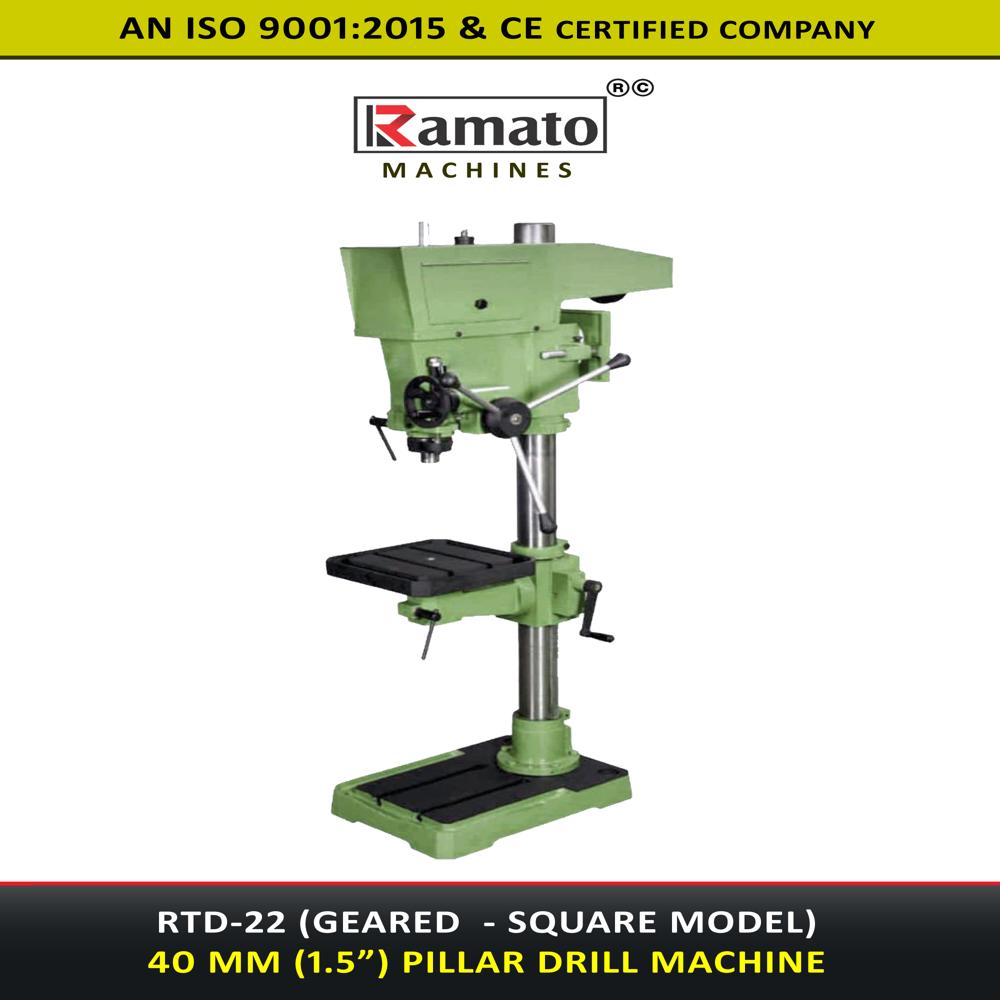

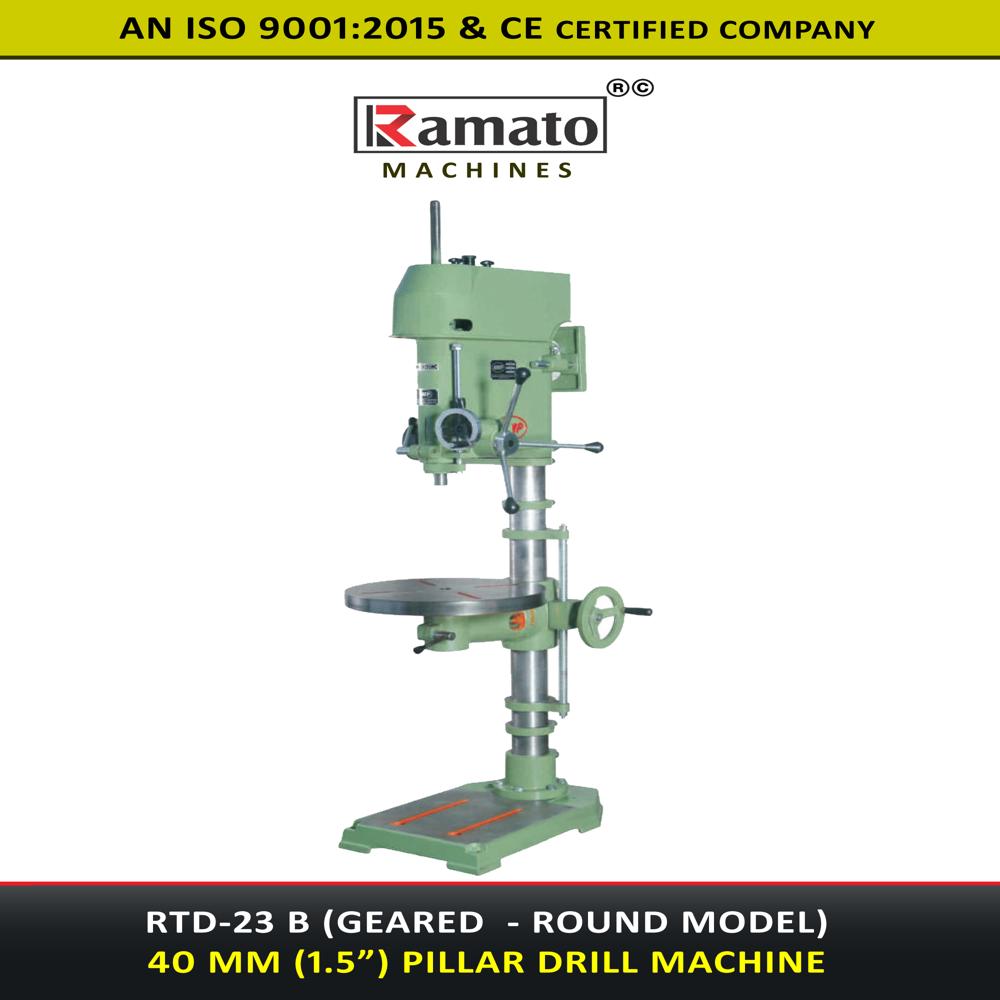

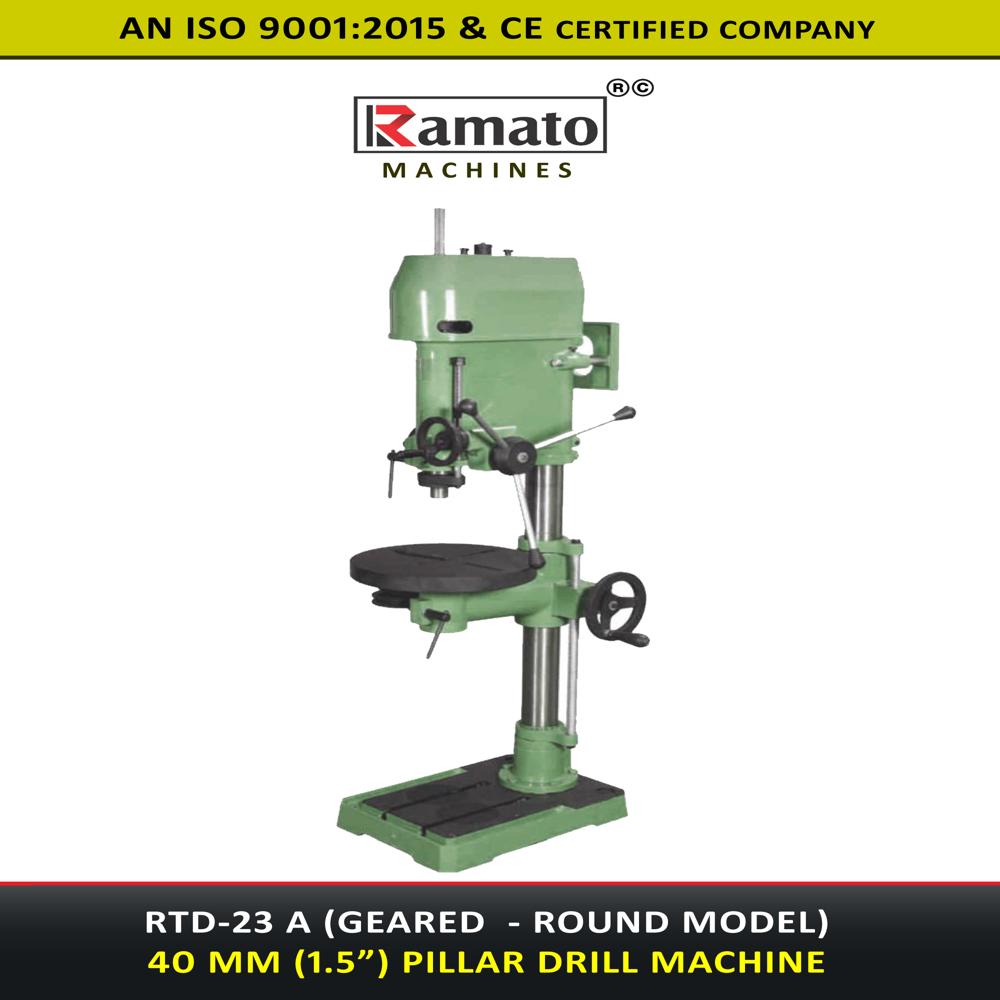

Vertical Pillar Drilling Machine
Vertical Pillar Drilling Machine
Vertical Pillar Drilling Machine
Vertical Pillar Drilling Machine
Vertical Pillar Drilling Machine
Vertical Pillar Drilling Machine
Vertical Pillar Drilling Machine
Vertical Pillar Drilling Machine
Vertical Pillar Drilling Machine
Vertical Pillar Drilling Machine
Vertical Pillar Drilling Machine
Vertical Pillar Drilling Machine

Vertical Pillar Drilling Machine

Price 23000.0 INR/ Unit

MOQ : 1 Unit

Vertical Pillar Drilling Machine Specification

  • Motor Power
  • 2 HP Electric Motor
  • Spindle Speed
  • 80 - 1200 rpm (Variable)
  • Machine Type
  • Geared (Round Model)
  • Table Size
  • 420 mm Diameter (Round)
  • Noise Level
  • Low
  • Frequency
  • 50 Hz
  • Features
  • High Accuracy, Rigid Construction, Easy Operation
  • Condition
  • New
  • Diameter
  • 40 mm Maximum Drilling
  • Dimension (L*W*H)
  • 820 mm x 500 mm x 1860 mm
  • Product Type
  • Vertical Pillar Drilling Machine
  • Material
  • Cast Iron, Steel
  • Computerized
  • No
  • Automatic Grade
  • Semi-Automatic
  • CNC Or Not
  • No
  • Control System
  • Manual
  • Voltage
  • 415 V (Three Phase)
  • Power
  • 2 HP
  • Power Source
  • Electric
  • Weight (kg)
  • Approx. 320 kg
  • Capacity
  • 40 mm Drilling
  • Color
  • Green / Custom
  • Usage & Applications
  • Drilling, Tapping, Reaming, and Counter Boring
  • Table Movement
  • Vertical & Rotational
  • Base Plate Size
  • 485 mm x 350 mm
  • Spindle Travel
  • 200 mm
  • Number of Spindle Speeds
  • 8 Speed
  • Distance Spindle to Base
  • 900 mm
  • Model Name
  • RTD-23 H
  • Drilling Head Travel
  • Manual Feed
  • Drilling Depth
  • 230 mm
  • Column Diameter
  • 102 mm
  • Distance Spindle to Table
  • 550 mm



About Vertical Pillar Drilling Machine

Vertical Pillar Drilling Machine manufacturer in Rajkot, Gujarat, India. Rajlaxmi Machine Tools offers Ramato, HMP & Roent industrial machines for accurate vertical metal drilling and fabrication.

Precision and Versatility

The RTD-23 H Vertical Pillar Drilling Machine provides high accuracy coupled with versatile applications. Its robust cast iron and steel build ensures long-lasting rigidity, while the 8-speed spindle range allows for optimal adjustment according to material and drilling requirements. Designed for both productivity and precision, it is well-suited for workshops, manufacturing units, and engineering facilities.


Easy Operation and Semi-Automatic Functionality

This machine is a semi-automatic geared model and operates via a manual control system. The manual feed drilling head and ergonomic design make it easy to operate. Its vertical and rotational table movement enhances flexibility during tasks, allowing for efficient handling and reduced effort for operators.


Reliable and Efficient Performance

Powered by a 2 HP electric motor and running on a three-phase, 415 V supply, the RTD-23 H offers consistent performance. The low-noise design ensures a comfortable working environment. With features like high accuracy, sturdy construction, and a maximum drilling diameter of 40 mm, this machine meets the demands of professional drilling applications.

FAQ's of Vertical Pillar Drilling Machine:


Q: How does the RTD-23 H Vertical Pillar Drilling Machine operate?

A: The RTD-23 H operates on a manual control system with a semi-automatic grade. The drilling head uses a manual feed, and the spindle speed can be adjusted across 8 variable settings, making it adaptable to different tasks and materials.

Q: What are the main applications of this drilling machine?

A: This machine is ideal for drilling, tapping, reaming, and counter boring. Its capacity and precision are suitable for various manufacturing processes, especially in workshops and industrial environments where high accuracy and rigid construction are required.

Q: When should I choose the RTD-23 H for my workshop?

A: You should select the RTD-23 H when you require consistent accuracy, a maximum drilling diameter of 40 mm, and the flexibility to perform tapping, reaming, and counter boring operations. It is particularly effective for medium to large-scale metalworking tasks.

Q: Where can the RTD-23 H Vertical Pillar Drilling Machine be installed?

A: This machine is designed for installation in manufacturing units, engineering workshops, and industrial facilities. Its sturdy construction and compact dimensions make it suitable for both small and large workspace setups.

Q: What are the benefits of using this drilling machine?

A: The RTD-23 H offers high accuracy, reliable performance, minimal vibration, and ease of operation. Its rigid cast iron and steel construction promotes durability, while the multi-speed spindle enables efficient handling of different materials.

Q: How does the table movement enhance the drilling process?

A: The RTD-23 H features both vertical and rotational table movement, allowing for flexible positioning of workpieces. This versatility improves workflow, supports precise drilling operations, and makes it easier to access different drilling angles.

Q: What power and control features does the RTD-23 H include?

A: The RTD-23 H is powered by a 2 HP electric motor with a 415 V three-phase supply. It provides low-noise operation, manual control for enhanced operability, and a frequency of 50 Hz, allowing efficient and stable use across various drilling tasks.
