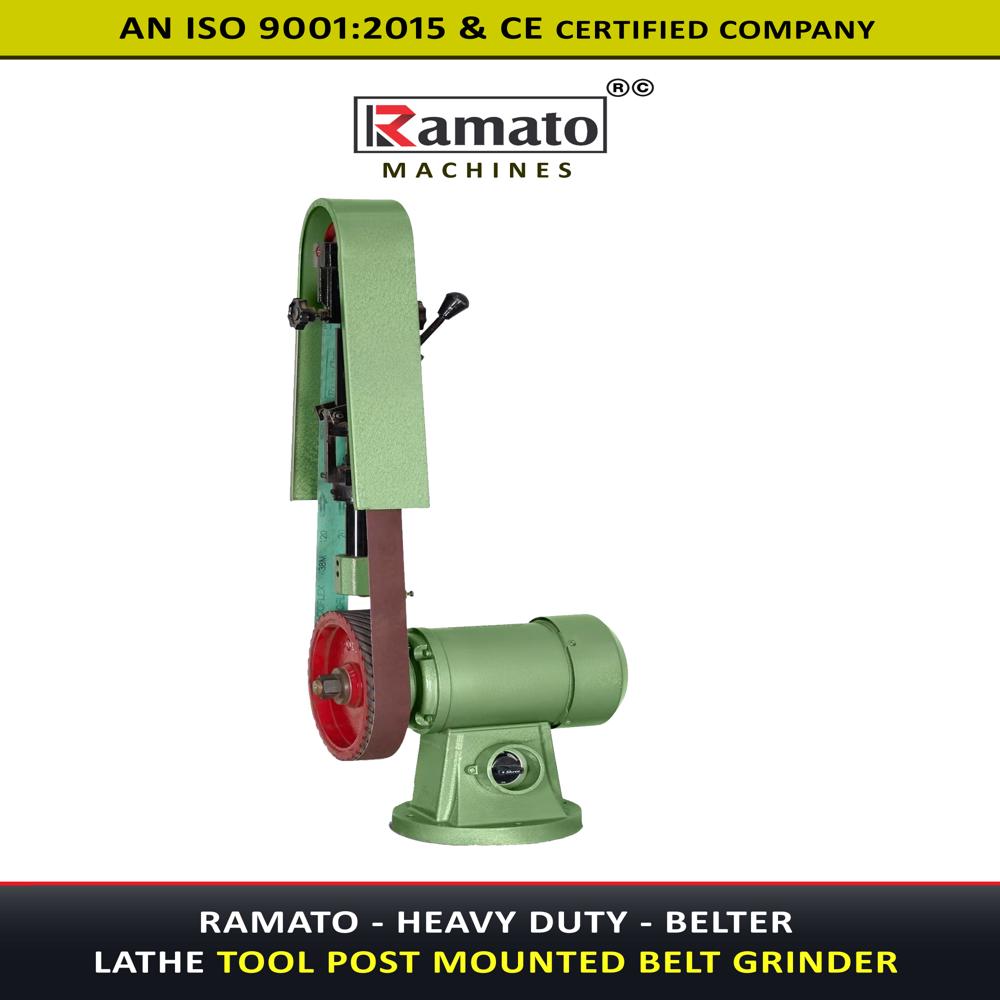

Tool Post Belt Grinder Machine

Get a Price/Quote

Tool Post Belt Grinder Machine Specification

Rotation
Unidirectional, standard

Model
Tool Post Belt Grinder - Ramato

Product Type
Tool Post Belt Grinder

General Use
For precision grinding operations on a lathe tool post

Material
Cast Iron Body, Steel/Aluminium Components

Type
Heavy Duty, Lathe Mounted

Capacity
For tool bits up to 20mm cross-section

Weight (kg)
Approx. 18-25 kg

Computerized
No

Automatic
No, Manually operated

CNC Or Not
Not CNC

Control System
Manual

Grinding Wheel Size
Belt - 50mm to 75mm width, 1220mm to 2000mm length (custom options available)

Grinding Wheel Speed
2800 RPM approx.

Grinding Length
As per belt length, typically up to 200mm

Floor Space
Compact - Designed for tool post mounting

Spindle Speed
Synchronized with grinding wheel speed, approx. 2800 RPM

Power
0.5 to 1 HP

Voltage
220-240V, Single Phase

Dimension (L*W*H)
380mm x 210mm x 520mm (Typical, may vary by model)

Feature
Heavy duty construction, easy mounting, low vibration, smooth operation

Color
Green / Custom paint finish

Noise Level
Low, less than 70 dB(A)

Mounting Type
Tool post mounted with base clamp

Maintenance
Minimal, occasional belt replacement and lubrication

Standard Accessories
1 set abrasive belt, mounting hardware, operation manual

Safety Features
Belt guard, lockable mounting base

Coolant Provision
Not included, dry grinding

Belt Type
Abrasive sanding belt

Working Speed
Up to 15 m/s (belt speed)

Installation
Plug and play, easy retrofitting

Drive System
V-belt driven with guard

Application
Finishing, deburring, polishing, tool sharpening

Tool Post Belt Grinder Machine About

Tool Post Belt Grinder Machine manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent compact belt grinding solutions for lathe-based metal grinding and finishing.

Precision Finishing for Superior Results

Achieve consistent, high-quality finishes on your lathe tools with the Tool Post Belt Grinder Machine. Engineered for exacting standards, this grinder ensures effective removal of burrs, precise polishing, and consistent sharpening, all with minimal vibration. The robust construction guarantees durability, while the compact design allows convenient integration into most lathe setups.

Effortless Installation and Operation

Thanks to its plug-and-play design and convenient mounting base, retrofitting this belt grinder to your existing lathe takes only moments. A manual control system provides straightforward use, while the lockable base ensures stability. The user-friendly operation manual and included abrasive belt set allow new users to get started quickly and confidently.

Reliable Safety and Low Maintenance

User safety is prioritized with a full belt guard and lockable mounting base, keeping grinding secure and protected. Enjoy quiet operation under 70 dB(A), and benefit from minimal upkeep with only occasional belt replacements and lubrication required. Durable construction and quality materials further extend service life, maximizing your investment.

FAQ's of Tool Post Belt Grinder Machine:

Q: How do I mount the Tool Post Belt Grinder Machine onto my lathe?

A: The grinder is designed for easy tool post mounting, utilizing a base clamp and included mounting hardware. Simply secure the grinder onto your lathe's tool post, lock the base in position, and connect to a suitable 220-240V single-phase power source.

Q: What types of grinding and finishing applications can this machine handle?

A: This machine is suitable for precision finishing, deburring, polishing, and sharpening a variety of tool bits (up to 20mm cross-section). It's especially effective for dry abrasive belt sanding on a range of metal surfaces, making it invaluable in tool rooms and workshops.

Q: How often does the belt or other parts require maintenance?

A: Maintenance is minimal for this grinder. Replace the abrasive sanding belt as it wears down and perform occasional lubrication of moving parts. The low-maintenance design requires no complex servicing, making it user-friendly and efficient.

Q: Where can I use the Tool Post Belt Grinder Machine?

A: It is designed for workshop and industrial environments where lathes are used. Its compact, lathe-mounted design means it occupies minimal floor space and can be integrated directly onto the tool post of most standard lathe machines.

Q: What safety features are incorporated in the grinder?

A: The grinder is fitted with a full belt guard for operator safety and a lockable mounting base to ensure stability during operation. These features, combined with low noise output (less than 70 dB(A)), make it a secure choice for everyday use.

Q: What benefits does this grinder offer compared to a traditional grinding wheel?

A: Unlike traditional grinding wheels, abrasive belt grinding provides faster material removal, superior surface finish, less heat buildup, and reduced vibration. Plus, the belt grinder's design supports quick belt changes and versatile grinding angles.

Q: Is coolant required or supported for this belt grinder?

A: No, this belt grinder is intended for dry grinding operations only. It does not have provisions for coolant, simplifying installation and reducing maintenance needs.
