Single Ended Belt Grinding Machine

Get a Price/Quote

Single Ended Belt Grinding Machine Specification

Rotation
Single Ended, unidirectional

Model
Ramato Make

Product Type
Single Ended Belt Grinding Machine

General Use
Grinding and polishing metal components

Material
Cast Iron/Steel body

Type
Heavy Duty - Four Bearing

Capacity
Heavy Duty

Weight (kg)
Approx. 60 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual

Grinding Wheel Speed
Approx. 2800 RPM

Grinding Length
Standard for belt length; customizable

Floor Space
Compact Design, approx. 700mm x 300mm

Spindle Speed
2800 RPM

Power
2 HP (customizable)

Voltage
415 V / 3 Phase

Dimension (L*W*H)
~700 mm x 300 mm x 450 mm

Feature

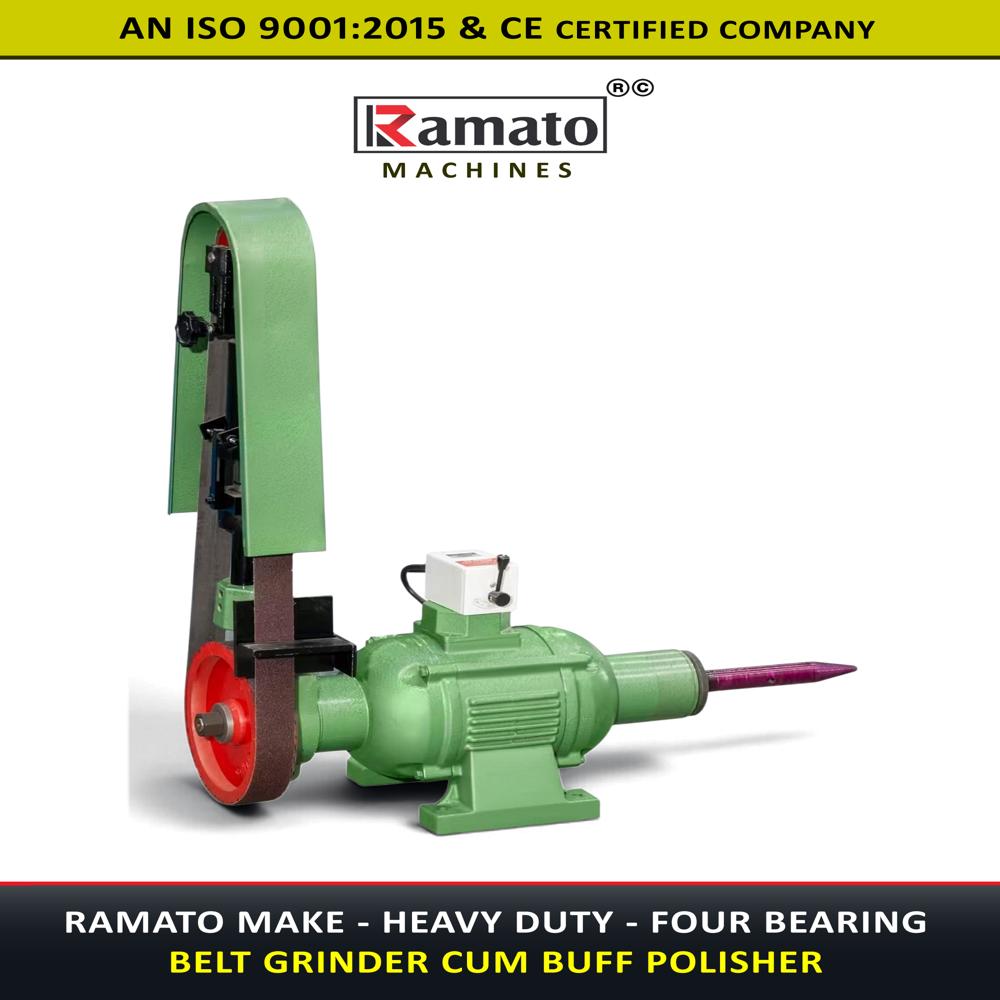

Belt Grinder cum Buff Polisher

Color
Green (customized option available)

Safety Features
Belt guard cover provided for operator safety

Finish
Powder coated/painted for corrosion resistance

Polishing Facility
Integrated buffing spindle on one end

Service Support
Onsite and remote support available

Cooling System
Self air-cooled motor

Belt Tensioning
Manual tensioning arrangement

Belt Size
50 mm x 2000 mm or as required

Working Speed
Approx. 25 m/s belt speed

Mounting Type
Base mounted, foot support

Noise Level
Low-noise operation

Insulation Class
F Class

Application
Suitable for fabrication workshops, tool rooms, automotive, foundries, and general engineering industries

Drive Type
Direct coupled motor drive

Number of Bearings
4 (Four Bearing construction)

About Single Ended Belt Grinding Machine

Single Ended Belt Grinding Machine manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent abrasive belt machines for efficient metal grinding and finishing.

Heavy Duty Performance and Durability

Constructed from quality cast iron or steel, the Single Ended Belt Grinding Machine ensures exceptional strength, longevity, and minimal vibration. The four-bearing design supports smooth operation, while powder coating or painting offers corrosion resistance, making it ideal for industrial settings where continuous use and reliability are crucial.

Efficient Grinding and Polishing

This machine seamlessly combines grinding and polishing functionalities with its integrated buffing spindle. The high belt speed and manual tensioning arrangement let operators achieve efficient material removal and refined surface finishes on metal components, all within a compact footprint suitable for tight workshop spaces.

Operator Safety and Control

Safety remains paramount, with a durable belt guard protecting users during operation. The manual control system is user-friendly, ensuring straightforward setup and operation. Whether used in fabrication, automotive jobs, or engineering workshops, operators can work confidently and efficiently with onsite and remote support available.

FAQ's of Single Ended Belt Grinding Machine:

Q: How is the belt tension adjusted on this grinding machine?

A: Belt tension is manually adjusted using the tensioning arrangement provided, allowing operators to easily fine-tune the belt for optimal performance and accommodate maintenance or belt changes.

Q: What types of industries and applications is this machine suitable for?

A: This heavy-duty belt grinding machine is ideally suited for fabrication workshops, tool rooms, automotive plants, foundries, and general engineering industries, offering efficient grinding and polishing of various metal components.

Q: When should the integrated buffing spindle be used?

A: The integrated buffing spindle is used after the grinding process when a smoother or mirror-like finish on metal components is desired, enhancing the versatility of the machine within a single setup.

Q: Where can the machine be installed, and how much space does it require?

A: The machine is base mounted with foot support and features a compact design, requiring approximately 700 mm x 300 mm of floor space, making it suitable for installation in most workshop environments.

Q: What process does this machine perform and what are its key benefits?

A: It performs both grinding and polishing processes. Key benefits include efficient material removal, refined surface finishes, robust construction for durability, low-noise operation, and enhanced safety with a guard cover.

Q: How is operator safety ensured during usage?

A: Operator safety is ensured with a sturdy belt guard cover, insulating components, and low-noise design. The manual control and clear visibility of the work area further enhance safe use.
