Price 23000.0 INR/ Unit

MOQ : 1 Unit

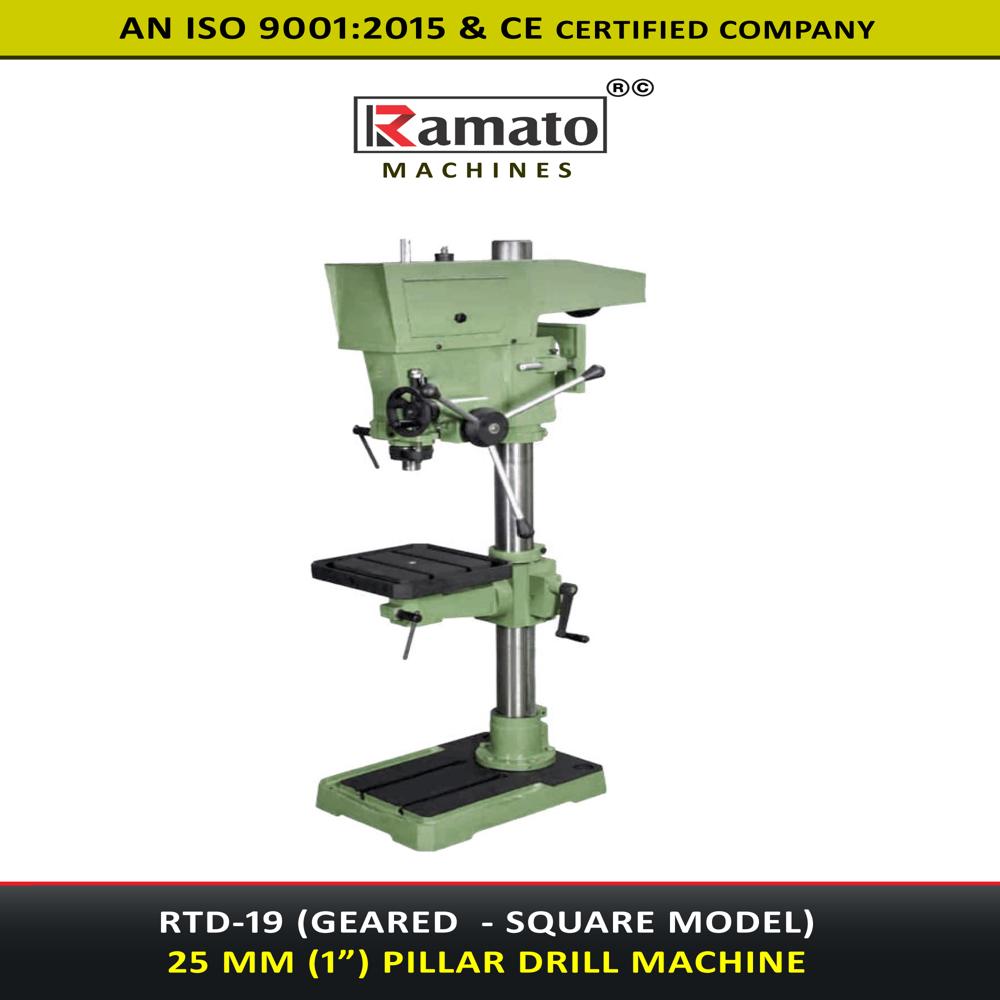

Pillar Type Drill Machine Specification

  • Machine Type
  • RTD-19 (Geared - Square Model)
  • Features
  • ISO 9001:2015 & CE Certified, robust design, high accuracy
  • Condition
  • New
  • Noise Level
  • Low
  • Cutting Area
  • Suitable for workpieces up to 25 mm diameter
  • Motor Power
  • Typically 1 HP
  • Frequency
  • 50 Hz
  • Diameter
  • Maximum drilling diameter 25 mm
  • Table Size
  • 250 x 250 mm
  • Dimension (L*W*H)
  • 900 x 500 x 1800 mm
  • Spindle Speed
  • 210 - 2250 RPM (variable through gear system)
  • Product Type
  • Pillar Type Drill Machine
  • Material
  • Cast Iron
  • Computerized
  • No
  • Automatic Grade
  • Manual
  • CNC Or Not
  • No
  • Control System
  • Manual Lever
  • Voltage
  • 220-240 V
  • Power
  • 0.5 HP - 2 HP (depending on motor selection)
  • Power Source
  • Electric
  • Weight (kg)
  • Approx. 100-120 kg
  • Capacity
  • 25 mm (1)
  • Color
  • Green
  • Usage & Applications
  • Drilling in metal, wood, and plastic; industrial & workshop use
  • Height Adjustment
  • Available (rack and pinion)
  • Chuck Size
  • 1-13 mm
  • Feed Type
  • Manual
  • Drill Type
  • Gear Driven
  • Mount Type
  • Pillar Mounted
  • No. of Spindle Speeds
  • 9
  • Spindle Travel
  • 150 mm
  • Base Size
  • 350 x 550 mm
  • Column Diameter
  • 75 mm
  • Lubrication
  • Manual (oil ports provided)
  • Safety Features
  • Emergency stop switch, belt guard



About Pillar Type Drill Machine

Pillar Type Drill Machine manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent industrial pillar drills for metal drilling, fabrication and engineering applications.

Precision Engineering for Versatile Applications

The RTD-19 Pillar Type Drill Machine is designed to handle a wide range of materials, including metal, wood, and plastic. Its geared drive, variable spindle speeds, and adjustable height make it exceptionally adaptable to diverse workshop and industrial tasks. This model balances robustness with user-friendly features, allowing accurate and safe drilling for production and repair environments alike.


Reliable Safety and Certified Quality

Equipped with essential safety mechanisms such as an emergency stop switch and a protective belt guard, the machine prioritizes operator well-being. Built from high-grade cast iron and adhering to stringent ISO 9001:2015 and CE certifications, the RTD-19 model guarantees durability and quality assurance, providing peace of mind on the shop floor.

FAQ's of Pillar Type Drill Machine:


Q: How do I adjust the height of the RTD-19 Pillar Type Drill Machine?

A: Height adjustment is easily managed through a rack and pinion mechanism, allowing smooth and precise positioning of the table for workpieces of varying sizes.

Q: What materials and workpiece sizes can this drill machine handle?

A: The RTD-19 accommodates drilling in metals, wood, and plastics for workpieces up to 25 mm in diameter, making it ideal for general workshop and industrial use.

Q: Where is this pillar type drill machine typically used?

A: This drill machine is commonly found in industrial workshops, manufacturing facilities, repair shops, and educational institutions due to its versatility and reliable performance.

Q: What is the process for changing spindle speeds on this machine?

A: The RTD-19 offers 9 spindle speeds adjustable via its gear-driven system. To change speeds, simply adjust the gear lever according to the desired RPM range, which spans from 210 to 2250 RPM.

Q: What safety features are included for operator protection?

A: For increased operator safety, the machine is equipped with an emergency stop switch and a belt guard, helping to prevent accidents during drilling operations.

Q: How is the machine lubricated, and what maintenance is required?

A: Lubrication is performed manually using the provided oil ports. Regular oiling ensures smooth operation of moving parts and extends machine life. Routine maintenance checks and cleaning are recommended for optimal performance.
