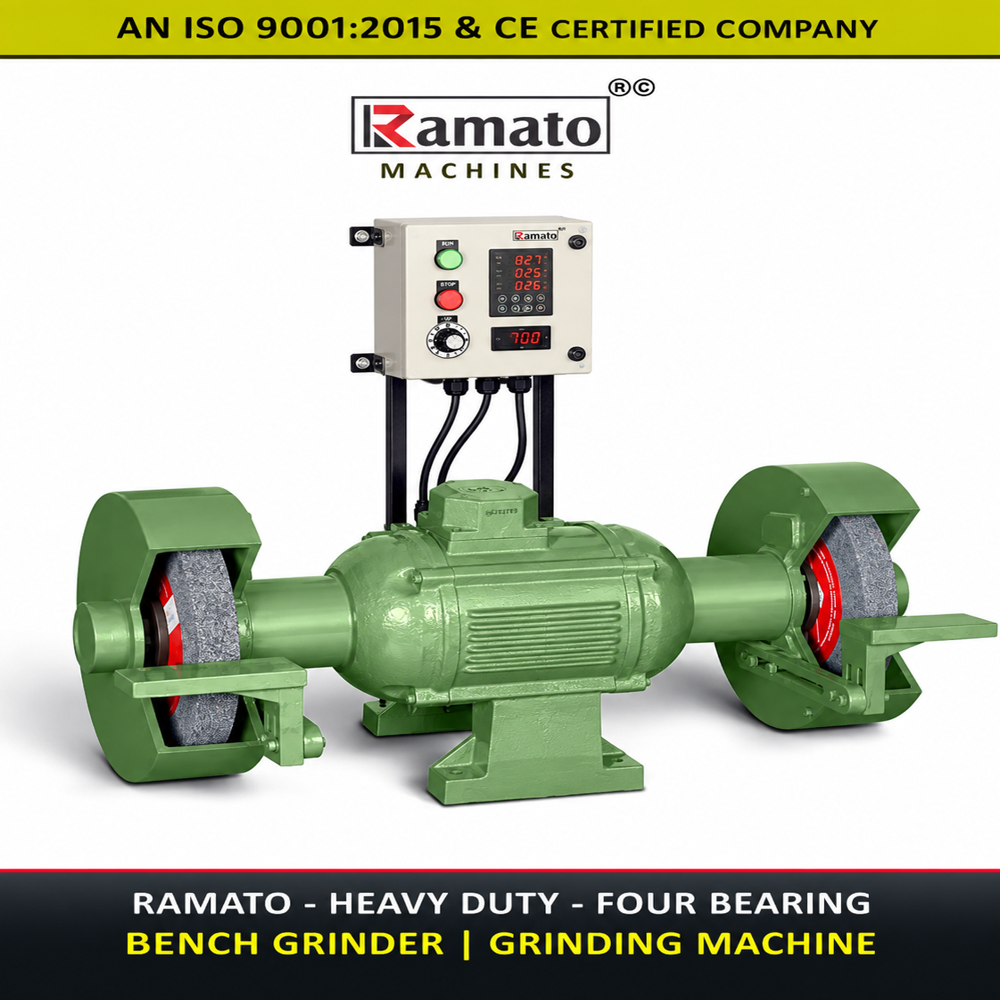

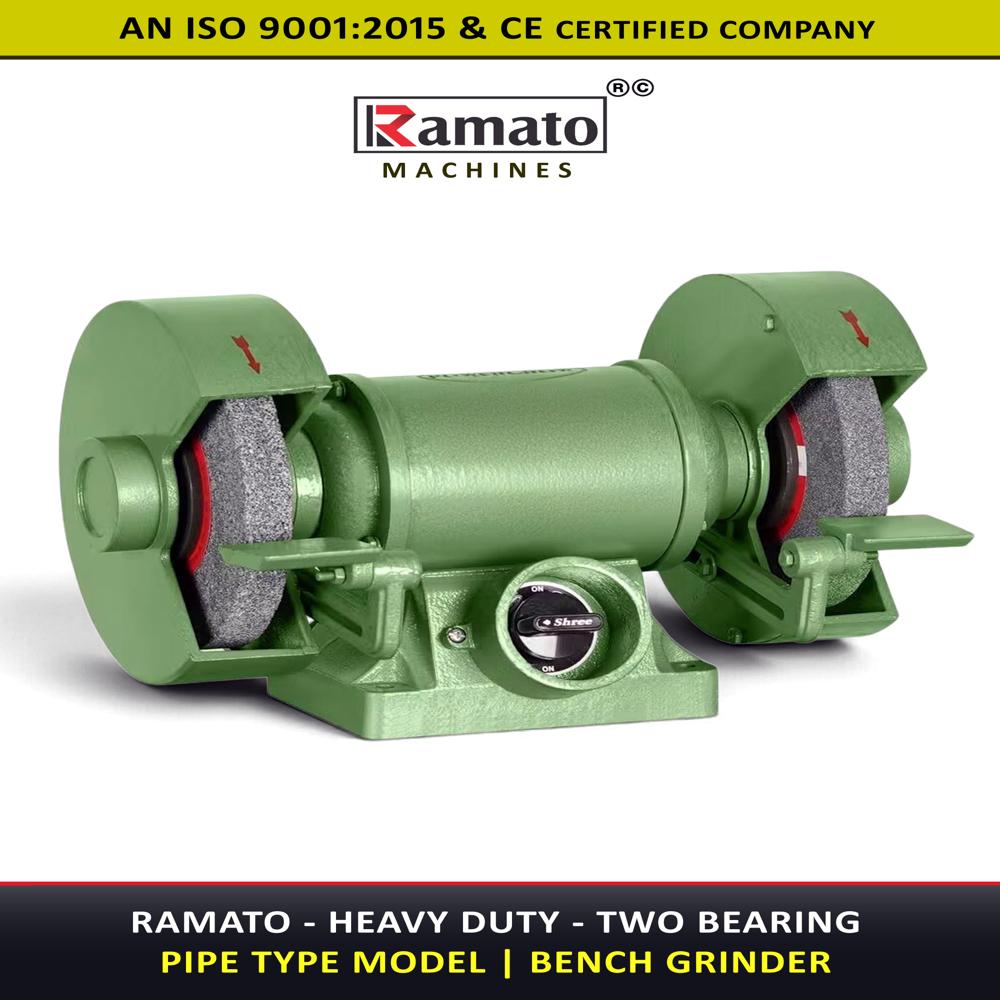

Pedestal Mounted Grinding Machine
Pedestal Mounted Grinding Machine
Pedestal Mounted Grinding Machine
Pedestal Mounted Grinding Machine
Pedestal Mounted Grinding Machine
Pedestal Mounted Grinding Machine
Pedestal Mounted Grinding Machine
Pedestal Mounted Grinding Machine
Pedestal Mounted Grinding Machine
Pedestal Mounted Grinding Machine
Pedestal Mounted Grinding Machine
Pedestal Mounted Grinding Machine

Pedestal Mounted Grinding Machine

Price 35000.0 INR/ Piece

MOQ : 1 Piece

Pedestal Mounted Grinding Machine Specification

  • Model
  • Ramato Machines
  • Rotation
  • Clockwise & Anticlockwise
  • Product Type
  • Pedestal Grinding Machine
  • General Use
  • Grinding, Sharpening, Metalworking
  • Material
  • Cast Iron, Steel
  • Type
  • Extra Heavy Duty
  • Capacity
  • Heavy Duty
  • Weight (kg)
  • 150 kg to 250 kg
  • Computerized
  • No
  • Automatic
  • No
  • CNC Or Not
  • Not CNC
  • Control System
  • Manual
  • Grinding Wheel Size
  • 200 mm to 350 mm
  • Grinding Wheel Speed
  • 2800 RPM
  • Floor Space
  • 700 mm x 900 mm (approx)
  • Spindle Speed
  • 2800 RPM
  • Power
  • 1 HP to 5 HP
  • Voltage
  • 220-240V / 3-Phase
  • Dimension (L*W*H)
  • 700 x 900 x 1200 mm (approx)
  • Feature
  • Four Bearing, Extra Heavy Duty, Casting Stand
  • Color
  • Industrial Green
  • Mounting
  • Pedestal Mounted
  • Wheel Material
  • Abrasive Composite
  • Coolant Provision
  • Optional
  • Motor Type
  • Industrial Grade Electric Motor
  • Noise Level
  • Low
  • Dust Collector
  • Optional Attachment
  • Wheel Guard
  • Enclosed Safety Guard
  • Stand Type
  • Heavy Casting Stand
  • Bearing Type
  • Four Bearing System



About Pedestal Mounted Grinding Machine

Pedestal Mounted Grinding Machine manufacturer in Rajkot, Gujarat, India. Rajlaxmi Machine Tools offers Ramato, HMP & Roent machines for industrial metal grinding, deburring, sharpening and finishing.

Exceptional Stability and Durability

Featuring a four-bearing spindle system and constructed from high-grade cast iron and steel, this pedestal grinder ensures reliable performance under heavy workloads. The extra-heavy-duty casting stand provides excellent vibration absorption, extending machine life and promoting workplace safety.


Versatile Performance for Industrial Needs

Designed for various metalworking tasks such as grinding and sharpening, this machine operates at 2800 RPM and can accommodate wheels ranging from 200 mm to 350 mm in diameter. The pedestal-mounted design conserves floor space and supports seamless workflow integration, allowing operators to manage substantial material loads efficiently.

FAQ's of Pedestal Mounted Grinding Machine:


Q: How does the four-bearing system benefit the grinding machine's performance?

A: The four-bearing system enhances the machine's stability and smooth operation by reducing spindle vibrations and supporting even weight distribution during grinding. This results in improved precision, longer machine life, and less maintenance compared to two-bearing systems.

Q: What safety features are included in the enclosed wheel guard design?

A: The enclosed safety guard fully covers the grinding wheel, protecting the operator from sparks, flying debris, and accidental contact during operation, thus ensuring a safer working environment.

Q: When should I utilize the optional coolant and dust collector attachments?

A: Optional coolant provision is recommended during extended grinding sessions or when working with heat-sensitive materials to prevent overheating. The dust collector attachment is advised for environments where minimizing airborne abrasive dust and particles is crucial to maintain air quality and reduce cleanup tasks.

Q: Where is this pedestal grinding machine typically installed?

A: This machine is suited for installation on solid workshop floors in industrial environments such as manufacturing plants, tool rooms, and metal fabrication shops, given its extra-heavy-duty build and floor space footprint.

Q: What is the operational process for using this manually controlled grinding machine?

A: To use the machine, ensure it is securely bolted to the pedestal, verify all guards are in place, select the appropriate grinding wheel size, and switch on the power supply. Operate using the manual controls to position and apply workpieces to the spinning wheel, maintaining a steady feed and utilizing coolant or dust collection as needed.

Q: What are the key benefits of using this extra heavy-duty grinder for metalworking applications?

A: The main advantages include increased grinding precision, reduced vibration, long operational life, and the ability to handle demanding workloads thanks to its robust construction, four-bearing spindle system, and industrial-grade motor.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Bench And Pedestal Grinders Category

Two Wheel Pedestal Grinder

Two Wheel Pedestal Grinder

Price 35000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Grinding Wheel Speed : 2800 RPM (approx.)

Rotation : Clockwise & Counterclockwise (depends on wheel side)

Type : Other, Heavy Duty, Two Bearing

Color : Other, Industrial Green

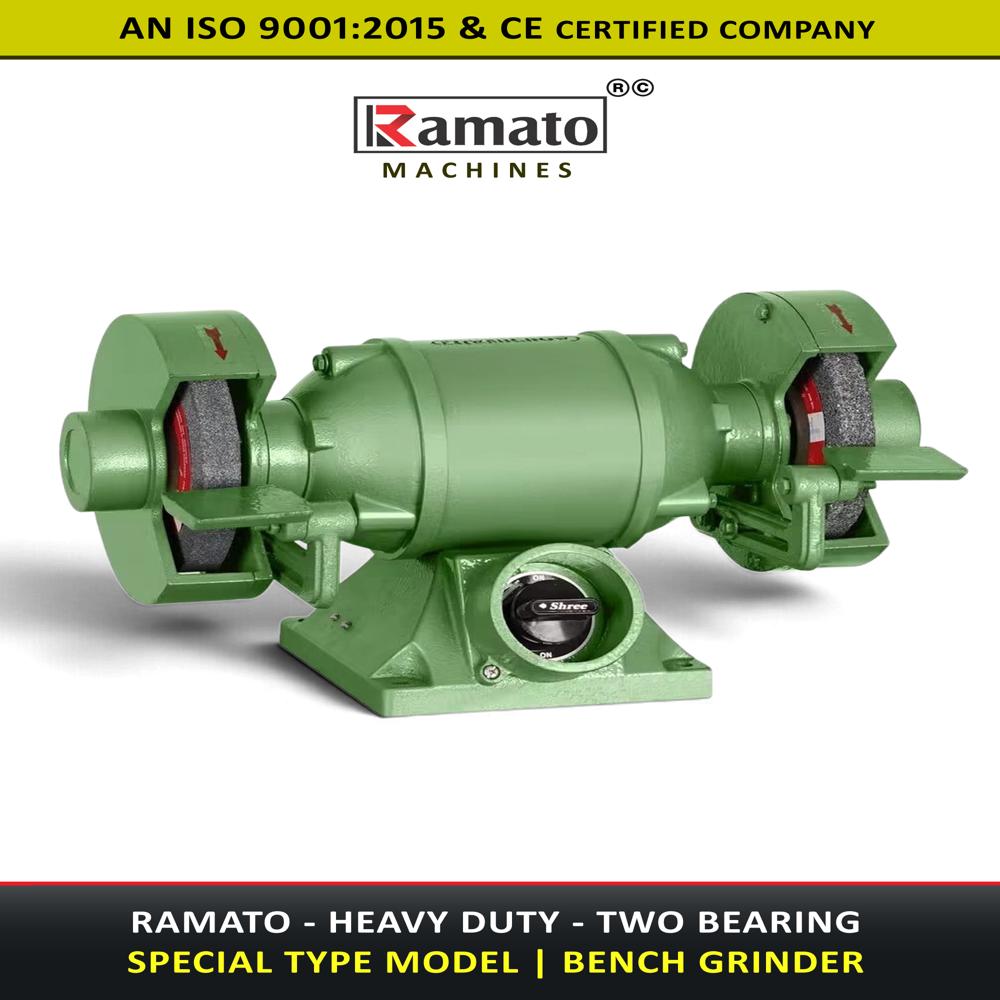

Bench Grinder
