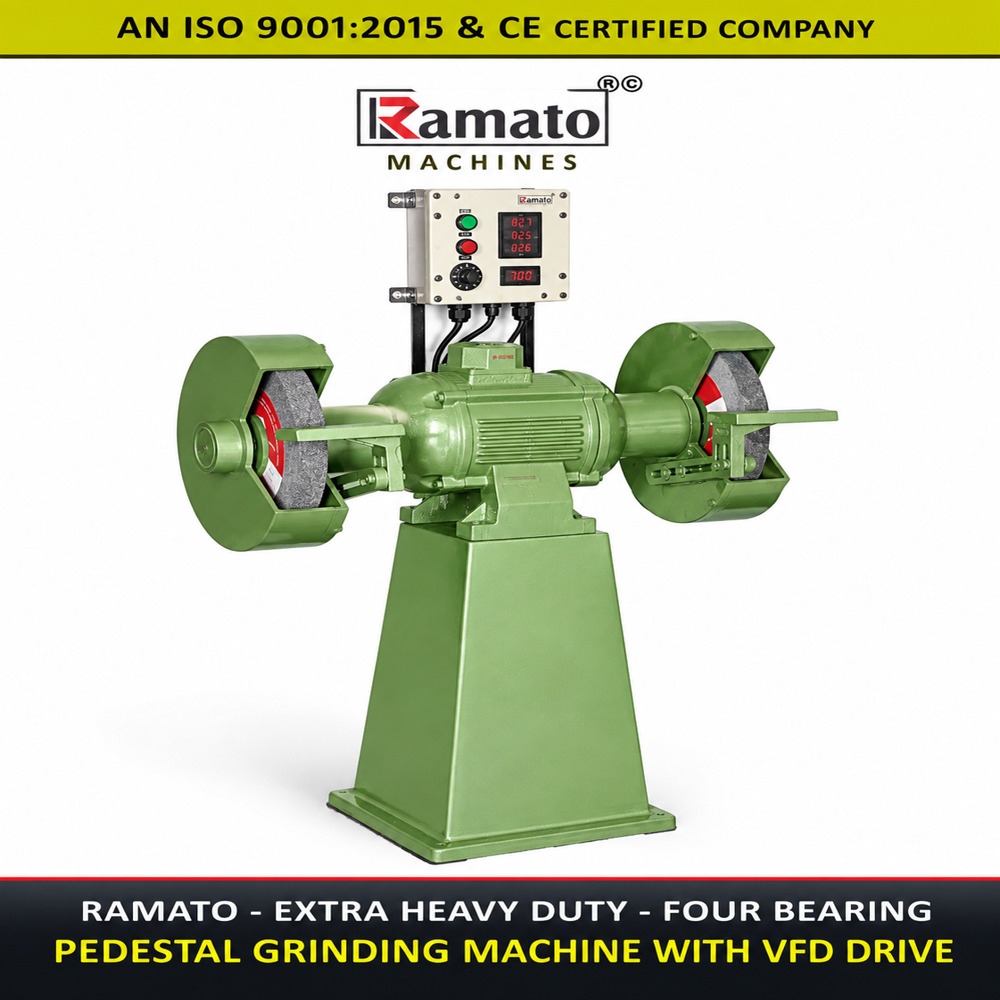

Pedestal Grinding Machine
Pedestal Grinding Machine
Pedestal Grinding Machine
Pedestal Grinding Machine
Pedestal Grinding Machine
Pedestal Grinding Machine
Pedestal Grinding Machine
Pedestal Grinding Machine
Pedestal Grinding Machine
Pedestal Grinding Machine
Pedestal Grinding Machine
Pedestal Grinding Machine

Pedestal Grinding Machine

Price 3500.0 INR/ Piece

MOQ : 1 Piece

Pedestal Grinding Machine Specification

  • Rotation
  • Dual sided / reversible
  • Model
  • Ramato - Pedestal Grinder
  • Product Type
  • Pedestal Grinding Machine with CI Stand
  • General Use
  • Grinding, Sharpening, Deburring
  • Material
  • Cast Iron Body, Steel Spindle
  • Type
  • Extra Heavy Duty, Four Bearing
  • Capacity
  • Continuous Heavy Duty
  • Weight (kg)
  • Approx. 75-180 kg (as per model)
  • Computerized
  • No
  • Automatic
  • No
  • CNC Or Not
  • Not CNC
  • Control System
  • Manual
  • Grinding Wheel Size
  • 8 inch to 14 inch (customizable)
  • Grinding Wheel Speed
  • 2800 RPM (Single Phase), 1440 RPM (Three Phase)
  • Floor Space
  • Approx. 700 mm x 500 mm
  • Spindle Speed
  • 1440 RPM / 2800 RPM
  • Power
  • 1 HP to 5 HP (customized as per model)
  • Voltage
  • 220V/440V (Single/Three Phase)
  • Dimension (L*W*H)
  • Approx. 700 x 500 x 1100 mm
  • Feature
  • Extra heavy duty, four bearing, CI stand, vibration free operation
  • Color
  • Green / Custom
  • Wheel Guard
  • Heavy Duty Wheel Guards Provided
  • Phase
  • Single or Three Phase Option
  • Noise Level
  • Low, Mechanical Noise Reduction Built-in
  • Bearing System
  • Four Bearing System
  • Motor Protection
  • Thermal Overload Protection Available
  • Stand Type
  • Cast Iron Solid Pedestal
  • Cooling System
  • No built-in cooling
  • Working Speed
  • Up to 2800 RPM
  • Dust Protection
  • Dust Covers Included
  • Wheel Diameter Range
  • 8 inch to 14 inch



About Pedestal Grinding Machine

Pedestal Grinding Machine manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent industrial machines for metal grinding, sharpening and workshop finishing.

Sturdy Construction for Demanding Tasks

Engineered with a cast iron body and steel spindle, the Ramato pedestal grinding machine guarantees superior strength and durability. The four bearing system, paired with its substantial weight and heavy-duty CI stand, ensures consistent, vibration-free operation even during continuous use.


Outstanding Performance & Versatility

Offering wheel diameters from 8 to 14 inches and power options ranging from 1 HP to 5 HP, this grinder is customizable to meet varying needs. Its dual-sided, reversible rotation and adaptable single/three-phase motor options provide flexibility for different industrial requirements.


Integrated Safety and Protection Features

Thermal overload motor protection, heavy-duty wheel guards, and built-in dust covers ensure operator safety and prolong machine life. The low mechanical noise and minimal vibration further support a safe and comfortable work environment.

FAQ's of Pedestal Grinding Machine:


Q: How does the four bearing system benefit the pedestal grinding machine's operation?

A: The four bearing system provides enhanced stability and reduces vibration during operation, making the grinding process smoother, safer, and extending the lifespan of the equipment even under heavy-duty continuous use.

Q: What range of grinding wheel sizes is compatible with this machine?

A: This pedestal grinder accommodates grinding wheel diameters from 8 inches up to 14 inches, allowing users to select the most appropriate size for their specific applications.

Q: When should I use the single-phase versus the three-phase option?

A: The single-phase option (220V) and three-phase option (440V) are selectable based on your facility's power supply and required grinding wheel speed. Single-phase delivers up to 2800 RPM, best for lighter industrial settings, while three-phase supports 1440 RPM with greater efficiency for larger or continuous workloads.

Q: Where is this grinding machine best utilized?

A: The Ramato Pedestal Grinding Machine is ideal for workshops, factories, and industrial facilities where tasks such as grinding, sharpening, and deburring of metals are required. Its extra heavy-duty build makes it suitable for demanding environments.

Q: What safety features are included with the machine?

A: Operator safety is ensured by features such as thermal overload protection for the motor, heavy-duty wheel guards, comprehensive dust covers to prevent accumulation of debris, and built-in mechanical noise reduction.

Q: How is vibration controlled during use?

A: The vibration-free operation is realized through the robust four bearing system, a solid cast iron pedestal stand, and the overall extra heavy-duty construction which minimizes movement and mechanical noise.

Q: What is the process for routine maintenance of this machine?

A: Routine maintenance includes regularly checking and replacing grinding wheels, ensuring wheel guards and dust covers are in place, and inspecting bearings for wear. Motor and spindle should be kept clean, with periodic checks on the power supply and thermal overload protection system.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Bench And Pedestal Grinders Category

Bench Grinder for Metalworking

Bench Grinder for Metalworking

Price 30000 INR / Unit

Minimum Order Quantity : 1 Unit

Automatic : No

CNC Or Not : Other, No

Material : Cast Iron

Grinding Wheel Speed : 2800 rpm

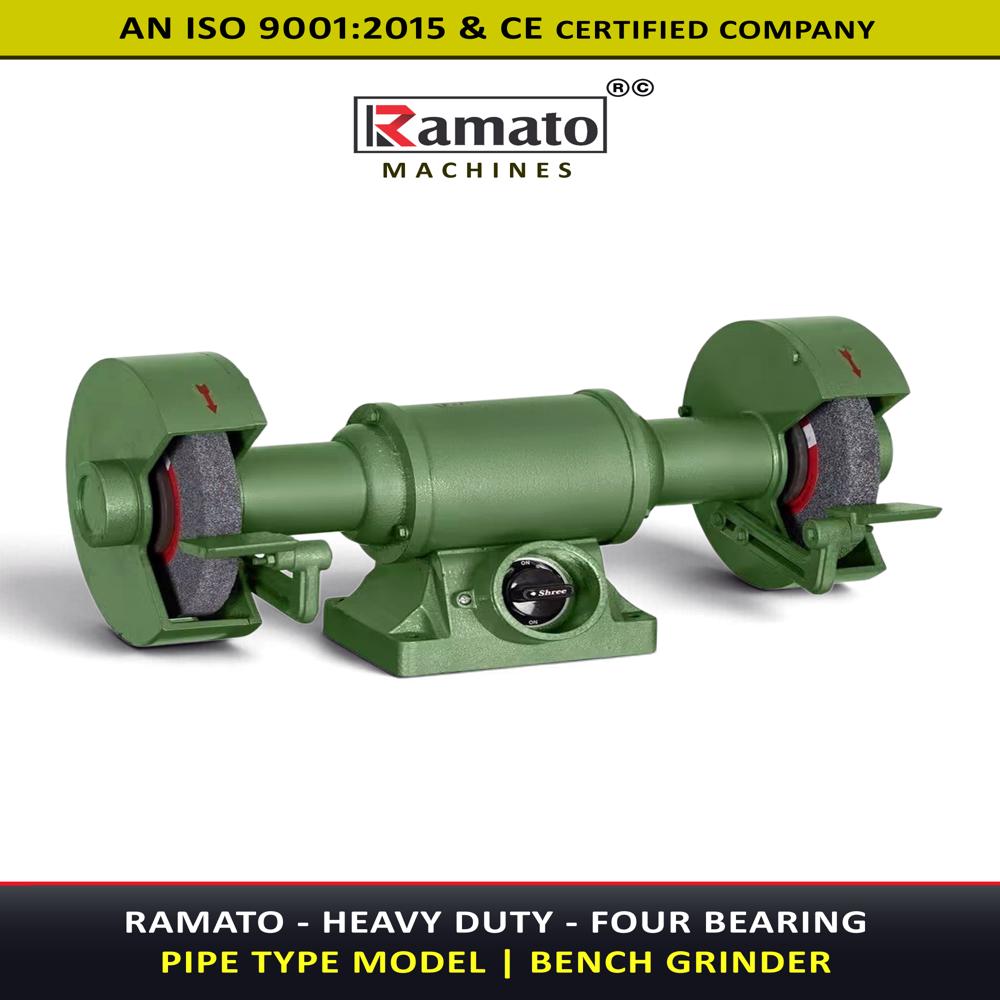

7.5 HP Bench Grinder Machine
