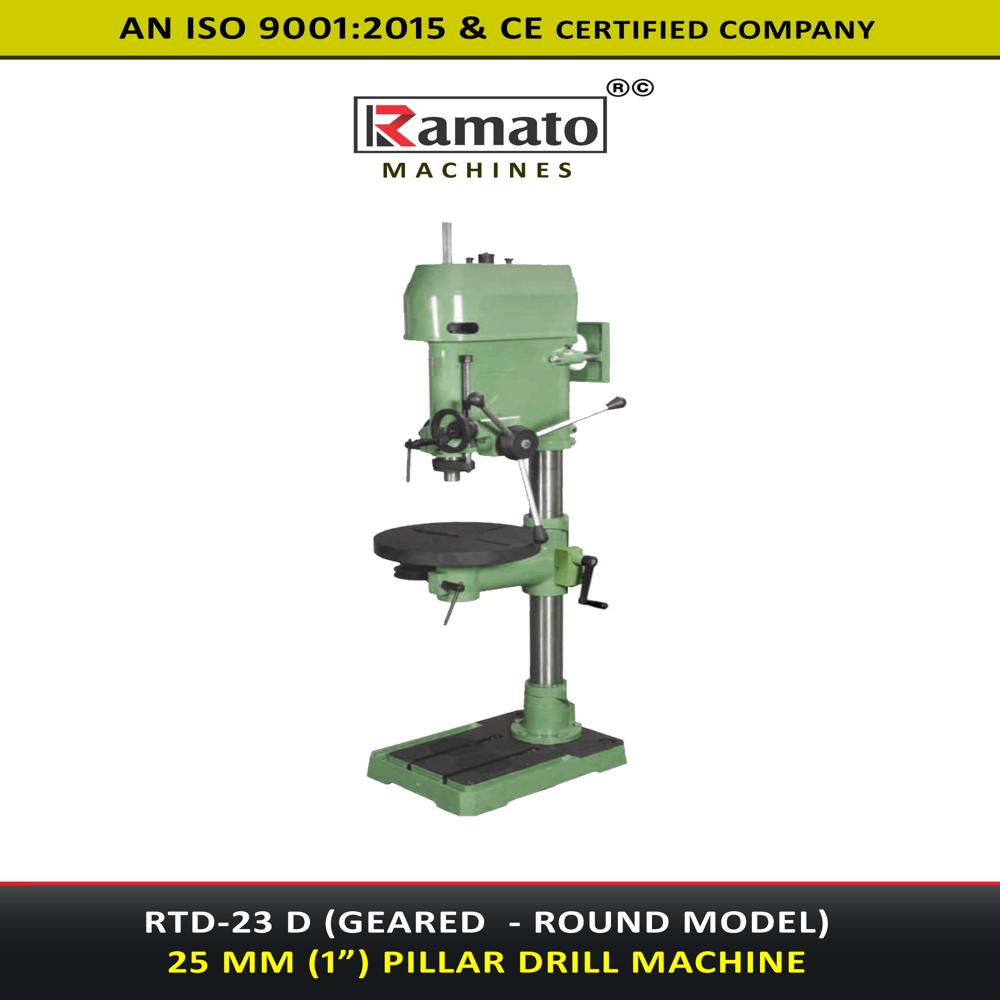

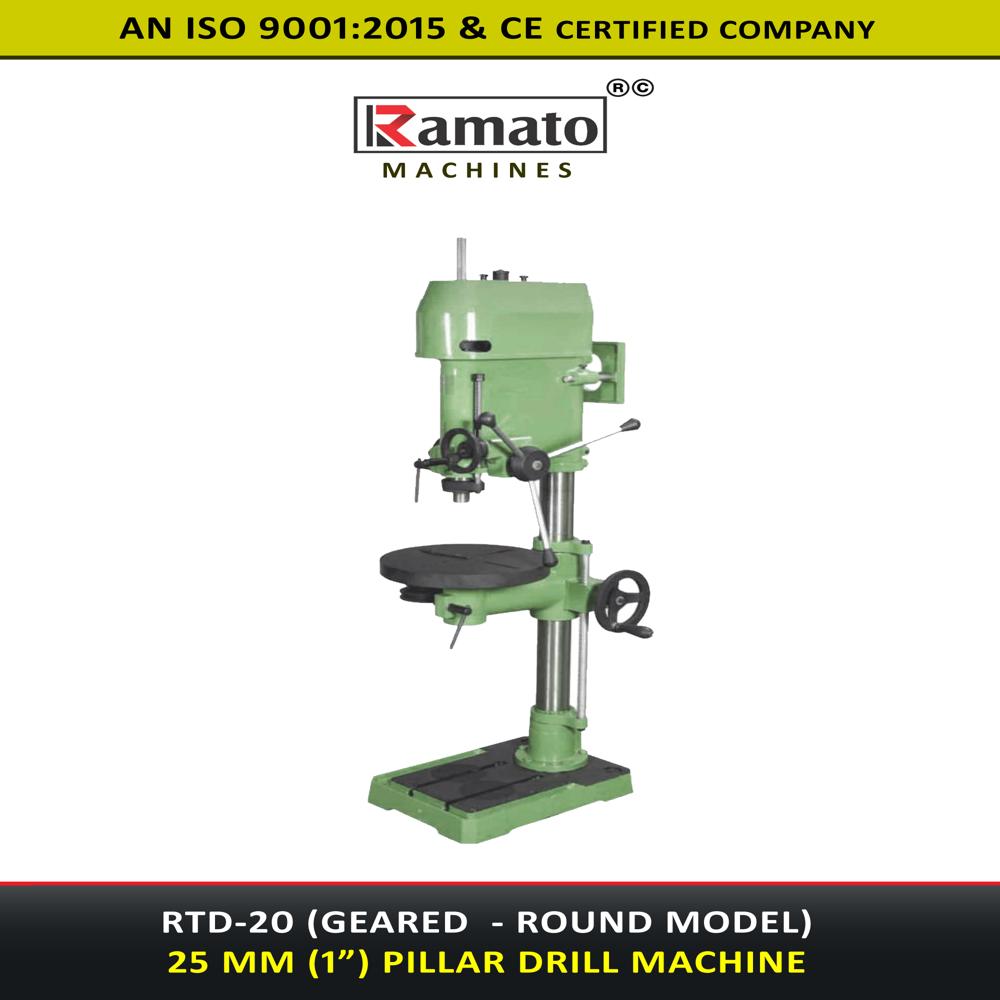

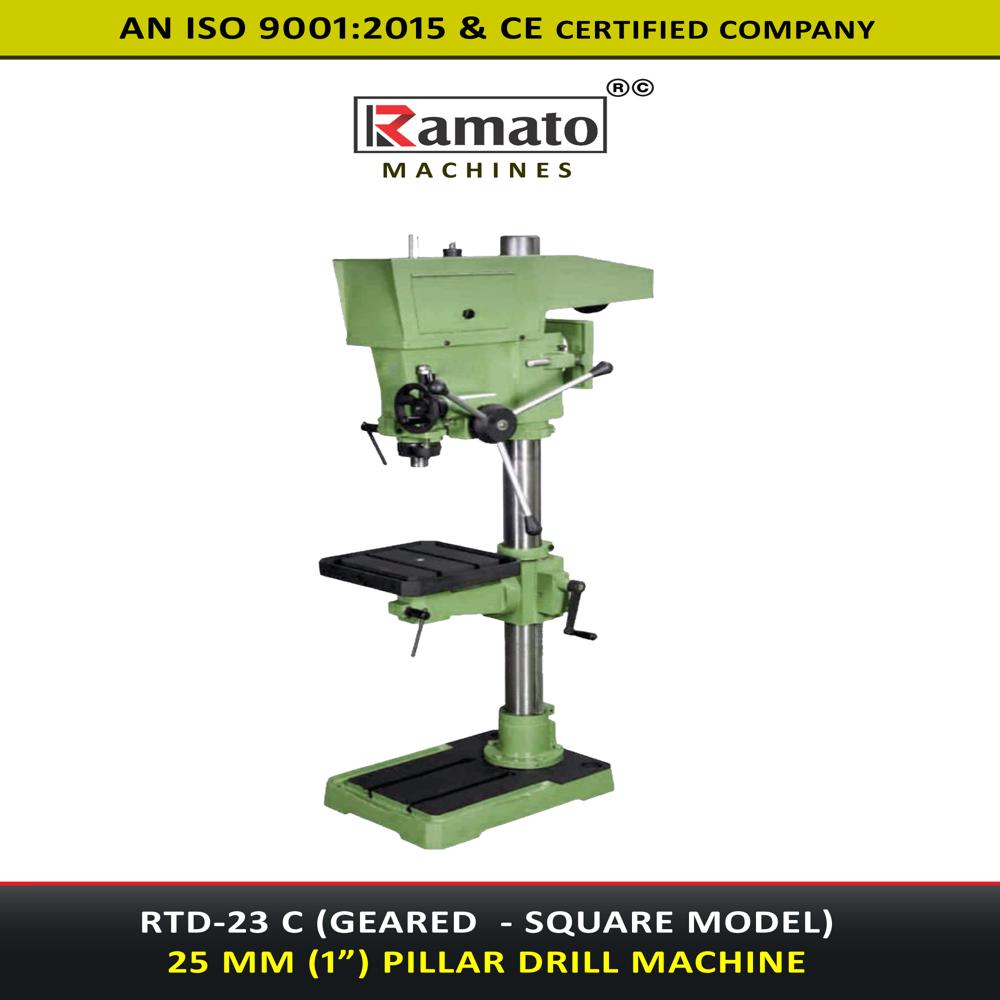

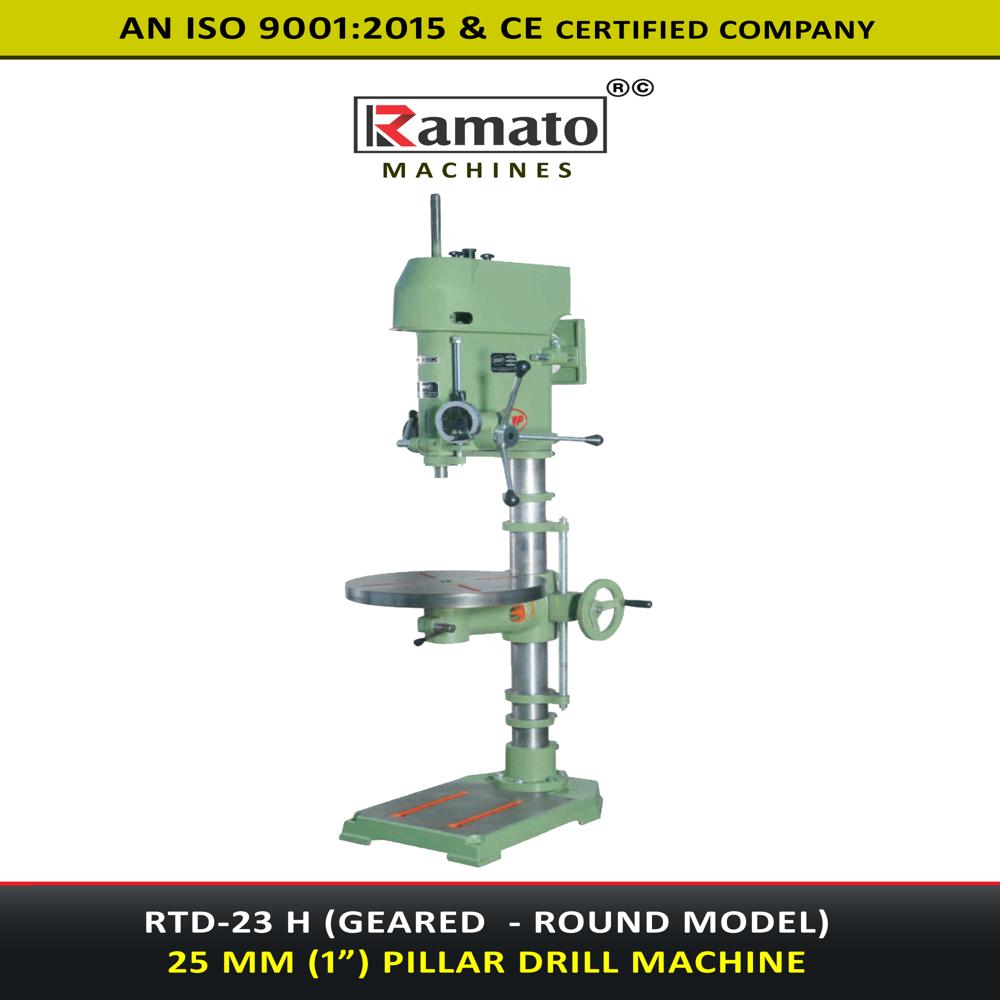

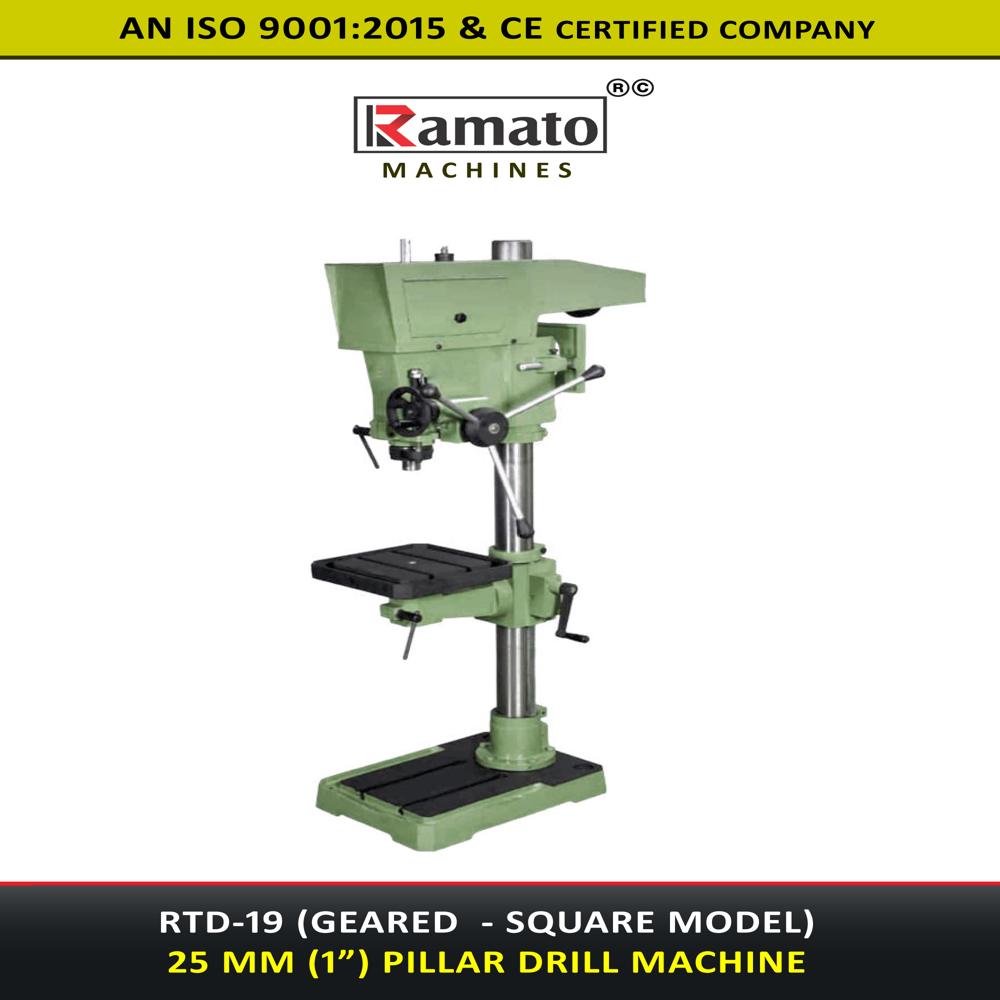

Metal Pillar Drill Machine
Metal Pillar Drill Machine
Metal Pillar Drill Machine
Metal Pillar Drill Machine
Metal Pillar Drill Machine
Metal Pillar Drill Machine
Metal Pillar Drill Machine
Metal Pillar Drill Machine
Metal Pillar Drill Machine
Metal Pillar Drill Machine
Metal Pillar Drill Machine
Metal Pillar Drill Machine

Metal Pillar Drill Machine

Price 23000.0 INR/ Unit

MOQ : 1 Unit

Metal Pillar Drill Machine Specification

  • Motor Power
  • 1 HP Single/Three Phase (standard model)
  • Frequency
  • 50 Hz / 60 Hz
  • Machine Type
  • RTD-21 Geared - Round Model
  • Table Size
  • 325 mm dia. (round model)
  • Dimension (L*W*H)
  • Base: 600mm x 400mm; Height: Approx. 1,400mm
  • Cutting Area
  • 25 mm diameter in steel
  • Noise Level
  • Low (standard industrial machine noise)
  • Spindle Speed
  • 90 - 2,880 RPM (variable, by gear speed selection)
  • Condition
  • New
  • Diameter
  • Maximum drilling diameter 25 mm
  • Features
  • Geared drive, precision spindle, adjustable table height, robust construction, low vibration.
  • Product Type
  • Pillar Drill Machine
  • Material
  • Heavy Duty Cast Iron and Steel
  • Computerized
  • No
  • Automatic Grade
  • Semi-Automatic
  • CNC Or Not
  • No
  • Control System
  • Manual Lever & Gear Operated
  • Voltage
  • 220-240V / 380-415V (as per model and market)
  • Power
  • 0.5 - 1.5 HP (Depending on motor selection)
  • Power Source
  • Electric
  • Weight (kg)
  • Approx. 120 - 175 kg (varies by model and attachment)
  • Capacity
  • 25 mm (drilling capacity in steel)
  • Color
  • Industrial Green (standard)
  • Usage & Applications
  • Suitable for drilling, tapping, reaming, and boring operations in workshops, factories, and maintenance departments.
  • Number of Spindle Speeds
  • 8
  • Head Movement
  • Fixed head (RTD-21 model)
  • Distance from Spindle Center to Column
  • 265 mm
  • Spindle Travel
  • 125 mm
  • Base Working Area
  • 350 mm x 230 mm
  • Drill Chuck Capacity
  • 1.5 mm to 16 mm
  • T-slots Size
  • 12 mm
  • Column Diameter
  • 73 mm
  • Maximum Distance from Spindle Nose to Table
  • 700 mm
  • Gear Material
  • Alloy Steel, Hardened & Ground
  • Table Movement
  • 360 rotation, adjustable vertically
  • V-belt Type
  • B-40 or Equivalent



About Metal Pillar Drill Machine

Metal Pillar Drill Machine manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent pillar drilling machines for metalworking, fabrication and industrial drilling.

Precision Engineering for Diverse Operations

The RTD-21 Geared Metal Pillar Drill Machine features an adjustable table, precision spindle, and 8-speed variable gear settings. These functions facilitate advanced drilling, tapping, reaming, and boring for metalworking projects of different complexities, allowing for accurate results and straightforward setup every time.


Robust Build and Ergonomic Features

Crafted from heavy-duty cast iron and equipped with hardened alloy steel gears, this machine is designed for longevity and stable operation. The ergonomic fixed head, manual lever control, and low-vibration structure create a safe, user-friendly working environment for skilled technicians.

FAQ's of Metal Pillar Drill Machine:


Q: How does the adjustable table enhance the machine's drilling capabilities?

A: The 360-degree rotating table, which is vertically adjustable, enables precise positioning and alignment for varied drilling operations. This flexibility allows users to work with different sizes and shapes of workpieces, improving the efficiency and accuracy of drilling, tapping, and reaming tasks.

Q: What applications is the RTD-21 Geared Metal Pillar Drill Machine most suitable for?

A: This machine excels in drilling, tapping, reaming, and boring operations in workshops, factories, and maintenance departments. Its design supports heavy-duty and precision projects, making it ideal for professionals handling steel and other metals.

Q: When should operators change the spindle speed, and how is it adjusted?

A: Operators can adjust spindle speeds (ranging from 90 to 2,880 RPM) depending on the material type and drilling requirements. The speed is changed using the manual gear and lever mechanism, allowing users to match tool speed to the specific process for optimal performance.

Q: Where can the RTD-21 drill machine be installed for best results?

A: For optimal performance, install the machine on a solid, level floor in workshops, industrial plants, or maintenance facilities. Ensure the area has stable power supply within the voltage range (220-240V or 380-415V) as per model specifications.

Q: What benefit does the geared drive and cast iron construction provide?

A: The geared drive ensures smooth and consistent power delivery, reducing vibration and wear. Heavy-duty cast iron construction increases the machine's durability, stability, and lifespan, ensuring reliable operation even during extensive use.

Q: How do users operate and maintain the RTD-21 Pillar Drill Machine?

A: Users operate the machine via a manual lever and gear-operated control system. Regular maintenance includes inspecting and lubricating gear mechanisms, checking alignment, tightening bolts, and ensuring all moving parts are free from obstructions or debris.
