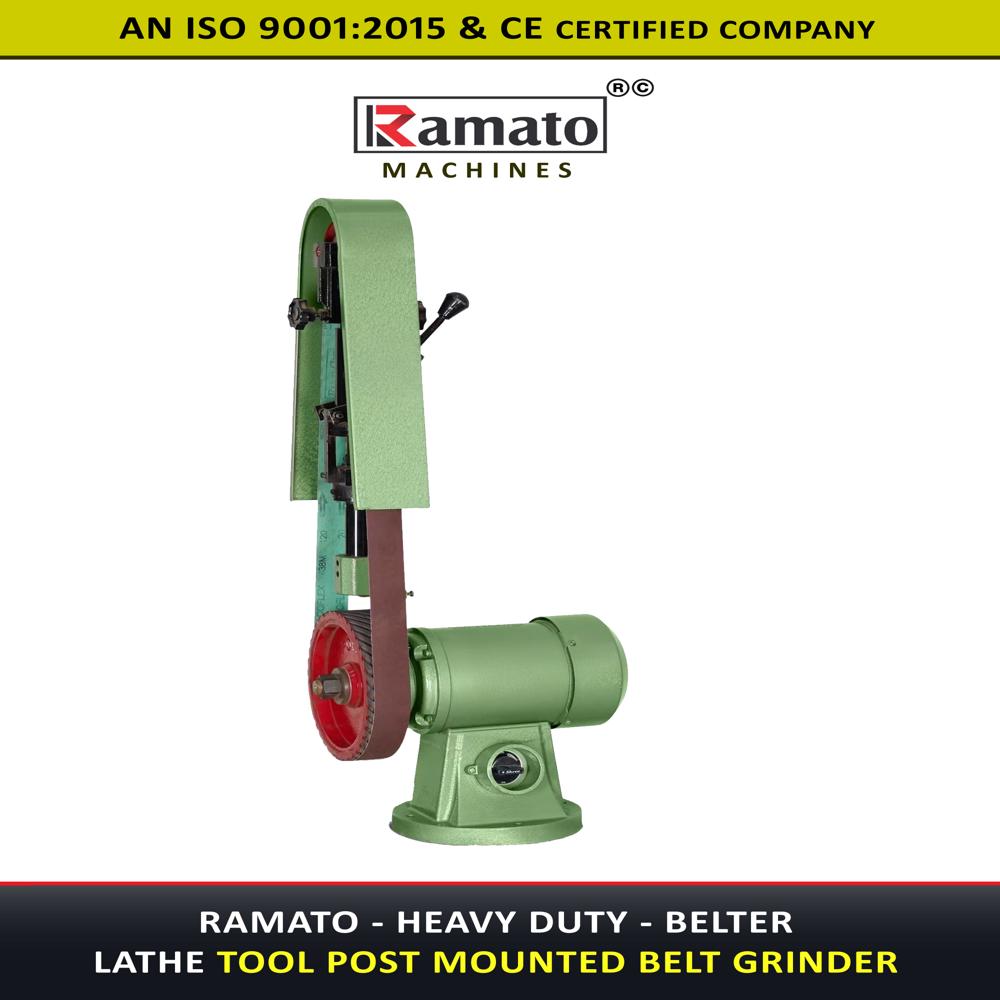

Lathe Mounted Belt Grinder

Get a Price/Quote

Lathe Mounted Belt Grinder Specification

Rotation
Unidirectional, as per lathe rotation

Model
Lathe Tool Post Mounted

Product Type
Tool post belt grinder for lathe machine

General Use
Precision grinding and polishing of workpieces on a lathe tool post

Material
Cast Iron body with mild steel fittings

Type
Heavy Duty, Tool Post Mounted

Capacity
Suitable for lathes 4 feet and above

Weight (kg)
Approx. 40-50 kg

Computerized
No

Automatic
No (Manual operation)

CNC Or Not
Not CNC

Control System
Manual

Grinding Wheel Size
Not Applicable (Uses abrasive belt)

Grinding Wheel Speed
Variable as per spindle, typically 2800 RPM

Grinding Length
200-300 mm (typical range, depends on lathe and belt length)

Floor Space
Lathe mounted, does not require additional floor space

Spindle Speed
Synchronizes with lathe spindle

Power
0.5 HP to 1 HP (motor dependent)

Voltage
220V / 440V (as per motor specification)

Dimension (L*W*H)
Approx. 350 mm x 150 mm x 400 mm

Feature
Heavy Duty, Robust construction, Easy mounting, Smooth operation

Color
Industrial Green

Noise Level
Below 80 dB under load

Mounting Type
Tool Post Mounted (Universal fitment for most lathes)

Finish Quality
Suitable for fine to coarse finishing (depends on abrasive grit)

Application Segments
Toolrooms, Workshops, Fabrication units, Maintenance

Vibration
Low vibration due to dynamic balancing

Coolant Provision
Dry grinding, coolant not required

Safety Features
Full guard cover, Emergency stop

Belt Changing Mechanism
Quick-release lever provided for fast belt replacement

Abrasive Belt Size
50 mm x 1000 mm (standard size, other sizes available on request)

Drive
Belt-driven by asynchronous motor

Suitable Work Materials
Steel, Stainless Steel, Cast iron, Non-ferrous metals

About Lathe Mounted Belt Grinder

Lathe Mounted Belt Grinder manufacturer in Rajkot, Gujarat, India. Rajlaxmi Machine Tools offers Ramato, HMP & Roent belt grinders for lathe-mounted metal grinding, deburring and finishing.

Precision Grinding for Diverse Applications

This belt grinder is expertly designed for both coarse and fine finishing, making it suitable for toolrooms, fabrication units, workshops, and maintenance departments. Its compatibility with steel, stainless steel, cast iron, and non-ferrous metals ensures versatility for your grinding and polishing needs.

Easy Installation and User-Friendly Operation

Mounting to the lathe tool post is straightforward, offering a universal fit for lathes 4 feet and above. The quick-release lever mechanism simplifies abrasive belt changes, streamlining workflow and reducing downtime during operations.

Engineered for Safety and Comfort

Experience low-vibration, quiet operation (below 80 dB) thanks to dynamic balancing and a sturdy cast iron construction. Full guard covers and an emergency stop feature enhance operator safety, while the dry grinding process eliminates the need for coolant.

FAQ's of Lathe Mounted Belt Grinder:

Q: How do I mount the belt grinder onto my lathe?

A: The grinder is designed for universal tool post mounting, compatible with most lathes 4 feet and above. Simply secure the unit on the lathe's tool post, ensuring a firm fit, and follow the included installation instructions for optimal alignment.

Q: What materials can I process with this belt grinder?

A: This grinder is suitable for grinding and polishing steel, stainless steel, cast iron, and non-ferrous metals. The finish quality can be tailored by selecting abrasive belts with different grit sizes.

Q: When should I change the abrasive belt, and how do I do it?

A: Replace the abrasive belt when noticeable wear or reduced efficiency occurs. The quick-release lever mechanism enables fast, tool-free belt changes, minimizing production interruptions.

Q: Where is this belt grinder most commonly used?

A: It is primarily utilized in toolrooms, fabrication shops, maintenance units, and general workshops-any environment requiring precision grinding on a lathe without taking up additional floor space.

Q: What benefits does this grinder offer over traditional grinding wheels?

A: Unlike grinding wheels, the abrasive belt grinder provides rapid material removal or fine finishing, offers quiet (below 80 dB) and low-vibration operation, and eliminates the need for coolant due to its dry grinding method.

Q: How does the grinder synchronize with my lathe's spindle speed?

A: The drive is belt-driven by an asynchronous motor that synchronizes with your lathe's spindle, typically running at around 2800 RPM, ensuring consistent and efficient grinding results.

Q: Is the grinder safe and easy to operate?

A: Yes, it features a full guard cover and emergency stop for enhanced safety, a dynamically balanced body for smooth performance, and manual controls for straightforward, hands-on operation.
