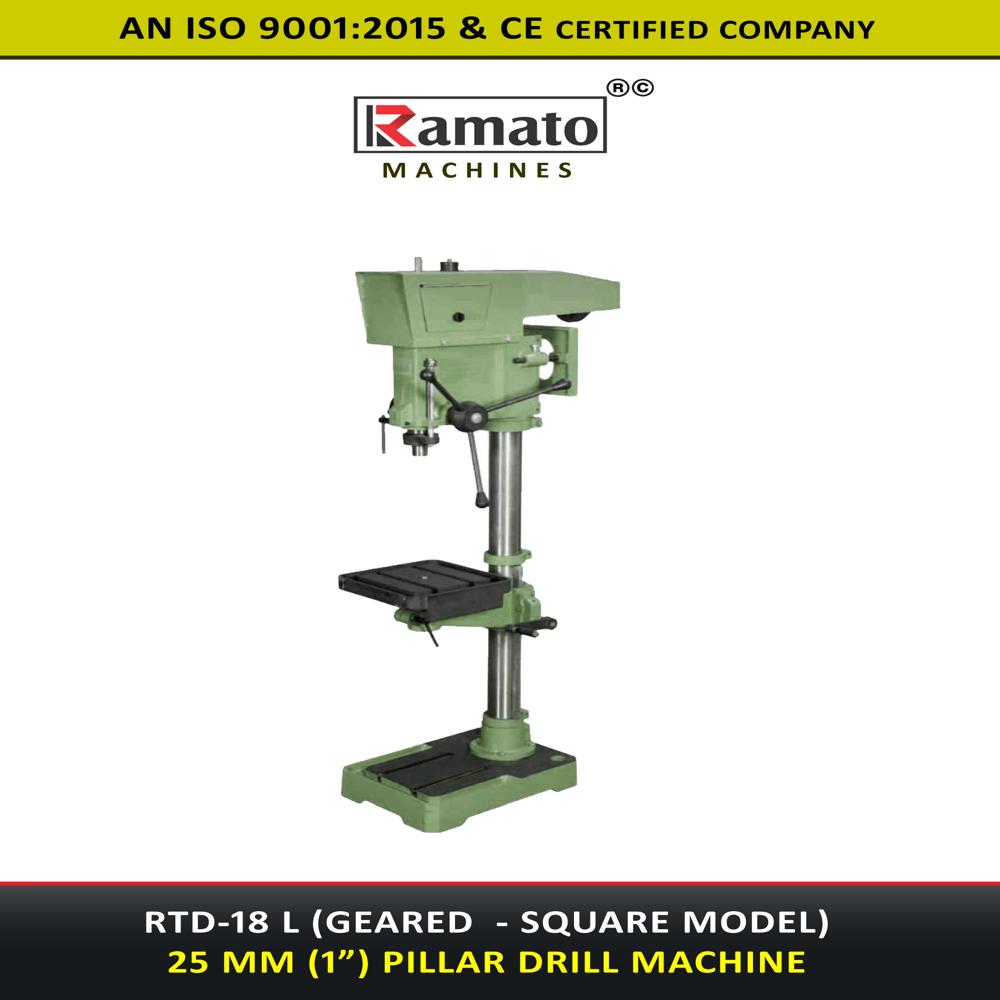

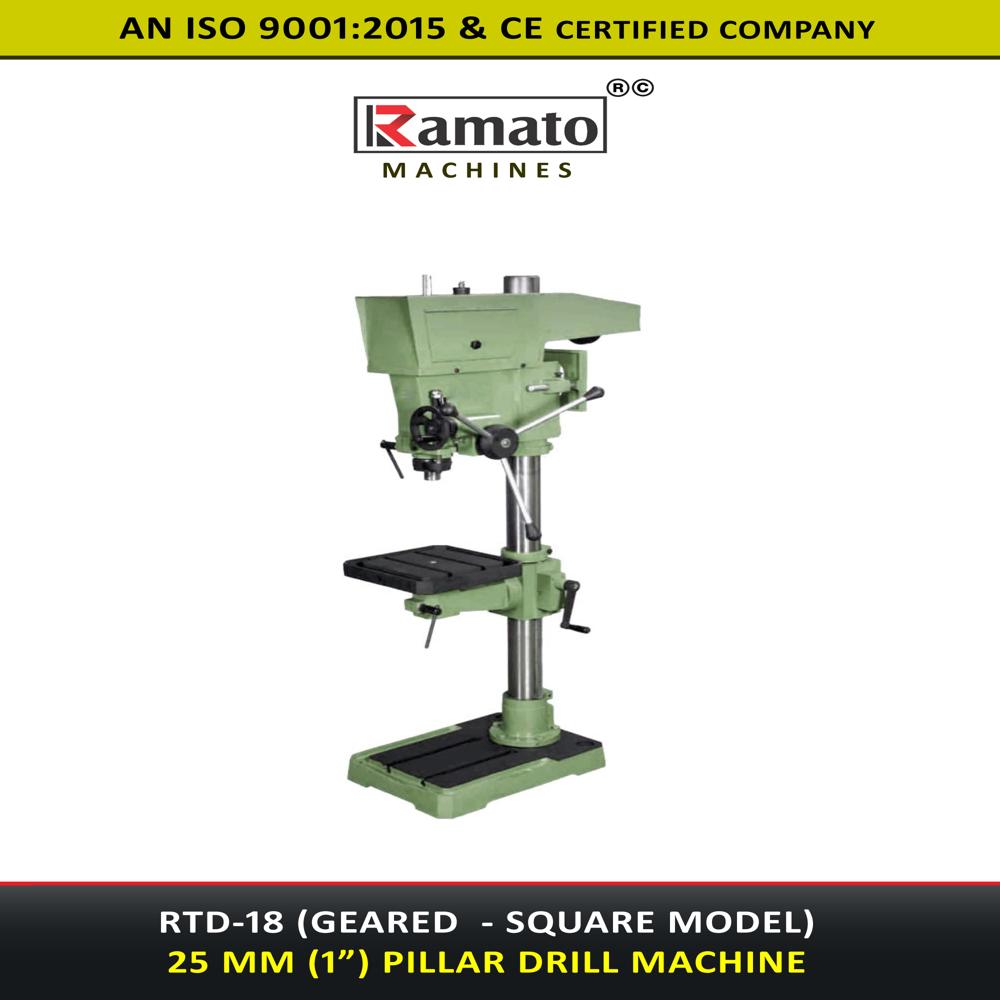

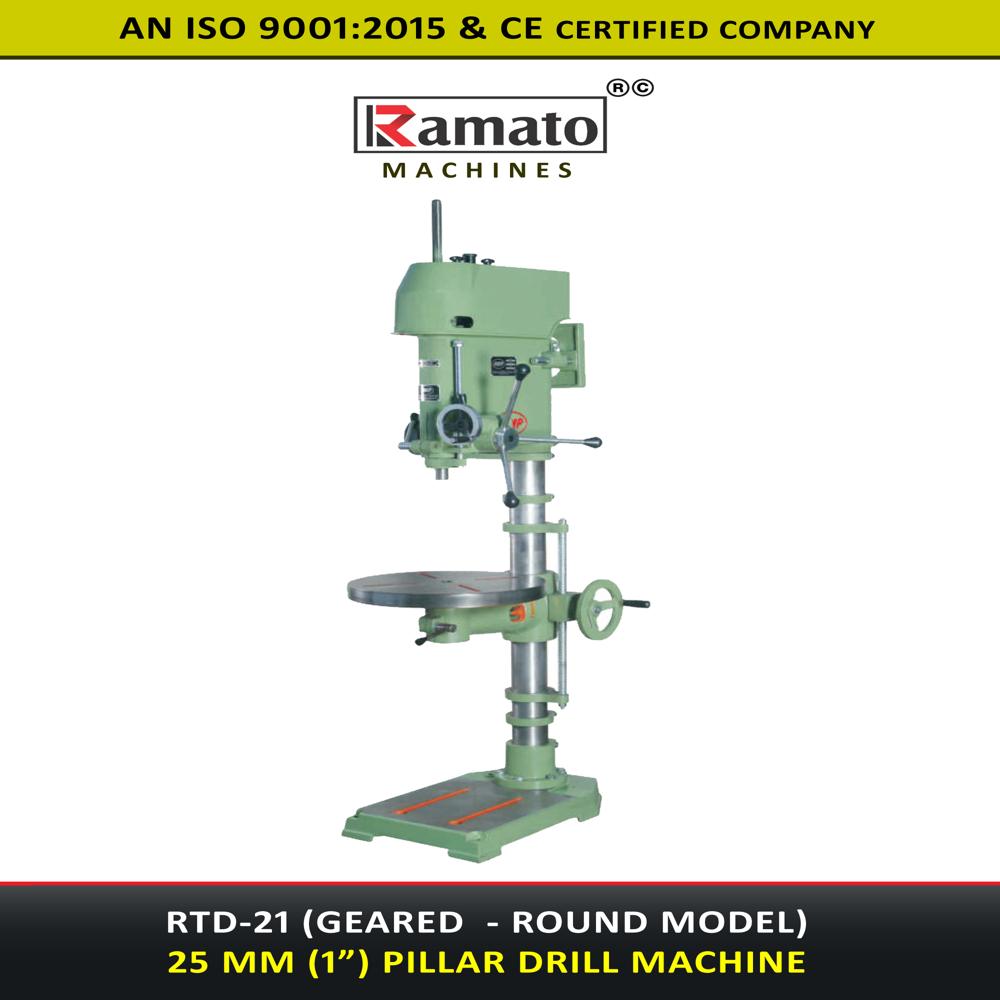

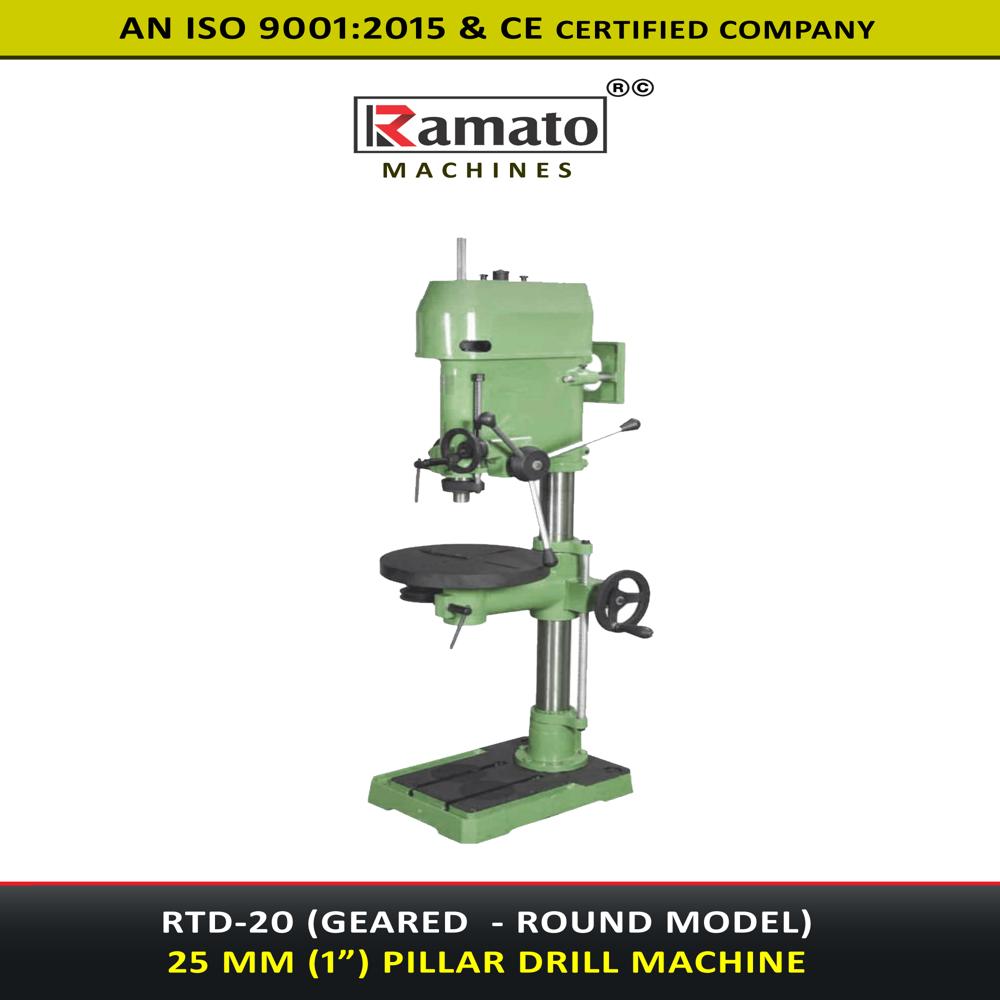

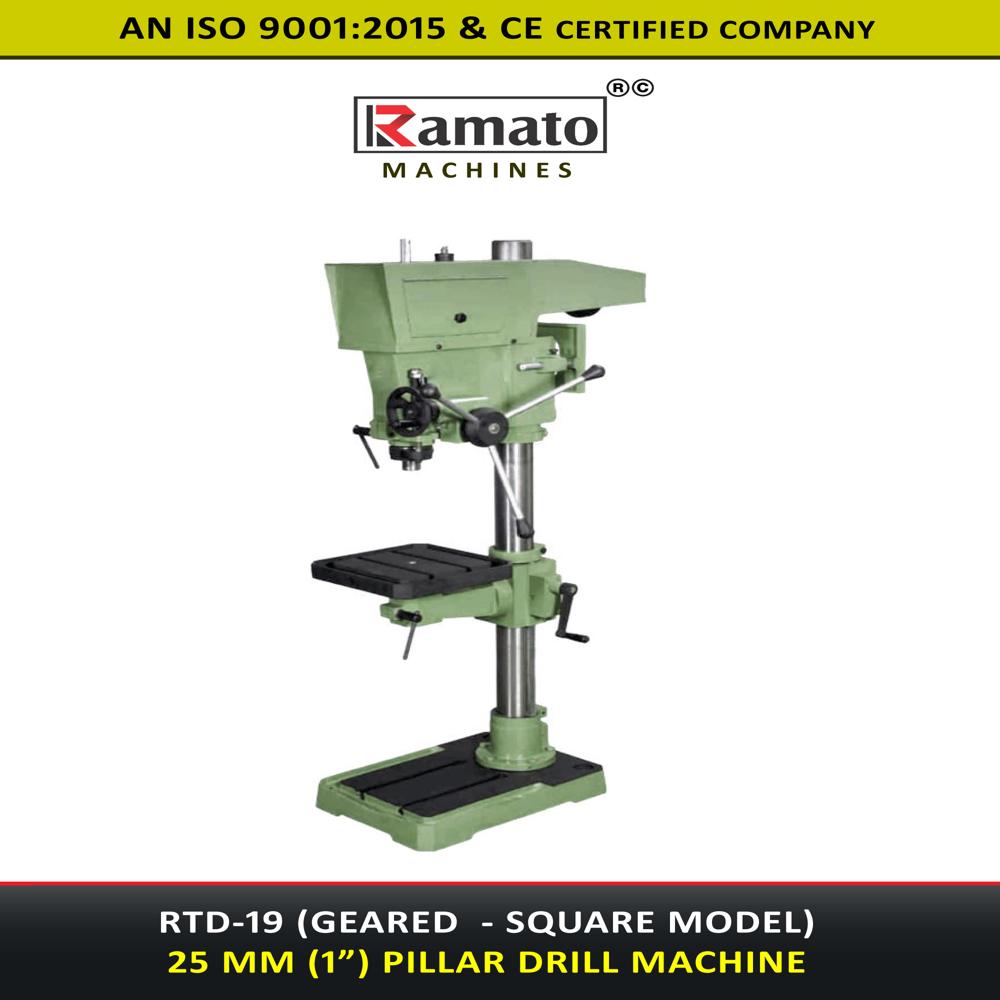

Industrial Pillar Drilling Machine
Industrial Pillar Drilling Machine
Industrial Pillar Drilling Machine
Industrial Pillar Drilling Machine
Industrial Pillar Drilling Machine
Industrial Pillar Drilling Machine
Industrial Pillar Drilling Machine
Industrial Pillar Drilling Machine
Industrial Pillar Drilling Machine
Industrial Pillar Drilling Machine
Industrial Pillar Drilling Machine
Industrial Pillar Drilling Machine

Industrial Pillar Drilling Machine

MOQ : 1 Unit

Industrial Pillar Drilling Machine Specification

  • Features
  • Geared drive, sturdy construction, high accuracy, adjustable table, smooth operation
  • Diameter
  • 25 mm
  • Cutting Area
  • 25 mm diameter maximum
  • Table Size
  • 300 mm diameter round table (approx.)
  • Motor Power
  • 1 HP / 1440 RPM
  • Frequency
  • 50 Hz
  • Noise Level
  • Low
  • Dimension (L*W*H)
  • 600 mm x 400 mm x 1500 mm
  • Machine Type
  • Geared - Round Model Pillar Drill
  • Spindle Speed
  • 480 - 2360 RPM (multiple steps)
  • Condition
  • New
  • Product Type
  • Industrial Pillar Drilling Machine
  • Material
  • Cast Iron & Steel Components
  • Computerized
  • No
  • Automatic Grade
  • Semi-Automatic
  • CNC Or Not
  • No
  • Control System
  • Manual
  • Voltage
  • 220V / 415V, 3 Phase
  • Power
  • 1 HP to 2 HP
  • Power Source
  • Electric
  • Weight (kg)
  • Approx. 150 kg - 200 kg
  • Capacity
  • 25 mm (1 inch) drilling capacity in steel
  • Color
  • Machine Green/Painted/Company Standard
  • Usage & Applications
  • Drilling, reaming, tapping in metalworking industries, workshops, manufacturing units
  • Coolant System
  • Provision available (optional)
  • Distance from Spindle to Base
  • 900 mm
  • Spindle Travel
  • 125 mm
  • Column Diameter
  • 77 mm
  • Maximum Drill Depth
  • 125 mm
  • Spindle Nose
  • MT-3 (Morse Taper #3)
  • Base Size
  • 480 mm x 300 mm
  • Round Table Adjustment
  • Height adjustable and rotatable
  • Distance from Spindle to Table
  • 560 mm
  • Model
  • RTD-17 L (Geared - Round Model)
  • Machine Height
  • 1500 mm



About Industrial Pillar Drilling Machine

Industrial Pillar Drilling Machine manufacturer in Rajkot, Gujarat, India. Rajlaxmi Machine Tools offers Ramato, HMP & Roent machines for heavy-duty metal drilling, fabrication and workshop applications.

Geared Drive for Enhanced Accuracy

The RTD-17 L Pillar Drilling Machine utilizes a geared drive mechanism, providing multiple spindle speed options and ensuring greater precision in every operation. This feature allows users to select optimal speeds based on material and application, enhancing the machine's versatility and accuracy.


Sturdy Construction and Industrial Utility

Built with cast iron and steel components, this pillar drill offers heightened durability and stability. Its powerful motor, combined with the semi-automatic and manual control system, makes the machine ideal for demanding tasks including drilling, reaming, and tapping in fabrication units and workshops.


Adjustable Round Table for Flexible Operation

The RTD-17 L includes a height-adjustable, rotatable round table, facilitating ease of positioning workpieces and accommodating different drilling angles. The spacious table allows for effective handling of varied component sizes, making the machine suitable for complex industrial applications.

FAQ's of Industrial Pillar Drilling Machine:


Q: How does the RTD-17 L pillar drilling machine accommodate different drilling angles and workpiece sizes?

A: The machine features a round table with height adjustment and 360-degree rotation, enabling users to modify table position for various drilling angles and workpiece dimensions.

Q: What materials can be processed using this pillar drilling machine?

A: Primarily designed for drilling, reaming, and tapping in metalworking, the RTD-17 L is suitable for steel and other metals, thanks to its sturdy cast iron and steel construction and robust motor.

Q: When should the optional coolant system be used?

A: The coolant provision should be utilized during extensive or high-speed drilling tasks, as it helps cool the tool and workpiece, extending tool life and maintaining cutting accuracy.

Q: Where is this pillar drilling machine most commonly installed?

A: This machine is typically deployed in workshops, manufacturing units, and metalworking industries, wherever high precision and heavy-duty drilling operations are required.

Q: What is the drilling capacity of this machine in steel?

A: The RTD-17 L Geared Model can drill up to 25 mm (1 inch) diameter holes in steel, supporting a range of industrial and fabrication needs.

Q: How does the manual control system benefit operators?

A: Manual control offers users direct oversight of drilling operations, allowing for adaptability and responsiveness during machining, suitable for semi-automatic and customized tasks.

Q: What are the advantages of using the RTD-17 L pillar drilling machine?

A: Key benefits include high drilling accuracy, multiple spindle speed choices, sturdy build, smooth operation, low noise level, and an adjustable table, collectively ensuring efficient performance in industrial environments.
