Industrial Bench Grinder

Get a Price/Quote

Industrial Bench Grinder Specification

Rotation
Standard clockwise (viewed from motor end)

Model

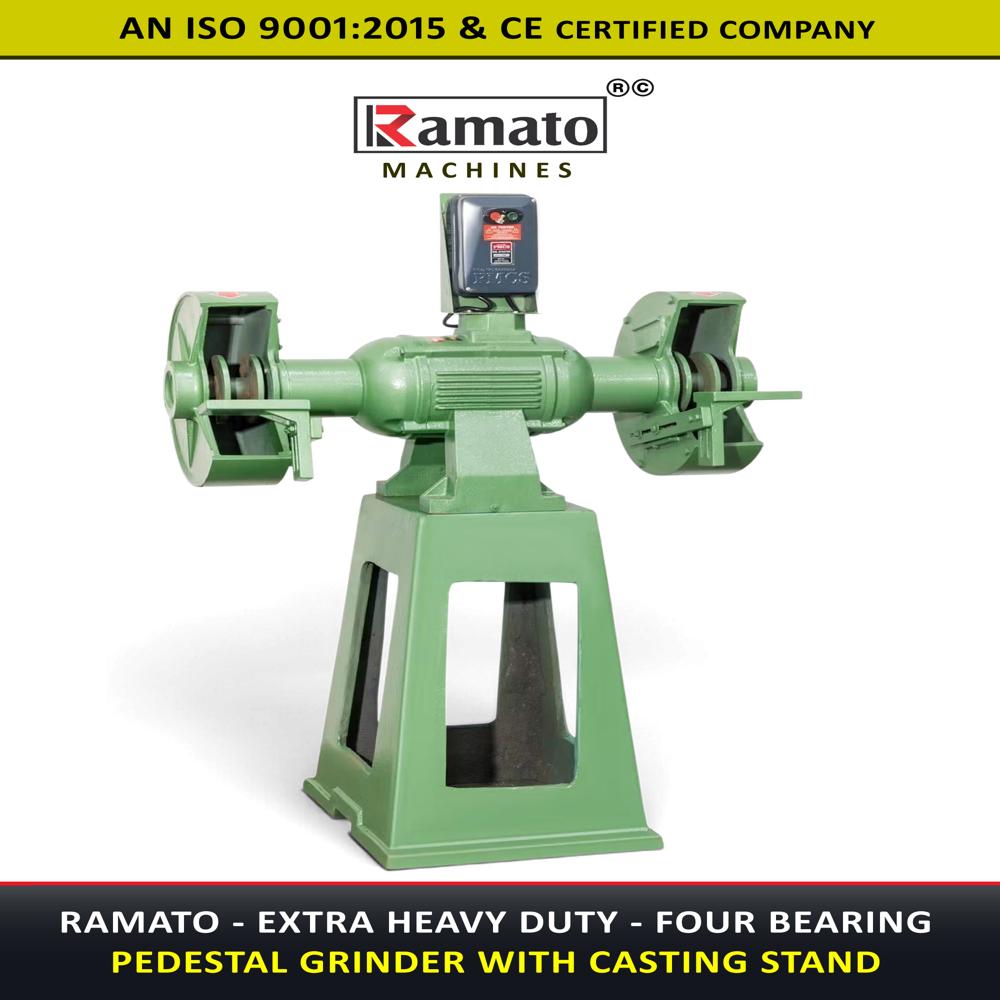

Extra Heavy Duty Pedestal Grinder - RAMATO

Product Type
Pedestal Bench Grinder with CI Stand

General Use
Industrial grinding, sharpening and shaping of metal tools and components

Material
Cast Iron (body and stand), Steel (shaft and guards)

Type
Extra Heavy Duty, Four Bearing

Capacity
Heavy Duty, suitable for continuous workshop use

Weight (kg)
Approx. 90-130 kg (depending on model)

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual

Grinding Wheel Size
200 mm to 350 mm (typical range)

Grinding Wheel Speed
2800 RPM (typical)

Floor Space
Approx. 450 x 600 mm (for pedestal base)

Spindle Speed
2800 RPM (synchronous with wheel speed)

Power
1 HP to 3 HP (typical options)

Voltage
415V, 3 Phase (standard industrial)

Dimension (L*W*H)
Approx. 750 x 450 x 1100 mm (overall including stand)

Feature
Pedestal design, CI stand for stability, four bearing support, protective wheel guards

Color
Industrial Green

Bearing Type
Four Bearing Design for Vibration-Free Operation

Mounting
Floor Mounted

Working Speed
2800 RPM

Application
Workshop, Foundry, Tool Room, Fabrication Unit

Compliance
ISO 9001:2015 & CE Certified

Safety Features
Wheel Guard, Spark Arrestor, Eye Shield

Motor Enclosure
Totally Enclosed Fan Cooled (TEFC)

Stand Type
Heavy Duty Cast Iron Pedestal Stand

Drive
Direct Coupled Motor

Industrial Bench Grinder About

Industrial Bench Grinder manufacturer in Rajkot, Gujarat, India. Rajlaxmi Machine Tools offers Ramato, HMP & Roent heavy-duty bench grinding machines for professional metalworking applications.

High Performance and Stability

This bench grinder delivers consistent performance at 2800 RPM with a direct-coupled, totally enclosed fan cooled (TEFC) motor. Four precision bearings ensure vibration-free operation, making it suitable for continuous use in industrial environments. The heavy-duty cast iron pedestal stand and construction provide superior stability, even during intensive grinding tasks.

Enhanced Safety Features

Safety is prioritized with integrated wheel guards, spark arrestors, and eye shields, keeping operators protected from sparks and debris. The floor-mounted design with a cast iron pedestal and protective components minimize operational hazards, meeting strict international safety standards (ISO 9001:2015 & CE Certified).

Versatile Industrial Application

Designed for various industrial sectors, this pedestal grinder excels in workshops, foundries, tool rooms, and fabrication units. Its robust construction and direct drive system make it suitable for grinding, sharpening, and shaping metal tools and components. Multiple motor and wheel size options offer flexible capacity for heavy-duty tasks.

FAQ's of Industrial Bench Grinder:

Q: How does the four bearing design contribute to the grinder's performance?

A: The four bearing design ensures superior stability and minimizes vibrations during operation, resulting in smoother, safer grinding and extending the life of both the grinder and the grinding wheels.

Q: What safety features are included with this industrial bench grinder?

A: This grinder is equipped with wheel guards, spark arrestors, and eye shields to protect operators from flying particles and sparks. Its heavy-duty pedestal stand and sturdy construction further enhance operational safety.

Q: Where can this bench grinder be installed for optimal use?

A: It is intended for floor mounting on a heavy-duty cast iron pedestal base. This setup is ideal for workshops, foundries, tool rooms, and fabrication units, ensuring stability and safety during continuous industrial use.

Q: What types of industrial tasks can the RAMATO bench grinder handle?

A: The grinder is suitable for industrial grinding, sharpening, and shaping of metal tools and components-making it valuable in metal fabrication, machinery maintenance, and workshop settings.

Q: When should the grinding wheels be replaced?

A: Grinding wheels should be inspected regularly and replaced when they show significant wear, cracks, or decreased grinding efficiency to maintain safe and effective operation.

Q: What is the typical process for operating and maintaining the grinder?

A: Operation is manual, simply requiring correct positioning of workpieces and adherence to safety guidelines. Maintenance involves regular inspection of bearings, grinding wheels, and safety guards, as well as keeping the workstation clean.

Q: What are the key benefits of choosing this model over standard bench grinders?

A: This model offers extra heavy-duty capacity, enhanced stability due to its cast iron pedestal, vibration-free operation with four bearings, comprehensive safety features, and compliance with ISO and CE standards for demanding industrial applications.
