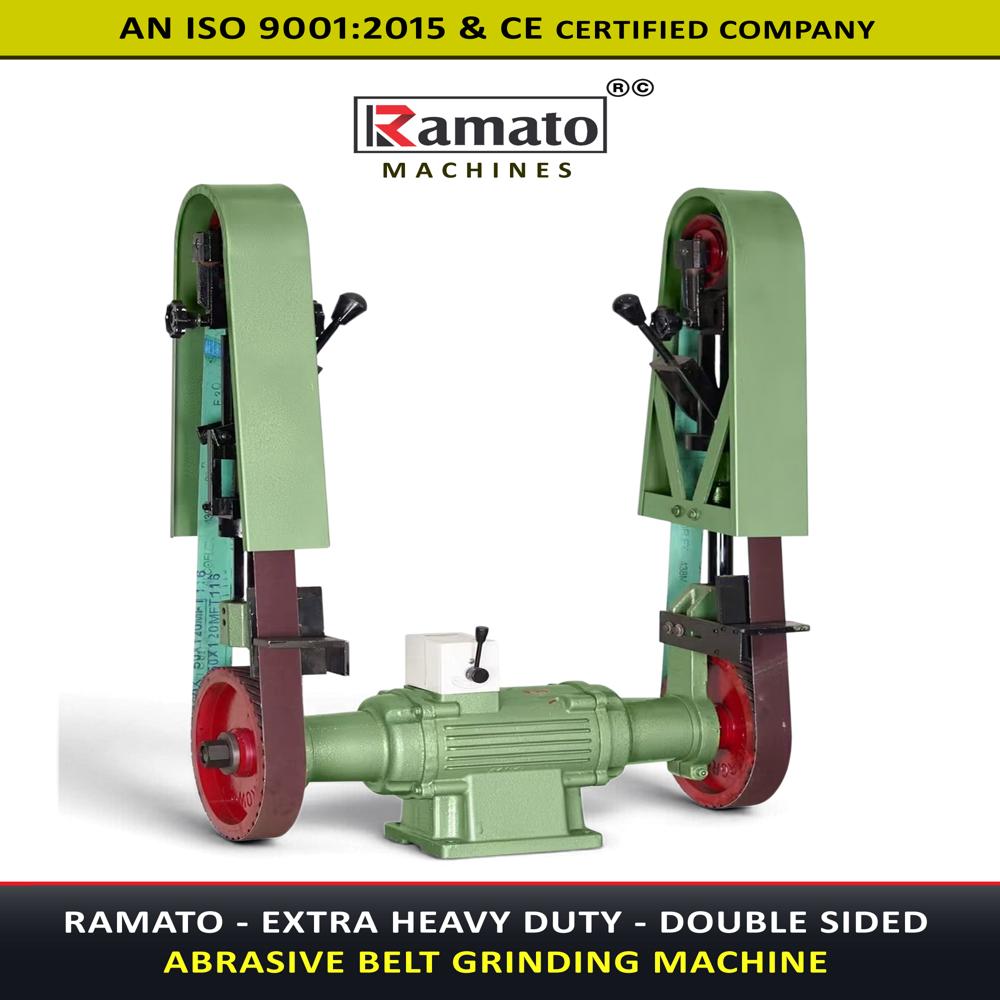

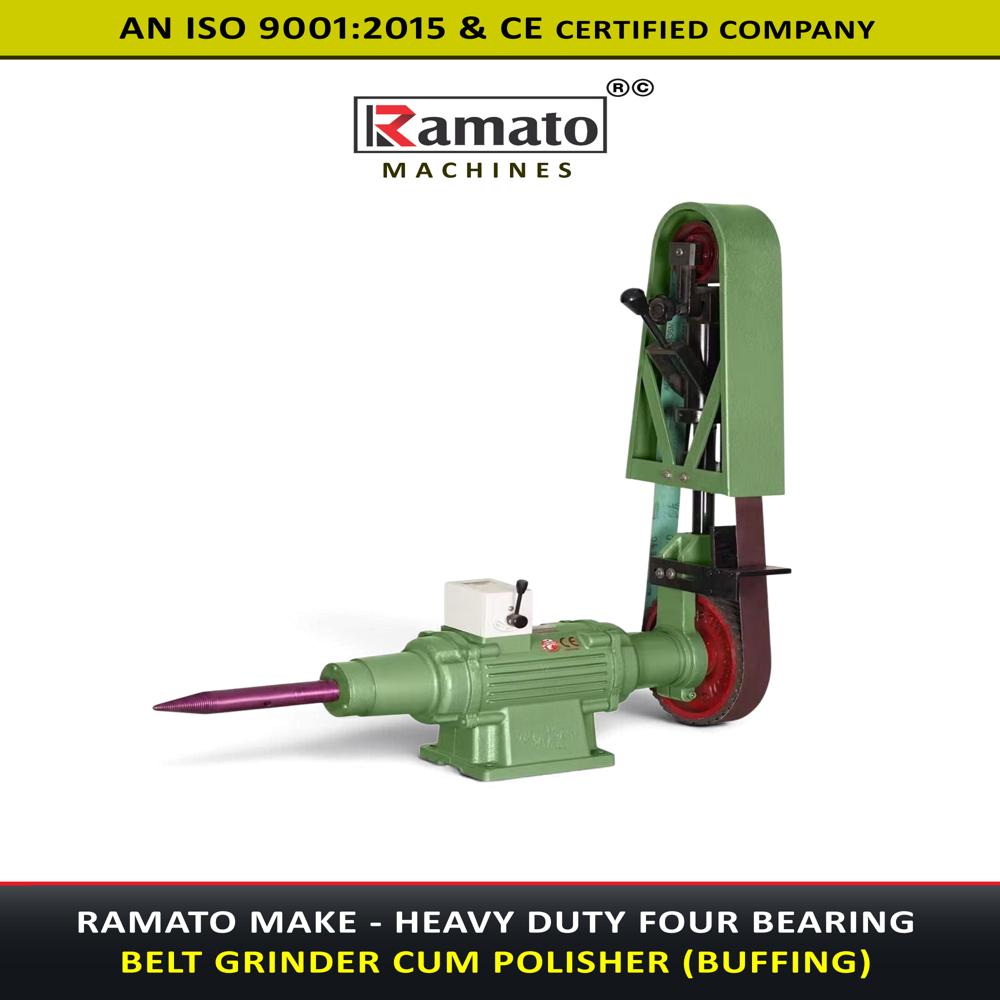

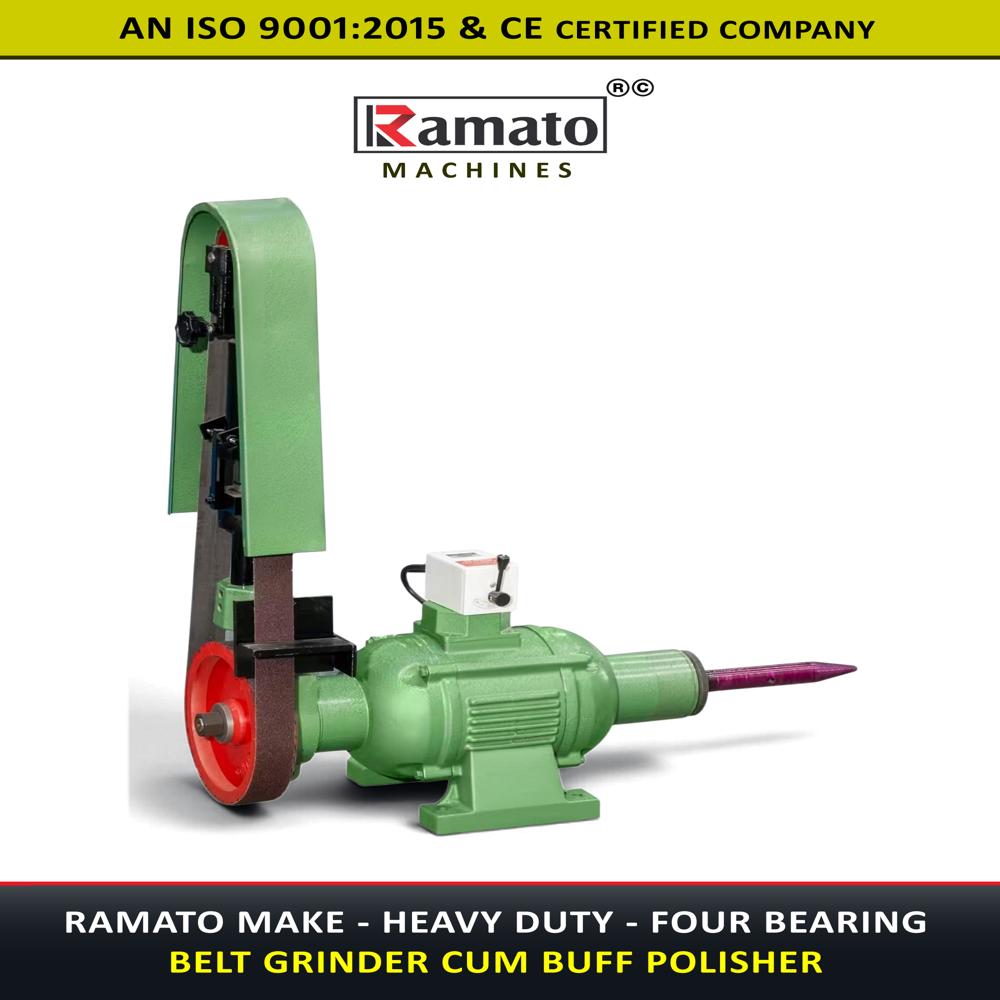

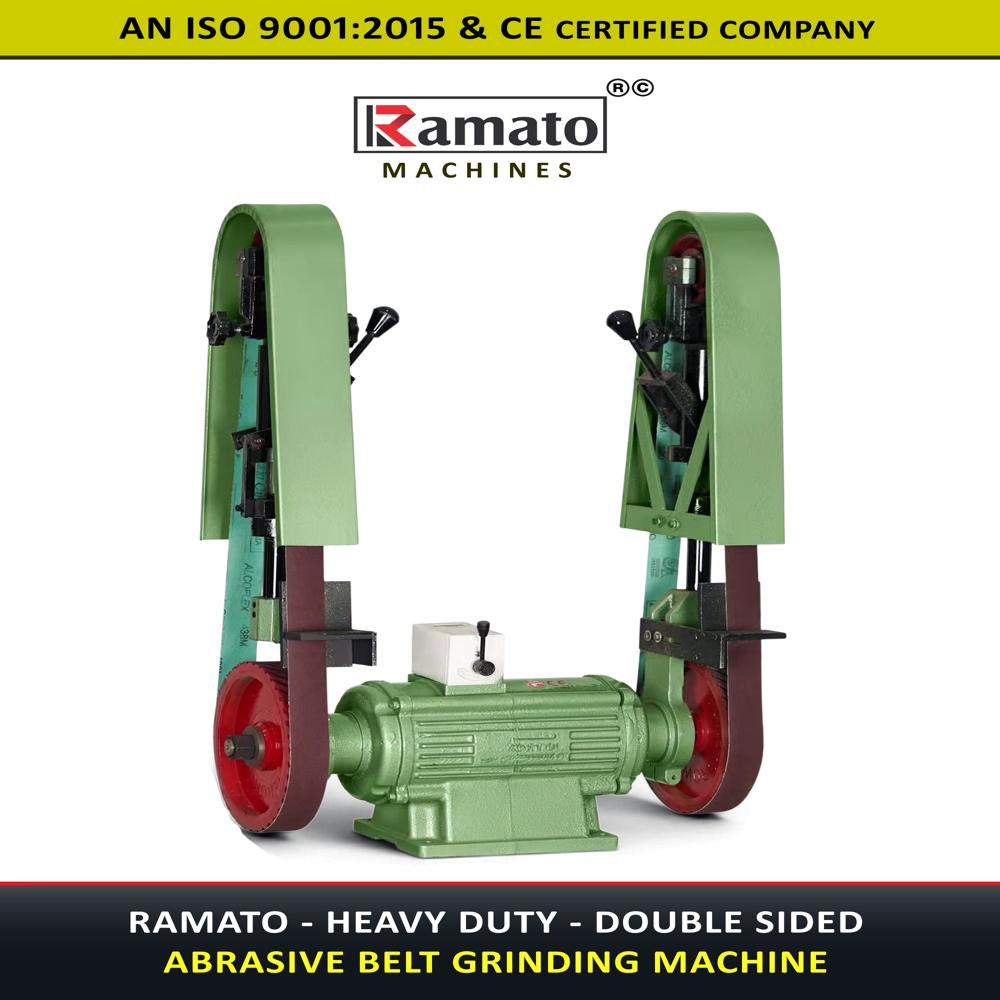

Industrial Belt Grinding Machine

Get a Price/Quote

Industrial Belt Grinding Machine Specification

Rotation
Single Direction

Model
Ramato Belt Grinder Cum Bench Grinder

Product Type
Belt Grinder cum Bench Grinder

General Use
Industrial Grinding and Finishing Operations

Material
Cast Iron and Steel

Type
Heavy Duty Industrial Type

Capacity
Heavy Duty, Continuous Use

Weight (kg)
Approx. 70-90 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual

Grinding Wheel Size
Standard Bench Grinder Wheel

Grinding Wheel Speed
Approx. 2800 RPM

Grinding Length
Depends on Belt Size

Floor Space
Compact

Spindle Speed
Approx. 2800 RPM

Power
1 HP to 3 HP (varies by model)

Voltage
220-240V / 415V AC, 3 Phase

Dimension (L*W*H)
Varies by Model e.g. 600 x 300 x 700 mm

Feature
ISO 9001:2015 & CE Certified, Dual Function (Belt & Bench Grinder), Enclosed Motor

Color
Green (Standard)

Applications
Deburring, Surface Grinding, Finishing, Sharpening, Polishing

Noise Level
Low Noise Operation

Mounting Type
Floor Mount

Motor Type
Induction Motor

Switch Type
Push Button Starter Switch

Safety Features
Guarded Grinding Wheels, Emergency Stop Switch

Working Speed
High Speed for Efficient Grinding

Minimum Order Quantity
1 Unit

Base Type
Heavy Duty Cast Iron Base for Vibration Free Operation

Power Source
Electric

Belt Size
50 mm x 2000 mm (Standard Size, can vary)

About Industrial Belt Grinding Machine

Industrial Belt Grinding Machine manufacturer in India. Discover Ramato solutions for heavy-duty metal grinding, deburring and surface finishing.

Industrial Belt Grinder Machine manufacturer in India. Ramato heavy-duty belt grinders are designed for metal grinding, deburring and industrial finishing.

High-Efficiency Industrial Grinding

Engineered for rapid, consistent results, this belt grinding machine operates at approximately 2800 RPM, significantly accelerating deburring, sharpening, and finishing tasks. The high-speed function paired with a standard-sized belt (50 mm x 2000 mm) enables efficient material removal, making it a valuable asset for heavy-duty industrial environments.

Built to Endure: Heavy Duty & Stable

Constructed with a robust cast iron and steel frame, this grinder is designed to withstand continuous operation. A heavy-duty cast iron base diminishes vibration, ensuring precise finishes. Reliability is further supported by an enclosed motor and expertly guarded grinding wheels, maximizing both performance and operator safety.

Safe and User-Friendly Operation

Safety takes precedence with built-in features, including guarded grinding wheels, an emergency stop switch, and a sturdy push-button starter. Operators benefit from clear controls and low-noise operation, making this tool ideal for workshops prioritizing both productivity and staff wellbeing.

FAQ's of Industrial Belt Grinding Machine:

Q: How does the heavy-duty cast iron base improve grinding results?

A: The heavy-duty cast iron base minimizes vibrations during operation, ensuring a more stable grinding process and a consistent, high-quality finish on your workpiece. This enhances precision and operator comfort, especially in prolonged usage scenarios.

Q: What materials and applications is this industrial belt grinding machine suitable for?

A: This grinder is ideal for working with metals, such as steel and cast iron, in applications including deburring, surface grinding, sharpening, polishing, and finishing. Its dual function (belt and bench grinder) broadens its versatility in industrial fabrication and maintenance settings.

Q: When should I use the belt versus the bench grinder function?

A: Use the belt grinder for broad surface grinding, quick material removal, deburring, and blending. The bench grinder wheel is better suited for precision sharpening, edge shaping, and finer finishing work. Switching between functions maximizes productivity based on the task requirements.

Q: Where can this machine be installed for optimal performance?

A: Designed for floor mounting, the machine is best placed on a firm, level surface within your industrial workspace. Its compact floor footprint and low-noise operation make it adaptable to various production settings without causing disruption.

Q: What safety features does this grinder offer for operators?

A: The machine is equipped with guarded grinding wheels to reduce risk of accidental contact, an emergency stop switch for immediate shutdown in crisis situations, and clear push-button starter controls for easy operation. These features collectively ensure higher safety standards for users.

Q: How does the manual control system benefit daily operations?

A: The manual control system allows operators direct control over grinding tasks, providing adaptability for diverse jobs and making it simple to handle a wide range of metallic materials without complex programming or reliance on computerized systems.

Q: What are the benefits of the enclosed motor and low-noise design?

A: An enclosed motor protects internal components from dust and debris, extending the machine's lifetime. Low-noise operation creates a safer, more comfortable environment for users, promoting focus and reducing fatigue during continuous, demanding use.
