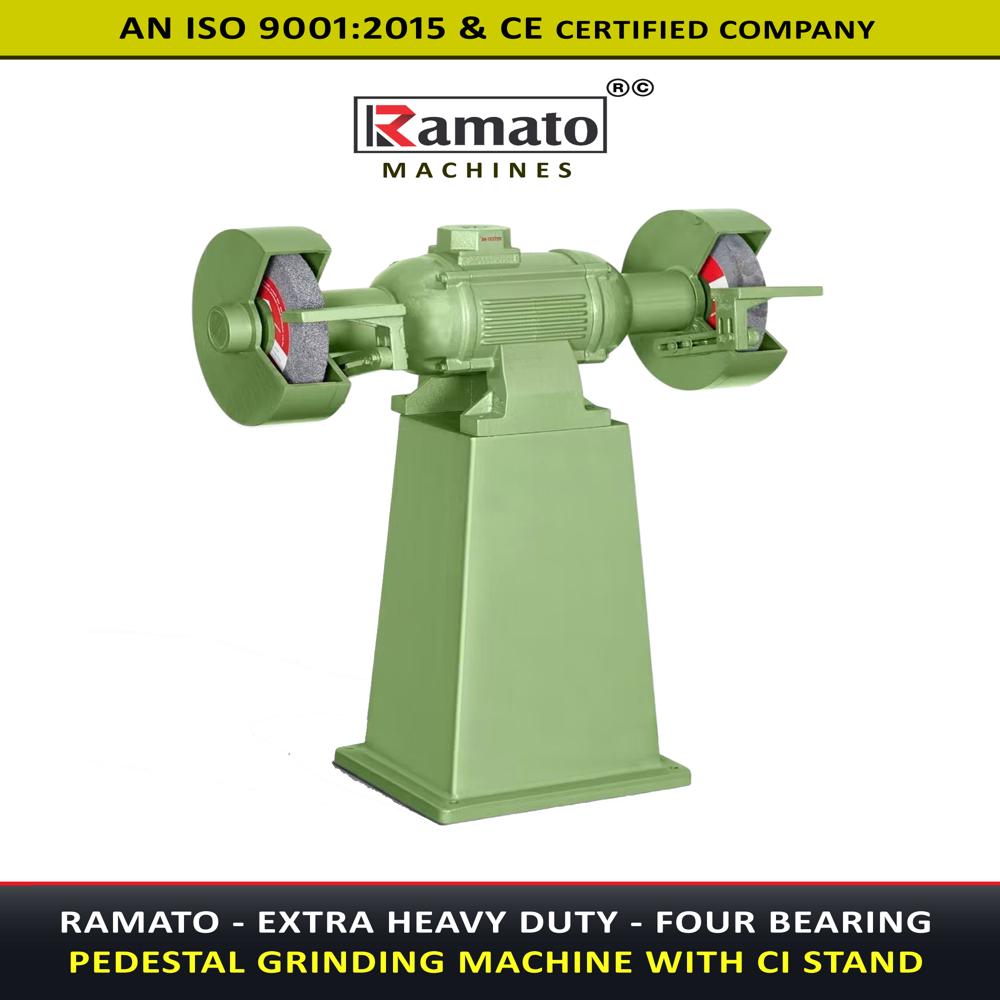

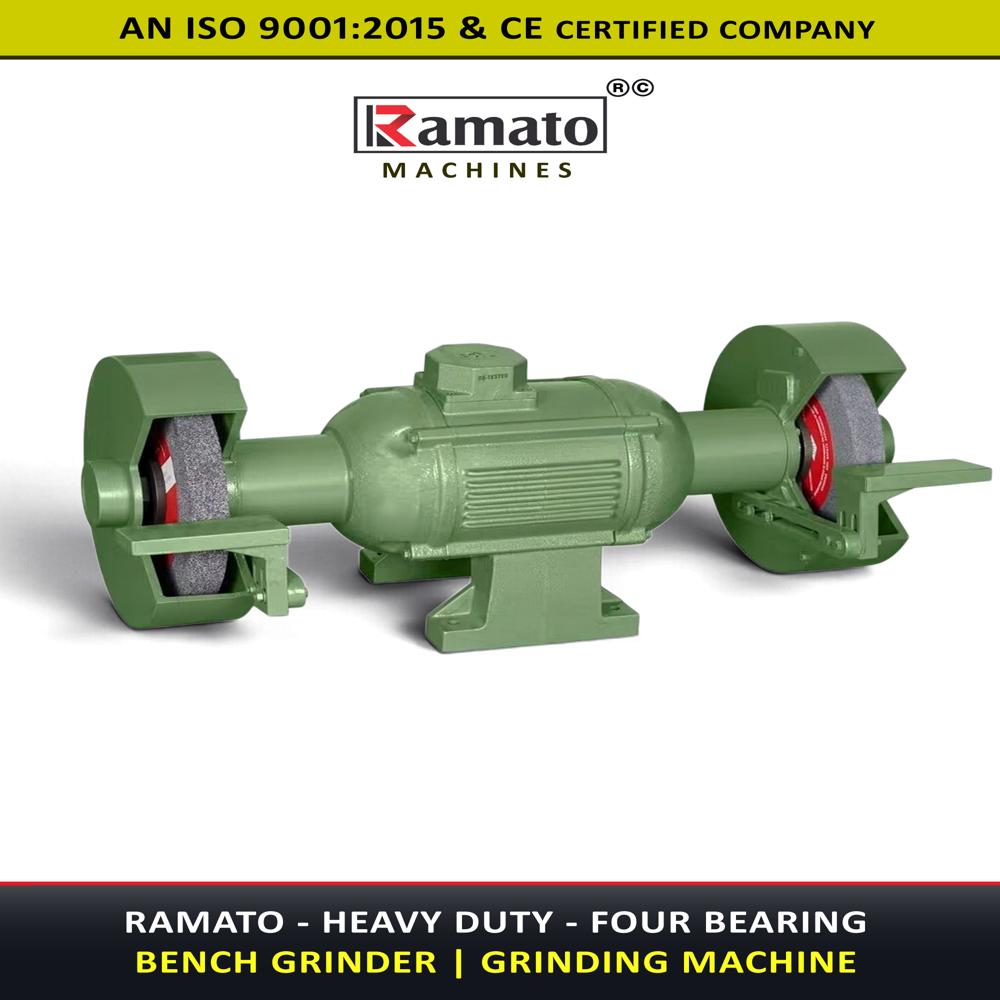

Heavy Duty Bench Grinder Machine

Get a Price/Quote

Heavy Duty Bench Grinder Machine Specification

Rotation
Standard Single Direction

Model
Pedestal Grinding Machine with VFD Drive

Product Type
Pedestal Bench Grinder Machine

General Use
Heavy Duty Pedestal Grinding and Deburring Operations

Material
Cast Iron Body with Mild Steel Pedestal

Type
Bench Grinder / Pedestal Grinder

Capacity
Heavy Duty Continuous Operation

Weight (kg)
Approx. 150-200 kg (Varies as per model)

Computerized
No

Automatic
No, Manually Operated

CNC Or Not
Not CNC

Control System
VFD (Variable Frequency Drive) Control Panel

Grinding Wheel Size
Approx. 300 mm (12) Diameter

Grinding Wheel Speed
Variable, controlled by VFD (typically up to 3000 RPM)

Grinding Length
Depends on wheel size and application

Floor Space
Approx. 700 mm x 700 mm

Spindle Speed
Variable, up to 3000 RPM (Approx.)

Power
3 HP / 2.2 kW (estimated, varies by model)

Voltage
415 V AC, 3 Phase

Dimension (L*W*H)
Approx. 700 x 700 x 1200 mm

Feature
Extra Heavy Duty, Four Bearing Support, VFD Drive, High Stability

Color
Green (Standard)

Wheel Width
25 mm to 50 mm (varies as per configuration)

Application
Industrial Workshops, Heavy Engineering Sheds, Maintenance Rooms

Mounting
Robust Pedestal Base for Vibration-Free Operation

Drive Type
VFD Drive for Speed Control

Working Speed
Variable via VFD, up to 3000 RPM

Bearing
Four Bearing Construction For Extra Durability

Noise Level
Low Noise Operation with Precision Bearings

Safety Features
Wheel Guards and Spark Arresters Provided

Phase
3 Phase AC

Coolant
Not included (Dry Grinding)

About Heavy Duty Bench Grinder Machine

Heavy Duty Bench Grinder Machine manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent industrial machines for demanding metal grinding and workshop applications.

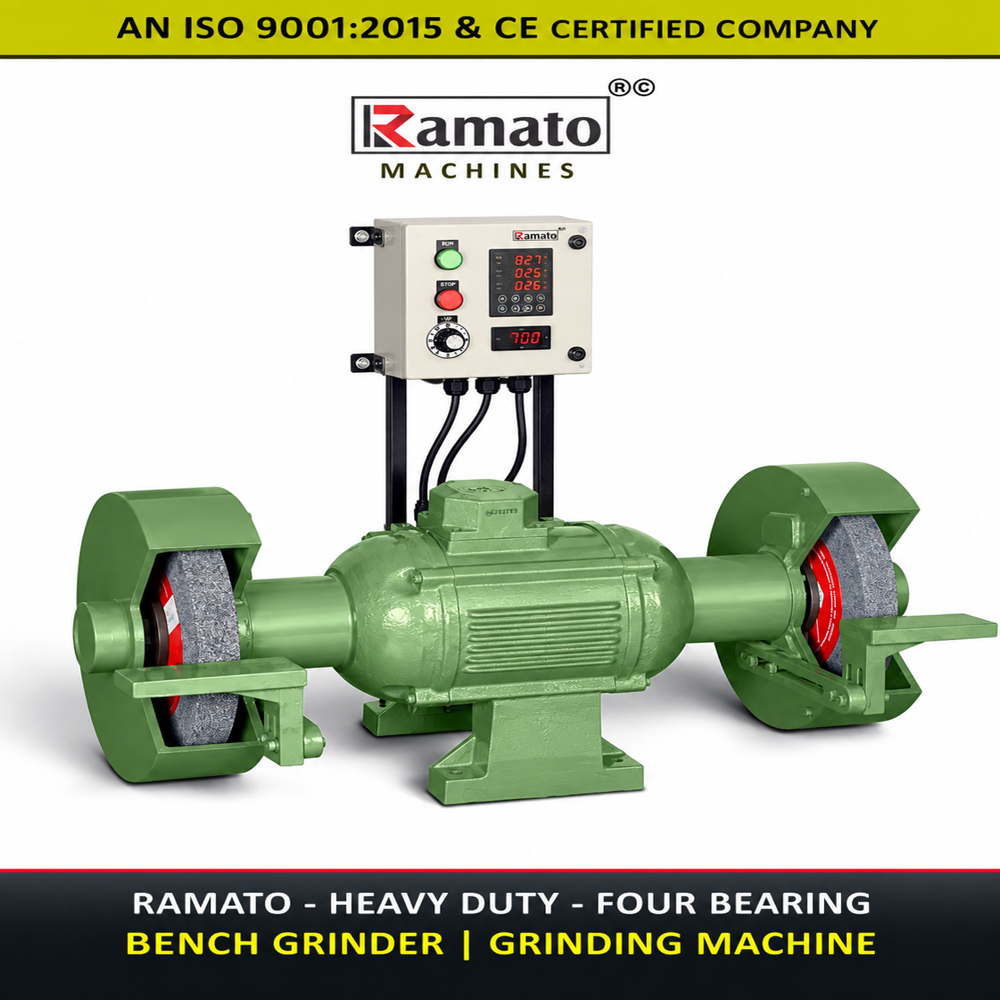

Versatile Speed Control

Equipped with a Variable Frequency Drive (VFD), this bench grinder enables precise speed adjustments up to 3000 RPM, allowing users to optimize performance for diverse grinding applications. The easily accessible VFD control panel ensures smooth and reliable operation, supporting a wide range of materials and tasks.

Exceptional Durability and Safety

Crafted with four precision bearings and a robust cast iron body, the grinder is built for longevity and minimal maintenance. Wheel guards and spark arresters come standard, promoting operator safety during continuous heavy-duty use in industrial settings.

Stable, Vibration-Free Mounting

The reliable pedestal base made from mild steel ensures stable, vibration-free grinding, enhancing accuracy and user comfort. Thanks to its sturdy construction and thoughtful engineering, the grinder remains steadfast even during prolonged, intensive operations.

FAQ's of Heavy Duty Bench Grinder Machine:

Q: How is the speed controlled on this heavy-duty bench grinder?

A: The grinder utilizes a Variable Frequency Drive (VFD) system, allowing users to adjust the spindle speed up to 3000 RPM. This provides flexibility for various materials and grinding requirements, ensuring precise results for different tasks.

Q: What safety features are included with the machine?

A: For operator protection, the machine includes wheel guards and spark arresters. These features minimize the risk of accidents and help manage debris and sparks generated during operation, making it safer for industrial environments.

Q: Where can this bench grinder be used most effectively?

A: This model is ideal for industrial workshops, heavy engineering sheds, and maintenance rooms, where heavy-duty and continuous grinding or deburring operations are required. Its robust design makes it well-suited for demanding professional applications.

Q: What kind of maintenance does the machine require?

A: Thanks to its four-bearing construction and durable cast iron body, the grinder requires minimal maintenance. Regular checks on bearings, wheel condition, and VFD operation will ensure long-term, reliable service.

Q: Is the grinder compatible with coolant systems?

A: This grinder is designed for dry grinding only; coolant systems are not included or required for standard operation. It excels in tasks where dry debris removal and finishing are needed.

Q: What are the key benefits of the four-bearing construction?

A: The four-bearing support provides enhanced durability, smoother running, and reduced noise levels. It also extends the machine's lifespan and minimizes downtime due to less frequent bearing replacements.
