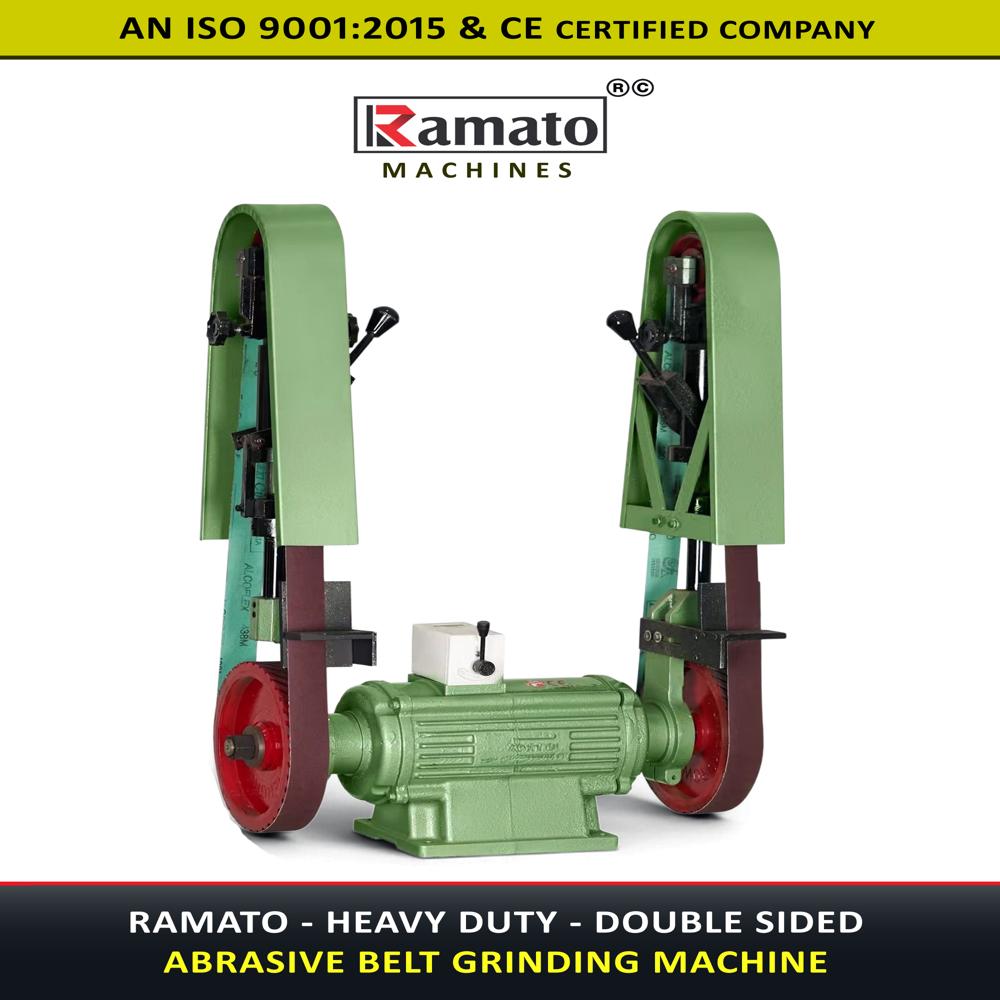

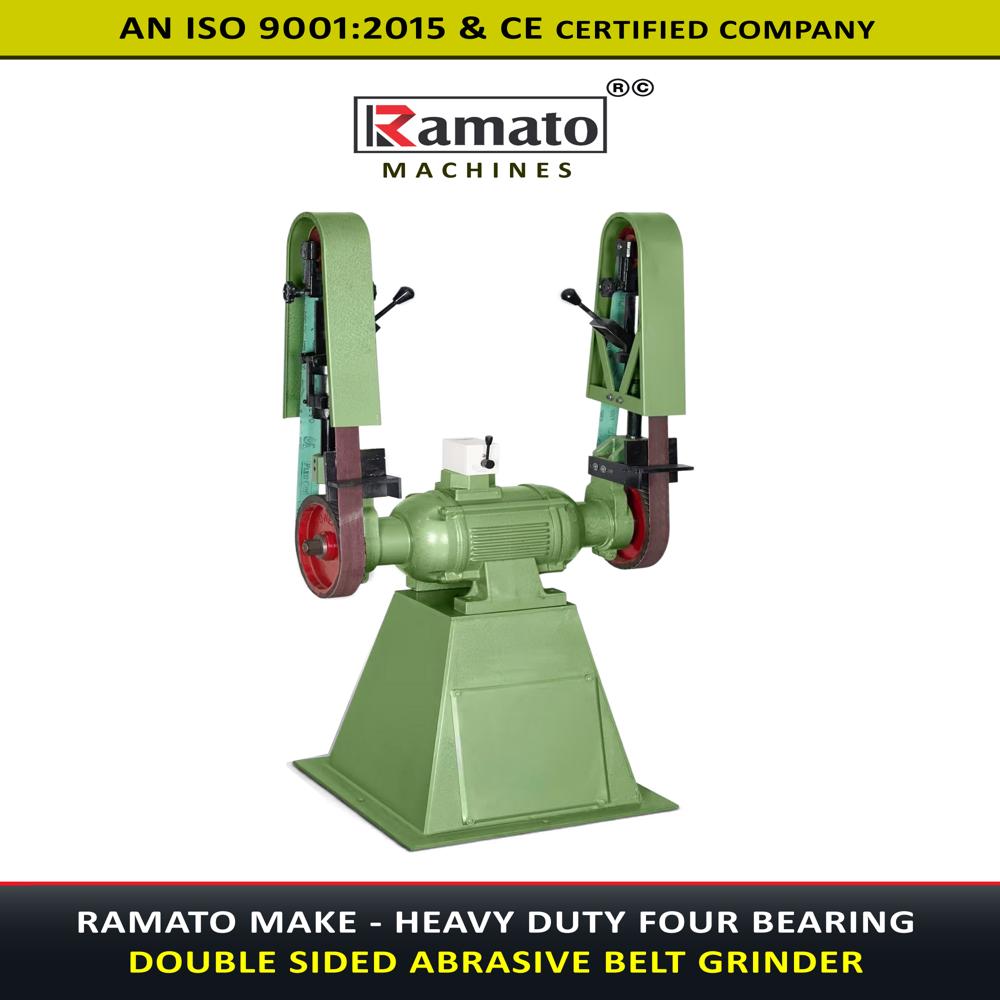

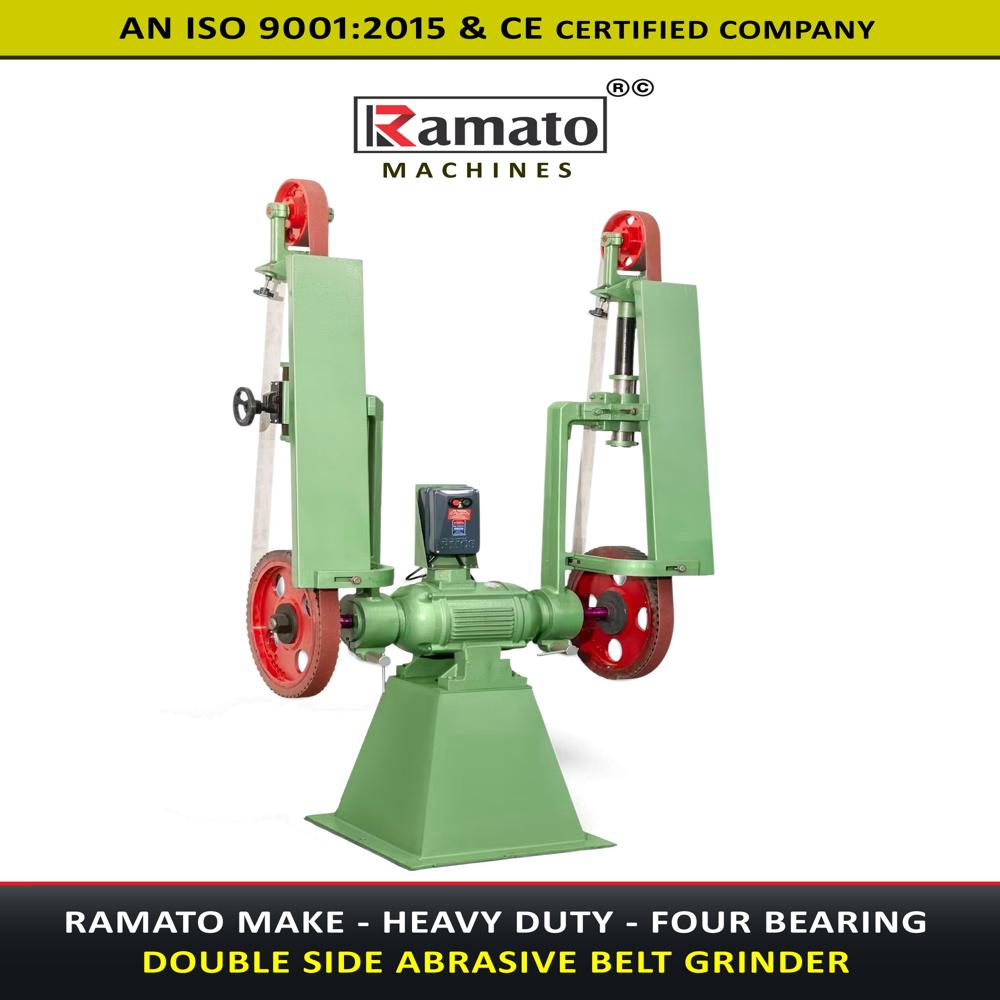

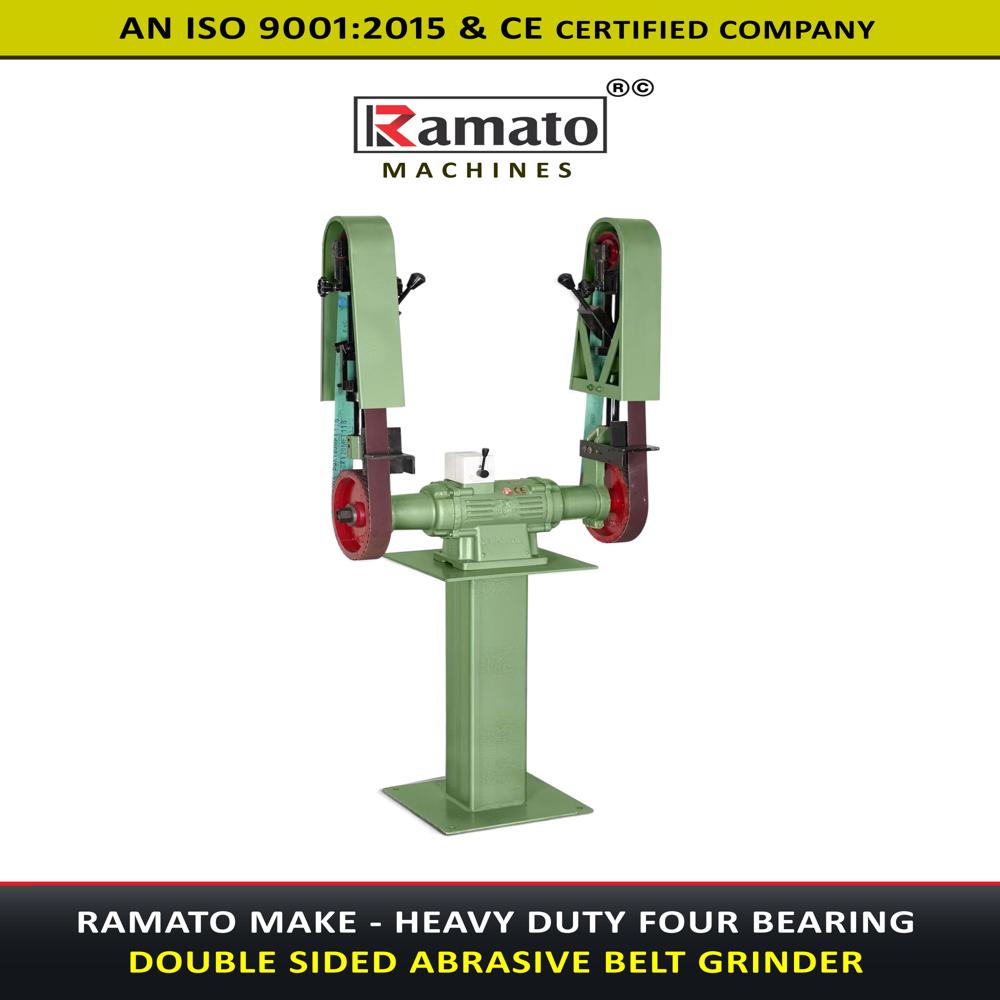

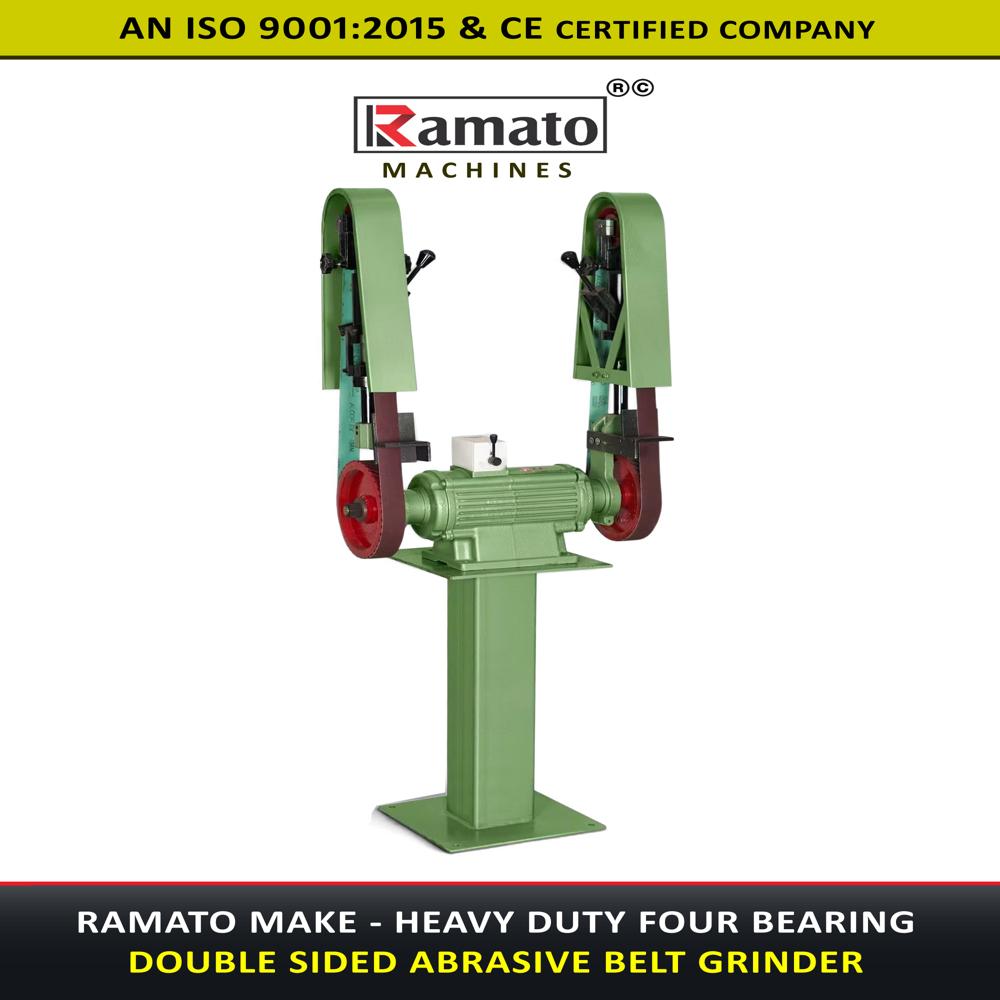

Heavy Duty Belt Grinding Machine

Name: Heavy Duty Belt Grinding Machine
Brand: Rajlaxmi Machine Tools
Price: 35000.0 INR
Availability: InStock

Price 35000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Heavy Duty Belt Grinding Machine Specification

Rotation
Unidirectional

Model
Ramato Heavy Duty

Product Type
Belt Grinder Cum Bench Grinder

General Use
Heavy Duty Belt Grinding and Bench Grinding Operations

Material
Cast Iron

Type
Heavy Duty

Capacity
Continuous Operation

Weight (kg)
Approx. 70 - 100 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual

Table Size
Compact Bench

Table Slide Way
Fixed

Grinding Wheel Size
8 inch (for Bench Grinder Side)

Grinding Wheel Speed
2800 RPM

Grinding Length
Standard - up to Belt Length

Floor Space
Approx. 24 x 12

Spindle Speed
2800 RPM

Power
2 HP

Voltage
415V / 230V

Dimension (L*W*H)
Approx. 650mm x 300mm x 900mm

Feature
ISO 9001:2015 & CE Certified, Sturdy Construction, Dual Functionality

Color
Green

Installation
Floor Mounted

Motor Type
Induction Motor

Belt Tensioning
Manual

Belt Size
50 mm x 2000 mm

Cooling System
None (Dry Operation)

Drive Type
Direct Drive

Switch Type
ON/OFF Toggle Switch

Working Speed
High Speed

Noise Level
Standard Industrial

Application
Metal, Steel, Fabrication Workshops, Tool Rooms

About Heavy Duty Belt Grinding Machine

Heavy Duty Belt Grinding Machine from Rajlaxmi Machine Tools, Rajkot, Gujarat. Explore Ramato, HMP & Roent industrial grinding solutions. Heavy Duty Belt Grinding Machine from Rajlaxmi Machine Tools, Rajkot, Gujarat. Explore Ramato, HMP & Roent industrial grinding solutions.

Dual Functionality for Versatility

Ramato's heavy-duty belt grinding machine offers both belt grinding and bench grinding in a single, compact unit. This dual function makes it ideal for smoothing, shaping, and deburring metal and steel quickly. Its design allows workshops to switch between grinding methods without the need for separate machines, saving space and resources.

Constructed for Continuous, Reliable Performance

With a sturdy cast iron body and a high-efficiency 2 HP induction motor, this model supports continuous usage in demanding environments. Its standard industrial noise level and unidirectional rotation ensure consistent operation, while manual belt tensioning and a fixed table slide way provide reliable precision and safety during extended jobs.

Certified Quality with User-Friendly Controls

This machine is ISO 9001:2015 and CE certified, promising assured quality and safety standards. The manual ON/OFF toggle switch and straightforward, non-computerized controls make it easy for operators of varying experience levels to function the machine with minimal setup, suited for both large-scale manufacturing and smaller workshops.

FAQ's of Heavy Duty Belt Grinding Machine:

Q: How does the belt tensioning work on the Ramato Heavy Duty Belt Grinding Machine?

A: The belt tensioning system on this machine is manual, allowing operators to easily adjust the belt for optimal pressure and tracking with a simple mechanism. This ensures both safety and precision during heavy-duty grinding tasks.

Q: What materials and applications is this machine designed for?

A: This model is engineered specifically for grinding applications in metal, steel, fabrication workshops, and tool rooms. Its robust construction and direct drive system make it suitable for tough industrial environments requiring continuous heavy-duty performance.

Q: When is this machine ideal for use in fabrication workshops?

A: It is best employed when consistent, high-speed grinding is required over long shifts, such as in large-scale fabrication, tool sharpening, deburring, and surface preparation. Its capacity for continuous operation ensures productivity without frequent breaks for maintenance.

Q: Where should the machine be installed for optimal performance and safety?

A: The machine is floor mounted and occupies approximately 24 x 12 inches of floor space. It should be installed in a well-ventilated, stable area within the workshop, away from flammable materials and with access to appropriate electrical supply-either 415V or 230V.

Q: What are the benefits of direct drive and induction motor in this grinder?

A: A direct drive system minimizes energy loss and ensures efficient power transfer, while the induction motor provides reliable, maintenance-free performance and consistent spindle speed (2800 RPM), essential for precise and uniform grinding results.

Q: How do I operate the switch and safety controls?

A: Operation is straightforward with a clearly labeled ON/OFF toggle switch for instant power control. As this is a manually controlled unit, operators should ensure the belt is properly tensioned and workpieces securely positioned before starting the machine.

Q: What advantages does the dual grinding functionality offer?

A: The dual functionality enables both belt and bench grinding in one compact machine, allowing operators to transition seamlessly between different grinding tasks. This versatility increases efficiency and workspace savings, which is ideal for busy workshops.
