Grinding and Deburring Machine

Get a Price/Quote

Grinding and Deburring Machine Specification

Rotation
Clockwise and Anticlockwise

Model

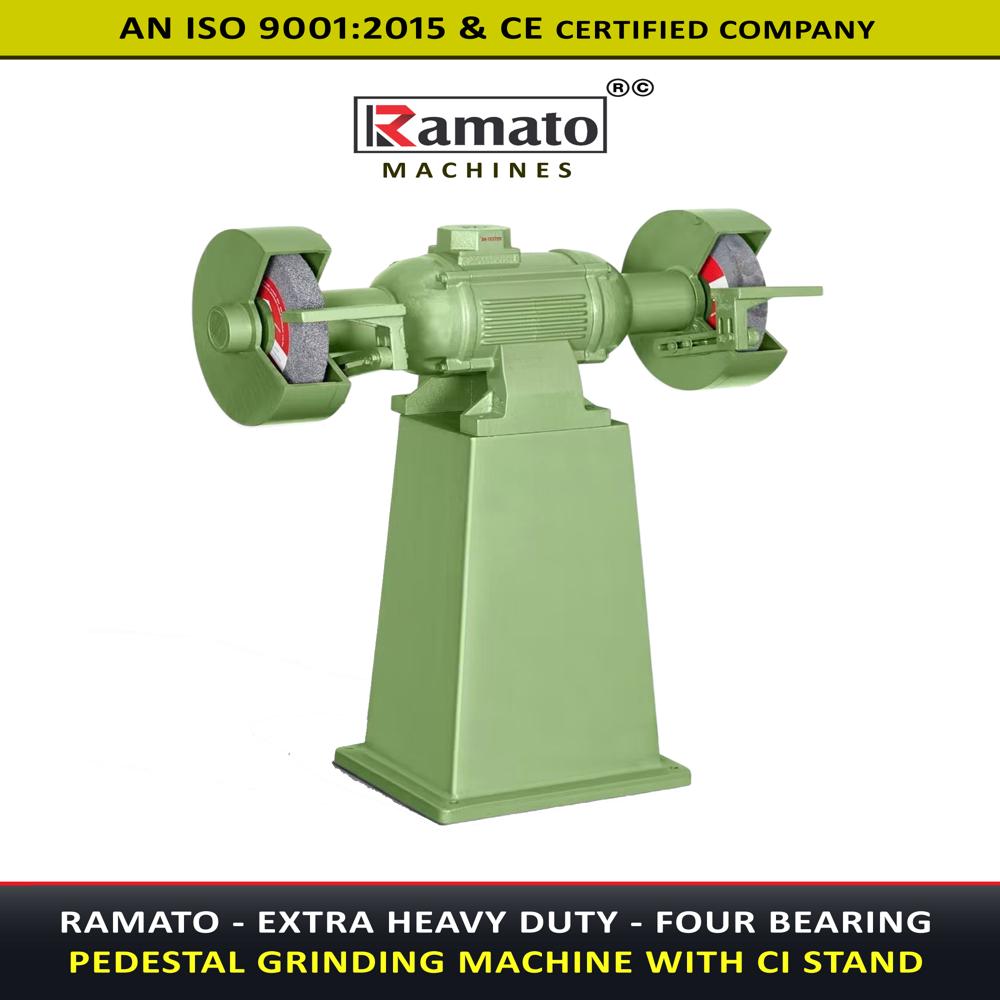

Ramato Extra Heavy Duty Pedestal Grinder

Product Type
Pedestal Grinding and Deburring Machine

General Use
Grinding and Deburring Operations

Material
Cast Iron body, Steel parts

Type
Pedestal Grinder with CI Stand

Capacity
Extra Heavy Duty

Weight (kg)
Approx. 110 to 150 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual

Grinding Wheel Size
Typically 200mm to 350mm (standard sizes for pedestal grinders)

Grinding Wheel Speed
2800 RPM (typical for heavy duty pedestal grinder)

Floor Space
Depends on configuration; approx. 600 x 400 mm

Spindle Speed
2800 RPM

Power
2 HP (can vary depending on model)

Voltage
415V / 3 Phase

Dimension (L*W*H)
Approx. 600 x 400 x 900 mm

Feature
Four Bearing, Extra Heavy Duty, High Durability, Stability

Color
Green (as shown)

Power Source
Electric

Guard Type
Adjustable Safety Guard Provided

Bearing Type
Four Heavy-Duty Bearings

Application
Suitable for Heavy Grinding and Deburring Jobs in Workshops, Foundries, and Manufacturing Units

Stand Type
Cast Iron (CI) Stand

Motor Protection
Totally Enclosed Fan Cooled (TEFC)

Working Speed
2800 RPM

Grinding Wheel Material
Aluminium Oxide / Silicon Carbide (as per order)

About Grinding and Deburring Machine

Grinding and Deburring Machine manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent industrial machines for metal grinding, deburring and surface finishing.

Precision and Power for Heavy Duty Tasks

Designed for demanding industrial operations, the Ramato Extra Heavy Duty Pedestal Grinder delivers consistent performance with a high spindle speed of 2800 RPM. The four heavy-duty bearings and cast iron construction contribute to its remarkable stability and durability, making it suitable for extended operational hours in challenging environments. This grinder offers flexibility in wheel material and size to cater to diverse grinding and deburring needs.

Safety and Stability at the Forefront

Operator safety is ensured by the grinder's adjustable safety guard and its totally enclosed fan cooled (TEFC) motor, protecting both users and internal components. The solid CI stand anchors the machine securely, while the robust build supports heavy workpieces commonly found in workshops and manufacturing units. Maintenance is hassle-free due to its simple, manual control system.

FAQ's of Grinding and Deburring Machine:

Q: How does the Ramato Extra Heavy Duty Pedestal Grinder improve grinding and deburring efficiency?

A: Its powerful 2 HP motor, high spindle speed of 2800 RPM, and four heavy-duty bearings ensure efficient, vibration-free performance, making it ideal for grinding and deburring large or tough materials faster and more accurately.

Q: What types of grinding wheels are compatible with this grinder?

A: You can fit the grinder with aluminium oxide or silicon carbide wheels, depending on your specific requirements. Wheel diameters typically range from 200mm to 350mm, making it versatile for various applications.

Q: When is it most appropriate to use this machine in a workshop setting?

A: The grinder excels during heavy-duty material removal, deburring, or shaping processes on metal parts, particularly in workshops, foundries, or manufacturing units where reliability and robust construction are essential.

Q: What safety features does the pedestal grinder offer?

A: It comes with an adjustable safety guard to protect operators from debris and accidental contact, along with a Totally Enclosed Fan Cooled (TEFC) motor for safeguarding internal parts from dust and damage.

Q: Where should this machine ideally be installed for optimal performance?

A: The grinder should be installed on a solid, level floor with sufficient clearance (approx. 600 x 400 mm floor space recommended) to allow easy access and safe operation in an industrial or workshop setting.

Q: What are the key benefits of the extra heavy-duty design and four-bearing system?

A: The extra heavy-duty framework and four heavy-duty bearings enhance durability, reduce vibration, and ensure consistent alignment, leading to smoother grinding operations and longer machine life.

Q: How is the grinding process controlled on this machine?

A: All operations are managed manually, giving users hands-on control for precise grinding or deburring. The machine is not CNC or computerized, making it straightforward and easy to operate.
