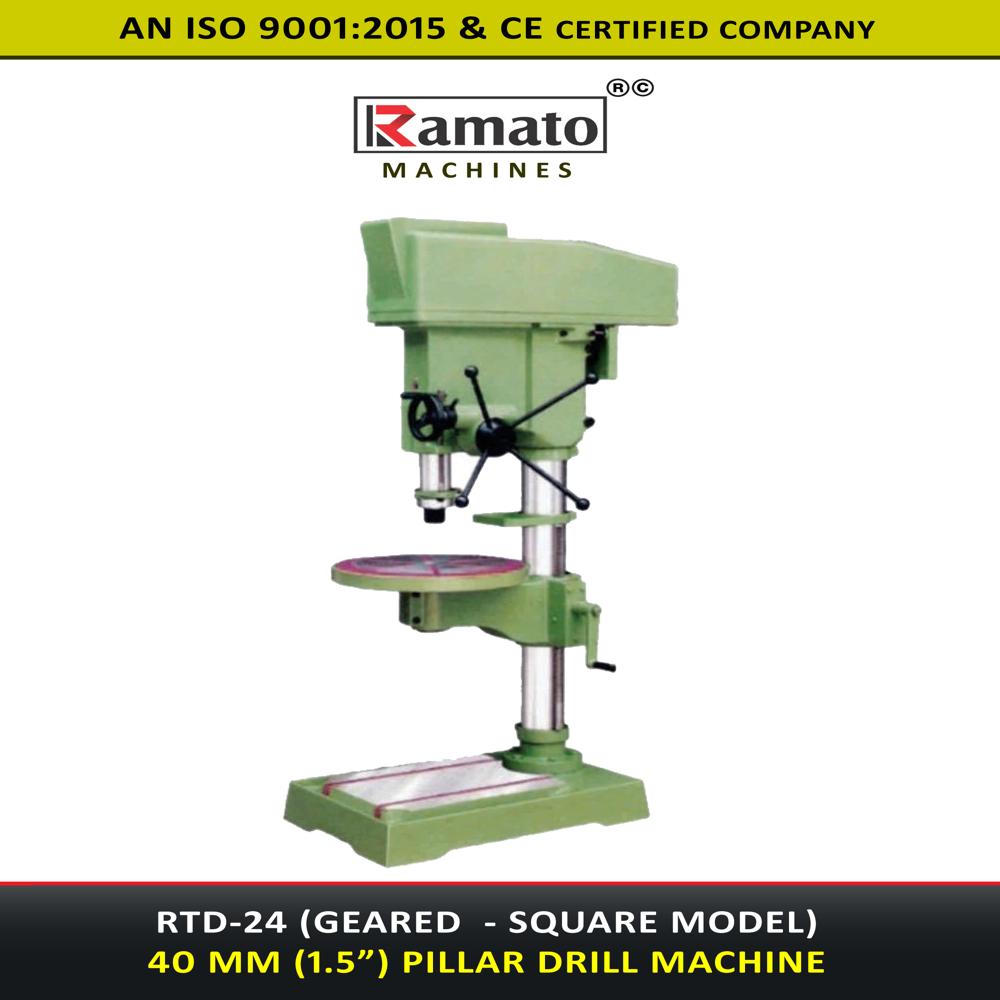

Floor Mounted Drilling Machine
Floor Mounted Drilling Machine
Floor Mounted Drilling Machine
Floor Mounted Drilling Machine
Floor Mounted Drilling Machine
Floor Mounted Drilling Machine
Floor Mounted Drilling Machine
Floor Mounted Drilling Machine
Floor Mounted Drilling Machine
Floor Mounted Drilling Machine
Floor Mounted Drilling Machine
Floor Mounted Drilling Machine

Floor Mounted Drilling Machine

Price 23000.0 INR/ Unit

MOQ : 1 Unit

Floor Mounted Drilling Machine Specification

  • Diameter
  • 40 mm (Maximum Drilling Diameter)
  • Machine Type
  • Pillar Drill (Geared - Round Model)
  • Dimension (L*W*H)
  • 1000 x 600 x 1800 mm
  • Condition
  • New
  • Table Size
  • 400 mm Diameter (Round Table)
  • Features
  • Heavy Duty Construction, Smooth Operation, Height Adjustable Table, Geared Drive Mechanism
  • Motor Power
  • 1.5 HP to 2 HP
  • Cutting Area
  • Up to 40 mm Diameter
  • Noise Level
  • Low
  • Frequency
  • 50 Hz
  • Spindle Speed
  • 125 to 3000 RPM (Variable/Multiple Steps)
  • Product Type
  • Floor Mounted Drilling Machine
  • Material
  • Cast Iron Body with Steel Components
  • Computerized
  • No
  • Automatic Grade
  • Semi-Automatic
  • CNC Or Not
  • Not CNC
  • Control System
  • Manual Lever Mechanism
  • Voltage
  • 415 V
  • Power
  • 1.5 HP to 2 HP
  • Power Source
  • Electric
  • Weight (kg)
  • Approx. 250 kg
  • Capacity
  • 40 mm (1.5) Drilling Capacity
  • Color
  • Green
  • Usage & Applications
  • Industrial Drilling, Precision Metalworking, Fabrication Workshops
  • Number of Speeds
  • 8/12 (Depending on Model)
  • Spindle Travel
  • 200 mm
  • Base Size
  • 600 x 400 mm
  • Spindle Taper
  • MT-4
  • Distance from Spindle to Platform
  • 700 mm
  • Coolant System
  • Optional
  • Pillar Diameter
  • 100 mm
  • Chuck Size
  • 20 mm
  • Column Height
  • 1700 mm
  • Distance from Spindle to Base
  • 1100 mm
  • V-Belt Type
  • B Type for Strong Power Transmission
  • Installation Type
  • Floor Mounted



About Floor Mounted Drilling Machine

Floor Mounted Drilling Machine manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent industrial floor-mounted drills for metal drilling, fabrication and engineering.

Heavy Duty Construction for Industrial Precision

Built with a cast iron body and steel components, this pillar drill ensures durability and accurate results, even under continuous industrial use. The geared drive mechanism allows for smooth operation and precise drilling, meeting the demands of fabrication workshops and metalworking applications.


Variable Speed Control for Versatile Usage

With spindle speeds ranging from 125 to 3000 RPM across 8 or 12 steps (depending on the model), operators can adjust settings to match various materials and drilling requirements. The powerful motor (1.5 HP to 2 HP) and strong V-belt drive support efficient, reliable performance in different usage scenarios.


Flexible Design and Easy Installation

This floor mounted machine offers a spacious base size (600 x 400 mm) and a column height of 1700 mm. The height adjustable table and manual lever control ensure adaptability for different workpiece sizes and easy handling during operation. Installation is straightforward for any industrial workshop.

FAQ's of Floor Mounted Drilling Machine:


Q: How is the machine installed and what type of power supply does it require?

A: The drilling machine is designed for floor mounting and requires a standard electric power supply of 415 V, 50 Hz. Proper installation involves anchoring the machine to a leveled workshop floor to ensure stability during operation.

Q: What is the maximum diameter this pillar drill can handle and which materials can it process effectively?

A: The maximum drilling capacity is 40 mm diameter. It is highly efficient for precision drilling in various metals, making it ideal for fabrication, metalworking, and industrial tasks.

Q: When should operators use the optional coolant system and what are its benefits?

A: The optional coolant system is recommended for extended drilling tasks or when working with tough materials. It helps reduce heat buildup, prolongs tool life, and enhances overall drilling accuracy.

Q: Where is this machine best suited in terms of application and workspace?

A: It is best suited for industrial workshops, fabrication units, and sites requiring precision metal drilling. Its heavy duty construction and adjustable features make it ideal for professional environments needing reliable performance.

Q: What process is used to adjust drilling speed and how does it improve productivity?

A: Speed adjustment is achieved through a geared mechanism and manual lever control, allowing operators to select from 8 or 12 available speeds. This flexibility optimizes performance for different materials and drilling depths, resulting in improved productivity and precision.

Q: How does the height adjustable table benefit the operator during drilling?

A: The height adjustable round table facilitates ergonomic positioning of workpieces and accommodates various sizes, increasing operator comfort and enabling accurate drilling of both small and large materials.
