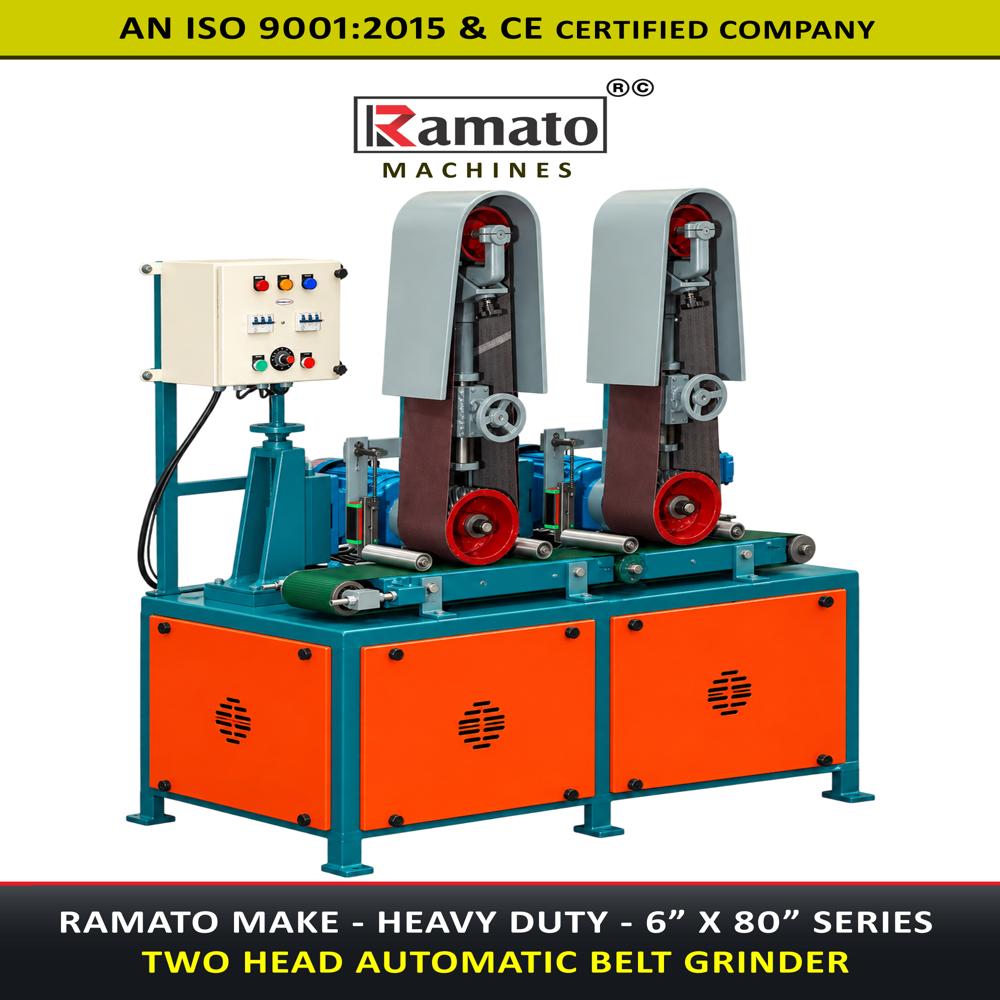

Double Head Belt Grinder Machine

Get a Price/Quote

Double Head Belt Grinder Machine Specification

Model
Portable 6 x 80 Series

Rotation
Clockwise (CW) & Counter-Clockwise (CCW)

Product Type
Double Head Belt Grinder Machine

General Use
Industrial Grinding and Finishing Operations

Material
Mild Steel Construction

Type
Portable Series

Capacity
Continuous Operation for Heavy-Duty Jobs

Weight (kg)
Approx. 550 kg

Computerized
No

Automatic
Semi-Automatic

CNC Or Not
Not CNC

Control System
Electric Panel with Push Button & Rotary Switch

Table Size
Custom/Standard 6 x 80

Table Slide Way
Manual Adjustment

Grinding Wheel Size
Not Applicable (Belt Size used)

Grinding Wheel Speed
Variable (as per belt speed)

Grinding Length
Up to 80 inch belt length

Floor Space
Approx. 1400 mm x 700 mm

Spindle Speed
2800 RPM

Power
3 HP (per head) Electric Motor

Voltage
415V, 50Hz, 3 Phase

Dimension (L*W*H)
Approx. 1400 mm x 700 mm x 1200 mm

Feature
Two Belt Heads, High Productivity, Easy Operation

Color
Green & Orange

No. of Heads
2

Noise Level
Low

Belt Size
6 inch x 80 inch

Control Cabinet
Integrated Control Panel

Installation
Floor Mounted

Maintenance
Low Maintenance Design

Safety Features
Safety Cover/Guard, Emergency Stop

Working Speed
Up to 20 m/s (Belt velocity)

Drive
Belt Drive with Pulley

Application
Steel, Stainless Steel, and Alloy Grinding

About Double Head Belt Grinder Machine

Double Head Belt Grinder Machine manufacturer in Rajkot, Gujarat, India. Rajlaxmi Machine Tools offers Ramato, HMP & Roent machines for metal grinding, deburring, edge rounding and finishing.

Dual-Head Productivity

Equipped with two independent grinding heads, this belt grinder allows simultaneous or sequential operation for faster throughput. Each head is powered by a dedicated 3 HP motor, ensuring consistent performance during demanding industrial tasks. Operators can set belts to either clockwise or counter-clockwise rotation, providing versatility for different workpiece orientations and finish requirements.

Versatile Applications

Designed to handle steel, stainless steel, and alloy materials, the Portable 6 x 80 Series excels in a variety of grinding, deburring, and finishing tasks. With its manual adjustable table and standard/custom table size, it suits both standard and specialized industrial jobs. Its efficient belt drive provides stable, adjustable speeds for optimal results across application needs.

User-Friendly and Safe Operation

The integrated electric control panel offers intuitive push-button and rotary switch operation, making it accessible to both new and experienced users. Important safety features like emergency stop, guard cover, and low-noise operation protect operators and create a comfortable work environment. The low-maintenance design reduces downtime, ensuring higher productivity and reliability for heavy-duty, continuous use.

FAQ's of Double Head Belt Grinder Machine:

Q: How does the double head feature enhance grinding efficiency?

A: The double head configuration allows for simultaneous or alternating use of two grinding belts, significantly increasing productivity and reducing the time required to process multiple workpieces or complete multi-stage grinding operations.

Q: What types of materials can be processed with this belt grinder machine?

A: This grinder is engineered for grinding, deburring, and polishing steel, stainless steel, and alloy materials, making it highly suitable for metal fabrication, finishing, and repair applications across industrial sectors.

Q: When should I use the manual table slide adjustment?

A: Use the manual table slide adjustment when you need to change the position or angle of the workpiece relative to the grinding belt for various finishing requirements or precision alignment during intricate grinding work.

Q: Where should the Double Head Belt Grinder be installed for optimal use?

A: For best performance, install the machine on a level shop floor with ample surrounding space (approx. 1400 mm x 700 mm) for safe operation and easy material handling. The floor-mounted design ensures stability during heavy-duty jobs.

Q: What is the maintenance process for this grinder machine?

A: Routine maintenance primarily involves checking and replacing belts, inspecting the drive system, cleaning safety covers, and verifying the functionality of the emergency stop and control panel. Its low-maintenance design minimizes service needs and operational downtime.

Q: How do the safety features protect operators during use?

A: The machine is equipped with a belt cover/guard to contain debris, an emergency stop button for immediate shutdown, and an easy-to-use control cabinet, all of which help minimize accident risk and ensure a safe working environment.

Q: What are the benefits of choosing a semi-automatic, non-CNC, portable belt grinder?

A: This configuration offers a balance of operational convenience, flexibility, and robust performance without the complexity of CNC systems. The portable design supports flexibility in plant layout, and the semi-automatic operation enables efficient handling of both standard and custom jobs.
