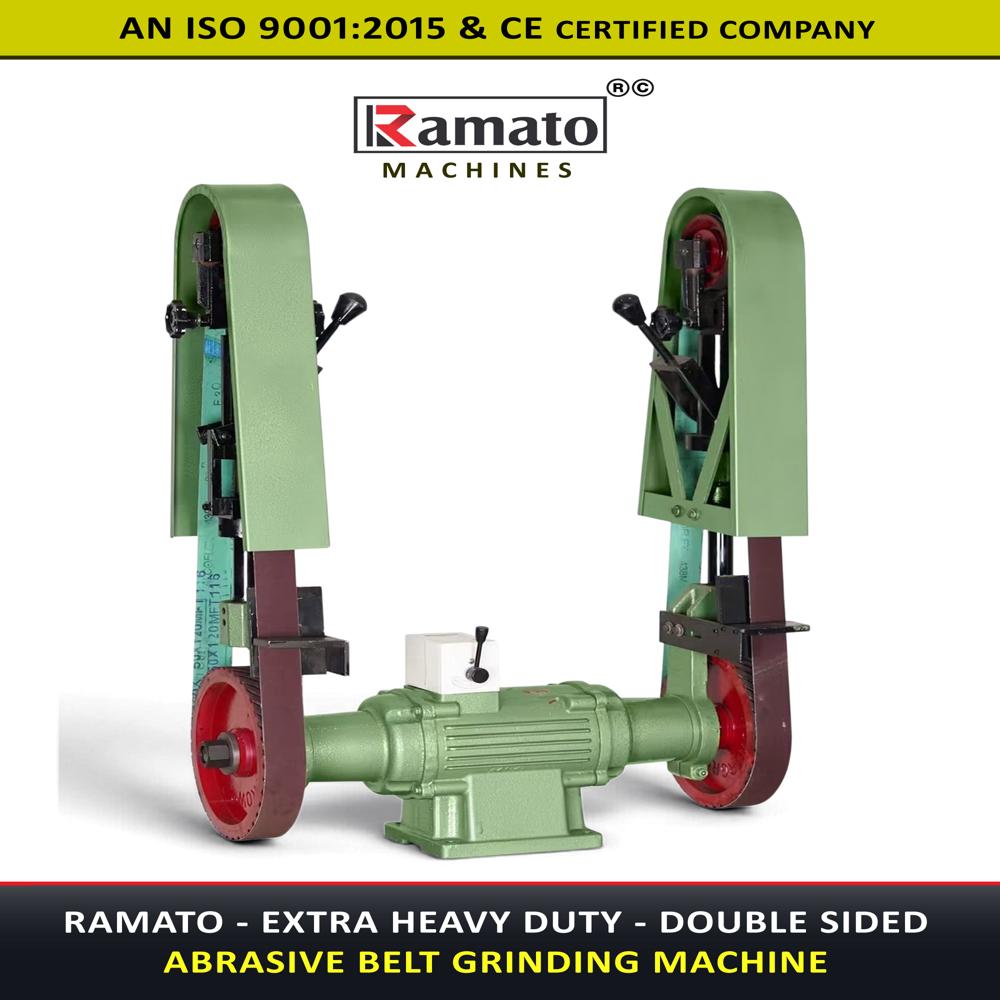

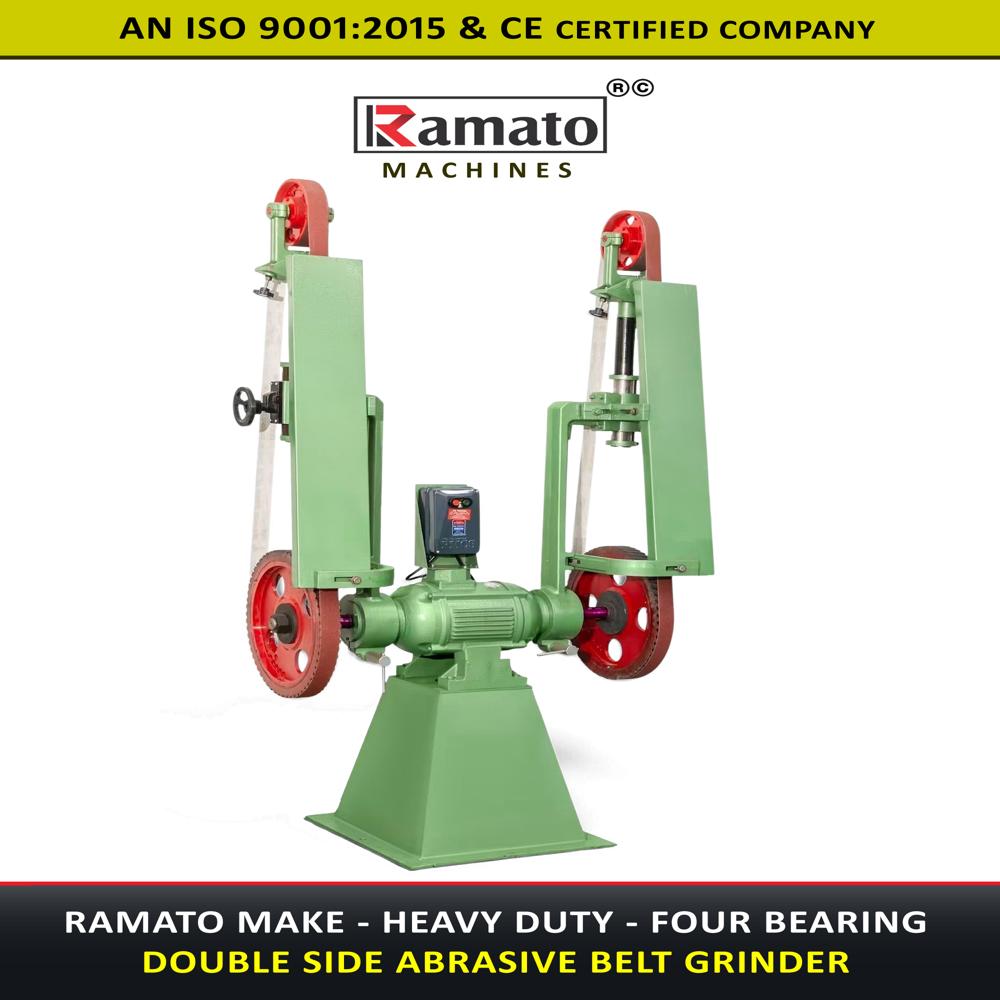

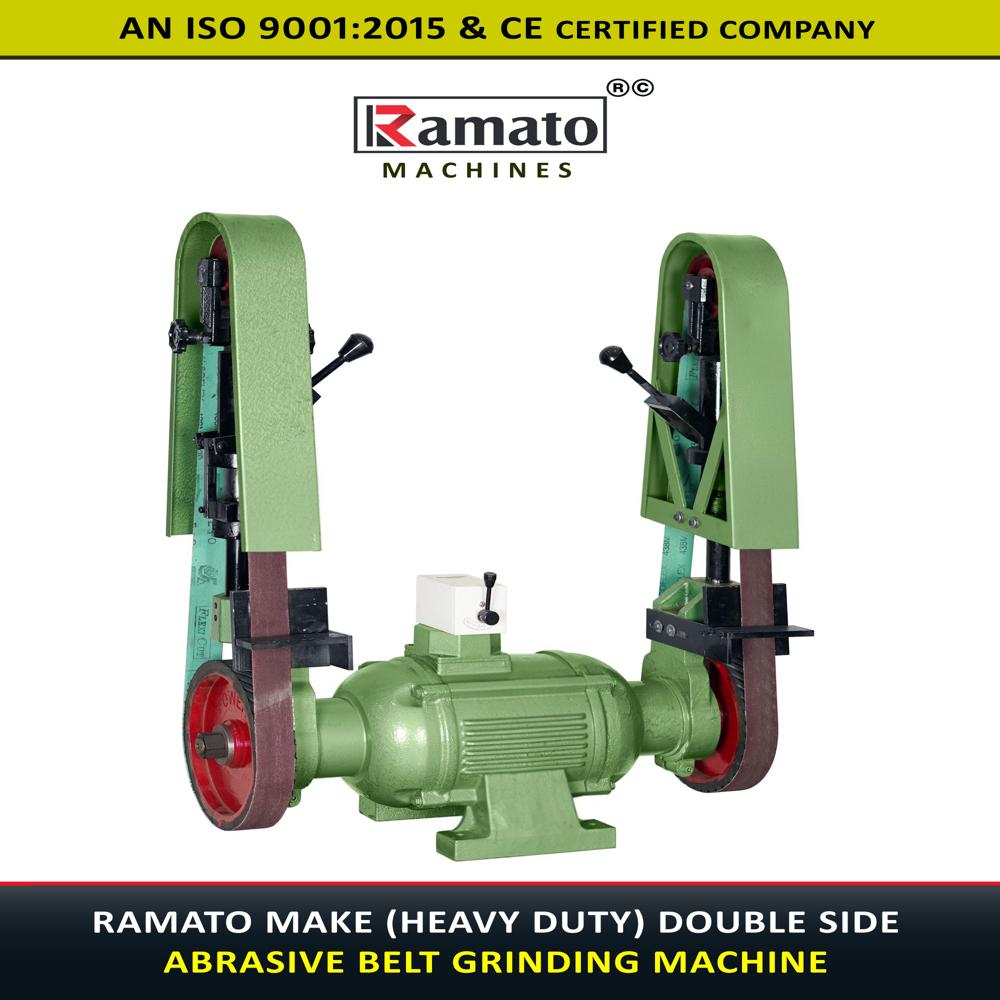

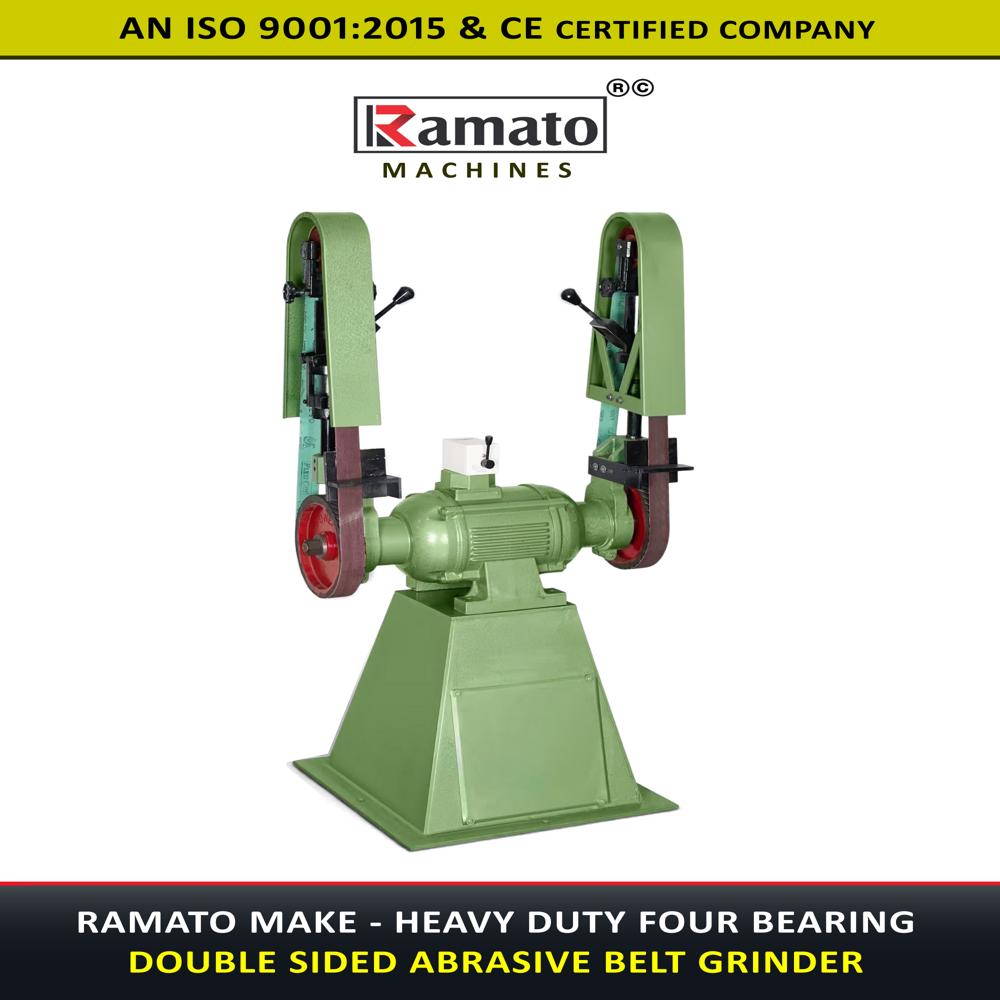

Double End Belt Grinder Machine

Get a Price/Quote

Double End Belt Grinder Machine Specification

Model
Double End Belt Grinder

Rotation
Belt wheels rotate bi-directionally

Product Type
Abrasive Belt Grinder Machine

General Use
Heavy duty double end abrasive belt grinding for metal finishing and deburring

Material
Mild Steel (Body & frame)

Type
Double Ended Belt Grinder

Capacity
Heavy duty continuous operation

Weight (kg)
Approx. 150-200 kg depending on model

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual operation

Grinding Wheel Size
N/A (uses abrasive belt instead of wheel)

Grinding Wheel Speed
2850 RPM or as per motor specification

Grinding Length
Depends on belt size; generally up to 1000 mm

Floor Space
Approx. 700 mm x 350 mm x 1100 mm (L x W x H)

Spindle Speed
2850 RPM

Power
2 - 3 HP (standard)

Voltage
415V, 3 phase, 50 Hz

Dimension (L*W*H)
700 mm x 350 mm x 1100 mm

Feature
Double side grinding, heavy duty frame, efficient dust removal provision

Color
Green (customizable)

Application
Machining, fabrication, foundry, automotive, toolroom grinding

Abrasive Compatibility
Suitable for standard abrasive belts (emery, zirconia, ceramic etc.)

Suitable Belt Size
50 mm x 2000 mm / 75 mm x 2000 mm or as specified

Working Speed
2850 RPM

Dust Collection
Provision for attachment of dust extraction unit

Mounting Type
Floor/Pedestal

Main Drive
Electric induction motor

Noise Level
Within industrial safety norms

Safety Features
Protective belt guard housing, emergency stop switch

About Double End Belt Grinder Machine

Double End Belt Grinder Machine manufacturer in Rajkot, Gujarat, India. Rajlaxmi Machine Tools offers Ramato, HMP & Roent machines for industrial metal grinding, deburring and finishing.

Versatile Belt Compatibility

This machine supports a range of standard abrasive belts, including emery, zirconia, and ceramic, allowing adaptation to various metal finishing requirements and ensuring optimal results across different applications.

Robust and Safe Design

Engineered for heavy-duty continuous operation, the grinder features a solid mild steel body, protective guard housing, emergency stop switch, and provisions for dust extraction. These attributes provide both operational durability and workplace safety.

Efficient Metal Finishing

The high-speed double-end grinding feature enables simultaneous processing on both sides, improving productivity in machining, fabrication, automotive, and foundry environments. The bi-directional belt wheel rotation broadens flexibility for different grinding processes.

FAQ's of Double End Belt Grinder Machine:

Q: How is the Double End Belt Grinder Machine operated?

A: The Double End Belt Grinder Machine is manually operated. Operators control grinding operations using accessible switches and safety features, ensuring comprehensive oversight and flexibility during usage.

Q: What types of abrasive belts are compatible with this grinder?

A: The machine accommodates standard abrasive belts made of emery, zirconia, ceramic, and similar materials, with recommended belt sizes of 50 mm x 2000 mm or 75 mm x 2000 mm and customized sizes if specified.

Q: When should the abrasive belts be replaced?

A: Abrasive belts should be replaced once noticeable wear, reduced grinding efficiency, or material embedded in the belt occurs. Regular inspection is recommended to maintain consistent performance and safety.

Q: Where is this grinder typically installed?

A: The grinder is ideally installed on a stable floor or pedestal in workshops, fabrication shops, foundries, toolrooms, and automotive service areas where heavy-duty metal finishing or deburring is required.

Q: What is the benefit of double-end grinding on this machine?

A: Double-end grinding increases productivity by enabling simultaneous work on both ends, minimizing downtime, and allowing operators to handle varying materials or grit grades without frequent machine adjustments.

Q: How is dust managed during grinding operations?

A: The machine is designed with provisions for connecting a dust extraction unit, ensuring efficient removal of grinding dust and improving air quality in the work area while maintaining compliance with safety standards.

Q: What safety features are included with this grinder?

A: Built-in safety features include a durable belt guard housing to contain debris, an emergency stop switch for immediate shutdown, and noise levels designed to remain within industrial safety norms.
