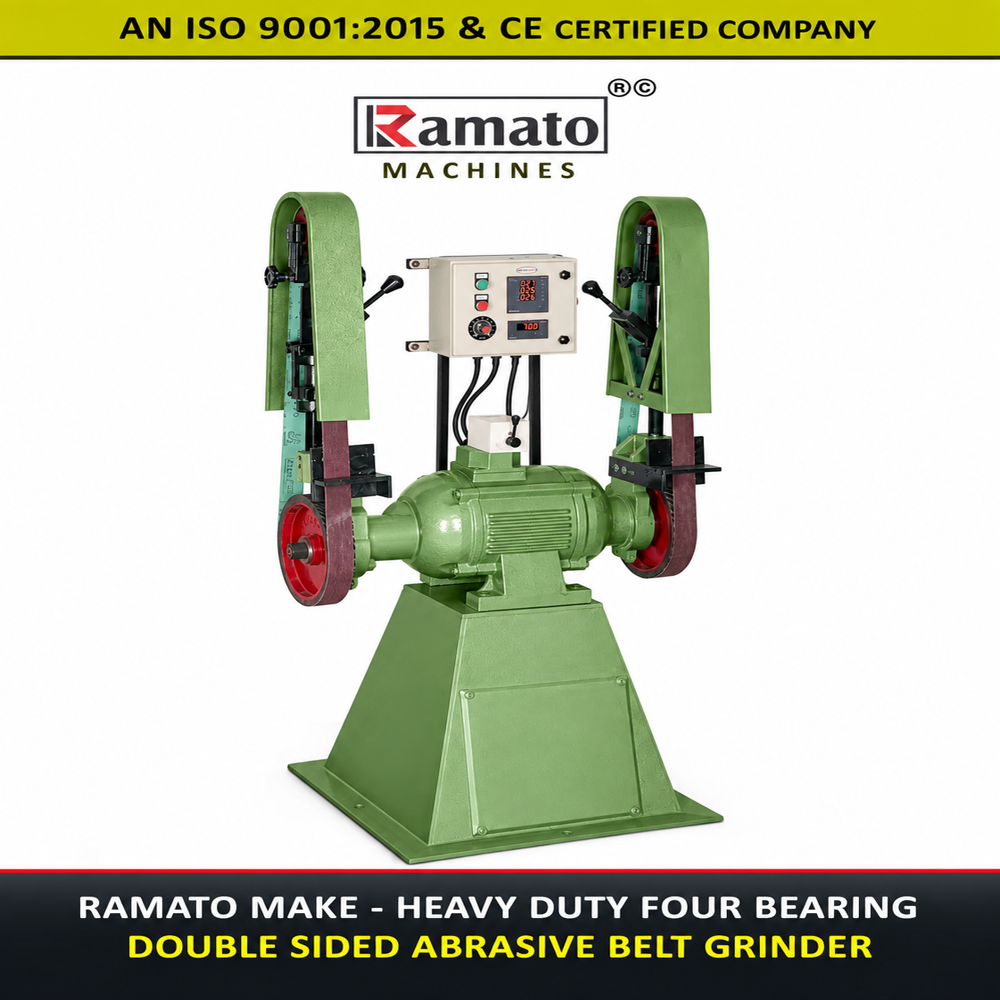

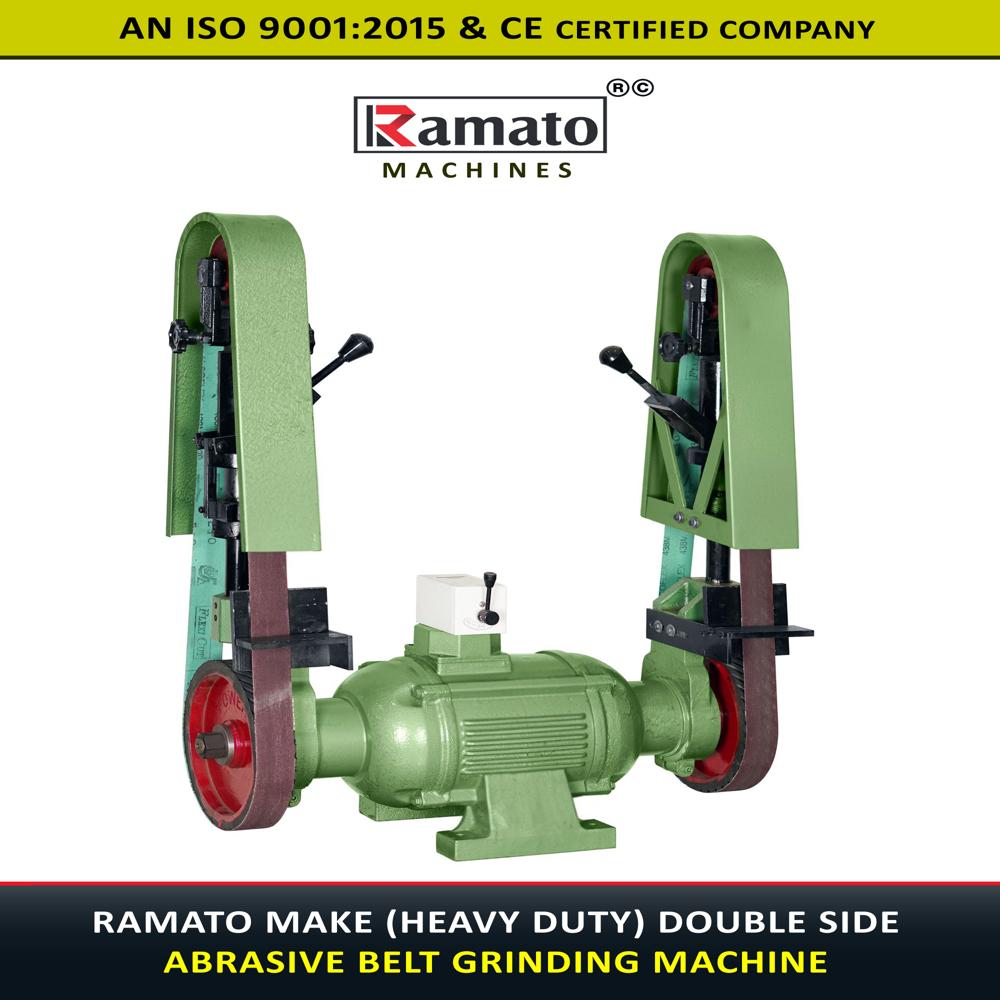

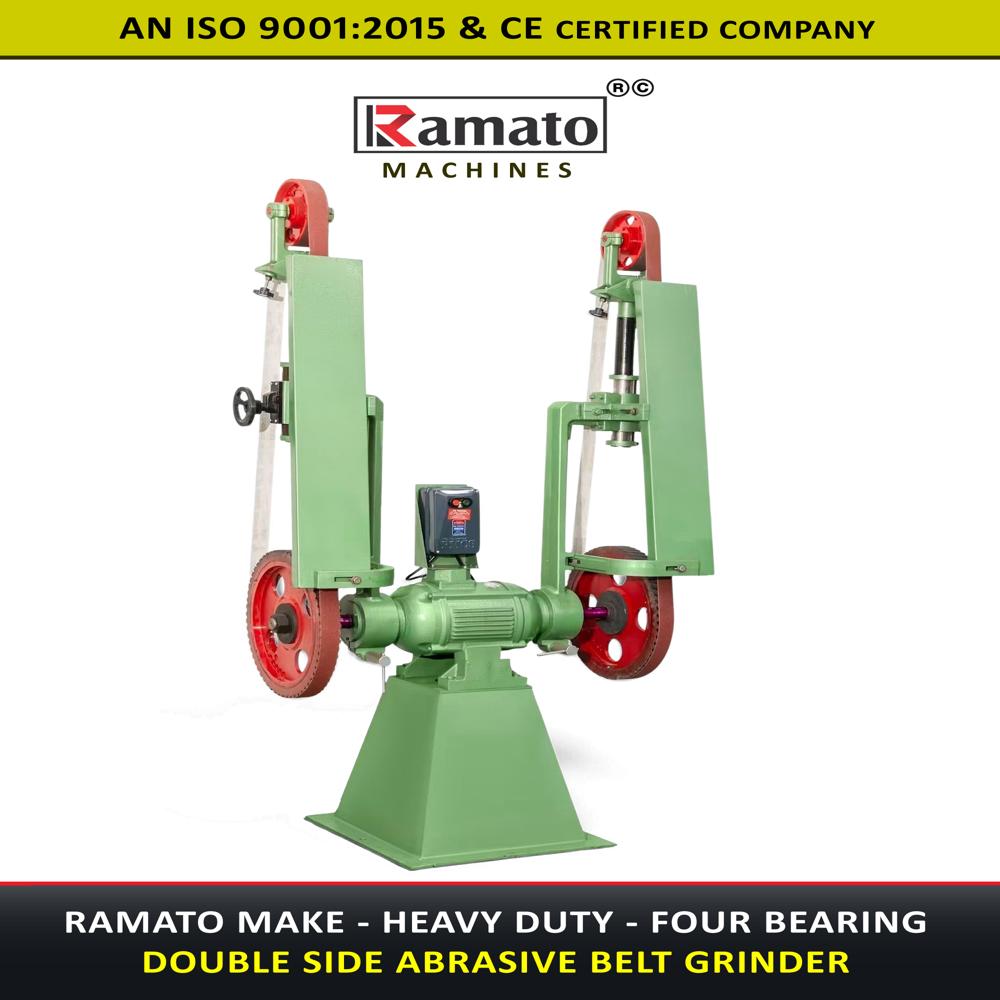

7.5 HP Belt Grinder Machine

Get a Price/Quote

7.5 HP Belt Grinder Machine Specification

Model
Belt Grinder 7.5 HP

Rotation
Standard Motor Rotation

Product Type
Double Side Abrasive Belt Grinder

General Use
Heavy Duty Abrasive Belt Grinding in Metalworking Workshops

Material
Cast Iron & Steel

Type
Heavy Duty Belt Grinder

Capacity
High-Suitable for continuous industrial usage

Weight (kg)
Approx. 350 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Electric Control Panel with On/Off and Safety Controls

Grinding Wheel Size
Abrasive Belt

Grinding Wheel Speed
Variable, Set by Drive System

Grinding Length
As per Belt Length

Floor Space
Approx. 900 mm x 700 mm

Spindle Speed
Adjustable via Panel

Power
7.5 HP

Voltage
415 V (Three Phase)

Dimension (L*W*H)
1020 mm x 690 mm x 1500 mm (Approx.)

Feature
Double Side, Four Bearing, Heavy Duty, ISO & CE Certified

Color
Green with Red Pulleys

Working Speed
Variable

Suitable Materials
Steel, Stainless Steel, Aluminum, Cast Iron, Brass, and More

Phase
Three Phase Electric Motor

Safety Features
Electrical Panel with Emergency Stop

Belt Size
Customizable - Standard 2000 mm Length x 50 mm Width

Abrasive Type
Compatible with Zirconia, Aluminum Oxide, and Ceramic Belts

Number of Bearings
Four Bearing System for Stability and Longevity

Mounting Type
Floor Mounted

Motor Brand
Ramato/Eq. ISI Approved

Cooling System
Closed Bearings (No Coolant Required)

Manufacturing Brand
Ramato Machines

Noise Level
Within Industrial Norms

About 7.5 HP Belt Grinder Machine

7.5 HP Belt Grinder Machine manufacturer in India. Rajlaxmi Machine Tools, Rajkot, Gujarat offers Ramato, HMP & Roent heavy-duty belt grinding machines for metal fabrication and finishing.

Engineered for Industrial Excellence

Built for heavy-duty tasks, the 7.5 HP Belt Grinder Machine delivers consistent, reliable performance in metalworking workshops. Featuring a sturdy cast iron and steel construction and a high-capacity Ramato motor, it is designed to withstand rigorous, uninterrupted use. Compatibility with various abrasive belts and materials widens its versatility for diverse grinding requirements.

Advanced Safety and Stability Features

Equipped with an electrical control panel and emergency stop system, the grinder prioritizes operator safety. Its four-bearing setup ensures smooth spindle operation and longevity. Enclosed bearings remove the need for external cooling, retaining low maintenance and enhanced noise control within industrial standards.

FAQ's of 7.5 HP Belt Grinder Machine:

Q: How does the four bearing system contribute to the grinder's performance?

A: The machine utilizes a four bearing system, which ensures greater stability during operation, reduces vibration, and enhances the longevity of both the grinder and its moving components. This setup is ideal for continuous industrial use, maintaining smooth belt movement for precise grinding.

Q: What materials can be processed using this belt grinder?

A: The grinder is suitable for a wide range of materials such as steel, stainless steel, aluminum, cast iron, brass, and more. Its compatibility with different abrasive belts-including zirconia, aluminum oxide, and ceramic-makes it highly versatile for various metalworking applications.

Q: When should I use the emergency stop feature?

A: The emergency stop button, located on the electrical control panel, should be pressed immediately in any hazardous or emergency situation to halt all operations instantly and prevent accidents or equipment damage. Routine checks of this safety feature are recommended for safe usage.

Q: Where should this machine be installed in the workshop?

A: This belt grinder is designed for floor mounting, requiring a floor space of approximately 900 mm x 700 mm. Ensure the installation area is level, stable, and spacious enough to accommodate the machine's dimensions (1020 mm x 690 mm x 1500 mm) and allows for safe operation and maintenance access.

Q: What is the process for adjusting the working speed and spindle speed?

A: The machine's working and spindle speeds are adjustable via the electric control panel. Users can fine-tune the speed to match the specific belt and material requirements, ensuring optimal grinding results for different metalworking tasks.

Q: How does the closed bearing cooling system benefit the user?

A: The closed bearing design eliminates the need for external coolant systems, simplifying maintenance and reducing potential mess or contamination in the workspace. This feature also prolongs bearing life and ensures consistent performance.

Q: What are the benefits of using a three-phase Ramato motor in this machine?

A: A three-phase Ramato or equivalent ISI approved motor provides robust power (7.5 HP), ensuring reliable and steady operation even under heavy loads. This translates to high grinding capacity, efficiency, and suitability for continuous industrial applications.
