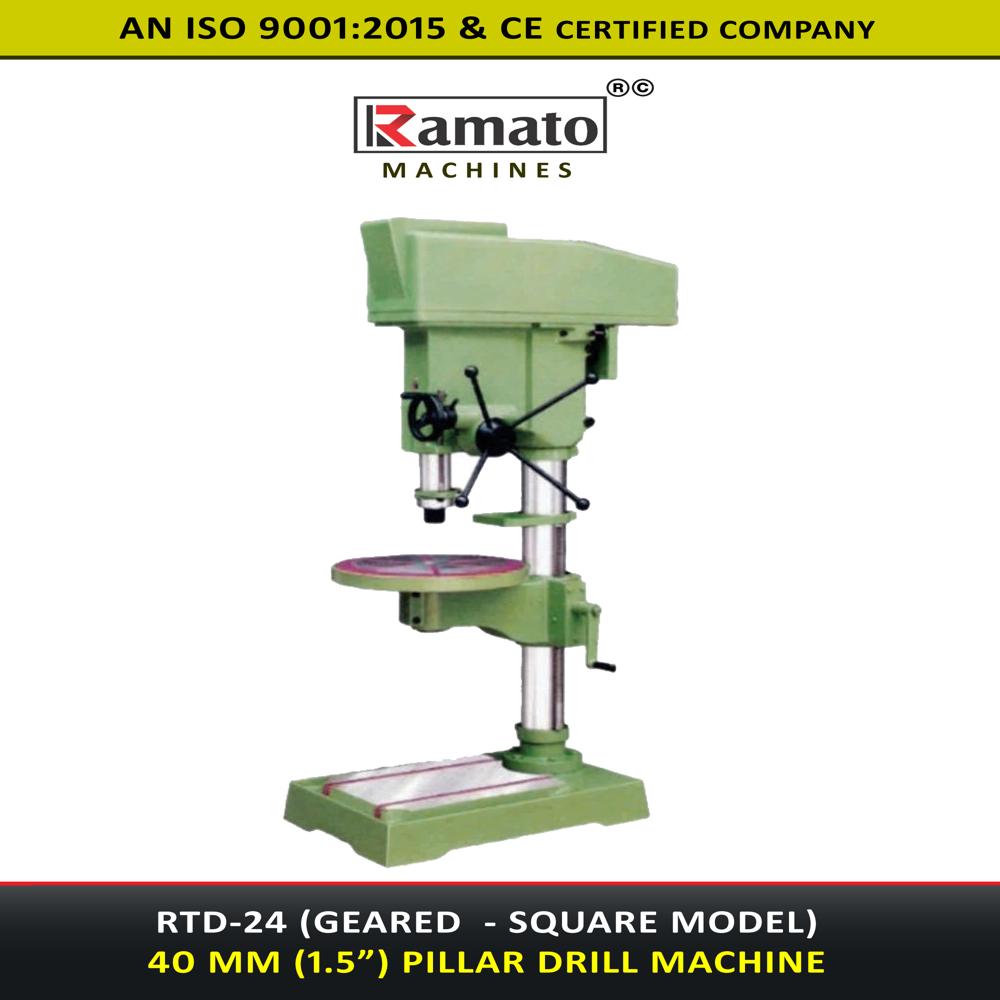

40 MM Industrial Drilling Machine
40 MM Industrial Drilling Machine
40 MM Industrial Drilling Machine
40 MM Industrial Drilling Machine
40 MM Industrial Drilling Machine
40 MM Industrial Drilling Machine
40 MM Industrial Drilling Machine
40 MM Industrial Drilling Machine
40 MM Industrial Drilling Machine
40 MM Industrial Drilling Machine
40 MM Industrial Drilling Machine
40 MM Industrial Drilling Machine

40 MM Industrial Drilling Machine

Price 23000.0 INR/ Unit

MOQ : 1 Unit

40 MM Industrial Drilling Machine Specification

  • Frequency
  • 50 Hz
  • Table Size
  • 375 x 375 mm
  • Motor Power
  • 2 HP
  • Condition
  • New
  • Cutting Area
  • 40 mm max diameter
  • Dimension (L*W*H)
  • 900 x 550 x 1600 mm
  • Spindle Speed
  • 80-1200 RPM (Multiple Speed)
  • Noise Level
  • Low noise operation
  • Features
  • ISO 9001:2015 & CE Certified, Heavy-duty design, Geared mechanism, Adjustable table height
  • Diameter
  • 40 mm (1.5 inches)
  • Machine Type
  • Pillar Drill (Geared, Square Model)
  • Product Type
  • Industrial Drilling Machine
  • Material
  • Heavy-duty cast iron and steel
  • Computerized
  • No
  • Automatic Grade
  • Manual
  • CNC Or Not
  • Not CNC
  • Control System
  • Manual Controls (Geared)
  • Voltage
  • 415V (Three Phase)
  • Power
  • 2 HP
  • Power Source
  • Electric
  • Weight (kg)
  • Approx. 250 kg
  • Capacity
  • 40 mm drilling capacity
  • Color
  • Green
  • Usage & Applications
  • Suitable for drilling, tapping, reaming in workshops and industries
  • Table Movement
  • Manual - Up/Down, Rotation
  • Max. Distance from Spindle to Table
  • 610 mm
  • Drive Type
  • Geared Drive
  • Spindle Travel
  • 200 mm
  • Safety Features
  • Overload Protection, Emergency Stop
  • No. of Spindle Speeds
  • 8
  • Column Diameter
  • 92 mm
  • Max. Distance from Spindle to Base
  • 950 mm
  • Model Number
  • RTD-22 (Geared - Square Model)
  • Base Size
  • 540 x 400 mm
  • Installation
  • Floor Mounted
  • Cooling System
  • Optional
  • Drilling Depth
  • 200 mm



About 40 MM Industrial Drilling Machine

40 MM Industrial Drilling Machine manufacturer in Rajkot, Gujarat, India. Rajlaxmi Machine Tools offers Ramato, HMP & Roent heavy-duty drilling machines for industrial metalworking, fabrication and engineering.

Heavy-Duty Construction for Industrial Performance

Built from high-grade cast iron and steel, the RTD-22 boasts a solid, floor-mounted design with a 92 mm diameter column. Its heavy build ensures stability and longevity in high-use environments, providing consistent results for drilling, tapping, and reaming operations up to a 40 mm diameter.


Flexible Operation and Reliable Control

With a manual up/down and rotational table, operators can easily position workpieces for precise drilling. The geared drive mechanism ensures uniform speed, while eight selectable spindle speeds (80-1200 RPM) enhance versatility for different materials and applications.


Comprehensive Safety and Certification Features

Operator safety is prioritized through integrated overload protection and an emergency stop feature. The machine is delivered new and is both ISO 9001:2015 and CE certified, assuring compliance with international safety and quality standards.

FAQ's of 40 MM Industrial Drilling Machine:


Q: How do I operate and adjust the table on the RTD-22 drilling machine?

A: The RTD-22 features a manually adjustable table that can move up and down as well as rotate. Simply use the provided handwheels and levers to set the desired height and angle, allowing for optimal positioning of your workpiece during drilling and related operations.

Q: What are the key benefits of the geared drive mechanism in this machine?

A: The geared drive mechanism provides consistent torque and efficient power transmission, resulting in smooth operation and minimal vibration. It also allows for quick adjustments between eight spindle speeds (80-1200 RPM), enhancing productivity and versatility for various materials.

Q: When should the optional cooling system be considered for use?

A: The optional cooling system is recommended when performing prolonged or heavy-duty drilling tasks, particularly on hard materials. It helps dissipate heat, extends tool life, and maintains machining accuracy, making it valuable in intensive production environments.

Q: Where is the RTD-22 most commonly installed and used?

A: The RTD-22 is typically installed on workshop or factory floors due to its floor-mounted design and robust weight of approximately 250 kg. It is best suited for industrial settings where high-capacity, reliable drilling, tapping, and reaming are required.

Q: What safety features does the RTD-22 include?

A: This machine incorporates overload protection and an emergency stop button, ensuring rapid shutdown in case of any hazard. These features enhance operator safety and reduce the risk of damage during unexpected events.

Q: How does the certification of the machine benefit users?

A: Being ISO 9001:2015 and CE certified means the RTD-22 meets rigorous international quality and safety standards. Users benefit from improved reliability, safety, and compliance for both domestic and export applications.
