Price 23000.0 INR/ Unit

MOQ : 1 Unit

1.5 Inch Drilling Machine Specification

  • Cutting Area
  • Suitable for up to 40 mm Diameter Drilling
  • Spindle Speed
  • 80 - 1200 RPM (Variable)
  • Frequency
  • 50 Hz
  • Dimension (L*W*H)
  • Overall Height: ~1600 mm
  • Condition
  • New
  • Diameter
  • Maximum Drilling Diameter: 40 mm (1.5 inch)
  • Features
  • Geared, Square Model, ISO & CE Certified, Robust Body, Adjustable Table
  • Motor Power
  • 2 HP
  • Noise Level
  • Low
  • Machine Type
  • Geared Pillar Drill (Square Model)
  • Table Size
  • 400 x 400 mm (approx.)
  • Product Type
  • Pillar Drill Machine
  • Material
  • Cast Iron, Steel Components
  • Computerized
  • No
  • Automatic Grade
  • Manual
  • CNC Or Not
  • No
  • Control System
  • Manual Lever
  • Voltage
  • 415 V / 380 V
  • Power
  • 2 HP
  • Power Source
  • Electric
  • Weight (kg)
  • Approx. 250 kg
  • Capacity
  • Drilling Capacity: 40 mm (1.5 inch)
  • Color
  • Green
  • Usage & Applications
  • Industrial Drilling, Workshop Use, Metal and Wood Drilling
  • Column Diameter
  • 85 mm
  • Base Size
  • 660 x 410 mm
  • Spindle Travel
  • Approx. 210 mm
  • Model
  • RTD-23 C
  • Max Distance Between Spindle & Base
  • 900 mm
  • Paint Finish
  • Industrial Grade
  • Type of Transmission
  • Geared
  • Max Distance Between Spindle & Table
  • 480 mm
  • Table Adjustment
  • Rack & Pinion
  • Coolant Provision
  • Yes



About 1.5 Inch Drilling Machine

1.5 Inch Drilling Machine manufacturer in Rajkot, Gujarat, India. Rajlaxmi Machine Tools offers Ramato, HMP & Roent heavy-duty drilling machines for metal drilling, fabrication and industrial applications.

Key Features for Heavy-Duty Tasks

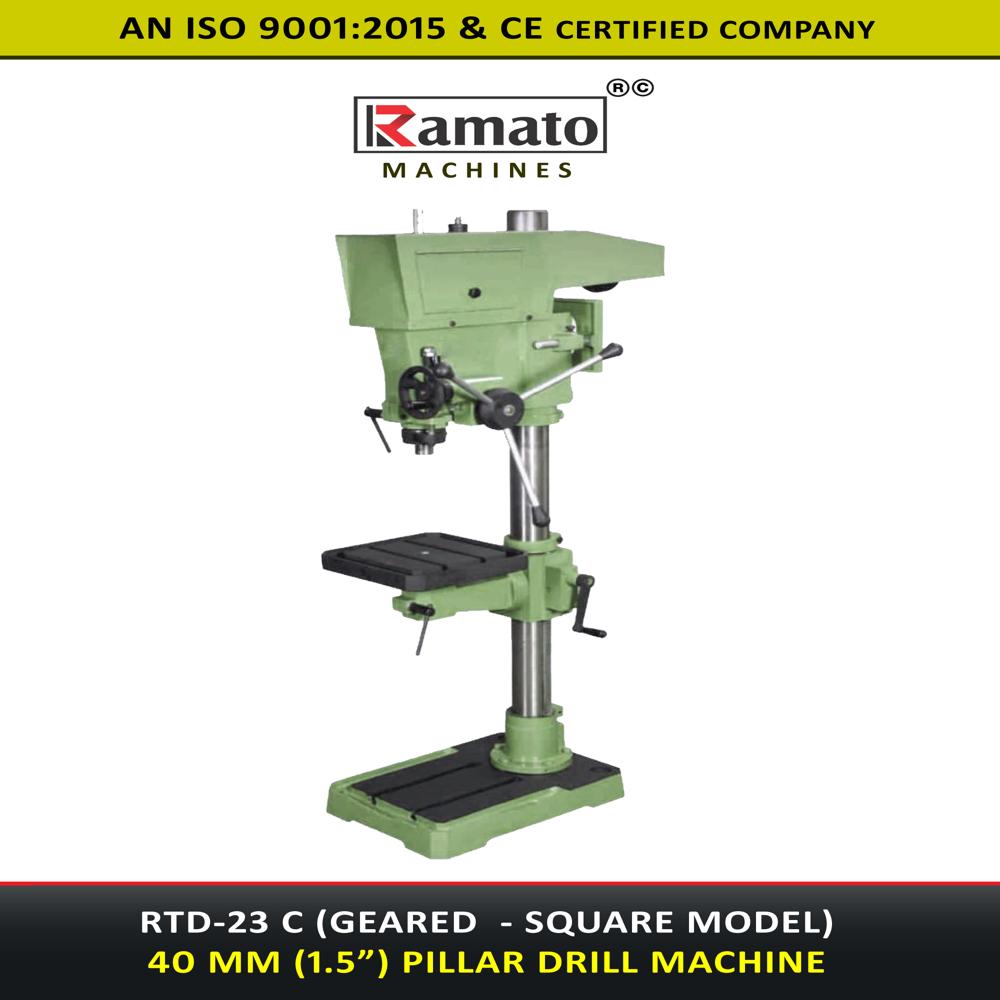

The RTD-23 C Drilling Machine stands out with its geared transmission, robust cast iron and steel construction, and an adjustable square table sized at approximately 400 x 400 mm. Designed to handle up to a 40 mm drilling diameter, the machine ensures accurate results whether drilling metal or wood. Integrated coolant provision helps dissipate heat during extended use, while the low noise level creates a comfortable working environment.


Designed for Versatile Industrial Use

Engineered for workshops and industrial settings, the RTD-23 C offers manual controls via a simple lever system and easy table adjustment through rack and pinion mechanics. Its sturdy base and ISO & CE certification provide stability and safety for demanding applications. The overall compact design coupled with a powerful 2 HP motor supports a wide range of drilling tasks, ensuring optimal productivity and reliability.

FAQ's of 1.5 Inch Drilling Machine:


Q: How is the RTD-23 C drilling machine operated and controlled?

A: The RTD-23 C is manually operated using a lever-based control system. Table adjustments are performed via a rack and pinion mechanism, allowing the user to set the ideal working height and position easily.

Q: What types of materials can be drilled using this machine?

A: This drilling machine is suitable for a range of materials, including various metals and wood. Its robust build and adjustable speed allow it to efficiently handle industrial tasks requiring up to a 40 mm diameter hole.

Q: Where is the RTD-23 C best utilized?

A: The machine is designed for industrial and workshop environments, making it ideal for metalworking shops, manufacturing units, and woodworking facilities that demand precision and heavy-duty performance.

Q: What are the benefits of the geared transmission feature?

A: The geared transmission ensures consistent torque and controlled speed at different settings, enhancing drilling precision and allowing users to optimally match the speed to the material and bit size being used.

Q: How do I maintain the coolant provision in this machine?

A: The coolant system is integrated for heat management during prolonged drilling operations. Regular checks to ensure the coolant supply is sufficient and the system is free from obstructions will prolong the machine's lifespan and maintain drilling accuracy.

Q: What safety features are included with the RTD-23 C?

A: This model features a robust, ISO & CE-certified construction for operator safety. Its stable base, manual operation, and industrial-grade paint further ensure a secure and reliable working environment.
